Heath Zenith 5838 Manual de usuario

To see operational and troubleshooting information and videos,

go to www.hzsupport.com

Dated receipt required for warranty replacement.

FEATURES

• Bright, energy saving LED light

• Automatically comes on when motion is detected.

UNPACKING

Be sure to remove all contents from packaging and verify

all items are present before assembling this light xture.

is package includes the following items:

• Security Light

• Owner’s Manual

• Mounting Hardware

Motion Sensor

Light Control

Model: 5838

HARDWARE INCLUDED

Note: Six mounting bracket screws are included. e installation will only require two. Discard the unused mounting

bracket screws after installation.

Plastic plug #6 Mounting Bracket #8 Mounting Bracket

Screw (x2) Screw (x2)

Mounting Bolt Mounting Bolt (Pre-Installed in Light Fixture)

FRONT

Mounting Bracket Mini Screwdriver

2 To see operational and troubleshooting information and videos,

go to www.hzsupport.com

210008-02

IMPORTANT SAFETY AND INSTALLATION INFORMATION

Before installing security light, read all instructions carefully and keep owner’s manual for future reference.

• WARNING: To prevent electric shock, ensure that the power is disconnected before installation.

• WARNING: Risk of re. Keep the lamp heads at least 2 in. from combustible materials.

• WARNING: Shock hazard.For eave mounting,the center of the junction box must be located at least 4 1/2" (11.5 cm)

from the outside edge of the eave.

• CAUTION: To avoid water damage and the risk of electrical shock, the motion sensor controls must be facing the

ground when the installation is complete.

• CAUTION: Keep the lamp heads 30° below horizontal to avoid water damage and electrical shock.

• CAUTION: Burn hazard. Allow the light xture to cool before touching.

• NOTICE: Do not connect this light xture to a dimmer switch or timer.

• is light xture requires 120-volts AC.

• is light xture must be properly grounded.

• Some electrical codes require installation by a qualied electrician.

• If you want to use Manual Mode, the light xture must be wired through a switch.

• is xture is designed for outdoor installation and should be mounted to a wall or eaves.

• To achieve best results,this xture should be mounted 8 feet (2.4 meters) above the ground.Note: If xture is mounted

higher than 8 ft. (2.4 meters), aiming the sensor down will reduce coverage distance.

e motion sensor on this light xture detects “motion” by the movement of heat across the coverage area.e motion

sensor is more sensitive to the movement of heat moving across the coverage area and less sensitive to the movement

of heat directly towards it.

Note: Light xture and sensor should be mounted as shown above when installed (depending upon type of installation).

Least Sensitive Most Sensitive

Wall Mount Eave Mount

Motion Motion

Sensor

1 MIN 5 MIN

TEST 20 MIN

L M H

ON TIME

SENS.

THIS SIDE UP

1 MIN 5 MIN

TEST 20 MIN

L M H

ON TIME

SENS.

THIS SIDE UP

To see operational and troubleshooting information and videos, 3

go to www.hzsupport.com

210008-02

INSTALLATION

WARNING: Turn power o at circuit breaker or fuse.

Place tape over circuit breaker switch and verify power is

o at the xture.

is xture comes with a “Easy Install” mounting plate. It is pre-

assembled on the xture for shipping.

1. Unscrew the large mounting bolt connecting the light xture to

themountingplateand removethemounting plate (see Figure1).

e mounting bolt is designed to stay in the light xture.

2. Install the mounting bracket with the stamped word “FRONT”

facing away from the junction box (see Figure 2).Use the mount-

ing bracket screws that best t the junction box.

3. Route the junction box wires through the hole in the mounting

plate (see Figure 3).

4. Place the mounting plate against the junction box (see Figure3).

• Wall Mounted – e “UP” arrow must point upward

• EaveMounted–e“UP”arrowmustpointtowardthebuilding

5. Insert the small mounting bolt through the mounting plate hole

located below the threaded hole.read the bolt into the center

holeofthemountingbracket (see Figure3).Tighten bolt securely.

WIRING

Insert the junction box wires into the side of the terminal block and

aroundthe groundscrew(seeFigure4).Tightenterminalblockscrews

and ground screw to secure wires.

• White to “N (White)”

• Black to “L (Black)”

• Bare or green ground wire to GND (ground) screw.

FINAL ASSEMBLY

1. Double check that all wiring connections are securely connected.

2. Align the bottom edge of the light xture with the bottom edge

of the mounting plate.Tilt the light xture toward the mounting

plate, making sure the light xture is centered on the mounting

plate.

IMPORTANT: e two pins on the rear of the light xture must

insert into the terminal block for the light to work.

3. Tightenthemountingboltsecurelybeingcarefulnottoovertighten

(see Figure 5).

Figure 1

Figure 2

Figure 3

Figure 4

FRONT

N (White/

Blanc/Blanco)

GND

Terre

Tierra

UP/Haut/Arriba

L (Black/

Noir/Negro)

FRONT

N (White/

Blanc/Blanco)

GND

Terre

Tierra

UP/Haut/Arriba

L (Black/

Noir/Negro)

N (White/

Blanc/Blanco)

GND

Terre

Tierra

UP/Haut/Arriba

L (Black/

Noir/Negro)

4 To see operational and troubleshooting information and videos,

go to www.hzsupport.com

210008-02

IMPORTANT:

• If wall mounted, make sure the xture is mounted with the

sensor below the lamp heads.

• If eave mounted, mount the xture with sensor facing away

from the house wall.Rotate the sensor so the controls face the

ground.

4. Push the plastic plug rmly into the mounting bolt hole on the

light xture (see Figure 5).

5. Caulkaroundmounting plate and mountingsurfacewithsilicone

weather sealant (see Figure 6).

TESTING AND ADJUSTMENTS

Figure 6

Figure 7

Figure 8

Figure 5

CAUTION:To avoid water damage and risk of electrical

shock, motion sensor controls must be facing the ground

when installation is complete.

1. Turn on the circuit breaker and light switch.

Note: e motion sensor has a 1 minute warm up period before

it will detect motion. When rst turned on wait 1 minute.

2. Slide the sensitivity (SENS) switch to the “L” position and the

ON-TIME switch to the TEST position (see Figure 7).

3. Walk through the coverage area noting where you are when the

lights turn on. Also,the red LED behind the motion sensor lens

will ash several times when motion is detected (see Figure 8).

4. If needed, gently grasp the motion sensor and move it from side

to side or up and down to adjust the detection zone.

5. If needed,gently grasp the lamp heads and move them from side

to side or up and down to adjust the light coverage area.

6. Adjust the sensitivity (SENS) switch as needed (“L”,“M”, “H”).

Sensitivity set too high may increase false triggering.

1 MIN 5 MIN

TEST 20 MIN

L M H

ON TIME

SENS.

To see operational and troubleshooting information and videos, 5

go to www.hzsupport.com

210008-02

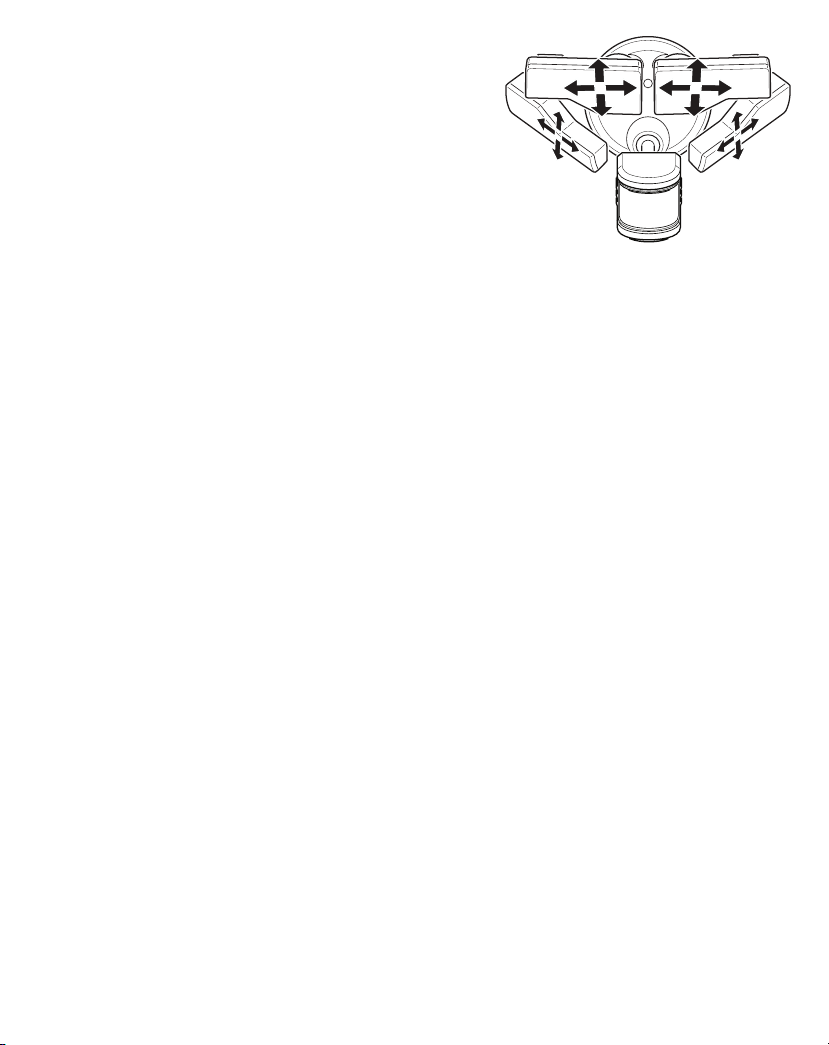

LAMP HEAD ADJUSTMENT

islight is designedwithfour adjustable lampheads.e lampheads

can be used as two lamp heads or can be separated to help spread the

light coverage.Caution should be taken not to rotate the lamp heads

past the built-in stops.

1. Gently grasp the top lamp heads and move them to cover the

desired area.

2. Gently grasp the bottom lamp heads and move them to cover

the desired area.

FINAL SETUP

Set the amount of ON-TIME you want the lights to stay on after all

motion has stopped (1, 5, or 20 minutes).

IMPORTANT CONSIDERATIONS

AVOID AIMING THE SENSOR AT:

• Below are examples of objects that might produce heat and may cause the motion sensor to trigger:

• Pools of Water • Air Conditioners • Dryer Vents

• Animals • Heating Vents • Automobile Trac

If you suspect that a heat source of this type is triggering the motion sensor, reduce the sensitivity.

• Areas where pets or trac may trigger the motion sensor.

• Nearby large, light-colored objects reecting light may trigger the shut-o feature. Do not point other lights at the

motion sensor.

SEASONAL CHANGES:

e motion sensor works by sensing temperature changes across its eld of view. e closer the surrounding tempera-

ture is to a person’s body heat,the less sensitive the sensor will appear.e greater the temperature dierence, the more

sensitive the sensor will appear. e sensitivity (SENS) switch might need to be readjusted as the outside temperature

changes for the dierent seasons.is is a normal part of the light sensor’s operation.

THIS SIDE UP

6 To see operational and troubleshooting information and videos,

go to www.hzsupport.com

210008-02

TROUBLESHOOTING GUIDE

SYMPTOM POSSIBLE CAUSE SOLUTION

e light will not come on. 1. Light switch is turned o.

2. Fuse is blown or circuit breaker is turned o.

3. Daylight turn-o (photocell) is in eect.

4. e circuit wiring is incorrect, if this is a new

installation.

5. e motion sensor is aimed in the wrong

direction.

6. e outside air temperature is close to the

same as a person’s body heat.

1. Turn light switch on.

2. Replace fuse or turn circuit breaker on.

3. Recheck after dark.

4. Verify wiring is correct.

5. Re-aim the motion sensor to cover the

desired area.

6. Increase the “SENS”setting. See

Seasonal

Changes

on page 5 for more information.

e light comes on during

the day. 1. e motion sensor may be installed in a

relatively dark location.

2. e “ON-TIME” switch is in the “TEST”

position.

1. e light xture is operating normally under

these circumstances.

2. Set the “ON-TIME” switch to the 1, 5, or 20

minute setting.

MANUAL MODE

Manualmodeoverrides themotionsensorand“ON-TIME”

control so the light will operate full bright.is feature only

works at night and only for one night at a time.e motion

sensor will reset to motion sensing mode after 6 hours or

sunrise,whichevercomesrst.Manual mode canbetoggled

on and o using a wall switch. Note: If the power to the

light xture is o for more than 5 seconds, allow the mo-

tion sensor to warm up prior to switching to manual mode.

• Ensure the power to the light is ON and the sensor has

warmed up (60 seconds).

• To turn manual mode on, switch the power OFF–ON–OFF–ON at the wall switch within 3 seconds.

• To turn manual mode o, switch the power OFF–ON–OFF–ON at the wall switch within 3 seconds.

IMPORTANT: If manual mode does not turn ON or OFF, use a slower pace turning the power ON and OFF at the wall

switch while staying within 3 seconds.

SPECIFICATIONS

Range ...................................................Up to 70 ft. (21 m) [varies with surrounding temperature].

Sensing Angle.......................................Up to 240°

Power Requirements.............................120 VAC, 60 Hz

Electrical load.......................................34 Watts

Operating Modes .................................TEST, MOTION ACTIVATED, and MANUAL MODE

ON-Timer............................................1, 5, 20 minutes

Test Timer............................................5 Seconds

Manual Mode Timer............................Maximum 6 Hours

Sensitivity (SENS) ...............................“L”, “M”, “H”

LED Lumens .......................................2600

OFF OFFON ON

Less than 3 seconds

To see operational and troubleshooting information and videos, 7

go to www.hzsupport.com

210008-02

SYMPTOM POSSIBLE CAUSE SOLUTION

e light comes on for no

apparent reason. 1. e motion sensor may be sensing small

animals or automobile trac.

2. e “SENS” switch is set too high.

3. e outside temperature is much warmer or

cooler than a person’s body heat (summer or

winter).

4. e light xture is wired through a dimmer

or timer.

1. Decrease the “SENS”setting or reposition

the motion sensor.

2. Decrease the “SENS” setting.

3. Decrease the “SENS”setting. See

Seasonal

Changes

on page 5 for more information.

4. Do not use a dimmer or timer to control the

light xture. Replace the dimmer or timer

with a standard on/o wall switch.

e lights stay on

continuously. 1. e motion sensor may be picking up a heat

source like an air vent, dryer vent, or brightly

painted, heat-reective surface.

2. e motion sensor is in manual mode.

3. e light xture is wired through a dimmer

or timer.

4. e light xture is on the same circuit as a

motor, transformer, or uorescent bulb.

1. Decrease the “SENS”setting or reposition

the motion sensor.

2. Set ON-TIME switch to 1, 5, or 20 minutes.

Manual Mode

instructions on page 6

to reset.

3. Do not use a dimmer or timer to control the

light xture. Replace the dimmer or timer

with a standard on/o wall switch.

4. Install the light xture on a circuit without

motors, transformers, or uorescent bulbs.

e lights ash on and o. 1. Heat or light from the lamp heads may be

turning the motion sensor on and o.

2. Heat is being reected from other objects

and may be turning the motion sensor on

and o.

3. e motion sensor is in “TEST”mode and

warming up.

4. A utility company has installed a Smart

Meter device close to the light xture.

1. Reposition the lamp heads away from the

motion sensor.

2. Decrease the “SENS”setting or reposition

the motion sensor.

3. While in TEST mode, the light only stays on

for 5 seconds. Set ON-TIME switch to 1, 5,

or 20 minutes.

4. e Smart Meter device can create an

interference with motion sensing lights.

Relocate the light xture away from this type

of meter.

e lights ash once then

stay o in manual mode. e motion sensor is detecting light from the

lamp heads. Reposition the lamp heads to keep the area below

the motion sensor relatively dark.

8 To see operational and troubleshooting information and videos,

go to www.hzsupport.com

210008-02

TECHNICAL SERVICE

Please call 1-800-858-8501 (English speaking only) for assistance before returning product to

store.

If you experience a problem, follow this guide. You may also want to visit our Web site at: www.hzsupport.com. If the

problem persists, call* for assistance at 1-800-858-8501 (English speaking only), 8:00 AM to 5:00 PM CST (M-F).

You may also write* to:

HeathCo LLC

P.O. Box 90045

Bowling Green, KY 42102-9045

ATTN: Technical Service

* If contacting Technical Service, please have the following information available: Model Number, Date of Purchase,

and Place of Purchase.

No Service Parts Available for this Product

Please keep your dated sales receipt, it is required for all warranty requests.

To see operational and troubleshooting information and videos, 9

go to www.hzsupport.com

210008-02

FIVE YEAR LIMITED WARRANTY

is is a “Limited Warranty”which gives you specic legal rights.You may also have other rights which vary from

state to state or province to province.

For a period of ve years from the date of purchase,any malfunction caused by factory defective parts or workman-

ship will be corrected at no charge to you.

Not Covered - Repair service,adjustment and calibration due to misuse,abuse or negligence,light bulbs,batteries,

and other expendable items are not covered by this warranty. Any damage to the light xture resulting from the use

of chemicals or a pressure washer machine are not covered by this warranty. Unauthorized service or modication

of the product or of any furnished component will void this warranty in its entirety.is warranty does not include

reimbursement for inconvenience, installation, setup time, loss of use, unauthorized service, or return shipping

charges.HeathCo LLC reserves the right to discontinue products and to change specications at any time without

incurring any obligation to incorporate new features in products previously sold.

is warranty covers only HeathCo LLC assembled products and is not extended to other equipment and com-

ponents that a customer uses in conjunction with our products.

THISWARRANTYISEXPRESSLYINLIEUOFALLOTHERWARRANTIES,EXPRESSORIMPLIED,

INCLUDING ANY WARRANTY,REPRESENTATION OR CONDITION OF MERCHANT ABILITY

OR THAT THE PRODUCTS ARE FIT FOR ANY PARTICULAR PURPOSE OR USE, AND SPECIFI-

CALLY IN LIEU OF ALL SPECIAL, INDIRECT,INCIDENTAL, OR CONSEQUENTIAL DAMAGES.

REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE CUSTOMER AND THERE

SHALL BE NO LIABILITY ON THE PART OF HEATHCO LLC FOR ANY SPECIAL, INDIRECT,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO ANY

LOSS OF BUSINESS OR PROFITS, WHETHER OR NOT FORESEEABLE. Some states or provinces do

not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion

may not apply to you.

Please keep your dated sales receipt, it is required for all warranty requests.

10 Para ver más información y vídeos sobre operación y resolución de problemas,

visite www.hzsupport.com

210008-02

Control de luz del

detector de movimiento

Modelo: 5838

Se necesita elrecibo fechadopara reemplazo bajogarantía.

CARACTERÍSTICAS

• Luz LED brillante de bajo consumo de energía

• Se enciende automáticamente al detectar movimiento.

DESEMPAQUE

Asegúrese de retirar todo el contenido del empaque y

vericar que todos los elementos estén incluidos antes de

ensamblar este aparato de luz. Este paquete incluye los

siguientes elementos:

• Luz de seguridad

• Manual del propietario

• Ferretería de montaje

FERRETERÍA INCLUIDA

Nota: Se incluyen seis tornillos para el soporte de montaje. La instalación sólo requiere dos. Deseche los tornillos del

soporte de montaje no utilizados luego de la instalación.

Enchufe de Tornillo n°6 de soporte Tornillo n°8 de soporte

plástico de montaje (x2) de montaje (x2)

Tornillo de montaje Tornillo de montaje (Preinstalado en el aparato)

FRONT

Soporte de montaje Mini-destornillador

Tabla de contenidos

Idiomas:

Otros manuales de Accesorios de Heath Zenith

Heath Zenith

Heath Zenith Lighted Wireless Push Button Accessory Manual de usuario

Heath Zenith

Heath Zenith Hardwired Electronic Chime 598-1313-00 Manual de usuario

Heath Zenith

Heath Zenith SL-7464-03 Manual de usuario

Heath Zenith

Heath Zenith 7309 Manual de usuario

Heath Zenith

Heath Zenith HZ-1802-BK-A Manual de usuario

Heath Zenith

Heath Zenith Wireless Chime 6153/62/71/72 Manual de usuario

Heath Zenith

Heath Zenith SL-6166 Manual de usuario

Heath Zenith

Heath Zenith Wireless Mechanical Battery Operated Chime... Manual de usuario

Heath Zenith

Heath Zenith Wireless Dual Push Button Accessory SL-6200 Manual de usuario

Heath Zenith

Heath Zenith DualBrite Replacement Sensor Head 2LBN3 Manual de servicio

Heath Zenith

Heath Zenith Notifi Elite Manual de usuario

Heath Zenith

Heath Zenith Wireless Mechanical Chime 598-1123-02 Manual de usuario

Heath Zenith

Heath Zenith Hardwired Mechanical Chime 598-1112-05 Manual de usuario

Heath Zenith

Heath Zenith 121AC Manual de usuario

Heath Zenith

Heath Zenith Wireless Push Button Accessory 598-1151-02 Manual de usuario

Heath Zenith

Heath Zenith Notifi elite Manual de usuario

Heath Zenith

Heath Zenith Wireless Christmas Chime 598-1127-03 Manual de usuario

Heath Zenith

Heath Zenith 598-1215-01 Manual de usuario

Heath Zenith

Heath Zenith 7306 Manual de usuario

Heath Zenith

Heath Zenith 7762 Manual de usuario

Heath Zenith

Heath Zenith Notifi Elite Manual de usuario

Heath Zenith

Heath Zenith 598-1112-04 Manual de usuario

Heath Zenith

Heath Zenith DualBrite Manual de usuario

Heath Zenith

Heath Zenith Replacement Motion Sensor SH-5407 Manual de usuario

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Siemens

Siemens QSA2700D Manual del operador

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

Panasonic

Panasonic HG-T Series Manual de usuario

IFM Electronic

IFM Electronic Efector 250 Series Guía de referencia

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario
