Hand Held Products QUICK CHECK 890 Manual de usuario
ª
Quick Start Guide
快速入门指南
クイック
スタート ガイド
Quick Check® 890
Bar Code Verifier
Quick Check® ImageData
Disclaimer
Hand Held Products, Inc. (“Hand Held Products”) reserves the right to make
changes in specifications and other information contained in this document
without prior notice, and the reader should in all cases consult Hand Held
Products to determine whether any such changes have been made. The
information in this publication does not represent a commitment on the part of
Hand Held Products.
Hand Held Products shall not be liable for technical or editorial errors or
omissions contained herein; nor for incidental or consequential damages
resulting from the furnishing, performance, or use of this material.
This document contains proprietary information that is protected by copyright. All
rights are reserved. No part of this document may be photocopied, reproduced,
or translated into another language without the prior written consent of Hand
Held Products.
©2006 Hand Held Products, Inc. All rights reserved.
Web Address: www.handheld.com
Microsoft Pocket PC 2002, Windows, Windows NT, Windows 2000, Windows
ME, Windows XP, ActiveSync, Outlook, and the Windows logo are trademarks
or registered trademarks of Microsoft Corporation.
The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc.
Note: Software screens included in this document are in English only and are
included for reference only. They may be different from the screen that
displays on your terminal.
附注：本文档中显示的软件屏幕只有英文版且仅供参考。它们可能会与 端上的
显示屏幕有所差别。
拲
:
本書に含まれているソフトウェア画面は英語でのみ、かつ参照目的での
み 載されています。ご使用の端末に表示される画面とは異なる場合が
あります。
㍮➕
!
ᘣ⭠ᗔᤥ㨍嶁㍨嗁⊊⚭嶁ュ䈧㪌嘬㍛
䆲ᧇᔒ⼣䐙ḑ▕儓减⻂ᓑᗔᤥ㨍⊊廁嶁ュ웍巤䐙傷᩵웍៲ᄽᯌ䳥⢜ᘅ㮮
䚋ᒓ☝⭋䡰刐廁㨍ᄽᤦᾭᤥ㨍⢜刐ᨥ傳傎ᓑ㣿⚭ᩐᤥ䞃ᄾ
䆲ᧇᵡ⼣ᗔᤥ㨍⊊廁嶁ュᓑᘅ㮮ᒓ☝◷庅彡䢰∏ᩐ⓸⮄㍛嚠ᙧ웜䐙㴂㪄
ⶏ⓸⮄㪄勧Ⳉ웍⡏䅑᧹ᛢ㮮웍ᒬ⮿ᰊ䡹㞧⓸⮄Ⳉⰿ☝䔂䔒ᘅ㮮ᄾ
ᣓ庋㍛嚠ᙧ웍⦍ᘣ嶁ᙧ倕∠ᗢ⿳ᓑ㞧䑠嶁ᙧᄾᗔᤥ㨍⊊廁嶁ュ庎♓
ᩝ㍛嚠ᙧ⢜⑫⿳ᄽ䁗⇾ᩐ報㳈㮮嶁㍨嗁⊊⚭嶁ュ傳ᜟᓑ⓸⮄ᄾ
E-1
Quick Check 890 Verifier
The Quick Check® 890 Verifier System (QC890) is a professional quality control
system for verifying the readability and standards compliance of printed linear
bar code symbols. This verification system implements an integrated approach
that consists of the Quick Check 890 Verifier unit and the Quick Check®
ImageData (QCID) software.
Quick Check ImageData
The Quick Check ImageData (QCID) program was designed for use in
conjunction with the QC890 Verifier. Installation of the QCID software for your
appropriate operating system is included on the CD-ROM that accompanied
your verifier.
The QCID is the graphical interface to the Quick Check 890 Verifier. The
verification results can be saved for later reference.
Unpacking the QC890 Verifier
After you open the shipping carton containing the product, take the following
steps:
• Check to make sure everything you ordered is present.
• Save the shipping container for later storage or shipping
• Check for damage during shipment. Report damage immediately to the
delivery carrier.
Note: The battery may be in an unknown charge state at delivery. We
recommend that you charge the battery prior to use.
Installation of Quick Check ImageData
To install the Quick Check ImageData, insert the CD and follow the instructions
that display.
Physical Connections
A DC power barrel on the back of the unit connects to a power supply for external
power and battery charging.
The DB9 port on the unit connects to the pen wand, mouse wand, or customized
imager. If you are using any of these device, refer to the QC890 Verifier
User’s
Guide for additional information.
The RJ45 ten pin connector provides the RS-232 serial or USB interface to the
host. Refer to "USB Communication Interface" on page 2 and "RS-232 Serial
Communication Interface" on page 3 for details on connecting your unit.
E-2
Communication Interfaces
The QC890 Verifier system supports the following interfaces: USB, RS-232, and
Bluetooth®.
USB Communication Interface
For the USB interface, the Hand Held Products CDC-ACM driver must be
installed prior to using the QC890 Verifier. This driver is copied to the following
directory during install:
<install location>/Drivers/USBCOMPortEmulation/hhpcdc.inf
The default <install location> is C:\Program Files\Hand Held Products\Quick
Check ImageData\drivers\USBCOMPortEmulation.
Note: Please review the file, readme.htm, in the install location prior to running
the QCID.
Connect the QC890 Verifier to the host as shown in the illustration below.
USB COM Port Emulation
Scan the following code to program the QC890 Verifier to emulate an RS-232-
based COM Port. After connecting the QC890 Verifier and upon successful
installation of the USB driver, the driver will use the next available COM Port. All
QC890 Verifiers that have been configured for USB COM Port emulation use this
port. USB COM Port Emulation is the default interface for the QC890 Verifier.
Note: No additional configuration (e.g., baud rate) is necessary.
1
2
* USB COM Port Emulation
E-3
RS-232 Serial Communication Interface
An RS-232 interface requires no additional drivers. Connect the QC890 Verifier
to the host as shown in the illustration below.
RS-232 Selections
Scan the following bar code to select RS-232 communications.
The RS-232 settings supported are:
Bluetooth
The Bluetooth implementation uses the SPP (Serial Port Profile) profile to
connect the QC890 Verifier to the host system. The QC890 SPP profile is a
standard Bluetooth profile implementation. This allows the QC890 system to be
compatible with most Bluetooth hardware. The QC890 unit can be used with
existing Bluetooth radios built into laptops, PCs, or PDAs.
Baud Rate: 115,200
Parity: None
Data Bits: 8
Stop Bits: 1
Flow Control: None
RS-232 Communication
E-4
Using the QC890 Verifier with Bluetooth Devices
Note: If you chose to use the USB or RS-232 interfaces, the Bluetooth
communication interface automatically turns off.
The QC890 Verifier may be used with Bluetooth devices (e.g., laptop, PC, PDA,
etc.). Scanning the Bluetooth bar code below turns the Bluetooth option on in the
QC890 Verifier.
Default = Off.
Note: If you turn the Bluetooth option on, scan the appropriate bar code that
follows to connect to a PC/Laptop or PDA/M&W device.
To establish a Bluetooth connection to a PC/Laptop, scan the bar code below,
follow the instructions supplied with your Bluetooth device to locate the QC890
Verifier, and connect to it. If you go out of range with your QC890 Verifier, the
QC890 Verifier automatically reconnects to the Bluetooth device once you come
back in range.
When Bluetooth communication is enabled, the default is PC/
Laptop.
To establish a Bluetooth connection to a PDA or Hand Held Products Mobility
Systems device, scan the bar code below, follow the instructions supplied with
your Bluetooth device to locate the QC890 Verifier, and connect to it. If you go
out of range with your QC890 Verifier, the QC890 Verifier will not re-connect. It
will be up to the host device to re-connect to the QC890 Verifier.
Bluetooth On
* Bluetooth Connection - PC/Laptop
Bluetooth Connection - PDA/M&W Device
E-5
Example of Bluetooth QC890 Device Search Result
Once you initiate a search for devices, a display similar to the one below appears
on the host device. The serial number display allows you to confirm that the
correct QC890 Verifier has been found. Refer to the Quick Check 890 Verifier
User’s Guide for details on the making the Bluetooth connection.
Using Quick Check ImageData
For the PC version of Quick Check ImageData, start Quick Check ImageData by
clicking on Start->Programs->Hand Held Products->Quick Check
ImageData->Quick Check ImageData or double click the Quick Check
ImageData icon on your desktop (set up during installation).
For the Pocket PC version, start Quick Check ImageData by clicking on Start-
>Programs. Select the Quick Check ImageData icon.
E-6

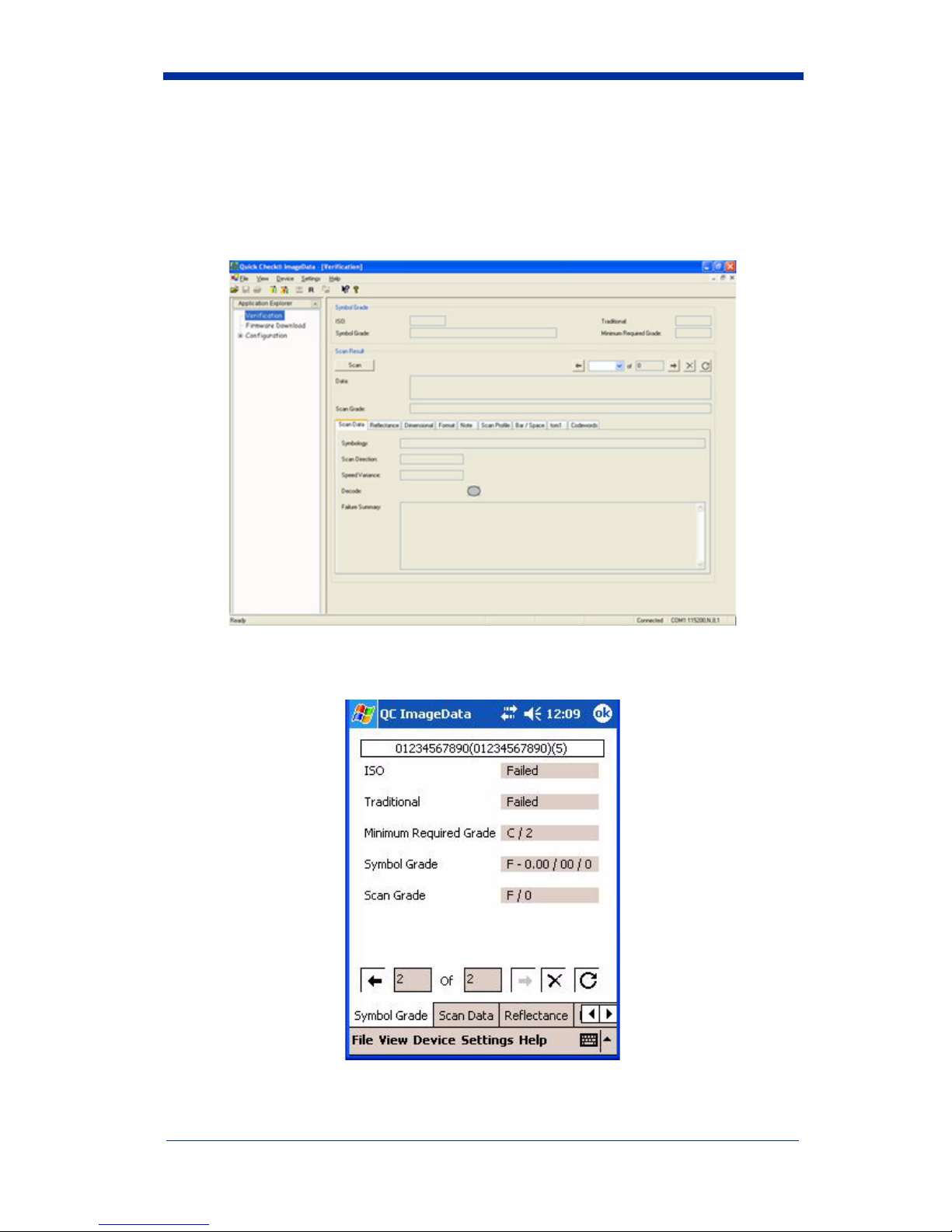

The first time you use QCID, the application asks you to select the COM Port to
which the QCID is attached. You may select the port by clicking on File->
Preferences. After you make the selection, QCID attempts to connect to the
attached QC890 Verifier. When a connection is established, the main screen of
the application, as shown below, displays.
PC Main Screen
Pocket PC Main Screen
E-7
Scanning a Bar Code Symbol Using the QC890 Verifier
Note: Calibration is a requirement of the ISO/IEC standards. Refer to the
QC890 Verifier User’s Guide or help files for additional calibration
information.
1. Place the QC890 Verifier on top of the symbol.
2. Press the scan button on top of the unit to turn on illumination. Look through
the unit’s window to align the unit with the bar code.
Note: The best verification data is gathered by aligning the center of the symbol
to the center arrows.
3. Press the scan button on top of the unit again while the illumination is on to
scan and verify the bar code.
Scanning a Bar Code Symbol Using Quick Check
ImageData
A scan can be initiated with Quick Check ImageData.
1. Place the QC890 Verifier on top of the symbol.
2. If necessary, press the scan button on top of the unit to turn on illumination to
aid in alignment of the symbol.
3. For the PC version, click the Scan button on the Main Display window.
For the Pocket PC version, select Device and then Scan from the Scan Data
tab.
E-8
Calibrating the QC890 Verifier
Note: Calibration is a requirement of the ISO/IEC standards. Refer to the
QC890 Verifier User’s Guide or help file for additional calibration
information.
Note: When calibrating the QC890 Verifier system, the QC890 Verifier must be
connected to QCID.
Note: When calibrating the QC890 Verifier system, it is important to align the
center of the bar code symbol to the center arrows and keep the unit
parallel to the symbol.
1. Place the verifier on top of the reflectance page (QCRFPG), and use the
symbol alignment window to center the reflectance page.
2. Press the scan button on top of the unit to turn on illumination to aid in
alignment.
3. Press the scan button on top of the unit a second time to read the bar code
symbol. The QC890 Verifier automatically reads the symbol and performs
calibration. If the calibration process is successful, the following screen
displays.
4. Enter the prompted data (Name and Location) and press OK. The following
screen displays.
5. If the unit does not calibrate, contact Hand Held Products Technical Support.
Otros manuales para QUICK CHECK 890
3
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Idiomas:
Otros manuales de Lector de código de barras de Hand Held Products
Hand Held Products
Hand Held Products IT4000 Manual de uso y cuidado
Hand Held Products
Hand Held Products Quick Check QCOLV-SV100 Manual de usuario
Hand Held Products
Hand Held Products SV Series Manual de usuario
Hand Held Products
Hand Held Products IMAGETEAM 3800E Manual de usuario
Hand Held Products
Hand Held Products HANDHELD 3800G Manual de usuario
Hand Held Products
Hand Held Products Quick Check 200 Series Manual de usuario
Hand Held Products
Hand Held Products 2020 Guía del usuario
Hand Held Products
Hand Held Products 2020 Manual de usuario
Hand Held Products
Hand Held Products SCANTEAM 2070 Manual de usuario
Hand Held Products
Hand Held Products SCANTEAM 2070 Guía del usuario
Hand Held Products
Hand Held Products IMAGETEAM 4410 Manual de usuario
Hand Held Products
Hand Held Products IMAGETEAM 4410 Manual de usuario
Hand Held Products
Hand Held Products 4230 Manual de usuario
Hand Held Products
Hand Held Products 4600g Manual de usuario
Hand Held Products
Hand Held Products IMAGETEAM 4620 Manual de usuario
Hand Held Products
Hand Held Products QUICK CHECK 890 Manual de usuario
Hand Held Products
Hand Held Products 4600g Manual de usuario
Hand Held Products
Hand Held Products IK8560 Manual de usuario
Hand Held Products
Hand Held Products 4800p Manual de usuario
Hand Held Products
Hand Held Products IMAGETEAM 3900 Manual de usuario
