Gefen EXT-DVIRS232-CAT5N Manual de usuario
www.gefen.com
DVI RS232
Extender
EXT-DVIRS232-CAT5N
User Manual
®
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday PST.
Write To:
Gefen LLC
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen LLC reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
DVI RS232 Extender is a trademark of Gefen LLC
© 2010 Gefen LLC, All Rights Reserved
All trademarks are the property of their respective owners
ASKING FOR ASSISTANCE
Rev A3
CONTENTS
1 Introduction
2 Features
3 Operation Notes
4 Sender Panel Layout
5 Sender Panel Descriptions
6 Receiver Panel Layout
7 Receiver Panel Descriptions
8 Connecting The DVI RS232 Extender
9 How to Equalize The Video Signal
10 Additional DIP Switch Functions
11 Network Cable Wiring Diagram
12 RS-232 Serial Control Interface
13 Specifications
14 Warranty
1
INTRODUCTION
Congratulations on your purchase of the DVI RS232 Extender. Your complete
satisfaction is very important to us.
Gefen
Gefen is a unique product line catering to the growing needs for innovative home
theater solutions. We specialize in total integration for your home theater, while
also focusing on going above and beyond customer expectations to ensure you
get the most from your hardware. We invite you to explore our distinct product
line and hope you find your solutions. Don’t see what you are looking for here?
Please call us so we can better assist you with your particular needs.
The DVI RS232 Extender
Extending state-of-the-art digital video displays, computer monitors and touch
screens has never been easier. Distances up to 150 feet at 1080p resolution (300
feet at 1080i resolution) are guaranteed to perform beautifully, giving you a reliable
method of all-digital extension while streamlining your installation cabling needs.
How It Works
You simply connect the DVI RS232 Extender sender unit to your DVI and RS-
232 source using the supplied cables. Your RS-232 device and the DVI display
plugs into the DVI RS232 Extender’s receiver unit. Two CAT-5 cables connect the
sender and the receiver units to each other allowing for up to 300 feet of extension
(300 feet at 1080i resolution or 150 feet of extension at 1080p resolution).
2
FEATURES
Features
• Supports resolutions up to 1080p, 2K, and 1920 x 1200
• Sends video at distances of up to 300 feet (1080i) / 150 feet (1080p)
• Small and compact
• Improved compensation for cable skew
• Audio and video are transmitted digitally over the CAT-5, CAT-5e or CAT-6
cable for zero signal loss
• Eliminates equipment noise in the viewing environment
Package Includes
(1) DVI RS232 Extender Sender Unit
(1) DVI RS232 Extender Receiver Unit
(1) 6 Foot DVI Cable (M-M)
(1) 6 Foot RS-232 Cable (M-M)
(2) 5V DC Power Supply
(1) User’s Manual
3
OPERATION NOTES
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE DVI RS232 EXTENDER
• Use two industry standard CAT-5, CAT-5e or CAT-6 cables to operate the DVI
RS232Extender. Gefen recommends CAT-6cablingformaximumperformance.
• For 1080i video, maximum extension is 300 feet (91 meters).
• This product features the option to force the output color space to RGB and/
or use a pre-programmed EDID. These features can be used to resolve
specific user issues or for troubleshooting purposes (see page 10 for more
information).
4
SENDER PANEL LAYOUT
Front Panel
Back Panel
2 3 41
5
5
SENDER PANEL DESCRIPTIONS
1 5V DC Power Supply Input
Connect the 5V DC external power supply to this port.
2 Power LED Indicator
This LED will become active once the included 5V DC power supply is properly
connected between the unit and an open wall power socket.
3 DVI Input
Connect the DVI source into this port.
4 RS-232 Input
This port is used to extend the RS-232 signals. Please see page 5 for complete
details on the serial communication features that are used on this product.
5 RJ-45 Ports
Use these ports to connect the Ethernet cables connecting the Sender and
Receiver together and the other Ethernet channel used for the RS-232 back-
channel.
6

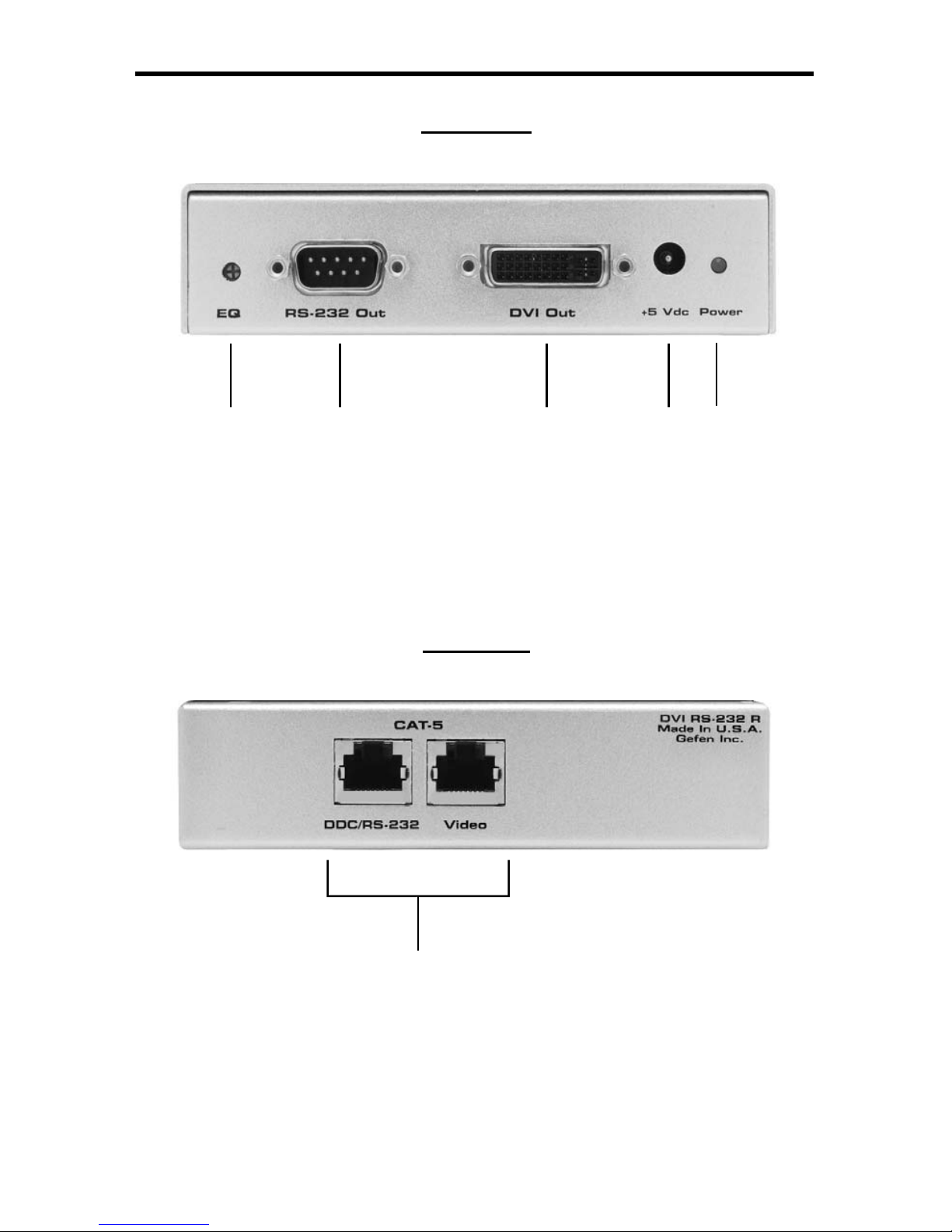

RECEIVER PANEL LAYOUT
Front Panel
Back Panel
2 3 41 5
6
7
RECEIVER PANEL DESCRIPTIONS
1 Equalization Trimpot
With auto-equalization switched off, use this adjustment trimpot for equalizing
and stabilizing the video signal over the distance selected (see instructions on
page 9).
2 RS-232 Output
This port outputs RS-232 signals that have been received from the Sender unit.
Please see page 5 for complete details on the serial communication features
that are used on this product.
3 DVI Output
Connect the display to this port.
4 5V DC Power Supply Input
This LED will become active once the included 5V DC power supply is properly
connected between the unit and an open wall power socket.
5 Power LED Indicator
The LED lights red when power is applied to the Receiver unit.
6 RJ-45 Ports
Connect both the Ethernet cables arriving from the Sender unit here.
