Gefen EXT-USB-MINI2 Manual de usuario
www.gefen.com
®
Mini USB-2
Extender
EXT-USB-MINI2
USER’S MANUAL
ASKING FOR ASSISTANCE
Rev A2
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday PST
Write To:
Gefen LLC
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen LLC reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
Mini USB-2 Extender is a trademark of Gefen LLC
© 2010 Gefen LLC, All Rights Reserved
All trademarks are the property of their respective owners
CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 Sender Panel Layout
5 Sender Panel Descriptions
6 Receiver Panel Layout
7 Receiver Panel Descriptions
8 Connecting And Operating The Mini USB-2 Extender
9 Network Cable Wiring Diagram
10 Troubleshooting
12 Specifications
13 Warranty
1
Congratulations on your purchase of the Mini USB-2 Extender. Your complete
satisfaction is very important to us.
Gefen
Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to implement and simple to operate.
The Gefen Mini USB-2 Extender
The Mini USB-2 Extender extends any USB device up to 150 feet from the
location of your computer, eliminating the 17.5 feet distance limitation of USB.
The Mini USB-2 sender and receiver units use one CAT-5 cable for extension.
It is optimized for applications where two devices, such as the keyboard and
mouse, must be operated remotely. The USB-2 Extender can even be used to
extend surveillance cameras for security purposes.
How It Works
The Mini USB-2 Extender sender unit is connected to the computer using the
supplied USB cable. The remote peripheral(s) are connected to the receiver unit.
A category-5 (CAT-5) cable is used to link the sender to the receiver.
INTRODUCTION
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE MINI USB-2 EXTENDER
• The Mini USB-2 Extender sender and receiver were designed to operate on
USB type computers. DO NOT attempt to use this equipment with any other
type of device.
• Use the computer’s USB port when using a local keyboard that is not
extended with the Mini USB-2 Extender sender unit.
• Only dedicated Category 5 UTP type cable (CAT-5) is recommended for this
application (pin to pin). Filed termination should adhere to the TIA/EIA-568-B
Scheduling
• The length of cable used to connect the Mini USB-2 Extender sender unit to
the Mini USB-2 Extender receiver unit MUST NOT EXCEED 150 feet.
2
OPERATION NOTES
3
Features
• Extends any USB 1.1 device up to 150 feet (45 meters) using CAT-5 cable
• Requires no external power adapter
• Contains internal USB hub
• Provides support for any full-speed 12 Mb/s or low-speed 1.5Mb/s USB
device
• Use either PC or Mac with USB keyboard/mouse
Package Includes
(1) Mini USB-2 Extender Sender unit
(1) Mini USB-2 Extender Receiver unit
(1) User Manual
FEATURES
4
Front Panel
Back Panel
1
2

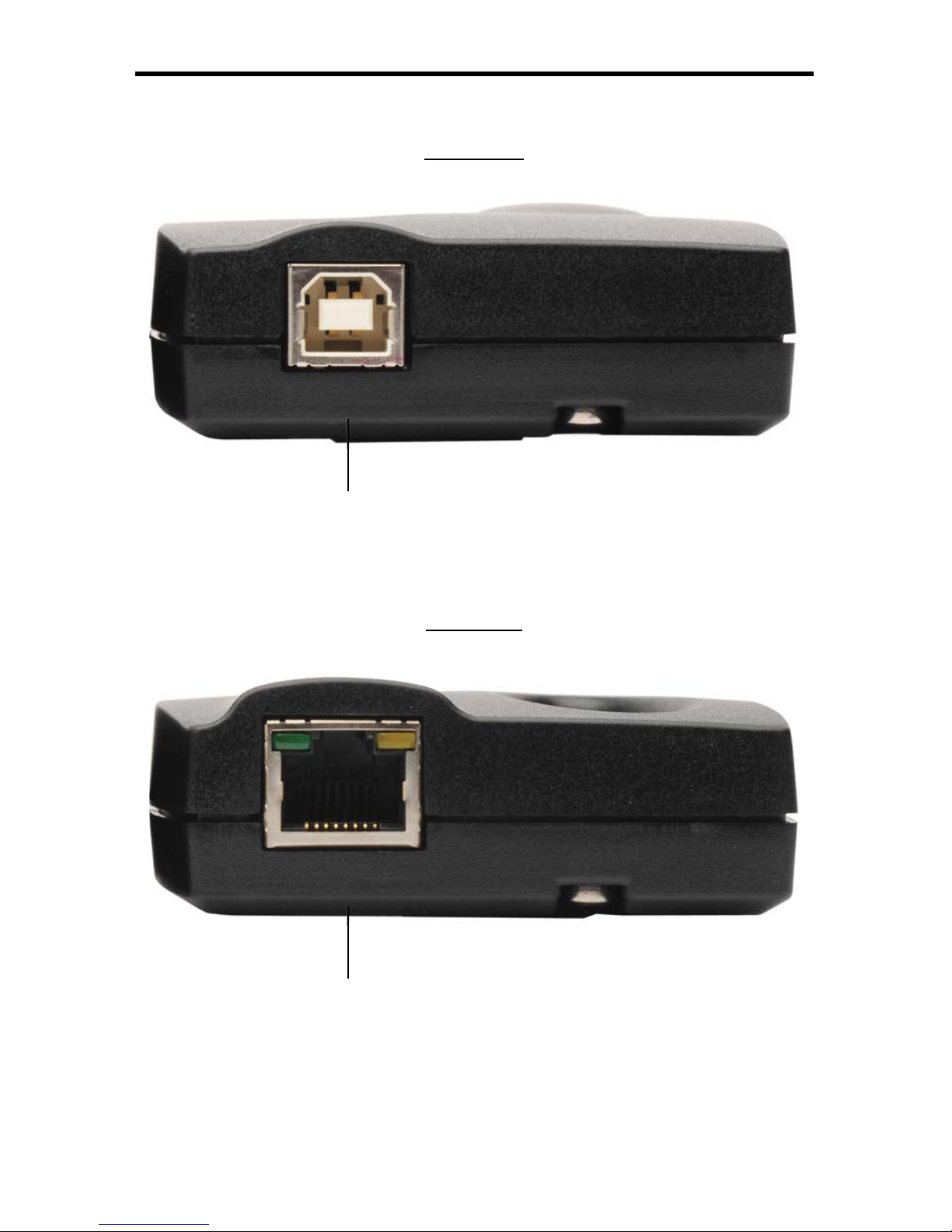

SENDER PANEL LAYOUT
5
1 USB Type B Input
This connector will accept a USB Type B cable to connect to a USB host device
(i.e. Computer).
2 RJ-45 Link Connector
This connector will accept a CAT-5 UTP cable to link the sender and receiver
units together.
SENDER PANEL DESCRIPTIONS
6
Front Panel
Back Panel
1
2
RECEIVER PANEL LAYOUT
7
1 USB Type A Input
This connector will accept a USB Type Acable to connect to a USB peripheral
device (i.e. Keyboard & Mouse). Two USB peripherals can be connected at the
same time.
2 RJ-45 Link Connector
This connector will accept a CAT-5 UTP cable to link the sender and receiver
units together.
RECEIVER PANEL DESCRIPTIONS
