Gefen GTV-WIRELESSHD Manual de usuario

Wireless for 60 GHz Extender

User Manual

www.gefentv.com

GTV-WIRELESSHD

ASKING FOR ASSISTANCE

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday through Friday, Paciﬁc Standard Time.

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefentv.com

support@gefentv.com

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

Wireless for HDMI 60 GHz is a trademark of Gefen, Inc.

All trademarks are the property of their respective companies

Rev X7

CONTENTS

1 Introduction to the Wireless for HDMI 60 GHz

2 Operation Notes

3 Features

4 Sender / Receiver Panel Layout

5 Sender / Receiver Panel Descriptions

6 Sender / Receiver Panel Layout, Continued (Side Panel, LEDs)

7 Connecting the Wireless for HDMI 60 GHz Sender and Receiver

8 Infrared Remote Control

9 Speciﬁcations

10 Warranty

Congratulations on your purchase of the Wireless for HDMI 60 GHz. Your

complete satisfaction is very important to us.

Gefen TV

Gefen TV is a unique product line catering to the growing needs for innovative

home theater solutions. We specialize in total integration for your home theater,

while also focusing on going above and beyond customer expectations to insure

that you get the most from your hardware. We invite you to explore our distinct

product line and hope you ﬁnd your solutions. Do you ﬁnd that a particular

product is not carried on our website or in our catalogs? Please call us so we can

better assist you with your particular needs.

The Gefen TV Wireless for HDMI

The GefenTV Wireless for HDMI 60 GHz Extender delivers a plug-and-play

wireless solution for HDMI sources placed up to 30 feet (9 meters) away. Hi-def

resolutions of up to 1080p/60 fps are supported with 8-channel embedded digital

audio.

The GefenTV Wireless for HDMI 60 GHz Extender is a wireless solution for

extending any HDMI A/V sources to a remote HDMI-compliant display such as

satellite boxes, DVD players, and Blu-Ray players. The Wireless for HDMI 60

GHz operates best in open indoor spaces with minimum obstructions between

the Sender and Receiver units. Range will be signiﬁcantly reduced otherwise.

How It Works

The GefenTV Wireless for HDMI 60 GHz Extender uses one sender and one

Receiver unit. A short cable connects the HDMI input of the sender unit to the

HDMI output of an HDMI source. At the display side, a short cable connects the

HDMI output of the Receiver unit to the HDMI input of the HDTV display. Power

is applied to the Sender and Receiver. There is a slight pause while the Sender

and Receiver locate each other and begin communicating. The HDMI signal

from the HDMI source then travels to the HDMI display over 60 GHz radio waves

and a vibrant and crisp High Deﬁnition picture emerges on the HDTV display.

Indicator lights on the front panels of both units assist in troubleshooting should

there be objects in the path of the radio waves or other problems to resolve.

Note on Multichannel Audio: Compressed audio as well as analog audio are

formats supported depending on the capability of the input device. Please refer to

the Speciﬁcations section for further details.

INTRODUCTION

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE WIRELESS FOR HDMI 60 GHZ

This radio equipment may only be operated indoors. Operation outdoors is

in violation of 47 U.S.C.301 and could subject the operator to serious legal

penalties.

Federal Communication Commission

Interference Statement

1. This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

2. NOTE: This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications.

3. In order to comply with FCC RF Exposure requirements, a separation

distance of at least 20 cm must be maintained between the antenna and

all persons. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

4. Reorient or relocate the device(s) causing the interference.

5. Increase the separation between the devices.

6. Connect equipment into an outlet on a circuit different from that to which

the device experiencing interference is connected.

7. Consult the dealer or an experienced radio/TV technician for help.

OPERATION NOTES

Features

• 30-ft maximum extension distance if set up properly in a wide open indoor

environment

• Fully HDMI 1.3 compliant and HDCP (copy protection signal) compliant

• CECS protocol pass-through supported

• Uncompressed LPCM audio output support at up to 192 KHz (2 channels)

and up to 96 KHz (8 channels)

• AC-3 (Dolbytm Digital) and DTStm at up to 8 channels / 192 KHz supported

• 36-element ceramic antenna array for good signal reception

• Bank of LED indicators to show operational status

• Dedicated system reset button on each unit

• Low-power sleep mode for reduced power consumption (2.5W ea)

Package Includes

(1) Wireless for HDMI 60 GHz Sender unit

(1) Wireless for HDMI 60 GHz Receiver unit

(2) 12V DC Power Supply

(1) 6-Foot HDMI Cable (M-M)

(1) User’s Manual

(1) IR Remote Control

FEATURES

Front Panel

Back Panel

SENDER / RECEIVER PANEL LAYOUT

123

456 7

1 IR window for remote control (Receiver Front Panel Only)

Receives the IR control signal from the IR remote.

2 LED Indicators (Front Panel x 3): Link, Weak Signal, Strong Signal

This bank of 3 LEDs provides operational status and aids troubleshooting during

the initial connection phase and sustained operation phase. LEDs will be in the

states of OFF, blinking and ON to indicate the connection link status and radio

signal strength. Please refer to pages 6 (bottom) and 7 (bottom) for a detailed

discussion of this functionality.

3 Power LED Indicator (Front Panel)

This LED indicator will become active once the included 5V DC power adapter

has been properly connected to the unit and a live power outlet.

4 5V DC Power Receptacle (Back Panel)

Connect the included 5V DC power supply to this receptacle and an available

household power outlet. Only use the power supply that is provided with this

product. Usage of a non-authorized power supply may damage the unit and

void the warranty.

5 Power Switch (Back Panel)

Turns the power on/off.

6 HDMI Input (Back Panel)

This input will accept a single HDMI source device. Use a DVI to HDMI cable/

adapter when using a DVI input device.

7 RS-232 Serial Port (Back Panel)

This port is reserved for ﬁrmware updates.

SENDER/RECEIVER PANEL DESCRIPTIONS

The Sender and Receiver units share the same identical panel layout:

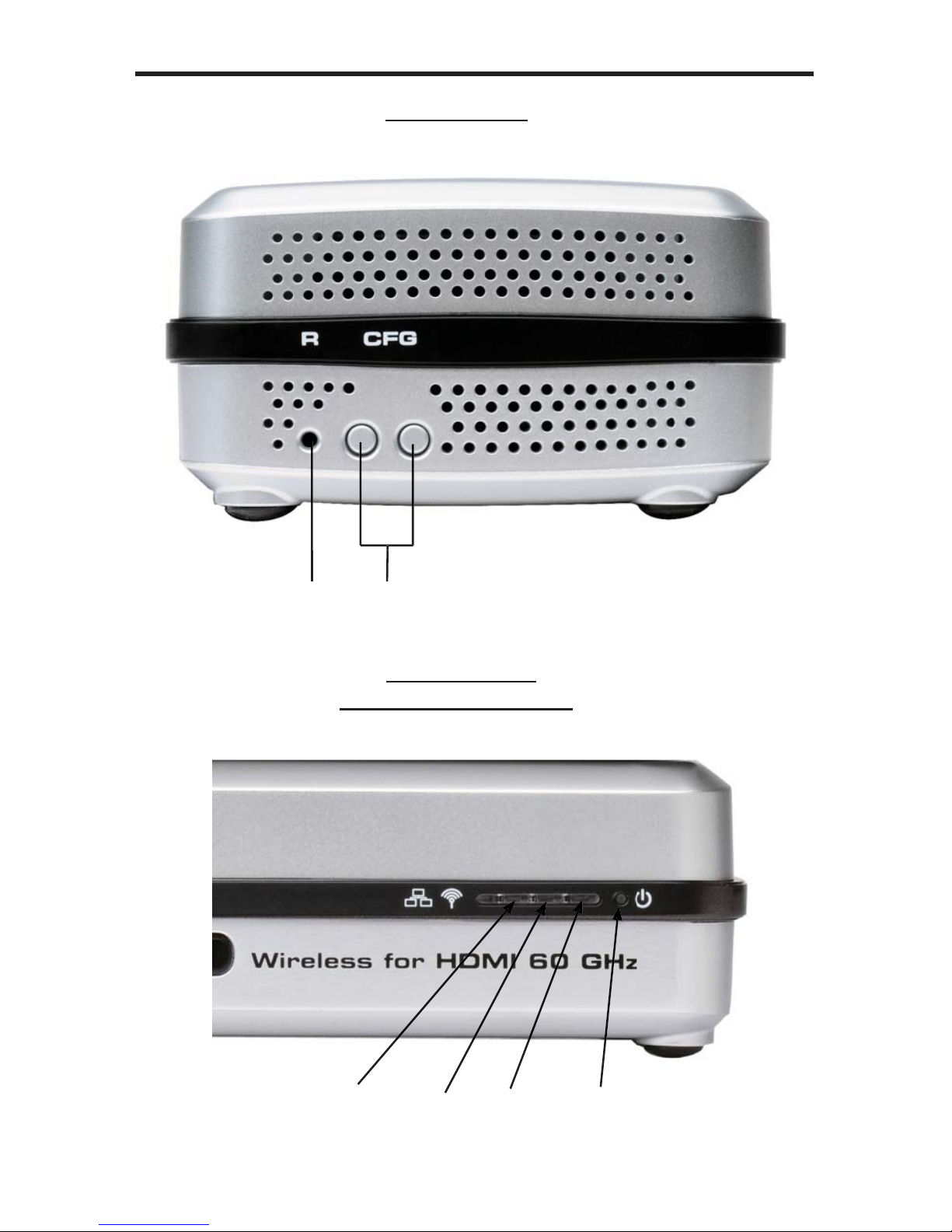

SENDER/RECEIVER PANEL LAYOUT, CONT’D

Right Side Panel

Front Right Panel

Close-Up of LED Indicators

Link Weak Strong Power

1 Reset Button (clears settings)

This button is used to reset the unit to default factory settings. To use the reset

button, insert a sharp object, push ﬁrmly then let go.Afull reset operation takes

approximately 5 seconds.

2 CFG (Conﬁguration Buttons)

These two push buttons are reserved for factory use only.

1. Connect the HDMI source device to the Wireless HD 60 GHz Sender input

using the supplied HDMI input cable. Use a DVI to HDMI cable/adapter

when using a DVI source device.

2. Connect the HDMI-compliant display to the Receiver’s HDMI output port

using a user- supplied HDMI cable. Use a HDMI to DVI cable/adapter when

using a DVI-compliant display.

3. Sender and Receiver should be oriented in a visually unobstructed, line-of-

sight path without objects between them, at the same height as each other,

preferably in a wide open indoor area with tall ceilings.

4. Connect the included 5V power supplies to the Wireless HD 60 GHz Sender

and Receiver units. Power on the display device (monitor or projector).

5. Switch on the Receiver and Sender units. Automatic pairing (linkup) will

begin. The units will search for each other, and four (4) LED indicators on the

front right hand panel of the units will indicate operational status as follows

(Please see diagram on the bottom of page 6, opposite):

LINK: OFF (connection failed, try again), ON (connection good),

BLINKING (waiting for link completion)

WEAK: OFF (no signal), ON (wireless signal is weak)

STRONG: OFF (weak signal), ON (wireless signal is strong)

POWER: OFF (power off), ON (unit ON), BLINKING (unit sleeping)

*If 4 LEDs blink at once despite multiple power ON/OFF attempts, do not

continue operation. Please call Gefen Technical Support at 1-800-545-6900.

If a pairing operation does not commence and/or the WEAK LED stays

on, the units must be relocated for better signal reception. To retry pairing,

relocate them and reapply power.

CONNECTING THE SENDER AND RECEIVER

SENDER/RECEIVER PANEL LAYOUT, CONT’D
