Gefen EXT-FW-1394BP Manual de usuario
www.gefen.com
f
Firewire 800
Extender Plus
EXT-FW-1394BP
User Manual
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
Firewire 800 Extender Plus is a trademark of Gefen Inc.
© 2008 Gefen Inc., All Rights Reserved
All trademarks are the property of their respective companies
ASKING FOR ASSISTANCE
CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 Sender Panel Layout
5 Sender Panel Descriptions
6 Receiver Panel Layout
7 Receiver Panel Descriptions
8 Connecting And Operating The Firewire 800 Extender Plus
9 Wiring Diagram
10 Specifications
11 Warranty
1
Congratulations on your purchase of the Firewire 800 Extender Plus. Your com-
plete satisfaction is very important to us.
Gefen
Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to implement and simple to operate.
The Gefen Firewire 800 Extender Plus
This solution uses a sender and receiver system to instantly send your data from
your source to your extended Firewire device. It boasts a remarkable transfer
rate of up to 980 Mbps and easily bridges distances up to 1640 feet (500 me-
ters). This gives you the freedom to operate your computer based equipment
and video cameras as if they were connected locally with no signal degradation
or time lag. Receiving units have a second pair of fiber connectors to daisy chain
multiple Receiving units for extreme distances.
How It Works
Simply connect your computer to the Firewire Extender 800 sender unit with the
supplied cable. Connect your extended device to the receiver unit - up to 1640
feet away. One 2-strand LC-LC fiber optic cable, available in several lengths from
Gefen, connect sender (computer) to receiver (Firewire device).
INTRODUCTION
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE FIREWIRE 800 EXTENDER PLUS
• The fiber optics cable must be treated carefully when connectors are
exposed. They are susceptible to dust which can contribute to loss of pixels.
• The Firewire 800 Extender Plus is housed in a metal box for better RF
shielding.
• Only LC terminated multi-mode fiber optic cable can be used with the
Firewire 800 Extender Plus system.
• Units can be cascaded up to 63 levels deep with a maximum distance
between each of 1640 feet (500 meters).
2
OPERATION NOTES
3
Features
• Extends Firewire devices up to 1640 (500 meters) feet
• Transfer Rates of 100/200/400/800 Mbps
• Compliant with IEEE 1394a and 1394b
• Allows remote devices to operate in real-time, connected to the source
• Works withApple and PC computers
• Uses fiber optics to ensure long distance performance
• Daisy chain multiple receivers for extreme distances
Package Includes
(1) Firewire 800 Extender Plus Sender
(1) Firewire 800 Extender Plus Receiver
(2) 6 Foot Firewire 400 to 800 cable (M-M)
(1) 6 Foot Firewire 800 to 800 cable (M-M)
(1) 12V DC Power supply
FEATURES
4
Front Panel
Back Panel
456
12 3
SENDER PANEL LAYOUT
5
1 Status LED
This LED will become active once a stable link has been established between
the sending and receiving units.
2 Power LED
This LED will become active once the included power adapter has been
connected.
3 Fiber Optic TX and RX Inputs
Connect a LC terminated fiber optic cable for both the transmit (TX) and receive
(RX) signals between the Firewire 800 sending and receiving units.
4 12V DC Power Supply Input
Input for the supplied 12V DC power adapter.
5 Firewire Input 1
Connects to a Firewire hub, or Firewire device.
6 Firewire Input 2
Connects to a Firewire hub, or Firewire device.
SENDER PANEL DESCRIPTIONS
6
Front Panel
Back Panel
34
1
56
2

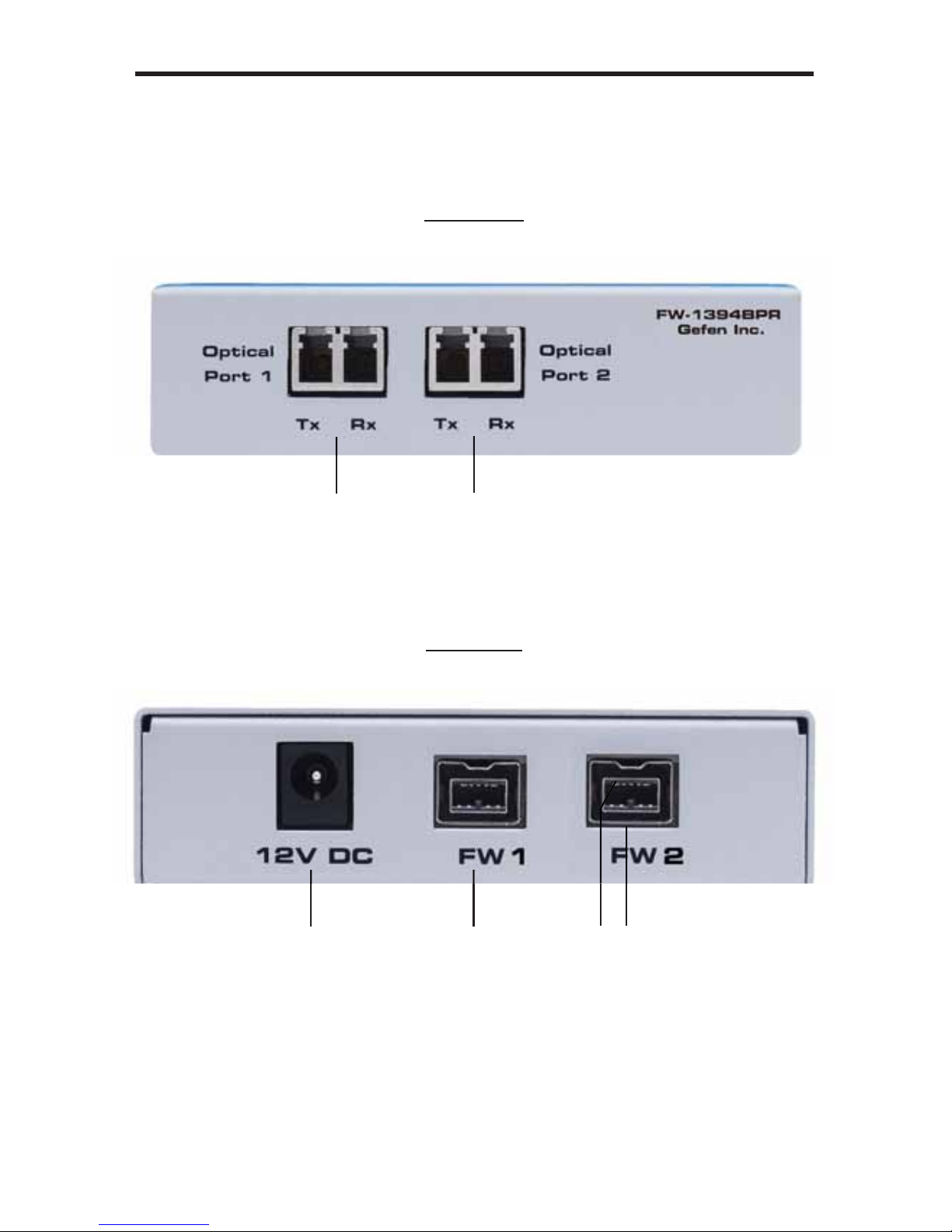

RECEIVER PANEL LAYOUT
