Introduction
Thank you for choosing S5850-24XMG switch. This guide is designed to familiarize you with the layout
of the switch and describes how to deploy the switch in your network.
S5850-24XMG
SYS ID MGMT
CON
MGMT
S5850-24XMG
21
43
65 87
10
9
12
11
14
13 16
15
18
17
20
19
22
21 24
23
123
26 100G
25
4Breakout
Accessories
Grounding Cable x1
Console Cable x1
M4 Screw x12Front Mounting Bracket x2
Power Cord x2
Back Mounting Bracket x2
Sliding Rail x2
EN
2
Hardware Overview

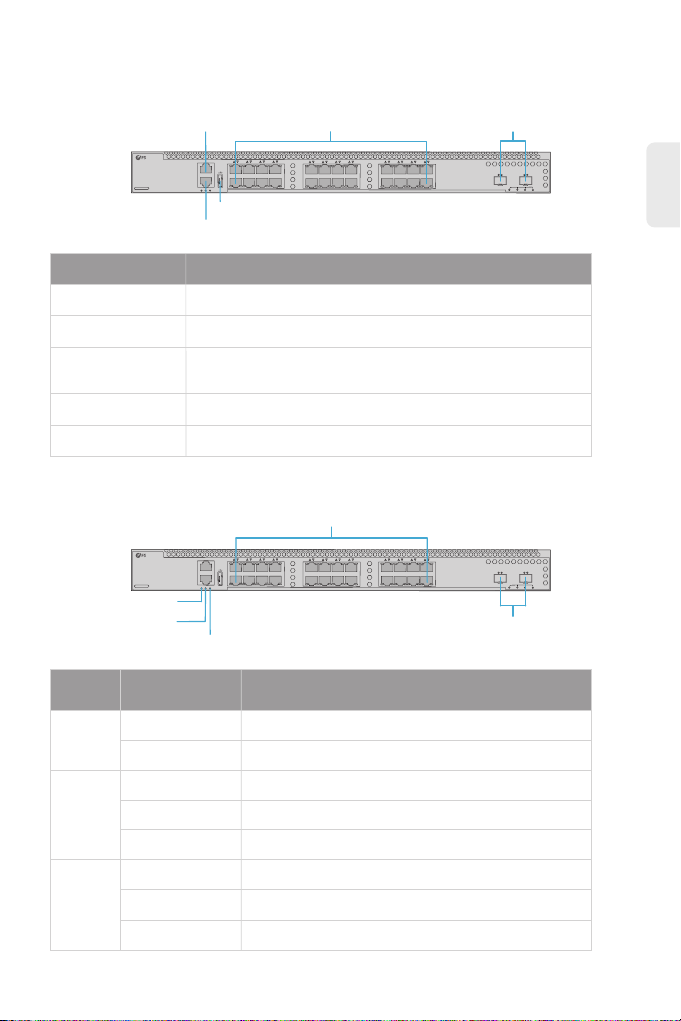

Front Panel Ports
Ports Description
CON
MGMT
USB
RJ45
An RJ45 console port for serial management
An Ethernet management port
A USB port for software and conguration backup and
oine software upgrade
10/100/1000/2.5G/5G/10GBASE-T ports for Ethernet connection
QSFP28 QSFP28 ports for 40/100G transceivers
RJ45
SYS ID MGMT
CON
MGMT
S5850-24XMG
21
43
65 87
10
9
12
11
14
13 16
15
18
17
20
19
22
21 24
23
123
26 100G
25
4Breakout
CON
MGMT
USB
QSFP28
Front Panel LEDs
SYS ID MGMT
CON
MGMT
S5850-24XMG
21
43
65 87
10
9
12
11
14
13 16
15
18
17
20
19
22
21 24
23
123
26 100G
25
4Breakout
SYS
MGMT
ID
RJ45
QSFP28
O
Blue
Amber
O
Green
LEDs State Description
ID indication function enable.
ID
SYS
MGMT
ID indication function disable.
System is running normally.
System occurs alarm or error.
No power or no system runs or runs abnormally.
Port is receiving or transmitting packets.
Port is linked.
Green
Blinking Green
O Port is not linked.
3
EN
Blinking(L)
On(L)
Amber(R)
Green(R)
Green
LEDs State Description
Port is linked.
RJ45
QSFP28
Port is receiving or transmitting packets.
Port is not linked.
The rate hasn’t reached the maximum.
The rate has reached the maximum.
O(R) Port is not linked.
Packets are receiving or transmitting at 40/100G.
Port is linked at 40/100G.
O(L)
Blinking Green
Amber
Blinking Amber
O
Port is linked at 10/25G.
Packets are receiving or transmitting at 10/25G.
Port is not linked.
Back Panel
4 Hot-swappable Fans 2 Hot-swappable Power Supplies
Grounding Point
Installation Requirements
Phillips screwdriver.
Before you begin the installation, make sure that you have the followings:
Standard-sized, 19" wide rack with a minimum of 1U height available.
Category 5e or higher RJ-45 Ethernet cables for connecting network devices.
EN
4
Site Environment
Do not install the equipment in a dusty environment.
The installation site must be free from leaking or dripping water, heavy dew, and humidity.
Do not operate it in an area that exceeds an ambient temperature of 45°C.
The installation site must be well ventilated. Ensure that there is adequate air ow around the
switch.
Be sure that the switch is level and stable to avoid any hazardous conditions.
Mounting the switch
Desk Mounting

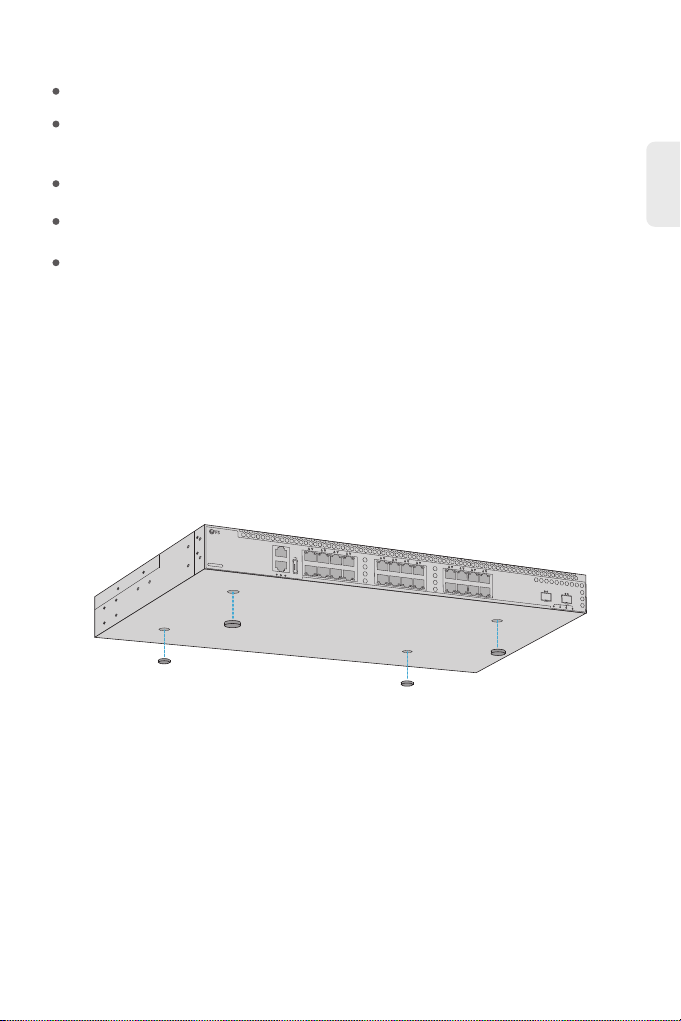

1. Attach four rubber pads to the bottom.
2. Place the chassis on a desk.
SYS ID MGMT
CON
MGMT
S5850-24XMG
21
43
65 87
10
9
12
11
14
13 16
15
18
17
20
19
22
21 24
23
123
26
100G
25
4Breakout
SYS ID MGMT
CON
MGMT
S5850-24XMG
21
43
65 87
10
9
12
11
14
13
5
EN
Rack Mounting
1. Fix front mounting brackets and silding rails to the two sides of the switch with screws.
2. Push back mounting brackets onto the silding rails.
18
17
20
19
22
21 24
23
123
26 100G
25
4Breakout
SYS ID MGMT
CON
MGMT
S5850-24XMG
21
43
65 87
10
9
12
11
14
13 16
15
18
17
20
19
22
21 24
23
123
26 100G
25
4Breakout
EN
6
3. Attach the switch to the rack with screws and cage nuts.
Grounding the Switch
CAUTION: The earth connection must not be removed unless all supply connections have
been disconnected.
1. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the
switch is mounted.
2. Secure the grounding lug to the grounding point on the back panel of the switch with the washer
and screws.
7
EN
Connecting the Power
1. Plug the AC power cord into the power port on the back of the switch.
2. Connect the other end of the power cord to an AC power source.
Connecting the RJ45 Ports
1. Connect an Ethernet cable to the RJ45 port of a computer, printer, network storage, or other
network devices.
2. Connect the other end of the Ethernet cable to the RJ45 port of the switch.
WARNING: Do not install power cable while the power is on.
10
9
12
11
14
13 16
15
18
17
20
19
22
21 24
23
123
26 100G
25
4Breakout
SYS ID MGMT
CON
MGMT
S5850-24XMG
21
43
65 87
EN
8
10
12
11
14
13 16
15
18
17
20
19
22
21 24
23
123
26 100G
25
4Breakout
1. Plug the compatible QSFP+ transceiver into the QSFP28 port.
2. Connect a ber optic cable to the transceiver, then connect the other end of the cable to
another ber device.
3. Or directly connect DAC/AOC cable to the QSFP28 port.
Connecting the QSFP28 Ports
CAUTION: Laser beams will cause eye damage. Do not look into bores of optical modules
or optical bers without eye protection.
9
EN
Connecting the Console Port
1. Insert the RJ45 connector into the RJ45 console port on the switch.
2. Connect the DB9 female connector of the console cable to the serial port on the computer.
Connecting the MGMT Port
1. Connect one end of a standard RJ45 Ethernet cable to a computer.
2. Connect the other end of the cable to the MGMT port on the switch.
Connecting the Management Ports
SYS ID MGMT
CON
MGMT
S5850-24XMG
21
43
65 87
10
9
12
11
14
13 16
15
18
17
20
19
22
21 24
23
SYS ID MGMT
CON
MGMT
S5850-24XMG
21
43
65 87
10
9
12
11
14
13 16
15
18
17
20
19
22
21 24
23
