FS N9510-64D Manual de usuario

L3 Data Center Switch

L3 Rechenzentrums-Switch

Switch L3 pour Centres de Données

Quick Start Guide V1.0

Quick-Start Anleitung

Guide de Démarrage Rapide

N9510-64D

1F 2F 5F 6F 9F 10F 13F 14F 17F 18F 21F 22F 25F 26F 29F 30F 33F 34F 37F 38F 41F 42F 45F 46F 49F 50F 53F 54F 57F 58F 61F 62F

3F 4F 7F 8F 11F 12F 15F 16F 19F 20F 23F 24F 27F 28F 31F 32F 35F 36F 39F 40F 43F 44F 47F 48F 51F 52F 55F 56F 59F 60F 63F 64F

N9510-64D

ASSETTAG

FUNC

CONSOLE MGMT

Link Act

SYS BMCPSU FA N ID

Introduction

Thank you for choosing N9510-64D switch. This guide is designed to familiarize you with the

layout of the switch and describes how to deploy the switch in your network.

Accessories

Grounding Cable x1Power Cord x4 M6*16 Screw x12

M6 Nut x12 Sliding Rail x2

N9510-64D

1F 2F 5F 6F 9F 10F 13F 14F 17F 18F 21F 22F 25F 26F 29F 30F 33F 34F 37F 38F 41F 42F 45F 46F 49F 50F 53F 54F 57F 58F 61F 62F

3F 4F 7F 8F 11F 12F 15F 16F 19F 20F 23F 24F 27F 28F 31F 32F 35F 36F 39F 40F 43F 44F 47F 48F 51F 52F 55F 56F 59F 60F 63F 64F

N9510-64D

ASSETTAG

FUNC

CONSOLE MGMT

Link Act

SYS BMCPSU FAN ID

1F 2F 5F 6F 9F 10F 13F 14F 17F 18F 21F 22F 25F 26F 29F 30F 33F 34F 37F 38F 41F 42F 45F 46F 49F 50F 53F 54F 57F 58F 61F 62F

3F 4F 7F 8F 11F 12F 15F 16F 19F 20F 23F 24F 27F 28F 31F 32F 35F 36F 39F 40F 43F 44F 47F 48F 51F 52F 55F 56F 59F 60F 63F 64F

N9510-64D

ASSETTAG

FUNC

CONSOLE MGMT

Link Act

SYS BMCPSU FAN ID

Hardware Overview

Front Panel Ports

Ports Description

QSFPDD

USB

MGMT

QSFPDD ports for 100/400G connection.

A USB management port for software, conﬁguration backup and oﬄine

software upgrade.

An ethernet management port.

CONSOLE An RJ45 console port for serial management.

MGMT

USB

CONSOLE QSFPDD

Front Panel LEDs

1F 2F 5F 6F 9F 10F 13F 14F 17F 18F 21F 22F 25F 26F 29F 30F 33F 34F 37F 38F 41F 42F 45F 46F 49F 50F 53F 54F 57F 58F 61F 62F

3F 4F 7F 8F 11F 12F 15F 16F 19F 20F 23F 24F 27F 28F 31F 32F 35F 36F 39F 40F 43F 44F 47F 48F 51F 52F 55F 56F 59F 60F 63F 64F

N9510-64D

ASSETTAG

FUNC

CONSOLE MGMT

Link Act

SYS BMCPSU FAN ID

SYS /BMC/ PSU /FAN/ ID

Asset Tag Link/Act

LEDs Description

SYS

BMC

The system is malfunctional.

The system is powered oﬀ.

The system is abnormal.

The BMC module works normally.

The BMC module is not-in-position or not working.

The BMC module hasn’t ﬁnished functional initialization.

The control function of the fun hasn’t ﬁnished initialization.

The system is powered oﬀ.

The fun works normally.

More than one fans are not in-the-position.

More than one fans work abnormally.

FAN

The system is powered oﬀ.

The control function of the power supply hasn’t ﬁnished

initialization.

The power supply is in a normal state.

The system is initializing.

The system is operational.

PSU

More than one power supplies are not connected with AC

power cord.

More than one power supply modules are in an abnormal

state.

CPLD sets default control and doesn’t locate position.

ID Positioning on the site. The operational people control

opening and closing of ID light.

State

Solid Red

Blinking Green

Solid Green

Oﬀ

Blinking Green

Solid Yellow

Solid Red

Blinking Green

Oﬀ

Solid Green

Oﬀ

Blinking Green

Solid Green

Oﬀ

Solid Green

Solid Yellow

Solid Red

Oﬀ

Solid Blue

LEDs DescriptionState

Power Supply

Grounding point

Back Panel Ports

LINK/ACT

QSFPDD

The port is connected at 1000Mbps.

The port is not connected.

The port is transmitting or receiving data.

The port is connected at 400/100G.

The port is not connected.

The port is transmitting or receiving data at 400/100G.

The port is connected at 100Mbps.

The port is not transmitting or receiving data.

Solid Green

Solid Yellow

Solid Green

Oﬀ

Blinking Green

Link Oﬀ

Act Oﬀ

Act Blinking Green

FAN1

PSU1

FAN3

FAN2

FAN4

FAN5

FAN6

FAN7FAN8

PSU2

PSU3PSU4

Fan Slots

LEDs Description

Fan Status

The fan is initializing.

The fan is powered oﬀ.

There is no power input or the power supply fails.

1.The AC power is oﬀ and it is only 12VBS.

2.The AC power is cold standby and it doesn’t output

eﬃciency.

The power output is normal.

1.An error occurs, e.g. overcurrent, overvoltage or fan fault.

2.The AC power in redundancy is plugged out.

An alarm is generated but the power module keeps working.

The alarm may be caused by high power, high current, high

temperature, or low fan rotation speed.

Power Supply

Status

The fan is operational.

The fan fails or stops.

State

Blinking Green

Solid Green

Blinking Green

Solid Green

Red Light

Blinking Red

Oﬀ

Solid Red

Oﬀ

Power Supply Status

Back Panel LEDs

FAN1

PSU1

FAN3

FAN2

FAN4

FAN5FAN6

FAN7FAN8

PSU2

PSU3PSU4

Fan Status

Installation Requirements

Before you begin the installation, make sure that you have the

followings：

Phillips screwdriver.

Category 5e or higher RJ45 Ethernet cables, ﬁber optical cables and console cable for

network devices.

Site Environment：

The operating temperature is 0°C-40°C, the humidity is 10%-90%.

The installation site must be free from leaking or dripping water, heavy dew, and humidity.

The installation site must be well ventilated. Ensure that there is adequate airﬂow around

the switch.

Be sure that the switch is level and stable to avoid any hazardous conditions.

Do not install the equipment in a dusty environment.

Ensure rack and working platforms are well earthed.

1F 2F 5F 6F 9F 10F 13F 14F 17F 18F 21F 22F 25F 26F 29F 30F 33F 34F 37F 38F 41F 42F 45F 46F 49F 50F 53F 54F 57F 58F 61F 62F

3F 4F 7F 8F 11F 12F 15F 16F 19F 20F 23F 24F 27F 28F 31F 32F 35F 36F 39F 40F 43F 44F 47F 48F 51F 52F 55F 56F 59F 60F 63F 64F

N9510-64D

ASSETTAG

FUNC

CONSOLE MGMT

Link Act

SYSBMC PSU FAN ID

1. Secure the two L-shaped brackets to assemble a rack with eight M6 nuts.

2. Attach the switch to the rack and use four M6 screws to ﬁx.

Rack Mounting

Mounting the Switch

Replacing the Power Supply Module

1. Press the power supply module and pull the handle of it slowly and straightly.

2. Hold the handle of the power module with one hand, and hold the bottom with the other

hand.

3. Horizontally push the power module into the slot. The power module completely inserts in the

slot until a “click” is heard.

FAN3

FAN2

FAN4

FAN5FAN6

FAN7FAN8

PSU2

PSU3PSU4

FAN1

PSU1

FAN3

FAN2

FAN4

FAN5FAN6

FAN7FAN8

PSU2

PSU3PSU4

NOTE: 1. Insert the power/fan module steadily and pay attention to the direction of

the fan module. If the position is not proper, pull the module and re-insert it.

2. If the fan module can be extracted without pushing the handle, maybe the fan

module is not inserted into the switch totally, please check carefully.

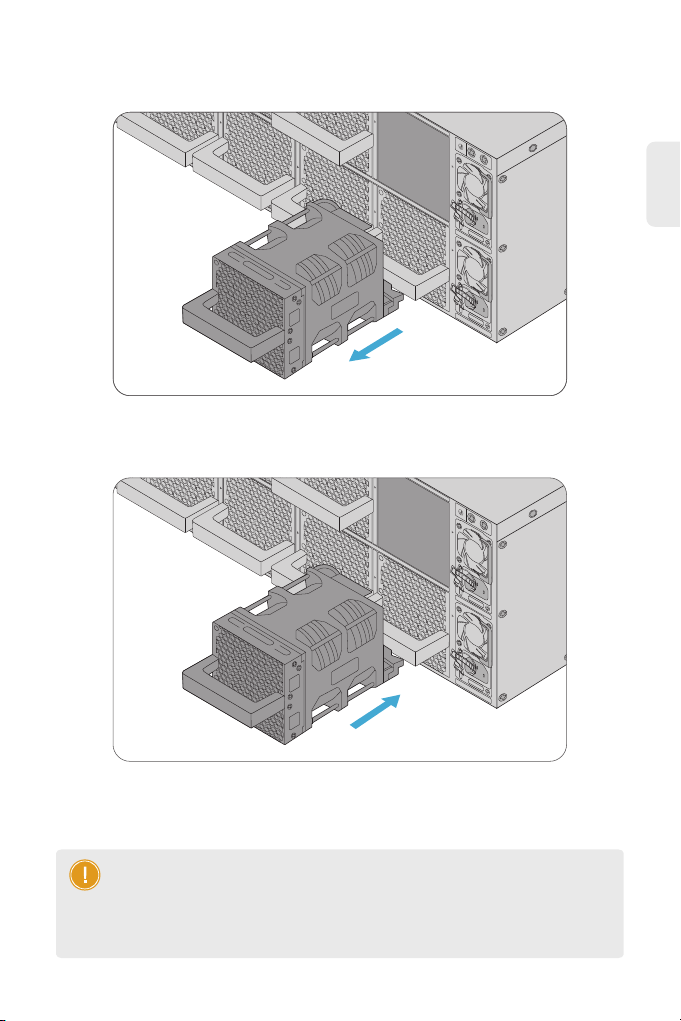

Replacing the Fan Module

1. Push the handle of the fan module and pull out the fan module slowly.

2. Hold the handle of the fan module and insert it into the chassis slowly, ensure the fan module

has a good contact with the slot until a “click” is heard.

FAN3

FAN2

FAN4

FAN5FAN6

FAN7FAN8

PSU2

PSU3PSU4

FAN1

PSU1

FAN3

FAN2

FAN4

FAN5FAN6

FAN7FAN8

PSU2

PSU3PSU4
