FS S5800-48F4SR-DC Manual de usuario

V1.0

COMMUTATEUR DE ROUTAGE L2/L3 GÉRÉ

MANAGED L2/L3-ROUTING-SWITCHES

MANAGED L2/L3 ROUTING SWITCHES

Quick Start Guide

Quick-Start Anleitung

Guide de Démarrage Rapide

CON

ETH

ID SYS

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52

10/100/1000BASE-T

S5800-48T4S-DC

S5800-48F4SR-DC

CON

ETH

ID SYS

1 2 3 4 5 6 7 8 910 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52

S5800-48F4SR-DC/S5800-48T4S-DC

Introduction

Thank you for choosing S5800 Series switches. This guide is designed to familiarize you with the

layout of the switches and describe how to deploy the switches in your network.

Grounding Cable x1 Rubber Pad x4 M4 Screw x10

Mounting Bracket x2

Console Cable x1 Network Cable x1

Accessories

CON

ETH

ID SYS

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52

10/100/1000BASE-T

S5800-48T4S-DC

CON

ETH

ID SYS

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52

S5800-48F4SR-DC

S5800-48T4S-DC

S5800-48F4SR-DC

Terminal Block Connector x2

Hardware Overview

Front Panel Ports

S5800-48F4SR-DC

S5800-48T4S-DC

Ports Description

RJ45

SFP

SFP+

CON

10/100/1000BASE-T ports for Ethernet connection

Hot-swappable SFP ports for 1G connection

Hot-swappable SFP+ ports for 1/10G connection

An RJ45 console port for serial management

ETH

USB

An RJ-45 Ethernet management port

A USB management port for software and conguration backup

and oine software upgrade

CON

ETH

ID SYS

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52

S5800-48F4SR-DC

SFP SFP+CON

USBETH

CON

ETH

ID SYS

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52

10/100/1000 BASE-T

S5800-48T4S-DC

RJ45 SFP+CON

USBETH

Front Panel LEDs

S5800-48F4SR-DC

CON

ETH

ID SYS

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52

SFP SFP+

ID SYS

ETH

S5800-48F4SR-DC

S5800-48T4S-DC

SYS

ID indication function enable.Blue

Green

O

Amber

ID indication function disable.

The system is normally running.

The system occurs alarm or error.

No power or no system runs or system runs abnormally.

SFP+

ETH

RJ45/SFP

Green

Blinking Green

Green

Blinking Green

O

Amber

Blinking Amber

Green

Amber

Port is linked.

Port is receiving or transmitting packets.

Port is not linked.

1G port is linked.

1G packets are receiving or transmitting.

10/100M port is linked.

10/100M packets are receiving or transmitting.

Port is not linked.

10G port is linked.

10G packets are receiving or transmitting.

1G port is linked.

1G packets are receiving or transmitting.

Port is not linked.

LEDs Status Description

CON

ETH

ID SYS

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

49 50 51 52

10/100/1000 BASE-T

S5800-48T4S-DC

RJ45 SFP+

ETH

ID SYS

NULL

-48V- -60V,6A

NULL

-48V- -60V,6A

Back Panel

Site Environment:

Installation Requirements

Do not operate it in an area that exceeds an ambient temperature of 45ºC.

The installation site must be well ventilated. Ensure that there is adequate air ow around the

switch.

Be sure that the switch is level and stable to avoid any hazardous conditions.

Do not install the equipment in a dusty environment.

The installation site must be free from leaking or dripping water, heavy dew, and humidity.

Ensure rack and working platforms are well earthed.

Before you begin the installation, make sure that you have the following:

Phillips screwdriver.

Standard-sized, 19" wide rack with a minimum of 1U height available.

Category 5e or higher RJ45 Ethernet cables for connecting the network devices.

S5800-48F4SR-DC/S5800-48T4S-DC

Grounding Point

3 Fixed Fans 2 Hot-swappable Power Supplies

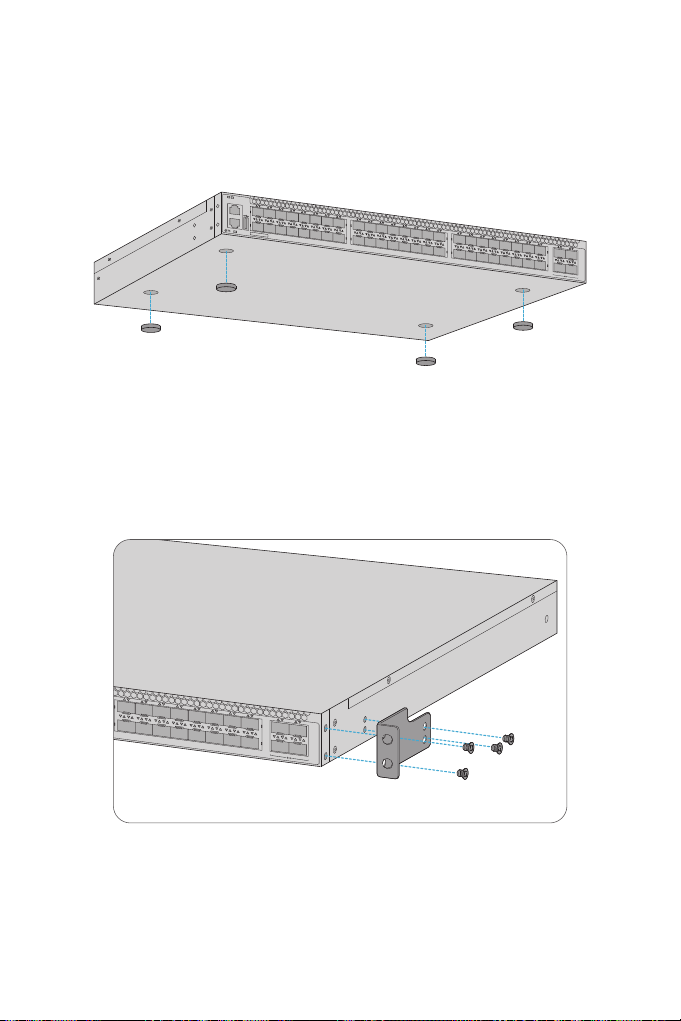

Mounting the Switch

Desk Mounting

Rack Mounting

1. Attach four rubber pads to the bottom.

2. Place the chassis on a desk.

1. Secure the mounting brackets to the two sides of the switch with eight M4 screws.

CON

ETH

ID SYS

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52

S5800-48F4SR-DC

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52

ETH

1 2 3 4 5 6 7 8 910 11 12 13 14 15 16

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

1. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the

switch is mounted.

2. Secure the grounding lug to the grounding point on the switch back panel with the washer and

screws.

2. Attach the switch to the rack using four M6 screws and cage nuts.

Grounding the Switch

CAUTION: The earth connection must not be removed unless all supply connections have

been disconnected.

31 32 33 34 35 36

37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52

NULL

-48V- -60V,6A

CON

ETH

ID SYS

1 2 3 4 5 6 7 8 9 10 11 12 13 14

S5800-48F4SR

CAUTION: Laser beams will cause eye damage. Do not look into bores of optical modules

or optical bers without eye protection.

1. Plug a compatible SFP/SFP+ transceiver into the SFP/SFP+ port.

2. Connect a ber optic cable to the ber transceiver. Then connect the other end of the cable to

another ber device.

Connecting the Power

Connecting the SFP/SFP+ Ports

14 15 16

17 18 19 20 21 22

23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52

The front panel of the power supply indicates a DC inlet power socket and consists of one terminal

block connector within 3 contacts. Please follow the steps below to insert the power wire.

1.Insert positive/negative DC power wires into Contacts + and -

2.Tighten the wire-clamp screws to prevent the wires from loosening.

NO.

Name

NULL

Description

Positive

Negative

Null

+NULL

Connecting the Management Ports

1. Insert the RJ45 connector of the console cable into the RJ45 console port on the front of the switch.

2. Connect the other end of the console cable to the RS-232 serial port on the computer.

1. Connect one end of a standard RJ45 Ethernet cable to a computer.

2. Connect the other end of the cable to the ETH port on the front of the switch.

Connecting the Console Port

Connecting the ETH Port

CON

ETH

ID SYS

1 2 3 4 5 6 7 8 9 10 11 12

13 14 15 16

17 18

S5800-48F4SR-DC

CON

ETH

ID SYS

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22

23 24 25 26 27 28 29 30 31 32

S5800-48F4SR-DC

19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52

10G

33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52

10G

Conguring the Switch

Insert the Universal Serial Bus (USB) ash disk to the USB port for software and conguration backup

and oine software upgrade.

Step1: Connect the computer to the Management port of the switch using the network cable.

Step 2: Set the IP address of the computer to 192.168.1.x. ("x" is any number from 2 to 254.). Set the

subnet mask of the computer to 255.255.255.0.

Connecting the USB Port

Conguring the Switch Using the Web-based Interface

OK Cancel

General

IP address:

Subnet mask:

Default gateway:

You can get IP settings assigned automatically if your network

supports this capability. Otherwise, you need to ask your network

administrator for the appropriate IP settings.

Internet Protocol Version 4(TCP/IPv4) Properties

Use the following IP address:

Obtain an IP address automatically

Preferred DNS server:

Alternate DNS server:

Validate settings upon exit Advanced...

. . . 21168192

0255

255255

. . .

Obtain DNS server address automatically

Use the following DNS server addresses:

CON

ETH

ID SYS

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

17 18 19 20 21 22 23 24

25 26 27 28 29 30 31 32 33

USB

S5800-48F4SR-DC
