Flashforge Guider 2 Manual de usuario
SZ11S-ZN/EN-A02 Guider 2 / Guider 2s
引领者 2 / 引领者 2s
This guide is only applicable to FLASHFORGE Guider 2/Guider 2s 3D printer
P14
本指南仅适用于闪铸科技 引领者2/引领者2s 3D打印机
01
3. The bottom PE foam should contain: a spool of
PLA filament, a spool holder, a solid glue, a USB
cable, a filament guide tube and a accessories
bag.
5. Remove the top PE foam piece, which
contains one power cable, one USB Stick,
one Quick start guide and a After-sales
service card.
2. Take your 3D printer out of the box.
9. Tap [Tools].
Build
Power Switch

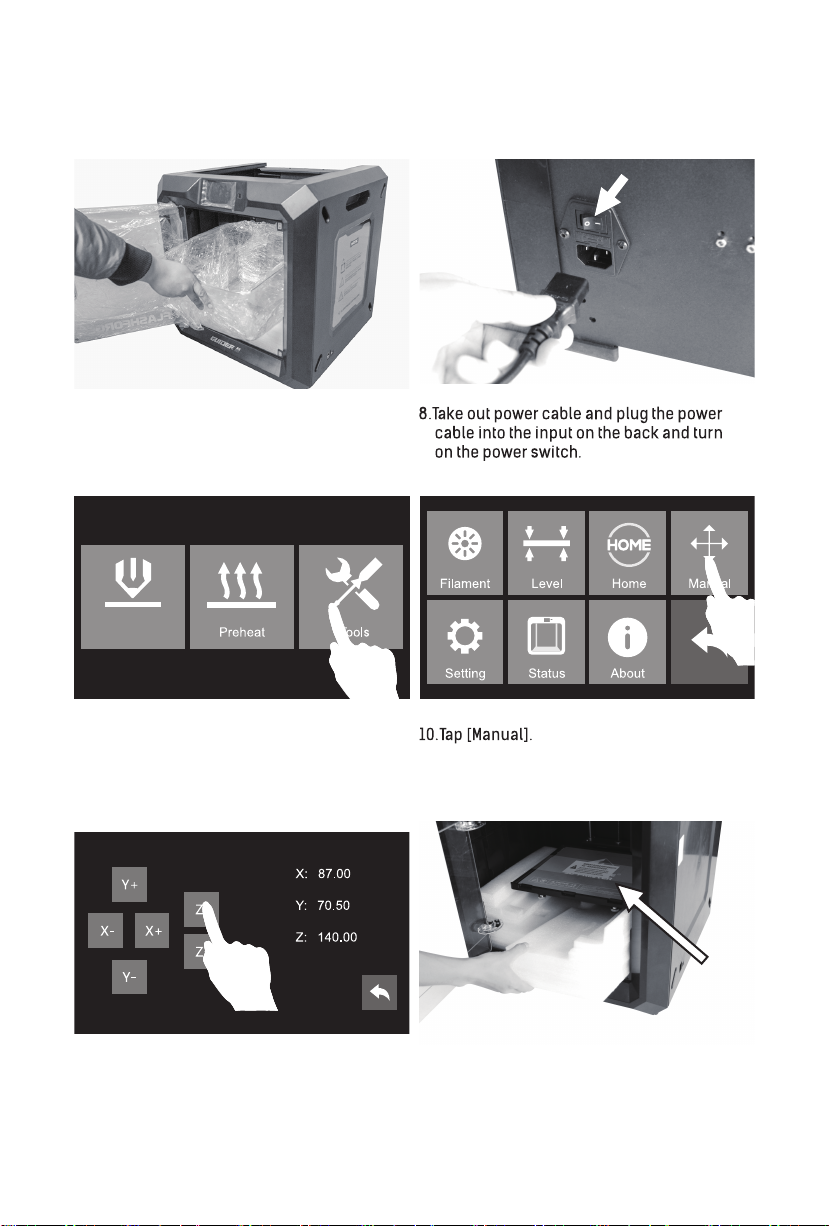

12. Remove both bottom foam pieces. Tear off
the stretch wrap.
11. Tap [Z-] to partially elevate the build plate.
Tap touch screen button on the right side of
touch screen, go back to home screen.
7. Tear off tape and the stretch wrap of front door.
Squeeze top lid slightly from both sides to the
middle so as to take top lid successfully.
Remove the stretch wrap of top lid.
Tear off the
stretch wrap
02
03
3. Y-Axis Guide Rod 4. X-Axis Guide Rod1. Z-Axis Guide Rod 2. Filament Intake
7. Build Plate 8. Nut5. Touch Screen 6. Touch Screen Button
11. Nozzle 12. Turbo Fan Baffle9. Servo 10. Turbo Fan
15. USB Cable Input 16. Spool Holder Slot13. Network Interface 14. USB Stick Input
17. Power Switch 18. Power Input
04
Getting to Know Your Guider 2
3. Air-Filter 4. Y-Axis Guide Rod1. Z-Axis Guide Rod 2. Filament Intake
7. Touch Screen Button 8. Build Plate5. X-Axis Guide Rod 6. Touch Screen
11. Servo 12. Turbo Fan9. Nut 10. Camera
(Inside the printer)
15. Network Interface 16. USB Stick Input13. Nozzle 14. Turbo Fan Baffle
17. USB Cable Input 18. Spool Holder Slot 19. Power Switch 20. Power Input
05
Getting to Know Your Guider 2S
5. After filament goes through guide tube, press
spring presser on the left side of extruder, and
insert filament vertically into filament intake.
1. Locate the spool holder. Install the spool holder
into the left quadrangular opening on the back.
6. After inserting into filament intake, insert guide
tube into extruder filament intake to fix.
Press here Filament intake
06
How to use the nuts
Rotate the nuts clockwise
Raise the build plate to reduce the distance
between the nozzle and build plate.
Lower the build plate to increase the distance
between the nozzle and build plate.
Rotate the nuts Anticlockwise
Build plate goes up
Build plate goes down
Leveling Build Plate
1. Tap [Tools].
Build
2. Tap [Level].
07
Berfore leveling, let's learn the funciton of nuts.
0403
0201
Tools
7. If the distance is appropriate, tap [ok] to next
step. If the diastance still not appropriate, please
follow the prompts on the touch screen to
adjust till you see [ok].
Tap the [OK] button to move to
the next leveling point.
Congartulations
Screw the three nuts under the platform
counterclockwise until they are tight,
then tap the [OK] button.
3. Please wait while the extruder and platform finish initial movements. Screw three nuts under the
platform anticlockwise, then tap [OK] button.
Attention: three nuts may be tightened up before going out, please skip this step if you find
three nuts have been tightened up, and continue to following steps
4. After tapping [OK] button, the extruder will
move towards the first point and the plate will
move up and down to verify the distance
between nozzle and plate.
6. Then tap the [Verify] button to check whether
the distance is appropriate.
5. If the distance between the nozzle and plate
is too large, rotate the three nuts underneath
the platform clockwise for the same rounds
until you hear a steady beep.
08
09
8. After first leveling point completed, start the other two leveling points.
Attention: when starting the second and the third leveling points, just need to adjust one
corresponding nut under extruder.
9. Follow the prompts on the touch screen to adjust the corresponding nut till you hear a steady
beep.
Turn the corresponding nut under
the platform clockwise until
you hear the beep.
Distance Too Small
Turn the corresponding nut under
the platform anticlockwise until
you hear the beep.
10. If the distance is appropriate, tap [ok] to next
step. If the diastance still not appropriate,
please follow the prompts on the touch
screen to adjust till you see [ok].
11. Start the third leveling point according to the
method of the second leveling point.
After leveling completed, tap return arrow to
go back to home screen.
Tap the [OK] button to move to
the next leveling point.
Congartulations
Leveling completed!
Finish
