Flashforge Creator Pro 2 Manual de usuario
本手册仅适用于金刚狼2 3D打印机
This guide is only applicable to Creator Pro 2 3D printer
Quick Start Guide
EN/CN-A01
1.
2.
高温危险！打印机喷嘴和打印平台在工作时会被加热，请避免接触!
可动部件可能造成卷入挤压和切割伤害。操作机器时请不要佩戴手套
或缠绕物。
前往闪铸科技官方网站 www.sz3dp.com ，可以在[ 技术支持 ] 页面下载
用户使用手册、切片软件等资料，或查看相关操作视频。
Hot! Avoid touching the heating nozzle and heating build plate
in operation.
Moving parts in printer may cause injury. Do not wear gloves or
other sources of entanglement in operation.
1.
2.
WARNING
Please refer to FlashForge official website www.flashforge.com to
download the newest User's Guide, Software and Instruction
Videos. (Support-Support Center-Select a Product)
DOWNLOAD
Unboxing
The Creator Pro 2 was carefully packaged at FlashForge manufacturing facility. Please
follow the unpacking steps laid out below.
CAUTION 1. Remove the package and take out accessories carefully. Do not
use force.
2. Do not tear the yellow high temperature resistant adhesive tape
around the nozzle, it has thermal insulation and high temperature
resistance characteristics.
1. 2.
3.
Open box and remove top foam piece. Firmly grasp the two side handles of
FlashForge Creator Pro 2. Lift it out of the
carton and place it on a stable surface.
Remove the packing bag and then
remove the tape and plastic wrap for
protecting the front door.
4. The accessories shall be displayed. Let
us remove the inner package and take
the accessories out.
1
2
6.
5. Take out the foam with accessories.
Shear two ties on the both sides of
X-axis guide rod.
Take the extruder out and place the
extruder carefully. Avoid the nozzle to
touch the desk, which prevent the nozzle
damage from scratch.
7. Open the door, remove top cover of the
printer and take filament out of the lid.
8. Hold both sides of the printing platform,
and slowly lift the platform from the
bottom to facilitate the removal of the
foam box below.
10. Unpacking is complete. It is recom-
mended that you keep the packaging
materials for later handling or storage.
9. Take out the foam on the bottom of the
platform, and then slowly press the
platform down by hands to the lower
position for easy subsequent installa-
tion.
About Your Creator Pro 2
3
1. Platform
4. LCD panel
7. X-axis guide rod
10. Spring presser
13. Turbofan baffle
16. USB cable input
19. Spool holder
2. Platform support
5. Z-axis guide rod
8. Slot
11. Cooling fan
14. Extruder bracket
17. Filament guidetube buckle
20. Power input
3. Leveling nut
6. Extruder cable bunch
9. Nozzle cooling fan
12. Nozzle
15. SD card slot
18. Spool holder slot
21. Power switch
1
20
21
16
15
19
18
17
23 4 5
8
7
6
13 1412
9
10 11
Accessories
Grease
SD Card
Guide
4
Installation
Lower the platform first and place the
dual extruder on the extruder seat.
Take the M2.5 Allen Wrench from the
tool bag and four M3 bolts from the
accessory kit.
Adjust the extruder location to align the
bolt holes.
Secure the extruder onto the extruder
seat by screwing the M3 bolts in.
1.
2.
3.
4.
Bolt Hole Bolt Hole
5

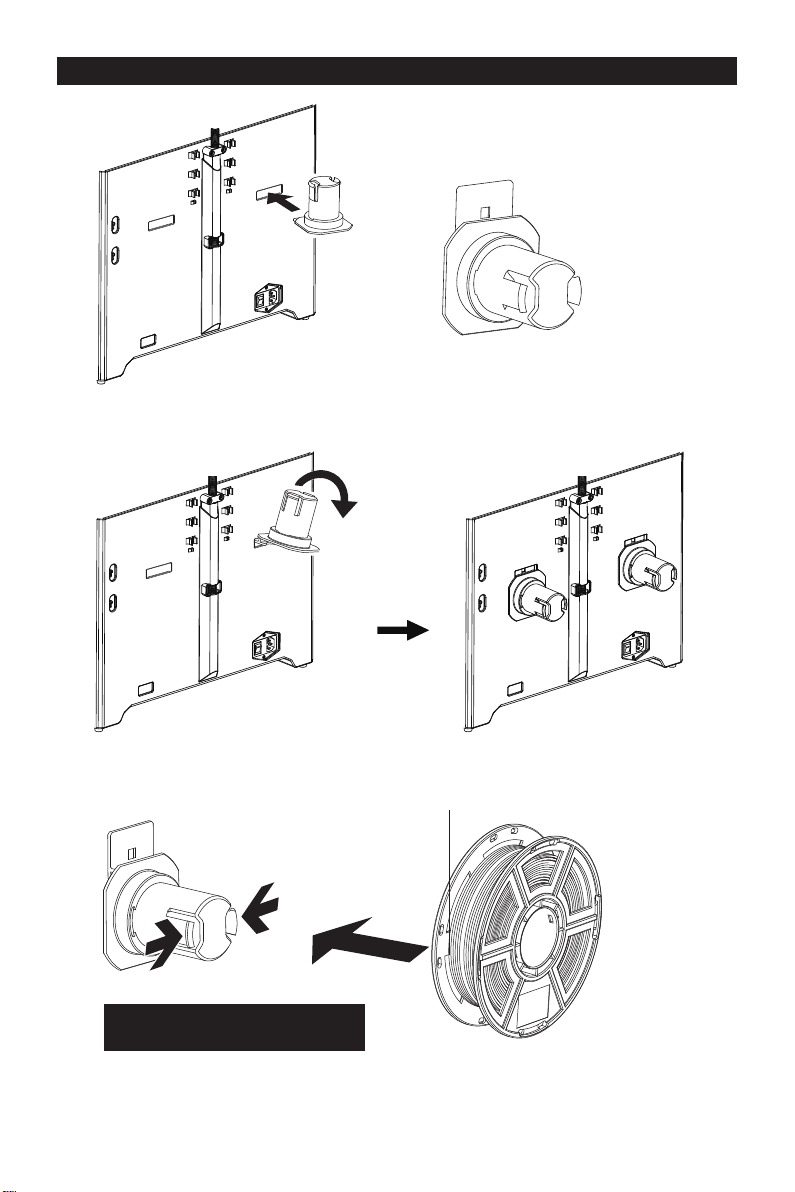

1.To install a spool holder, level it and insert the end into the corresponding opening.
2.Turn down the spool holder to make the holder bottom cleave to the printer back.
3.Take a roll of filament, then squeeze the spool holder top and mount the filament spool
to the holder.
Please refer to the next page for the
right method of filament mounting.
6
The filament spool must be oriented
correctly (see below).
After filament guide tube fixation
completed, press the left spring presser
of extruder, put filament vertically into
the left filament intake from the other
end of filament guide tube. Lock the filament guide tube with R-shape
buckles.
1.
2.
Filament Guide
Tube Buckle
limited seat
7
Please make sure that the nozzle touches the
anti-oozing plate properly when installed. It is
OK to adjust the distance between the nozzle
and plate manually. It is normal to see scratches
on the surface of the plate after printing for
several times.
M3x8
The First Setting
Loading and Unloading
1.
2.
Tap [Tools]-[Filament]
Tap [load], the extruder will start to heat up. After heating to the target temperature,
please manually insert the filament into the filament feeding wheel. When the filament
is ejected from the nozzle, it indicates that loading is completed.
3. Tap [unload], the extruder starts to heat up. After heating to the target temperature,
manually feed out a part of filament from the nozzle, then press down the spring
presser, quickly pull out the filament, and complete unloading.
Print
L Extruder
Load
Unload
Load
Unload
R Extruder
Heating...
L Extruder 75℃ / 220℃
Preheat Tools
Filament
Setting
Level
Status
Home
About
Manual
8
Leveling
1.
2.
Tap [Tools]-[Leveling] to start leveling. The machine will finish homing first.
Clearing the remaining materials on the nozzle first to avoid leveling fails.
After stop movement of extruder and platform, tighten the three nuts below the
platform counterclockwise (To avoid scratch build plate by extruder and it is important
action)
3. Choose one extruder and move it to the first nut by hand. Place a paper under the
extruder and tighten the nut to reduce the distance between extruder and platform.
Gently move the paper and feel the fraction. If move the paper with gent fraction, it is a
suitable distance between extruder and platform. Finished the first place, and repeat
the same actions in the second and third nut.
Filament
Setting
Level
Status
Home
About
Manual
Please wait, device is homing.
Next
Screw the three nuts tnder the platform
counterclockwise until they are tight, then
tap the [Next].
Next
Please adjust the front thumb screw under
Platform when stop.
Next
9
