How to replace a hot-end nozzle
29 January
2021
Revision 2
FELIX Pro series
How to replace a hot-end nozzle
29 January 2021
1
FELIX Pro
www.FELIXprinters.com
Pro series
1Introduction
This tutorial explains how to exchange a hot-end nozzle properly. A replacement can be needed, when the
tip is completely clogged or when it is required to use a different nozzle size, also see the Cold pull method
this can safe most clogged nozzles.
2Tools
The tools you need to replace the tip of the FELIX Pro nozzle:
•Allen key 1.5
•(open-end) Wrench 12
•(closed-end) Wrench 7
3Take the hot-end out of the machine
Warning: When filament is still loaded into the FELIX Pro , the hot-end
cannot be removed
The first step is to take the hot-end out of the Pro. Before this is possible, the filament that is in the machine
should be removed. When the filament is removed, let the hot-end fully cool down.
Turn off the FELIX Pro
Disconnect the cable that connects the hot-end to the mainboard. Carefully pull the connector away from
the socket.
1. Pull off edge connector of corresponding print head, do NOT pull the wires, there is also a small hook on
the fan duct to which the cable is fixed take it off this hook first.
2. Open the cover in front.
3. Rotate slightly to right
4. and Then pull out print-head
2
4
3
1
How to replace a hot-end nozzle
29 January 2021
2
FELIX Pro
www.FELIXprinters.com
Pro series

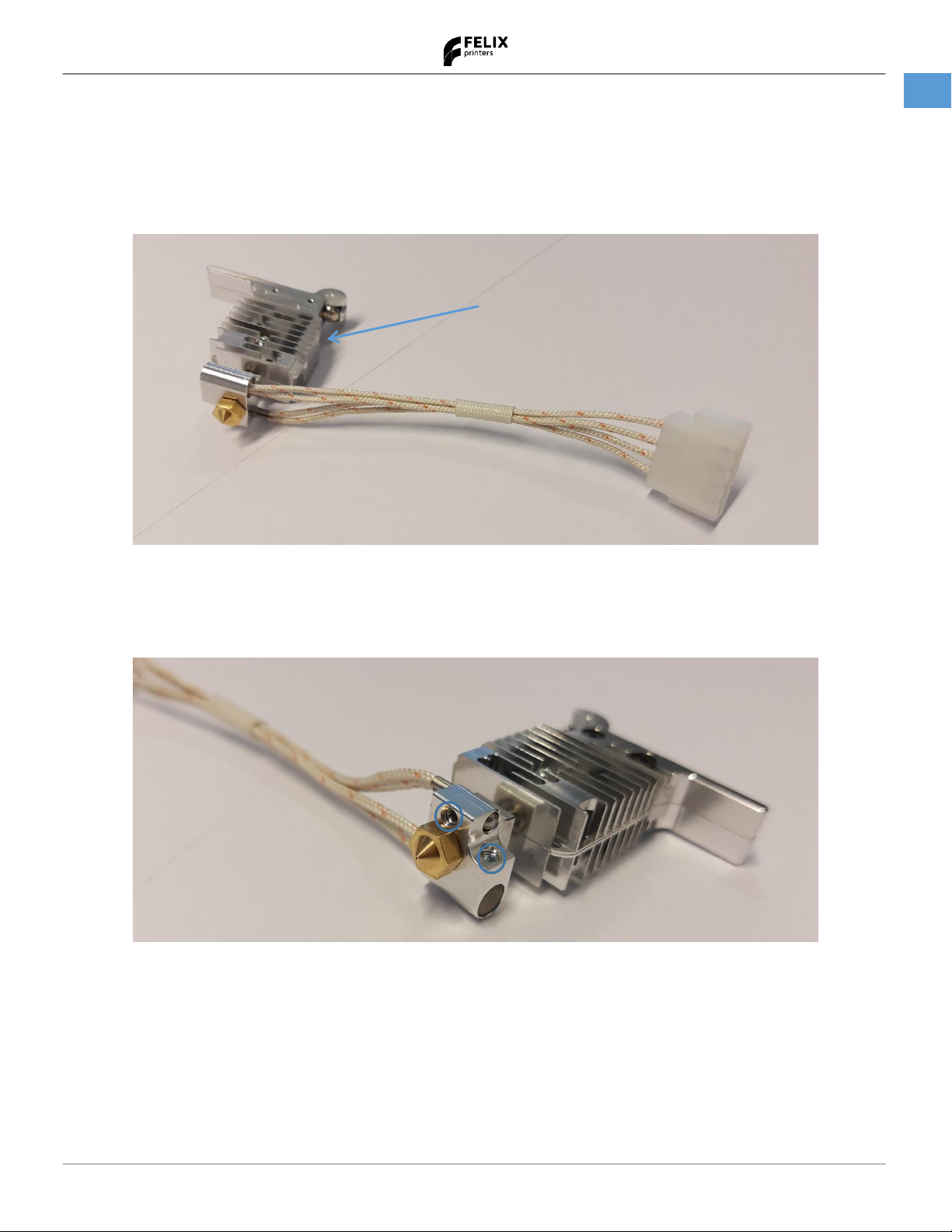

4Remove the screws in the hot-end
Warning: only hold the hot-end by the barrel. Do not put pressure on the outside mechanism. This part is
calibrated at the FELIXprinters factory - any changes in the calibration will influence the print results.
Hold the hot-end by the barrel and use the Allen Key 1.5 to remove the two screws located close to the tip
of the hot-end. After this you can take out the heater themistor cartridge
How to replace a hot-end nozzle
29 January 2021
4
FELIX Pro
www.FELIXprinters.com
Pro series
6Place the new tip
Now that the old tip is removed, place the new tip and lock it firmly into its place.
Place the new nozzle and turn it in by hand.
To prevent the nozzle from leaking it’s best to heat up the hot end with a hot airgun or a
lighter and then tighten it a little more after that, be careful you don’t burn yourself
though. If you still see some leaking you can tighten it in the machine while it’s on
temperature for the material you want to print.
How to replace a hot-end nozzle
29 January 2021
5
FELIX Pro
www.FELIXprinters.com
Pro series
7Reconnect the hot-end to its cables
Put the cables into their slots again and carefully lock them with the small screws. Check that the cable
goes to the right side away from the handle.
Do not put too much pressure on the thermistor and heater but just
enough to feel the cables are locked in their places.
8Put the hot-end back into its slot
Firmly push the hot-end into its slot. Make sure it is pushed in all the way to the back. Push till you hear a
‘click’ sound. This means the hot-end is in the correct position.
5. Pull off edge connector of corresponding print head, do NOT pull the wires, there is also a small hook on
the fan duct to which the cable is fixed take it off this hook first.
6. Open the cover in front.
7. Rotate slightly to right
8. and Then pull out print-head
9. Reverse the assembly of the hot-end into the extruder assembly. Do not forget to close the lid.
IMPORTANT: Ensure the hot-end wires make the bend as shown in picture above
10. Please do the following two extruder calibrations, if you wish to properly print with dual head.
-Z-height calibration
-XY calibration
2
4
3
1
How to replace a hot-end nozzle
29 January 2021
6
FELIX Pro
www.FELIXprinters.com
Pro series
You are now be able to use the FELIX Pro again
If you are unable to continue or have any questions, you can check at the support section of our website or
you can contact us directly:
Website: www.felixprinters.com/support
Email: support@felixprinters.com
Telephone: +31 (0)30 30 31 387
Address: Zeemanlaan 15, 3401MV IJsselstein, The Netherlands
Kind regards,
FELIXprinters
