EverFocus Stainless Steel Series Manual de usuario

Stainless Steel Series Network Camera

2MP / 3MP / 4MP

Quick Installation Guide

EZN288MS / EZN368MS / EZN468MS

EDN288MS / EDN368MS / EDN468MS

Release Date: December, 2017

All the images including product pictures or screen shots in this document are for example only. The

images may vary depending on the product and software version. Information contained in this

document is subject to change without notice.

Stainless Steel 2MP/3MP/4MP Network Cameras

1. Introduction

The marine-grade (AISI 316) stainless steel network cameras come with two types, Dome and Bullet,

providing resolution up to 4-megapixel (2592 x 1520). The stainless steel series supports dual

streams from H.265 and H.264 video compression formats.

Stainless Steel Series Models

Type Model Lens Megapixel Storage IR LED/Range IP68 & IK10

Dome

EDN288MS

Motorized

2.8-12mm

2MP

Micro SD/SDHC/SDXC

Class 10, Max. 128GB

12 Units,

30m/98ft. SupportedEDN368MS 3MP

EDN468MS 4MP

Bullet

EZN288MS

Motorized

2.8-12mm

2MP

Micro SD/SDHC/SDXC

Class 10, Max. 128GB

3 Units (high

power),

30m/98ft.

SupportedEZN368MS 3MP

EZN468MS 4MP

1.1 System Requirements

Before installing, please check that your computer meets the following system requirements.

Operating System: Microsoft Windows XP / Vista (32-bit) / 7 (32-bit)

Microsoft Internet Explorer 11 or later, Chrome (Windows version 44 and earlier), Firefox

version 50 and earlier, EverFocus Browser

1.2 Packing List

Please check that there is no missing item in the package before installing.

Item EDN Series EZN Series

Camera x 1 x 1

MAC Address Sticker x 2 x 1

Screw + Screw Anchor x 3 x 4

Hexagon Wrench x 1 x 1

Mounting Sticker x 1 x 1

Cable Gland Kit x 1 x 1

Power Pigtail Cable x 1 x 1

Desiccant Bag x 1 -

Software CD + QIG x 1 x 1

Note:

1. Equipment configurations and supplied accessories vary by country. Please consult your local

EverFocus office or agents for more information. Please also keep the shipping carton for

possible future use.

Contact the shipper if any items appear to have been damaged in the shipping process.

Stainless Steel 2MP/3MP/4MP Network Cameras

1.3 Optional Accessory

You can go to the product page on EverFocus’ website to check the related optional accessories.

www.everfocus.com.tw

2. Physical Description

EDN288MS / EDN368MS / EDN468MS EZN288MS / EZN368MS / EZN468MS

No. Item Name Descriptions

1 Light Sensor Detects lights.

2 IR LEDs

EDN Series: 12 IR LEDs for infrared illumination in night vision applications.

EZN Series: 3 high power IR LEDs for infrared illumination in night vision

applications.

3 Lens Motorized 2.8~12mm lens.

4 Video Output CVBS output for connecting to a monitor to adjust camera viewing angle.

5 Reset Button Press the button to restore the camera to factory default. Note that the

EZN models also features a Reset Button on the cable (refer to 2.2 Cables).

6 SD Card Slot Insert a micro SD/SDHC/SDXC card (up to 128GB) for recording.

2.1 Dimensions

EDN288MS / EDN368MS / EDN468MS:

Ø 135mm / 5.3" 100.5mm / 4"

Stainless Steel 2MP/3MP/4MP Network Cameras

EZN288MS / EZN368MS / EZN468MS:

127.8mm / 5.03"

105.1mm / 4.1"

100.4mm / 3.95"

2.2 Cables

The cables provide connections for connecting to the Network and Power. You can also power up

the camera through PoE. The Reset Button cable is only available for EZN models.

12VDC Input

LAN / PoE Cable

Reset Button

(only for EZN models)

3. SD Card Slot and Reset Button

You can use the SD Card and the Reset Button to:

SD Card Slot: Optionally insert a micro SD card to the card slot for recording videos. Before

inserting a micro SD card, make sure you turn off the camera first.

Note: This IP Camera supports micro SD/SDHC/SDXC card up to 128GB. You can go to the

Download page on the product website to find the Storage Compatibility Table for viewing the

tested SD cards. Please visit EverFocus’ Website www.everfocus.com.tw

Reset Button:

Reboot the camera: When the camera is powered up, press the Reset Button will reboot the

camera.

Restore the camera: Keep the Reset Button pressed, at the same time unplug the camera power

then plug it back again will return camera settings to the factory default values.

Stainless Steel 2MP/3MP/4MP Network Cameras

EDN288MS / EDN368MS / EDN468MS:

To find the SD Card Slot and the Reset Button on the camera module, remove the camera cover

using the supplied Hexagon Wrench. After inserting the SD card, be sure to place the supplied

Desiccant Bag inside the module and then tightly screw back the camera cover.

SD Card Slot

Reset Button

Desiccant Bag

EZN288MS / EZN368MS / EZN468MS:

To find the SD Card Slot on the camera module, use the supplied Hexagon Wrench to unscrew the 4

screws on the rear side of the camera and then slowly pull out the camera module. After inserting

the SD card, place a Desiccant Bag inside the module, put the module back to the housing and then

tightly screw back the module. The Reset Button is on the cable.

Note: There is already a Desiccant Bag placed inside the camera module before shipping. It’s

recommended for users to prepare a Desiccant Bag and place it inside the camera module every

time when you pulled out the camera module from the housing.

SD Card Slot

Desiccant Bag

Reset Button

Stainless Steel 2MP/3MP/4MP Network Cameras

4. Installation

Please refer to the steps below to mount the IP cameras.

EDN288MS / EDN368MS / EDN468MS:

1. Before screwing the camera to the wall/ceiling, stick the Mounting Sticker on the wall/ceiling

to mark the position for installation. Drill three screw holes on the wall/ceiling according to the

Mounting Sticker. Push the supplied 3 Screw Anchors into the holes on the wall/ceiling. Drill

another hole in the middle only if you want to run the cables through the wall/ceiling.

Drill a hole only if you want to run the

cables through the wall/ceiling.

2. Unscrew the 3 screws using the supplied Hexagon Wrench and then remove the camera cover.

Optionally insert a micro SD/SDHC/SDXC card into the card slot.

SD Card Slot

Screw

3. Place the camera base against the anchoring surface so that the holes line up. Screw the

camera base to the ceiling/wall by using the supplied 3 Screws.

Stainless Steel 2MP/3MP/4MP Network Cameras

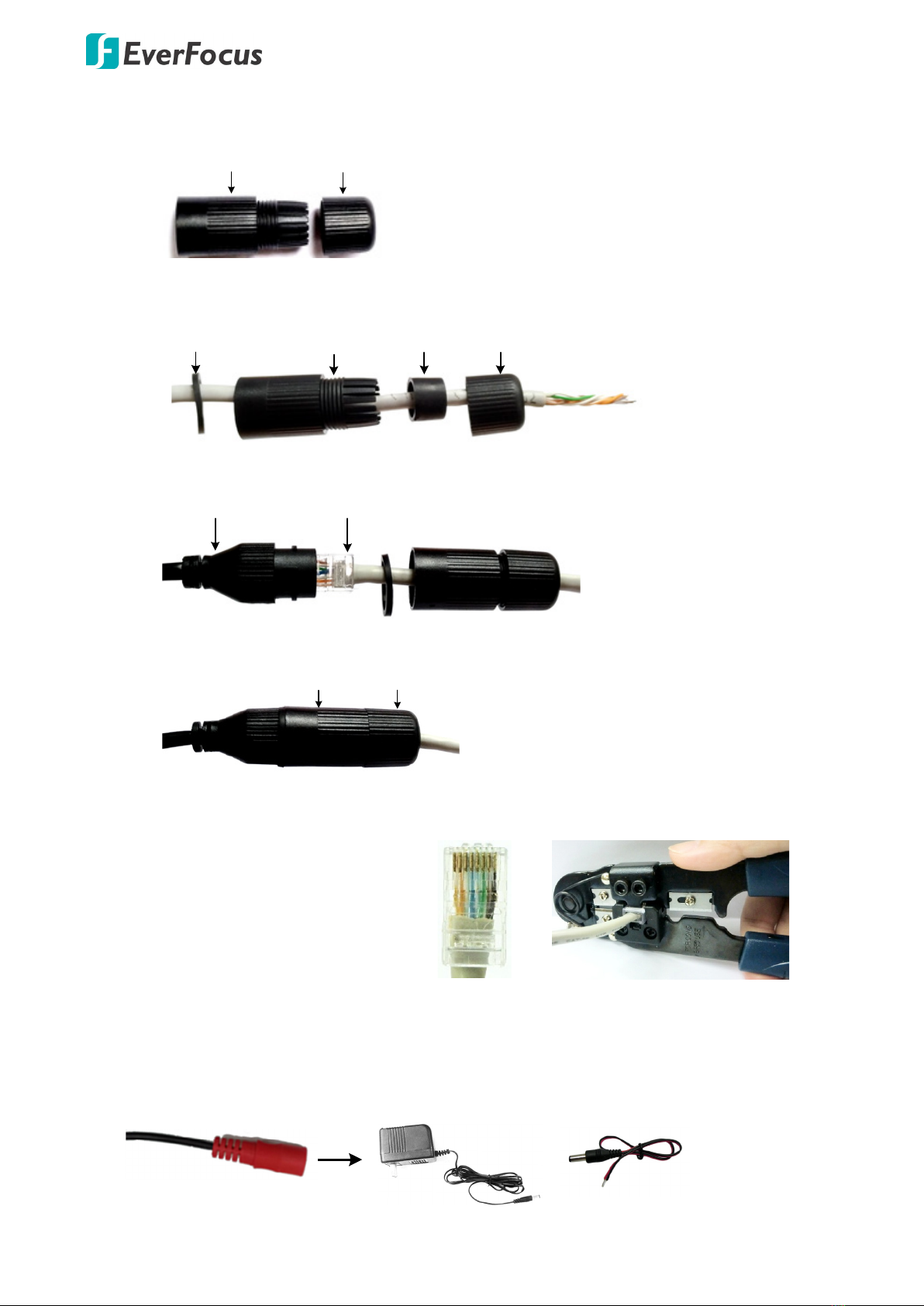

4. Connect a LAN/PoE cable to the camera.

a. Remove the Screw Cap from the Cable Gland.

Screw Cap

Cable Gland

b. Insert a RJ-45 network cable (without the RJ-45 connector on the one end) through the

supplied Waterproof Ring, Cable Gland, Stopper and Screw Cap accordingly.

Waterproof Ring Cable Gland Stopper Screw Cap

c. Connect the RJ-45 cable to the LAN/PoE Cable of the camera.

RJ-45 Cable

LAN/PoE Cable

d. Tightly screw the Cable Gland and Screw Cap to the Rugged RJ-45 Connector Cable.

Screw Cap

Cable Gland

e. Crimp the RJ-45 connector onto the RJ-45 network cable. Note that the wires should be

placed into the RJ-45 connector based on the following order (from left to right).

Orange with white stripe

Orange

Green with white stripe

Blue

Blue with white stripe

Green

Brown with white stripe

Brown

5. If you are not powering the IP camera through PoE, you can connect the camera to a 12VDC

power source using the supplied Power Pigtail Cable or using a power adapter.

Power Pigtail Cable

12VDC Power Cable

Power Adapter

Stainless Steel 2MP/3MP/4MP Network Cameras

6. Connect a monitor to the Video Output on the IP camera to access camera live view while

adjusting camera angles. To access camera live view, please refer to 5. Accessing the Camera.

Video Output

To adjust camera angles:

Pan Adjustment: Simply turn left / right of the 3-Axis bracket by 75° to the desired position.

3-Axis Bracket

75° 75°

Rotational Adjustment: Loosen the rotation screw and rotate the camera left / right to the

desired position, then tighten the rotation screw. Due to the internal connector design, it is

recommended not to rotate the camera more than 30°.

Rotation Screw

30°

Stainless Steel 2MP/3MP/4MP Network Cameras

Tilt Adjustment: Loosen the two tilt screws on both side and adjust the angle up to 75° to the

desired position, then tighten the tilt screws.

Tilt Screw

0° ~ 75°

7. Place the supplied Desiccant Bag, tear down the Protection Film from the inside of the cover

and then screw the camera cover back.

Protection Film

Desiccant Bag

Note:

1. Before start operating the IP camera, please ensure the camera date and time are correct.

To configure the camera date/time, go to System > Date/Time setting page on Web UI.

2. By default, the system will automatically adjust the IR LED strength according to the scene,

so please avoid IR reflection when installing the camera to prevent out-of-focus at night.

3. Under Auto focus mode, if the camera does not focus after switching the Day/Night mode,

it is recommended to switch the focus mode to Manual and adjust focus manually.

Stainless Steel 2MP/3MP/4MP Network Cameras

EZN288MS / EZN368MS / EZN468MS:

1. Optionally screw the sunshield to the camera (please refer to Optional Accessory in this QIG).

2. Optionally insert a micro SD/SDHC/SDXC card into the card slot. Please refer to 3. SD Card Slot

and Reset Button.

3. Before screwing the camera to the wall/ceiling, stick the Mounting Sticker on the wall/ceiling

to mark the position for installation. Drill four screw holes on the wall/ceiling according to the

supplied Mounting Sticker and push the supplied 4 Screw Anchors into the holes on the

wall/ceiling. Drill another hole in the middle inside the area only if you want to run the cables

through the wall/ceiling.

Screw Hole Position

Drill a hole if you want to

run the wires through

the wall/ceiling.

4. Place the camera’s bracket against the anchoring surface so that the holes line up. Screw the

camera to the wall/ceiling using the supplied 4 Screws.

Wall/Ceiling

Bracket

Screw
