EverFocus EZ-PLATE-CAM Manual de usuario

High Contrast License Plate

Capture Camera

INSTALLATION & OPERATION MANUAL

Before attempting to connect or operate, please read and follow these instructions.

EZ-PLATECAM

Contents

1. CAUTIONS

2. FEATURES

3. ITEMS PROVIDED IN THE BOX

4. COMPONENT AND CONTROL

NAMES AND FUNCTIONS

5. INSTALLATION

6. OSD MENU FUNCTIONS

7. INSTALLATION GUIDELINES

8. SPECIFICATIONS

9. DIMENSIONS

1. Cautions

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions;

1. This device may not cause harmful interference.

2. This device must accept any interference received, including

interference that may cause undesired operation.

Note -

This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area

is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

WARNING -

This is a class A product. In a domestic environment this product may

cause radio interference in which case the user may be required to take

adequate measures.

Caution -

Any changes or modifications in construction of this device which are

not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

1. If DC power is used a regulated DC12V 1A power supply is recommended for use

with this camera for the best picture and the most stable operation.

An unregulated power supply can cause damage to the camera.

If an unregulated power supply is used, product warranty will be void.

2. It is recommended that the camera is used with a monitor or other equipment that

has a CCTV quality 75 video impedance level.

3. Do not attempt to disassemble the camera to gain access to the internal

components. Refer servicing to the manufacturer.

4. Never face the camera towards the sun, any bright, or reective light that may

cause smear on the picture or cause possible damage to the CCD.

5. Do not remove the serial number sticker.

1. Cautions

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with

separate collection systems)

This marking shown on the product or its literature, indicate that it should not be

disposed with other household wastes at the end of its working life. To prevent

possible harm to the environment or human health from uncontrolled waste disposal,

please separate this from other types of wastes and recycle it responsibly to promote

the sustainable reuse of material resources.

This product should not be mixed with other commercial wastes. Contact the

company where you purchased this product or your local government ofce for details

on how to properly dispose or recycle the product to be environmentally safe.

Business users should contact their supplier and check the terms and conditions of

the purchase contract.

Household users should contact the retailer for proper disposal procedures.

2. Features

• 1/3" Sony Super-HAD ⅡCCD

• OSD Menu system customizes performance to match application

• High Resolution 600TV Lines

• Special filter and IR LEDs provide maximum readability

despite headlight glare

• Plate capture up to 35mph (56Km/H)

• 9.0 ~ 22.0mm Varifocal lens captures license plate

from 8ft ~ 60ft (2.5M ~ 18.5M)

• IP66 rated weather resistant

• Cable concealed through bracket

• DC12V / AC24V Dual power with auto-polarity

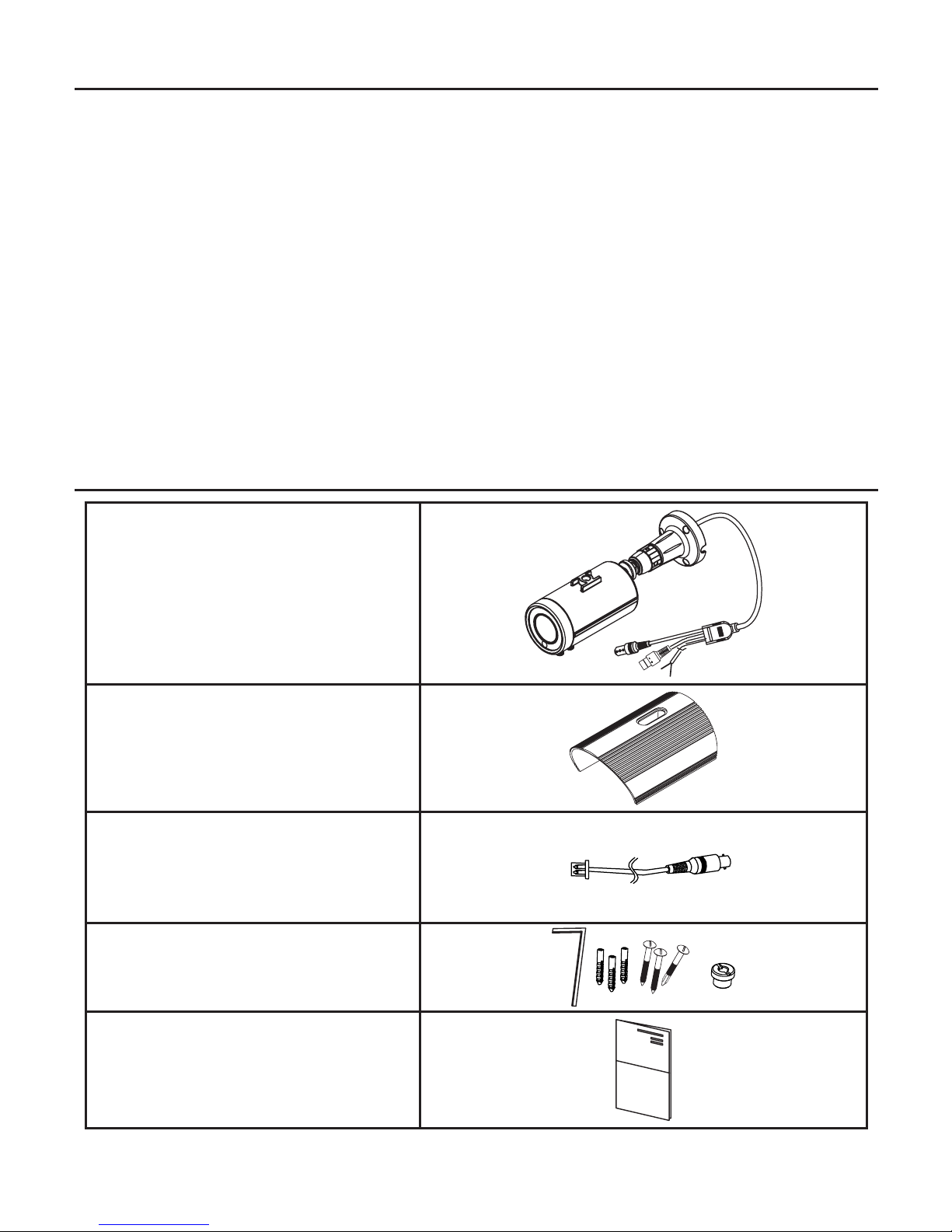

3. Items Provided In The Box

CAMERA

SUNSHIELD

VIDEO OUTPUT

TEST CABLE

L-WRENCH /

SCREW & Plastic anchor - 3ea /

SUNSHIELD FIXING BOLT

OPERATION MANUAL

4. Component and Control Names and Functions

① Sunshield Lock Bolt

② Sunshield

③ Mounting Bracket

④ IR LED : 20ea

⑤ Camera Body

⑥ Body Lock Ring

⑦ External Zoom and Focus adjustments

⑧ Cover To Access Menu Controls & Test Video Output

Pressing the “SETUP” button prompts the main setup menu.

“PUSH” button : To access the main setup menu

“U” Direction : Menu item UP selection

“D” Direction : Menu item DOWN selection

“L” Direction : To change data or decrease value

“R” Direction : To change data or increase value

①

④

③

⑥

②

⑦

①

⑤⑧

TEST

VIDEO

OUTPUT

⑦

5. Installation

• ADJUSTING CAMERA POSITION

360˚

90 ˚

360˚

After adjusting zoom and focus,

to prevent water infiltration, firmly

tighten the zoom and focus levers.

WARNING !

To prevent injury, this apparatus must be securely

attached to the mounting surface with sufficient

strength to hold the weight of the camera including

wind and snow loading in accordance with the

installation instructions.

360˚

Loosen socket head allen screws to change angle

and/or rotate body about base.

Loosen this lock ring

to rotate camera body.

5. Installation

• CONNECTIONS

DUAL(DC12V/AC24V)

When you install the camera, please seal the end of cable to

protect the camera connections from humidity problems.

DC12V/AC24V

BNC FEMALE VIDEO IN

WHITE: TRIGGER SIGNAL

BLACK: TRIGGER GROUND

VIDEO IN

HANDHELD

TEST CABLE

Note: Face of connector with color mark should

face “up” when inserting test cable.

VIDEO TEST POINT

CONNECTION

OSD CONTROL

DVR OR

OTHER CCTV

EQUIPMENT

Power Supply

24VAC 300 mA min ; 500 mA Recommended

12VDC 600 mA min ; 1A Recommended

6. OSD Functions

OSD Menu Structure

• OSD Access

To access OSD menu unscrew cover plate on rear of camera, press “in” on

joystick to access OSD Menu.

• MODE

- INSTALLATION

Installation Mode provides a bright video

screen to adjust angle and focus.

- LICENSE-PLATE

License-plate Mode provides high

contrast and clear license plate image

for license plate capture.

• FREEZE

The video screen will automatically go

in to FREEZE mode when Camera is

triggered by sensors connected to the

trigger input.

User can set the freeze time to

3, 5, or 10 sec.

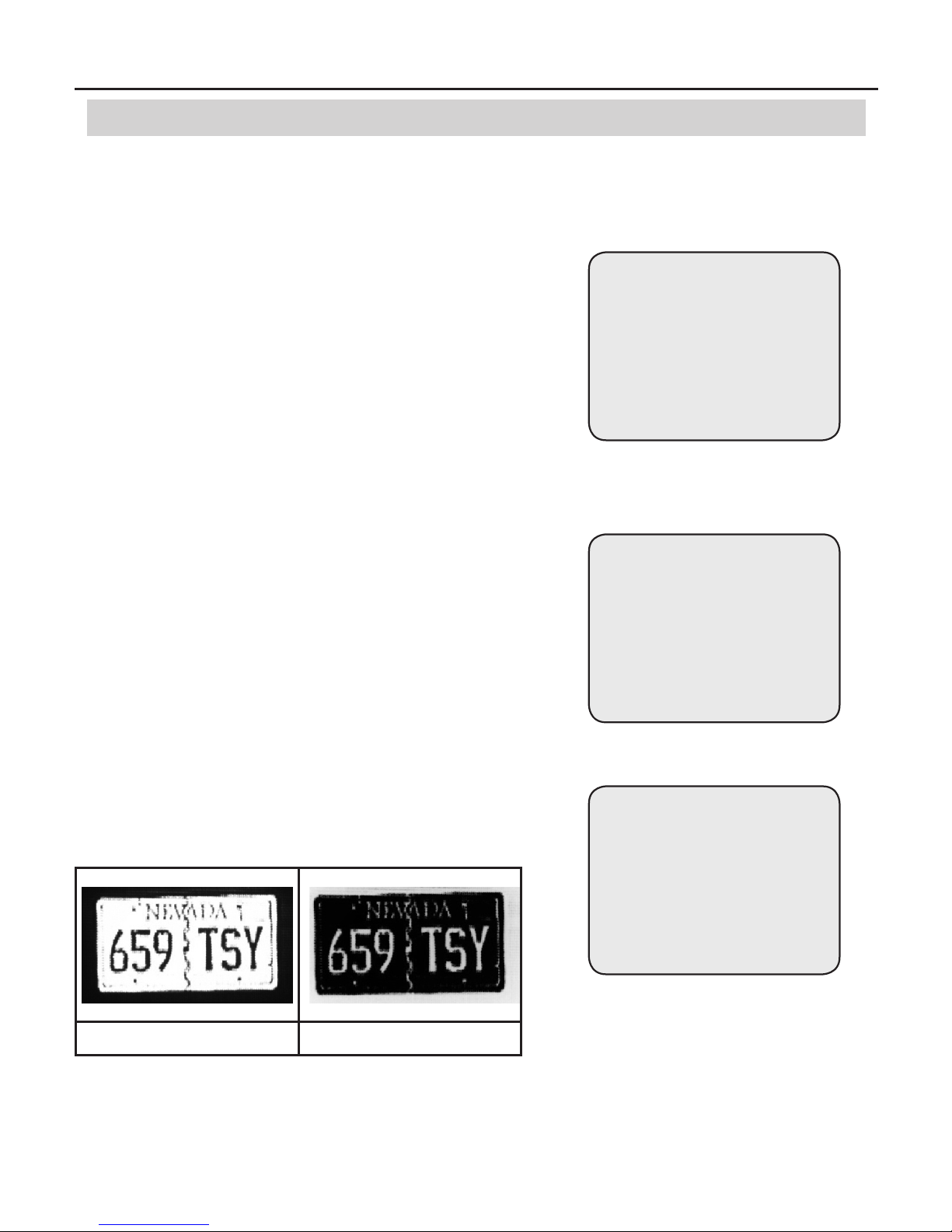

• NEGATIVE

User can select positive or negative image.

Negative OFF Negative ON

SETUP

▶MODE LICENSE-PLATE

FREEZE-TIME 5SEC

NEG. IMAGE OFF

EXIT

SETUP

MODE LICENSE-PLATE

▶FREEZE-TIME 5SEC

NEG. IMAGE OFF

EXIT

SETUP

MODE LICENSE-PLATE

FREEZE-TIME 5SEC

▶NEG. IMAGE OFF

EXIT

7. Installation Guidelines

Camera Height

• Consider camera height in distance calculation.

• Sharper angles will alter the appearance of the plate.

(Shallow angles are recommended)

Camera Height (Ft) Horizontal Distance (Ft) Capture Distance(Ft)

10 10 14.14

11 20 22.83

12 30 32.31

13 40 42.06

14 50 51.92
