INSTRUCTION MANUAL

1/3” W-Dynamic High Resolution Color Camera

EQ600 WDII

Version 1.5.5

About this manual

Before installing and using this camera, please read this manual carefully.

Be sure to keep it handy for later reference.

Safety Warning

1.Read manual carefully before installing the unit.

Please read this manual first for correct installation and operation.

2.Never install the camera on a ceiling that cannot hold its weight

The product may fall down to cause damages.

3.Do not install the camera near electric or magnetic fields.

Install the camera away from TV, radio transmitter, magnet, electric motor, transformer, audio

speakers because the magnetic fields generated from above devices will distort the video image.

4.Always stop using when the product emits smoke or abnormal heat.

5.Never disassemble the camera nor put impurities in it.

Disassembly or impurities may result in trouble or fire.

6.Never face the camera toward the sun.

Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.

7.Keep the power cord away from wet and never touch the power cord with wet hands.

Touching the wet power cord with hands or touching the power cord with wet hands may result in

electric shock.

8.Never install the camera in areas exposed to water, oil or gas.

The water, oil or gas may result in failure, electric shock or file.

9.Cleaning-

Do not touch the surface of sensor by hand directly. Use a soft cloth to remove the dirt from the

camera body. Use lens tissue or a cotton tipped applicator and ethanol to clean the sensor and

the camera lens.

10.Do not operate the camera beyond the specified temperature, humidity or power

source ratings.

Use the camera at temperatures within 0°C ~ 40°Cand humidity below 90%. The input power

source is DC12V/AC24V.

11.Retain Instructions---

The safety and operating instructions should be retained for future reference.

12.Heed Warnings—

All warnings on the unit and in the operating instructions should be adhered to.

Safety Warning

13.Follow Instructions—

All operating and use instructions should be followed.

14.Cleaning—

Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

Use a damp cloth for cleaning.

15. Attachments—Do not use attachment not recommended by the product manufacturer as they

may cause hazards.

16. Water and Moisture—

Do not use this unit near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry

tub, in a wet basement, near a swimming pool, in an unprotected outdoor installation, or any area

which is classified as a wet location.

17.Servicing—

Do not attempt to service this unit yourself as opening or removing covers may expose you to

dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

18.Power Cord Protection—

Power supply cords should be routed so that they are not likely to be walked on or pinched by

items placed upon or against them, playing particular attention to cords and plugs, convenience

receptacles, and the point where they exit from the appliance.

19.Object and Liquid Entry—

Never push objects of any kind into this unit through openings as they may touch dangerous

voltage points or short-out parts that could result in a fire or electric shock, never spill liquid of any

kind on the unit.

Notice:The information in this manual was current when published. The manufacturer reserves the

right to revise and improve its products. All specifications are, therefore, subject to change without

notice.

Table of Contents

1. Product Overview……….………………..……………..………………………….…….…3

1.1 Main Features.…..…………..………………………………………………..…………3

1.2 Content List………………………………………………………………………………3

1.3 Specifications……………..……….……………………………………………………..4

2. Back Panel Connections………………………….………………………….…………….5

3. Operation………………………………………………………..………………..……..…6~7

3.1 Setup Buttons…...………………………………………………………………..……...6

3.2 Display/Close the user setup menu screen…..………………………………………7

4. Main Menu Flow……..…………..………..…………………………………………………8

5. Preset Mode……………..……………………………..…….……………………………9

5.1 Indoor Setup Menu Flow….…………………………………………………………..….9

5.2 Expert Setup………………………………………………………………………………10

6. Camera ID………………………………………………………..………………………12

6.1 Camera ID……………………………………………………………………………….13

6.2 ID Position……………………………………………………………………………….13

6.3 ID Color ………………………………………………………………………………….13

6.4 ID Background…………………………………………………………………………..13

7. Advanced Setup…………………………..…………..…….…………………………14~16

7.1 viewing…………………………………………………………………………….….14

7.2 Save/restore……………………………………………………………………16

Appendix-A…Camera ID Character patterns………………………………………….……..17

Appendix-B…CCTV References………………………………………..…………………….. 18

Product Overview

1. Product Overview

By utilizing Digital Pixel SystemTM (DPS) sensor technology, the new EQ600WDII dramatically

improves the performance of surveillance camera in extreme lighting conditions. Where traditional

CCD cameras have difficulty processing images in strong backlighting, the EQ600WDII processes

each pixel independently, correcting for the variations and providing the best possible image under

the lighting conditions.

1.1Main Features

Color DPS ( Digital Pixel System) sensor

High resolution: Over 480 TV Lines/1.0lux and low speed shutter up to 32x

Day/Night function

OSD ( On Screen Display) function control

With programmable camera ID up to 12 characters

Compact stylish design for discrete observation

Image flip capability: Horizontal reverse

1.2Content List

Wide Dynamic Range High Resolution Color Camera unit

User’s manual

Mini Din male connector cable for S-Video / RS-232

Specifications

1.3 Specifications

Pickup Device 1/3” Color DPS sensor

Picture Element 720(H) ×540(V)

Horizontal Resolution >480 TV lines

Sensitivity 1.0 Lux/ F=1.2 (50IRE color)

Low Speed shutter Up to 32x(2,4,8,16,32)

S/N Ratio >48dB

uto exposure: YES

uto White Balance Yes, 2500K ~9500K

Back light compensation YES

uto IRIS YES

Video Outputs 1.0Vp-p composite S-Video(Y/C output)

uto Gain Control Yes

Day/Night function ON/OFF

Dynamic range 95dB typical, 120dB max

Synchronization Internal or Line Lock (AC input required)

Image Flip Yes, Horizontal reverse

Video Output: 1 Vp-p / 75 ohm composite, S-Video (Y/C output)

Imaging System NTSC/ PAL

On Screen Display Yes

Power Source

C24V / DC12V

Operating Temperature 0°C~ 40°C

Power Consumption 7W max.

Dimensions (mm) 56 (W) x 68 (H) x101 (D)

Lens mount C/CS mount, DD Drive

Back Panel Connections

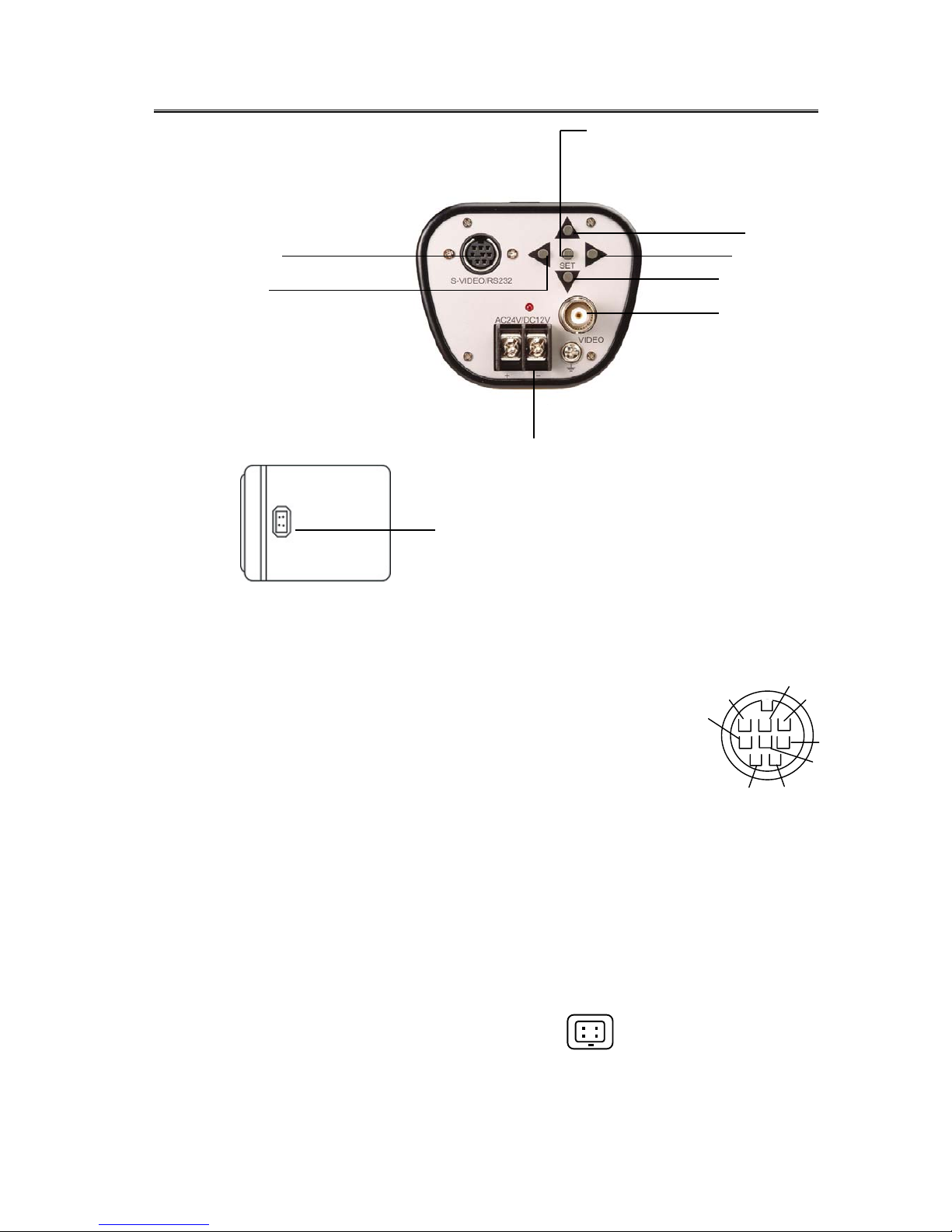

2. Back panel connections

(4)

(8)

(7)

(6)

(5)

(3)

(1)

(2)

(9)

(1)S-Video / RS-232 port:

Connect Mini Din Male Connector to S-Video / RS-232 port for better video output quality or

communication. Please refer to the pin assignment of the S-Video/ RS-232 port as below:

Please refer to Appendix C for detail RS232 Communication.

(2)AC24V/DC12V Compatible Input Terminal:

This power terminal is for connecting the AC24V/DC12V power supply cord

(3)Video Output Connector:

Connect the video output of the camera to a color monitor or other video devices through a 75 Ohm type coaxial

cable with BNC female connector at backside of the camera.

Y GND

GND

C GND

(4) Tact switcher for left cursor

(5) Tact switcher for down cursor

(6) Tact switcher for right cursor

(7) Tact switcher for up cursor

(8) Tact switcher for on-screen setting menu

(9) Auto Iris Lens Connector

This connector is used to connect with the auto iris lens by a 4 pin male connector

Pin1 Pin2 Pin3 Pin4 3

Direct Drive Cnt- Cnt+ Drv+ Drv-

Operation

3.Camera Setup Operations

This camera utilizes an On Screen Display (OSD) user setup menu.

3.1 Setup Buttons: To set items on the user setup menu, use the following buttons on the back panel.

①Up Button

③Right Button

②Down Button

④Left Button

⑤Set Button

① Up Button: This button is used to move the cursor upwards. Use this button to select an

item or adjust the parameters.

② Down Button: This button is used to move the cursor downwards. Use this button to select

an item or adjust the parameters.

③ Right Button: This button is used to move the cursor to the right. Use this button to select

or adjust the parameters of the select item. The parameter changes each

time as this button is pressed.

④ Left Button: This button is used to move the cursor to the left. Use this button to select or

adjust the parameters of the select item. The parameter changes each time

as this button is pressed.

⑤ Set Button: This button is used to set the determined parameters. If the item has its own

setting menu, press this button to display the setting menu. Press this button for 2 seconds

and the menu screen will appear. Hold this button for another 2 seconds and any writing on

the screen will disappear.

Operation

3.2 Display/Close the user setup menu screen

SET

Button

Highlighted 600 SERIES MAIN MENU

> PRESETMODE INDOOR..

CAMERAID OFF

ADVANCED SETUP ..

EXIT MENU

The Cursor Buttons & the SET Button

I. Press the SET button for 2 second

The menu screen will appear on the monitor as the block shown above.

II. Using the cursor button

Use the cursor button cor dto move the cursor up or down. Use the cursor button eor

fto adjust the mode or parameter of settings. The select item will be highlighted with a blue color bar.

III. Switch to sub-menu screens

When the item with sub-menu is selected (highlighted), press the SET button to switch to the sub-menu .

for further settings. Please refer to the figure below.

600 SERIES MAIN MENU

PRESET MODE INDOOR..

CAMERAID OFF

>ADVANCEDSETUP..

EXIT MENU

ADVANCED SETUP

> LENS

WHITE BALANCE..

VIEWING..

SAVE/RESTORE..

Main Menu Sub-Menu

Note: For those select items with “…” sign in the end, they have the sub-menu for further

settings.

IV. Return to previous page

After setting, use the cursor buttons to select PREVIOUS PAGE, then press the SET

button.

V. Close the menu screen

To close the menu screen, use the cursor button to select EXIT MENU and press the

SET button. Or press the SET button for 1 sec.

MENU FLOW

4. MAIN MENU FLOW

Each feature in the main menu has its own submenu. You can highlight “INDOOR” under the

“PRESET MODE” feature on the screen, and use the right or left arrows to change the values to

“OUTDOOR”, “LOBBY”, “WAREHOUSE”, “LOBBY”, or “EXPERT”.

ADVANCED SETUP

>LENS

WHITE BALANCE..

VIEWING..

SAVE/RESTORE..

600 SERIES MAIN MENU

>PRESET MODE..

<INDOOR..>

<LOBBY..>

<WAREHOUSE..>

<OUTDOOR..>

<EXPERT..>

600 SERIES MAIN MENU

> PRESETMODE INDOOR..

CAMERAID OFF

ADVANCEDSETUP..

EXIT MENU

600 SERIES MAIN MENU

>CAMERA ID… < OFF>

<ON…>

Otros manuales para WDII EQ600

Tabla de contenidos

Otros manuales de Cámara de seguridad de EverFocus

EverFocus

EverFocus Speed Dome EPTZ1000 Manual de usuario

EverFocus

EverFocus Speed Dome EPTZ1000 Manual de usuario

EverFocus

EverFocus EMN2220 Manual de usuario

EverFocus

EverFocus EDH5205 Manual del propietario

EverFocus

EverFocus EPTZ850 Manual de usuario

EverFocus

EverFocus M117-N701-001 Manual de usuario

EverFocus

EverFocus EQH5102 Manual de usuario

EverFocus

EverFocus EHH5200 Manual de usuario

EverFocus

EverFocus ED2250S/P Manual de usuario

EverFocus

EverFocus EHD320 Manual de usuario

EverFocus

EverFocus EHD150 Manual de usuario

EverFocus

EverFocus EQ200E Manual de usuario

EverFocus

EverFocus EZ-VF325NH Manual de usuario

EverFocus

EverFocus EZ655p Manual de usuario

EverFocus

EverFocus EBN288/368 Manual de usuario

EverFocus

EverFocus ED Series Manual de usuario

EverFocus

EverFocus Speed Dome EPTZ1000 Manual de usuario

EverFocus

EverFocus EZN Series Manual de usuario

EverFocus

EverFocus Polestar EZN7221 Manual de usuario

EverFocus

EverFocus ECD900 eZ.HD Series Manual de usuario

EverFocus

EverFocus EHH5241 Manual del propietario

EverFocus

EverFocus eZ Tracker EFN3320 Manual de usuario

EverFocus

EverFocus NeVio EAN900 Manual de usuario

EverFocus

EverFocus EPTZ3600 Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
