EPOX 3WXA Manual de usuario

TRADEMARK

All products and company names are trademarks or registered

trademarks of their respective holders.

These specifications are subjected to change without notice.

Manual Revision 3.1

July 7, 1999

A CelerA Celer

A Celeronon

onon

onTMTM

TMTM

TM SocSoc

SocSoc

Sockk

ket 370 Pret 370 Pr

et 370 Pret 370 Pr

et 370 Processorocessor

ocessorocessor

ocessor

based Intel 810 Chipsetbased Intel 810 Chipset

based Intel 810 Chipset

motherboard (100/66MHz)

3WXA

3WXA4

3WXA4Y

Features3WXA/4/4Y

Page 2

FEATURES

3WXA/4/4Y Features:

• 3WXA/4/4Y is based on the Intel CeleronTM Processor operating at 300A

~ 466MHz (66MHz) or 100MHz FSB for feature processor on PPGA 370

socket. The board is configured by an Easy-Setting-Single-Jumper (E.S.S.J.)

to match your CPU clock speed.

• CPU clock ratio from 3x~8x setting in BIOS.

• Designed with Intel’s 810 chipset.

• Supports up to 512 MB of DRAM (minimum of 16 MB) on board, You

can use 168-pin DIMM x 2. It will run Synchronous DRAM memory

(SDRAM) at 100MHz.

• 64-bit system memory interface with optimized support for SDRAM at

100MHz.

• Integrated 2D & 3D Graphics Engine, H/W Motion Compensation Engine,

230MHz DAC, Digital Video Out Port (Optional) and 4MB Display Cache

(3WXA4/3WXA4Y only).

• AC’97 2.1 Audio CODEC onboard.

• Supports (5) 32 bit PCI slots, provides (2) independent high performance

PCI IDE interfaces capable of supporting PIO Mode 3/4 and Ultra DMA

66 devices. The 3WXA/4/4Y supports (5) PCI Bus Master slots and a

jumperless PCI INT# control scheme which reduces configuration confu-

sion when plugging in PCI card(s).

• Supports ATAPI (e.g. CD-ROM) devices on both Primary and Secondary

IDE interfaces.

• Designed with Winbond W83627HF LPC (Low Pin Count) I/O: (1) floppy

port, (1) parallel port (EPP, ECP), and (2) serial ports (16550 Fast UART)

• Includes a PS/2 mouse connector.

• Allows use of a PS/2 keyboard.

Features3WXA/4/4Y

Page 3

• Features Award Plug & Play BIOS. With 4MB(FWH) Flash Memory you

can always upgrade to the current BIOS.

• 3WXA/4/4Y utilizes a Lithium battery which provides environmental

protection and longer battery life.

• Supports the Universal Serial Bus (USB) connector. The onboard ICH

(82801) chip provides the means for connecting PC peripherals such as;

keyboards, joysticks, speaker, and mouse.

• Built-in ATX 20-pin power supply connector.

• Software power-down when using Windows®95/98.

• Supports ring-in feature (remote power-on through external modem, allow

system to be turned on remotely.

• Resume by Alarm - Allow your system to turn on at a preselected time.

• Supports CPU Hardware sleep and SMM (System Management Mode).

• Supports Hot key, Any key or password Keyboard power ON function

(KBPO).

• Supports the CPU, PWR and Chassis fan Auto stop in the sleep mode.

• Supports the System Power LED (PANEL) blinks in the sleep mode.

• Built-in WOL (Wake On Lan) Connector.

• Supports the AMR Connector for enables the software modem.

•Built-in YAMAHA YMF744 PCI Sound Onboard (3WXA4Y only).

•Ture Full Duplex playback and Capture with different Sampling Rate

(3WXA4Y only).

•Maximum 64-voice XG capital Wave table (3WXA4Y only).

•Synthesizer including GM Compatibility (3WXA4Y only).

• Supports OPL3, Sound Blaster Pro, MPU401 UART mode and Joystick

function(3WXA4Y only).

• Supports TV-Out and Flat Panel Connector (optional), provides TV-Out,

Flat Panel Card. You can use TV or LCD Monitor or CRT Monitor for best

choice.

Installation3WXA/4/4Y

Page 4

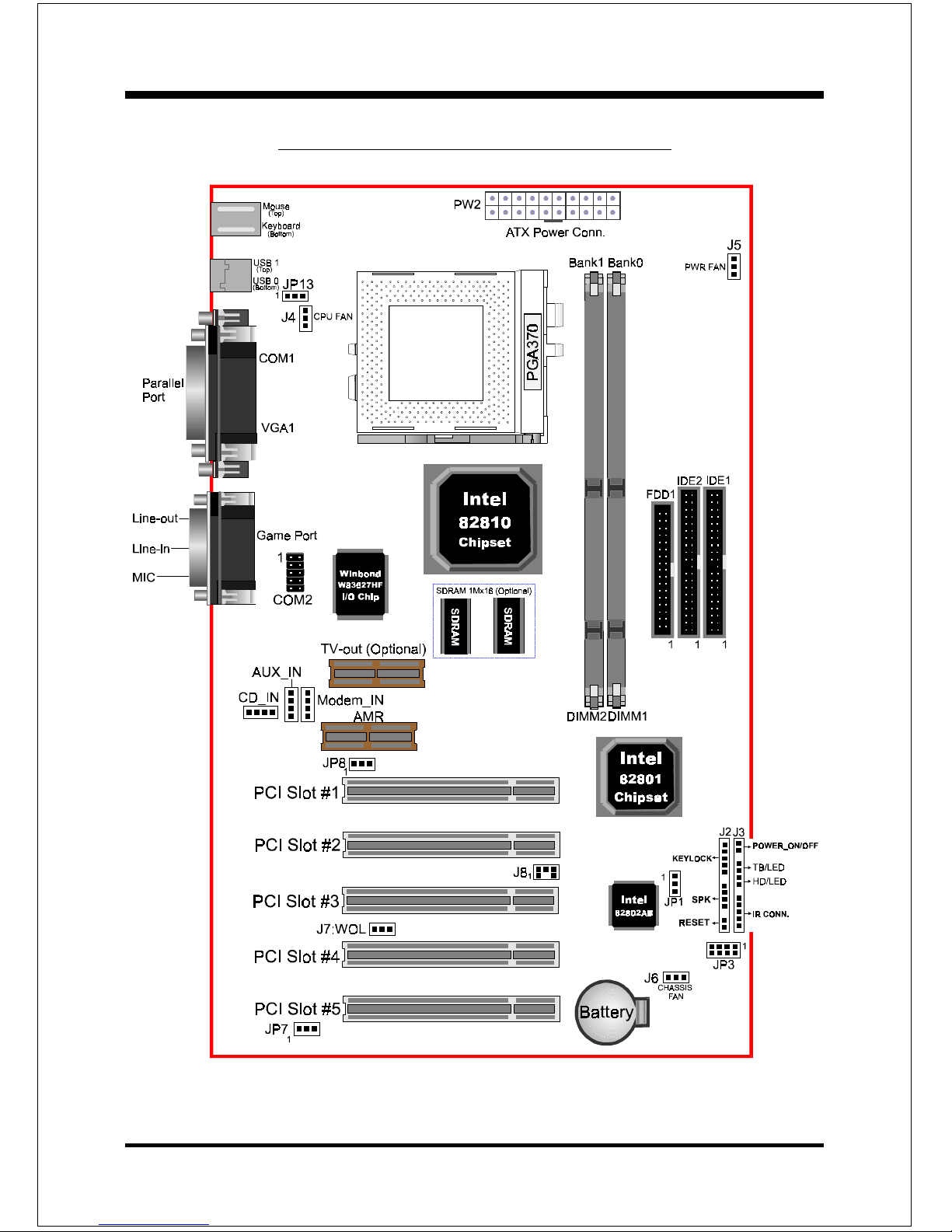

Figure 1

3WXA/4/4Y Detailed Layout

Installation3WXA/4/4Y

Page 5

Easy Installation Procedure

The following must be completed before powering on your new system:

1.Configure Jumpers to match your hardware

2.System Memory Configuration

3.Device Connectors

Configure Jumpers

The 3WXA/4/4Y designs all motherboards with the fewest jumpers to make

your installation fast and easy.

The following will describe all of the jumpers that you are required to set before

moving on to step 2.

Note: The jumpers as depicted as shown (Figure 1) in their correct physical orientation.

JP1 CMOS Clear

JP1 = 1-2 Normal (Default)

= 2-3 Clear CMOS

CPU Speed SelectionJP3

100MHz

Rsd

66MHz

AUTO

(Default) * Note: If CPU is S-Spec processor, than ignore the

CPU ratio setting, otherwise the CPU ratio

setting in BIOS (Frequency/Voltage Control).

Rsd: Reserved

JP7 On Board PCI Sound (Default for 3WXA4Y)

JP7 = 1-2 Enabled PCI Sound (Default)

= 2-3 Disabled PCI Sound

* Note: In the BIOS setting, “AC97 Audio” of

“Integrated Peripherals” must be changed

from “Enabled” to “Disabled” as well to

come with JP7 setting (at “2-3” position).

(refer to page 4-14).

Installation 3WXA/4/4Y

Page 6

JP8 On Board AC’97 Codec Audio

JP8 = 1-2 Enabled (Default for 3WXA/3WXA4)

= 2-3 Disabled

JP13 Keyboard Power-ON Function

JP13= 1-2 Enabled

= 2-3 Disabled (Default)

AC’97/MR Configuration Table

8PJAXW3 4AXW3

2-1

)yramirP(draobnO79'CA

)yradnoceS(CMroRM )yramirP(draobnO79'CA

)yradnoceS(CMroRM

3-2

79'CAdraobnOdelbasiD

)yramirP(CMAroCMroRM 79'CAdraobnOdelbasiD

)yramirP(CMAroCMroRM

enoN

Y4AXW3

ebtsumCMAroCMroRM

ylno)yramirP(

* Audio Codec’97 (AC’97)

** Audio Codec (AC)

*** Modem Codec (MC)

**** Audio/Modem Codec (AMC)

***** Modem Riser Card (MR)

Note: In the BIOS setting, “AC97 Audio” of “Integrated Peripher-

als” must be changed from “Enabled” to “Disabled” as well to

come with JP8 setting (at “2-3” position). (refer to page 4-14).

Installation3WXA/4/4Y

Page 7

System Memory Configuration

Memory Layout

The 3WXA/4/4Y supports (2) 168-pin DIMMs (Dual In-line Memory

Module). The DIMMs can be either EDO (Extended Data Out) or SDRAM

(Synchronized DRAM).

• 100MHz system memory bus frequency. Even if the system host bus is

66MHz.

• 8MB to 256MB using 16MB/64MB technology (512MB using 128MB

technology).

• 256MB Support Registered synchronous DRAM Memory Modules.

• We recommend to installed the “PC/100MHz SDRAM Spec.”, using

DIMM SDRAM must be 125MHz (-8ns) bus speed. If used 100MHz

(-10ns) SDRAM may be critical timing for the motherboard.

• DIMM SDRAM may be 100MHz (-10ns) or 125MHz (-8ns) bus speed.

Figure 2 and Table 1 show several possible memory configurations using

* SDRAM only supports 16, 32, 64, 128, 256MB DIMM modules.

Table 1

yromeMlatoT 1MMID )1/0knaB( 2MMID )3/2knaB(

BM652= mumixaM

*MARDS ,BM46,BM23,BM61 1XBM652,BM821 enoN

BM215= mumixaM

*MARDS ,BM46,BM23,BM61 1XBM652,BM821

DIMM 2

DIMM 1

Bank 2/3

Bank 0/1 -Synchronous

Figure2

Installation 3WXA/4/4Y

Page 8

Device Connectors

Please install the motherboard into the chassis.

Now that your motherboard is installed you are ready to connect all your connec-

tions (figure 6).

J2,J3: Chassis Panel Connector

• Keylock, Speaker, Reset, Sleep, Turbo LED and HDD LED

J4: CPU Fan Power

• A plug-in for the CPU Fan Power

J5: Power Supply Fan Monitoring

• A plug-in for the Power supply so that BIOS can monitor the RPM’s

J6: Chassis Fan Power

• A plug-in for the chassis Fan Power

J7: WOL (Wake On Lan) Connector

J8: SB-LINK Connector

• 5-PIN Header for PCI Sound Card.

PW2: ATX Power Connector

• 20-pin power connector

IDE1: Primary IDE Connector

IDE2: Secondary IDE Connector

FDD1: Floppy Controller Connector

CD-IN: CD Audio_IN Connector

• Pin1(CD_IN_Left), Pin2/Pin3(GND), Pin4(CD_IN_Right)

AUX_IN: Auxiliary Line_IN Connector

• Pin1(Left Line_IN), Pin2/Pin3(GND), Pin4(Right Line-IN)

MODEM_IN: Telephony Connector

• Pin1(Audio_in), Pin2/Pin3(GND), Pin4(Mic-out to Modem)

Figure 6

PS/2 Mouse

PS/2

KEYBOARD

COM1 VGA1

parallel port

Speaker

Joystick/Midi

USB port

Line_in

MIC

Installation3WXA/4/4Y

Page 9

Device Connectors (continued)

Speaker - Connect to the system's speaker for beeping

1. Speaker 3. GND

2. N/C 4. GND

Reset - Closed to restart system.

Power LED - Power LED connector

1. Power LED(+) 4. KeyLock

2. N/C 5. GND

3. GND

(This is connected to the power button on the case. Using the Soft-

Off by Pwr-BTTN feature, you can choose either Instant Off (turns

system off immediately), or 4 sec delay (you need to hold the button

down for 4 seconds before the system turns off). When the system is

in 4 sec delay mode, there is a special feature to make the system to

go into suspend mode when the button is pressed momentarily.)

Turbo LED indicator - LED ON when higher speed is selected

IDE LED indicator - LED ON when Onboard PCI IDE Hard disks

is activate

J3 1

IR Connector

1. VCC 4. GND

2. NC 5. IRTX

3. IRRX

Power On/Off
