EPOX 6XBA2 Manual de usuario

TRADEMARK

All products and company names are trademarks or

registered trademarks of their respective holders.

These specifications are subjected to change without

notice.

Manual Revision 1.0

Feb. 18, 2000

6XBA2

A Pentium®®®®®II / III / Coppermine

Slot1 Processor based AGP

motherboard (100/66MHz)

Introduction

Chapter 1

Introduction

1-1 Product Specifications

rProcessor

-Supports Slot-1 Intelprocessors up to750MHz

- Universal Slot 1 socket with retention mechanism for SEPP, SECC and SECC2

- High efficiency Switching Power Module(VRM v8.4 compliant)

-Supports 66/100/133 MHz system clock speeds

- Innovative SeePUtechnology (software CPU installation with no jumper

settings)

Advanced over-clocking capability with Vcore and frequency subtle

tuning technology.

rrrrrChipset

- VIA 82C694X+82C686Atwo chip PCIset

rrrrrDRAM Memory

- Three 3.3V 168-pin DIMM sockets support up to 768MB

- Supports Sync. & Asyn. Host memory clock scheme

- Provides single-bit ECC capability

rExpansion Slots

- One AMR slot (Rev 1.0 compliant) for cost effective modem riser

- One Universal-AGP slot for both 2XAGP and 4XAGP at 3.3v or 1.5v (Rev 2.0

compliant)

- Five 32-bit PCI slots (Rev 2.2 compliant)

- One 16-bit ISA slot (with sharing slot)

rBIOS

- Award System BIOS, supports PnP, APM, DMI,ACPI & Multi-device booting

features i.e. floppy, LS120, CD-ROM, HDD(IDE, SCSI), ZIP-ATAPI etc.

- Includes Trend ChipAway Virus protection for virus-free boot and virus free

operating system

The Trend ChipAway Virus is a rule-based anti-virus technology and

does not require periodical updates of virus code

rEmbedded Ultra DMA-66 PCI IDE controller

- Supports two IDE ports up to 4 ATAPI devices

- Supports up to PIO Mode 4 up to 16.6MBps, Multi Mode 4 up to 66MBps

with bus mastering

Chapter 1

rEmbedded Super I/O Functions

- Three UARTs support two serial ports and IR function for HPSIR and ASKIR

- One parallel supports SPP/ECP/EPP

- One floppy disk drive connector supports up to 2.88MB, Japanese 3- Mode

and 1Mbps transfer rate

Double Stack Back-Panel I/O Connectorswith PC99 Colored Codes

- PC99 Compliant color connectors

- PS/2 Mini-DIN keyboard and mouse ports

- Two Channel USB ports

- TwoD-Sub9-pinmaleserialport

- OneD-Sub25-pinfemalePrinterport

- OneD-Sub15-pinfemaleGame/MIDIport

- AudioLine-out,Line-in, Mic-injacks

Optional PCI Audio Subsystem

-Built-inSampleRateConvertertoensureallinternaloperationat48KHz

- Full-duplex operation for simultaneous recording and playback

-Built-inFM-emulationmusicsynthesizer

-WithexternalhighqualityAC`97/98CODECprovides90dB+SNRCDqualityaudio

- Using wavetable data on the system memory

-Hardware SoundBlasterProfor WindowsDOS boxandreal-mode DOSlegacy

compatibility

-Completesoftwaredriver supportforWin95/98/NT

rrrr

Introduction

rEmbeddedUSB Controller

- USBhostcontroller(UHCIv1.0compliant)withRootHub

- Four USB ports with over-current protection

- OptionalUSBriser withadditional 2USBports

rBoard Dimensions

- Standard ATX form factor, 305mm x 200mm, 4 Layers

- Six mounting holes

rProduct Features

- Innovative SeePU technology for jumperless CPU installation

- Advanced over-clocking capability with Vcore and frequency subtle tuning

technology

- Embedded System Monitor Hardware

- Poly-fuse protection for USB and keyboard circuitry

- Hardware design meets Microsoft PC99 requirements

$AdvancedManagementFeatures

-Power-on events: WOL (Wake On LAN) network card, Modem ring, RTC

Alarm

-Software power-off control for Win95/98

-Over-ride power button

-Enhanced Power failure recovery with three selectable states once the Vsb

loose: Always On, Always Off and Last state

-Blinking Power-LED in suspend

-Hardware Reset Protect

- Complete Data Security

Flash BIOS write protection against unauthorized access with Trend

ChipAway Virus and PC-cillinfor a 100% virus-free system boot-up.

rSwitching Power Supply Requirement

3.3V at 15Amps is necessary to guarantee full loading operation

because some AGP cards and memory modules have high current

consumption.

Table 1-1

Output Voltage Max. Regulation

Requirement Min.Current

Requirement(Amps)

+12V +/- 5% 5.5

+5V +/- 5% 15

+3.3V +/- 5% 15

-5V +/- 10% 0.5

-12V +/- 10% 0.5

+5VSB +/- 5% 0.75

Introduction

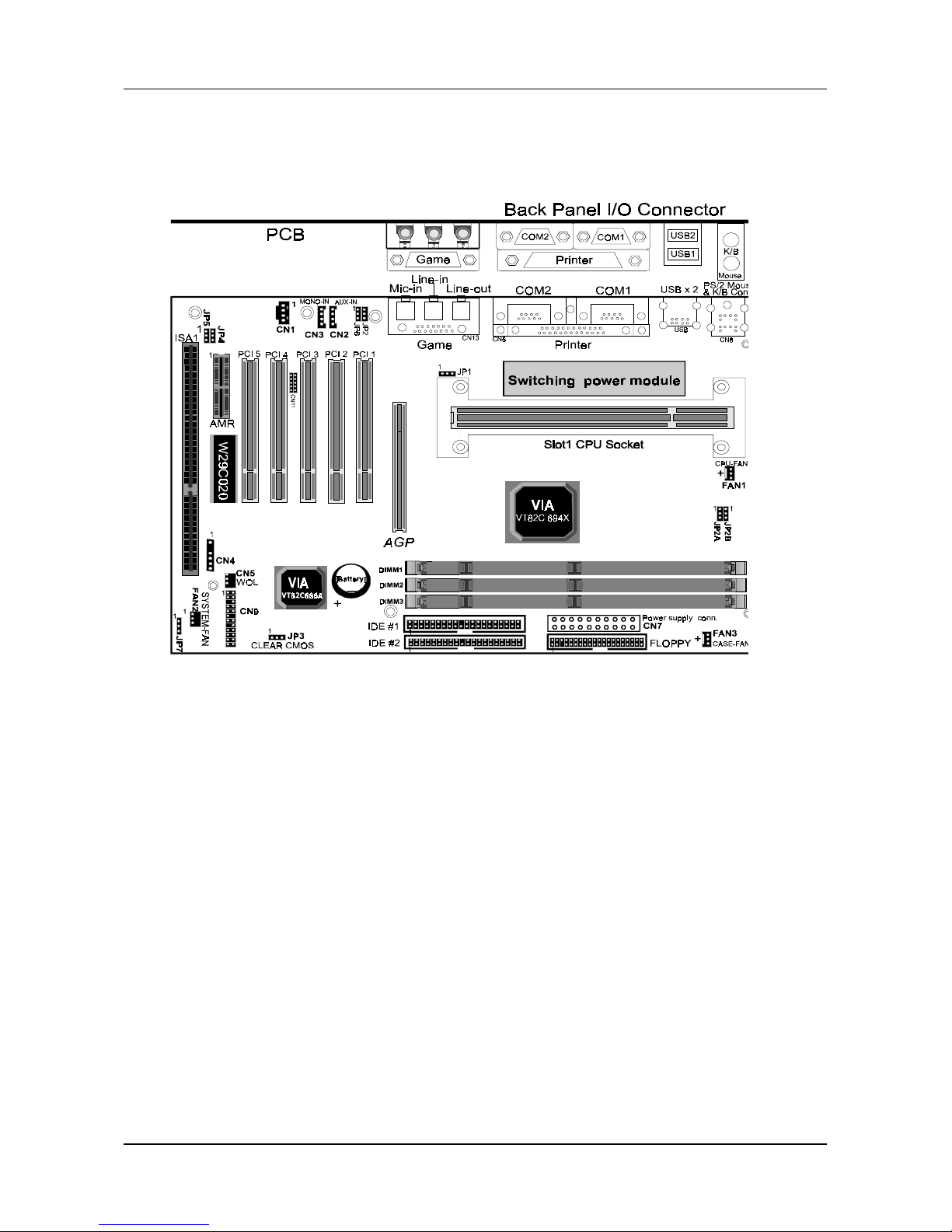

1-3 Motherboard layout1-3 Motherboard layout

1-3 Motherboard layout

Chapter 1

1-4 Connector and Jumper Reference Chart

Jumper &

Connector No. Function Page

JP1 VTT Voltage tuning jumper (Reserved) 14

JP2/JP6 Audio line out and speaker out jumpers 14

JP2A/JP2B External clock frequency jumper 14

JP3 Clear CMOS data jumper 15

JP4 Onboard Audio jumper 15

JP5 Embedded CODEC Jumper 15

JP7 Reserved 18

CN1 CD-ROM audio in connector 16

CN2 AUX audio in connector 16

CN3 Audio Mono in/out connector 17

CN4 Infrared connector 17

CN5 WOL(Wake On LAN) connector 17

CN7 ATX Power supply connector 11

CN9

Power indicator LED connector 12

System reset switch connector 13

Speaker connector 13

Green switch / Green LED connector 13

Turbo LED connector 13

IDE activity LED connector 13

Over-ride power button connector 12

FAN1/2/3 CPU/ System/Case cooling fan connector 15

Ports PS/2 mouse and keyboard ports 18

CN11 USB (Universal Serial Bus) ports and connector 18

Hardware Setup

A cap over pin 1 and

pin 2 shorts these pins

Pins SettingCap

A 3-pin jumper

Figure 2-1

Chapter 2Chapter 2

Chapter 2

HarHar

Hardd

dware Setupware Setup

ware Setupware Setup

ware Setup

If your motherboard has already been installed in your computer you may still need to

refer to this chapter if you plan to upgrade your system's hardware.

Besuretodisconnectthepowercablefromthepowersourcebeforeperforming

any work on your motherboard, i. e. installing a CPU, memory module,

changing a jumper setting, etc. Not doing so may result in electrical shock!

2-1 Introduction to Jumpers

Jumpers are used to select between various operating modes. A jumper consists of

a row of gold colored pins that protrude from the surface of the motherboard. It is

important not to confuse jumpers with connectors or headers.

Puttingjumpercapsonanythingthatisnotajumpermayresultindamaging

your motherboard. Please refer to Section 1-3, Motherboard Layout, for the

location of jumpers on your motherboard.

As indicated in Figure 2-1 below, a cap is used to cover the pins of a jumper, resulting

in shorting those pins that it covers. If the cap is removed from the top of the pins,

the jumper is left "open." The number 1 shown both in the diagram below and in

allmultiple pinjumper andheaderdiagrams inthis manualindicates thepin designated

with the number 1. The numbering of the remaining pins follows in sequence.

Chapter 2

2-2 Installing an Intel Processor in Slot 1

1. Insert the Pentium II/Pentium III processor into the retention mechanism. Press

evenly and gently until the snaps on the upper side of the processor have been

inserted into the holes at the top of the retention mechanism.

2. Note that when removing the processor, these snaps should be clicked into a

completely vertical position, leaving your hands free to stabilize the board. Pull

the processor evenly and gently out of the retention mechanism.

3. Also note that like PCI and ISA slots, Slot 1 has a divider that prevents backwards

insertion of the CPU.

Installing a heat sink with cooling fan is necessary for proper heat dissipation

from your CPU. Failing to install these items may result in overheating and

possible burn-out of your CPU.

2-3 SettingYour CPU's Parameters(

SeePU

Technology)

SeePU is a new user friendly technology that enables the user to setup a motherboard's

CPU parameters through an easy to use BIOS setup procedure. It is no longer

necessary to make many jumper settings.

1. After installing all your hardware into your PC system, turn on your system's

power. Enter the CMOS Setup Utility by pressing the Delete key when your

BIOS identification screen appears.

2. Move the cursor to Frequency/Voltage Control Setup menu and press Enter. Find

the CPU Setup commands at the right hand side of the BIOS screen (Figure 2-

2) Commands for operating the cursor in BIOS are found at the Bottom right of

the BIOS screen.

Figure 2-2

ROM PCI / ISA BIOS (2A6LGC39)

Frequency/Voltage Control

AWARD SOFTWARE, INC.

ESC :Quit

F1 :Help

F5 :OldValues

F7 :LoadSetup Defaults

:SelectItem

PU/PD/+/- :Modify

(Shift) F2 : Color

***** CPUSetup ******

Frequency Ratio 3.5X

CPU BUSFrequency Default

CPU Vcore Default

Hardware Setup

3. Change the CPU Type according to the speed of your Pentium II/III processor.

See Figure 2-3 for frequency specifications.

4. Set your CPU's parameters. Set the frequency ratio (also known as external clock

multiplierfactor)andCPUbusfrequencyaccordingtoyourprocessor'sspecifications.

See Figure 2-4.

You do not need to make voltage settings because SeePU automatically

sets your CPU voltage.

5. Press Esc to return to the CMOS Setup Utility, press F10 to Save and Exit Setup

and choose 'Y' to confirm. The system will automatically reboot and during startup

you will see the correct CPU type shown on the screen.

Figure 2-3

CPU Type CPU Speed

External

Clock Freq.

Ratio Internal

Clock

Intel

PentiumII/III

Coppermine

Celeron

Processors

100

3.5 350

4400

4.5 450

5500

5.5 550

6600

6.5 650

7700

7.5 750

133

4533

4.5 600

5667

5.5 733

Figure 2-4

ROM PCI / ISA BIOS (2A6LGC39)

Frequency/Voltage Control

AWARD SOFTWARE, INC.

ESC :Quit

F1 :Help

F5 :OldValues

F7 :LoadSetup Defaults

:SelectItem

PU/PD/+/- :Modify

(Shift) F2 : Color

***** CPUSetup ******

Frequency Ratio 3.5X

CPU BUSFrequency Default

CPU Vcore Default

Hardware Setup

2-4 Connector and Jumper Settings

Connectors are used to link the system board with other parts of the system, including

the power supply, the keyboard, and the various controllers on the front panel of the

system case.

The power supply connector is the last connection to be made while

installing a motherboard.Before connecting the power supply, please make

sure it is not connected to the power source.

ATX Power Supply Connector (CN7)

The power cord leading from the system's power supply to

the external power source must be the very last part

connected when assembling a system.

The ATX power supply provides a single 20-pin connector

interface which incorporates standard +/-5V, +/-12V,

optional 3.3V and Soft-power signals. The Soft-power

signal, a 5V trickle supply is continuously supplied when

AC power is available. When the system is in the Soft-Off

mode, this trickle supply maintains the system in it's

minimum power state.

Software Power-Off Control

2theMax 6XBA2 can be powered down using the Windows 95/98 Software Power-Off

function. To power down your computer, click the START button on the Windows 95/98

task bar. Select "Shut Down The Computer" and the system turns off. The message "It

is now safe to turn off your computer" will not be shown when using this function.

Power-On By ModemPower-On By Modem

Power-On By Modem

While in Soft-off state, if an external modem ring-up signal occurs, the system wakes up

and can be remotely accessed. You may enable this function in BIOS's Power

Management Setup menu.

Tabla de contenidos

Otros manuales de Placa madre de EPOX

EPOX

EPOX An Intel Socket 478 Processor Based Mainboard... Manual de usuario

EPOX

EPOX EP-3WXM2 Manual de usuario

EPOX

EPOX EP-4PEAE 11 Manual de usuario

EPOX

EPOX EP-3WEF2 Manual de usuario

EPOX

EPOX EP-V370Y Manual de usuario

EPOX

EPOX EP-58MVP3C-M Manual de usuario

EPOX

EPOX F62 Manual de usuario

EPOX

EPOX V370A Manual de usuario

EPOX

EPOX 3VCA Manual de usuario

EPOX

EPOX EP-6WEA4 Manual de usuario

EPOX

EPOX PP6-NF Manual de usuario

EPOX

EPOX KP6-LA Manual de usuario

EPOX

EPOX EP-5BTXA-E Manual de usuario

EPOX

EPOX P55-TX 2 Manual de usuario

EPOX

EPOX GXA486SPM Manual de usuario

EPOX

EPOX P55-BT Manual de usuario

EPOX

EPOX EP-6VBA Manual de usuario

EPOX

EPOX EP-7KXA Manual de usuario

EPOX

EPOX 3VBA Manual de usuario

EPOX

EPOX EP-3S1M Manual de usuario

EPOX

EPOX LX370Y Manual de usuario

EPOX

EPOX M762A Series Manual de usuario

EPOX

EPOX 61BXA-M Manual de usuario

EPOX

EPOX SiS 661FX Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
