Eneo IPB-62M2713MAA Manual de usuario

User Manual

1/2.8” Network Camera,

1920x1080, Day&Night, DOL-WDR,

2.7-13.5mm, Infrared, IP66

IPB-62M2713MAA

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To prevent electric shocks and risk of fire hazards, do NOT use other than

specific power source.

Warning :

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

Caution :

Any changes or modifications in construction of this device which are not expressly

approved by the party responsible for compliance could void the user's authority

to operate the equipment.

Mains power quality should be that of a typical commercial environment. If the user

of the model requires continued operation during power mains interruptions, it is

recommended that the model be powered from an uninterruptible power supply

(UPS) or a battery.

The symbol is intended to alert the user to the presence of important

operating and maintenance(servicing) instructions in the literature

accompanying the unit.

The symbol is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

Safety Precaution

MEGA-PIXEL NETWORK CAMERA

Safety Precaution

NOTICE

• The image used in this instruction manual are processed to help comprehension

and may differ from actual video of the camera.

• Avoid installing areas where has shock or vibration which results in the problems.

• Pay attention to safety when laying the connection cable and observe that the cable

is not subjected to heavy loads, kinks or damage and no moisture can get in.

• Never open the device such as boards or lens.

The warranty becomes void if repairs are undertaken by unauthorized persons.

• Maintenance and repair have to be carried out only by authorized service centers.

• Use only a mild detergent to clean the housing body.

• The camera should never be operated beyond the technical specifications.

This can lead to destruction.

• The camera should never be operated in water.

MEGA-PIXEL NETWORK CAMERA

Contents

MEGA-PIXEL NETWORK CAMERA

Safety Precaution . . . . . . . . . . . . . . . . . . . . 03~04p

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05p

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06p

Composition . . . . . . . . . . . . . . . . . . . . . . . . . . . 07p

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07p

Part Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08p

Installation Instructions . . . . . . . . . . . . . . . . 09~11p

Operating Instructions . . . . . . . . . . . . . . . . . 14~17p

. . . . . . . . . . . . . . . . . . . . . . . . . 12~13p

Specifications

2-1. Information

2-2. Video & Image

2-3. Event

2-4. System

1. LIVE VIEW

2. SETUP

Full Menu Setup . . . . . . . . . . . . . . . . . . . . . 18~61p

........................................................ 18p

............................................... 20p

......................................... 20p

Troubleshooting . . . . . . . . . . . . . . . . . . . . . 62~63p

.............................................................. 20p

........................................................ 36p

...................................................... 48p

3. 4 EYES PRINCIPLE ................................. 59~61p

Features

MEGA-PIXEL NETWORK CAMERA

• Full-HD 2.16Mega Pixel, NETWORK CAMERA, 1920x1080(30/25p)

• The best low light performance with SONY’s STARVIS sensor

• ONVIF Conformance

• ONVIF Event Mapping

• Zero configuration

• Cross Web Browsing (IE, Edge, Safari, Firefox, Chrome)

• Adaptive web resizing depending on layout & resolution of

display device by RESPONSIVE WEB

• Increased usability for all PC, tablet and mobile

• Simultaneously H.264, H.264+ (Smart Stream),

H.265, H.265+ (Smart Stream), MJPEG (Multi streaming)

• f=2.7~13.5mm, Motorized vari-focal lens

• Motorized Zoom & Focus Adjustment

• True Day&Night by ICR

• DOL WDR (Digital Overlap Wide Dynamic Range)

• D-WDR (Digital Wide Dynamic Range)

• Improved noise figure with the enhanced 3DNR

• LDC(Lens Distortion Compensation)

• Smart Video Stream, ROI(Region of Interest)

- Enables to process video data smartly according

to users demand.

- Lowering overall bandwidth and reduce the storage burden

• Privacy Mask, Motion Detection, HLC/ BLC,

Digital Zoom(~x8), Mirror/Flip, Contrast, Brightness, Hue,

Saturation, Sharpness

• Circuit protection against faulty connection in power polarity

• Built-in 4pcs High power SMD LEDs

• Cooling Fan & Optimized Heat sink System

• PoE(IEEE Std. 802.3af) & DC12V

• Combination of Aluminum Cast & PC(Polycarbonated)

• Dual window for protecting IR reflection

• One touch 3-Axis locking bracket

• IP66 Protection

Composition

Dimension

MEGA-PIXEL NETWORK CAMERA

Plastic Anchor:

6 x 30mm (3pcs)

Mounting

Template

Operating

Instruction

Camera

Ø66

Ø78.5

120

135

214

199

Mounting Screw:

3.5 x 25mm (3pcs)

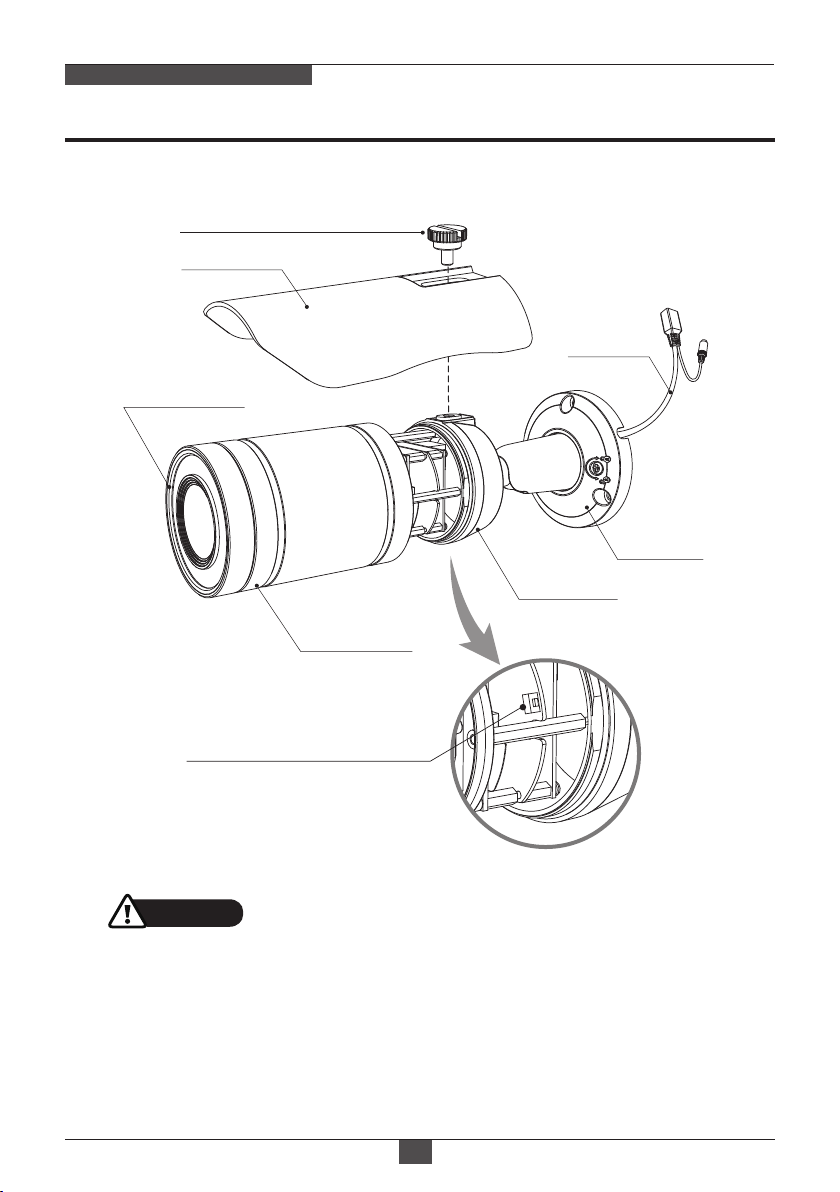

Part Names

MEGA-PIXEL NETWORK CAMERA

DUAL WINDOW

SUNSHIELD BOLT

SUNSHIELD

FRONT CASE

BRACKET

REAR CASE

• Extreme care should be taken NOT to scratch the surface of window while

the camera installing or adjusting.

• Care should be taken the cable is NOT to be damaged, kinked or exposed in

the hazardous area.

• Do not expose the camera directly to a strong light source such as the sun or

spot light.

CAUTION

POWER

CABLE

Case

Open

• When assembling the front case, be sure that a Rubber sealing is not protrusive.

If the front case is tightened excessively, sealing may not be ensured.

: pressing for 5~8 secondsresets

all parameters to original

factory settings.

IP Reset (Default)

Installation Instructions

MEGA-PIXEL NETWORK CAMERA

Mounting Screw

: 4x40mm

1. Locate the mounting template at the installation position and drill the ceiling

or wall if needed.

2. Route the Power cable to the connecting place.

3. Place the camera bracket on pre-drilled position and fix it through using

mounting screws.

4. Set the camera’s viewing angle by using the driver. (Refer to ‘TIP’ ).

5. Put the sunshield to the camera unit and tighten the sunshield-bolt.

Pan & Tilt adjustments

1) Pan limit:

Pan is limited to +/- 90°.

2) Tilt limit:

Tilt is limited to 0°(2°) min ~ 90° max.

for wall(ceiling) installation respectively

with reference to the wall(ceiling) when

the inclination of camera module is 0°,

that is, the image is aligned horizontally.

90° 90°

Plastic Anchor

: 6x30mm

• Pan: Adjusts view direction

• Tilt: Adjusts view angle

• Inclination: Adjusts view rotation

Installation Instructions

MEGA-PIXEL NETWORK CAMERA

Adjustment of viewing angle with 3-Axis bracket.

① Lock/Unlock Screw

② Sub-Lock Screw

3) Inclination limit

(Horizontal image alignment):

Inclination limited to +/-90° max.

• Unlock the Lock/Unlock screw on the camera bracket using the driver.

• Adjust the camera’s viewing angle then lock the Lock/Unlock screw and fix

the sub-lock screw on the other side of bracket.

90°90°

±90°

•on the wall •on the ceiling

Pan

Tilt

Inclination

[ TIP ]
