Eneo IPD-72M2713MAA Manual de usuario
EN
User Manual
1/2.8” Network Dome, Fixed,
1920x1080, Day&Night, DOL-WDR,
2.7-13.5mm, Infrared, IP67
IPD-72M2713MAA
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
To prevent electric shocks and risk of fire hazards, do NOT use other than
specific power source.
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Mains power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power mains interruptions, it is
recommended that the model be powered from an uninterruptible power supply
(UPS) or a battery.
The symbol is intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
Safety Precaution
03
MEGA-PIXEL NETWORK CAMERA
Safety Precaution
04
NOTICE
• The image used in this instruction manual are processed to help comprehension
and may differ from actual video of the camera.
• Avoid installing areas where has shock or vibration which results in the problems.
• Pay attention to safety when laying the connection cable and observe that the cable
is not subjected to heavy loads, kinks or damage and no moisture can get in.
• Never open the device such as boards or lens.
The warranty becomes void if repairs are undertaken by unauthorized persons.
• Maintenance and repair have to be carried out only by authorized service centers.
• Use only a mild detergent to clean the housing body.
• The camera should never be operated beyond the technical specifications.
This can lead to destruction.
• The camera should never be operated in water.
MEGA-PIXEL NETWORK CAMERA
Contents
05
MEGA-PIXEL NETWORK CAMERA
Safety Precaution . . . . . . . . . . . . . . . . . . . . 03~04p
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05p
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06p
Composition . . . . . . . . . . . . . . . . . . . . . . . . . . . 07p
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07p
Part Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . 08p
Installation Instructions . . . . . . . . . . . . . . . . 09~12p
Operating Instructions . . . . . . . . . . . . . . . . . 15~18p
. . . . . . . . . . . . . . . . . . . . . . . . . 13~14p
Specifications
Full Menu Setup . . . . . . . . . . . . . . . . . . . . . 19~66p
Troubleshooting . . . . . . . . . . . . . . . . . . . . . 68~69p
3-1. Information
3-2. Video & Image
3-3. Record
3-4. Event
3-5. System
1. LIVE VIEW
2. PLAYBACK
3. SETUP
........................................................ 19p
............................................... 22p
......................................... 22p
....................................................... 21p
............................................................... 22p
........................................................ 38p
...................................................... 41p
...................................................... 54p
4. 4 EYES PRINCIPLE ................................. 65~67p
Features
06
MEGA-PIXEL NETWORK CAMERA
• Full-HD 2.16Mega Pixel, NETWORK CAMERA, 1920x1080(30/25p)
• The best low light performance with SONY’s STARVIS sensor
• ONVIF Conformance
• ONVIF Event Mapping
• Zero configuration
• Cross Web Browsing (IE, Edge, Safari, Firefox, Chrome)
• Adaptive web resizing depending on layout & resolution of
display device by RESPONSIVE WEB
• Increased usability for all PC, tablet and mobile
• HTML5 playback for recorded video on Micro SD card
• Simultaneously H.264, H.264+ (Smart Stream),
H.265, H.265+ (Smart Stream), MJPEG (Multi streaming)
• f=2.7~13.5mm, Motorized vari-focal lens
• Motorized Zoom & Focus Adjustment
• True Day&Night by ICR
• DOL HDR (Digital Overlap High Dynamic Range)
• D-WDR (Digital Wide Dynamic Range)
• Improved noise figure with the enhanced 3DNR
• LDC(Lens Distortion Compensation)
• Smart Video Stream, ROI(Region of Interest)
- Enables to process video data smartly according
to users demand.
- Lowering overall bandwidth and reduce the storage burden
• Privacy Mask, Motion Detection, HLC/ BLC,
Digital Zoom(~x8), Mirror/Flip, Contrast, Brightness, Hue,
Saturation, Sharpness
• Circuit protection against faulty connection in power polarity
• Isolated power supply against ground loop problem
• PoE(IEEE Std. 802.3af) & AC24V/DC12V
• Built-in 2pcs High power SMD LEDs
• Cooling Fan & Optimized Heat sink System
• Flush mount (Option: Various adaptors)
• Anti-Scratch hard coated clear bubble
• IP67 / IK10 Protection
Composition
07
MEGA-PIXEL NETWORK CAMERA
Dimensions
(unit : mm)
119
PCD Ø120
Ø102
Ø140
3-Ø4.2
82
Ø140
Ø100
Wiring Connector
(1pc)
Cable Signal
Sticker
Torque Wrench:
3mm (1pc)
Plastic Anchor:
6 x 30mm (3pcs)
Mounting
Template
Mounting Screw:
4 x 30mm (3pcs)
Dome Camera
Connector fixing Screw:
2.5 x 5mm (1pc)
Operating
Instruction

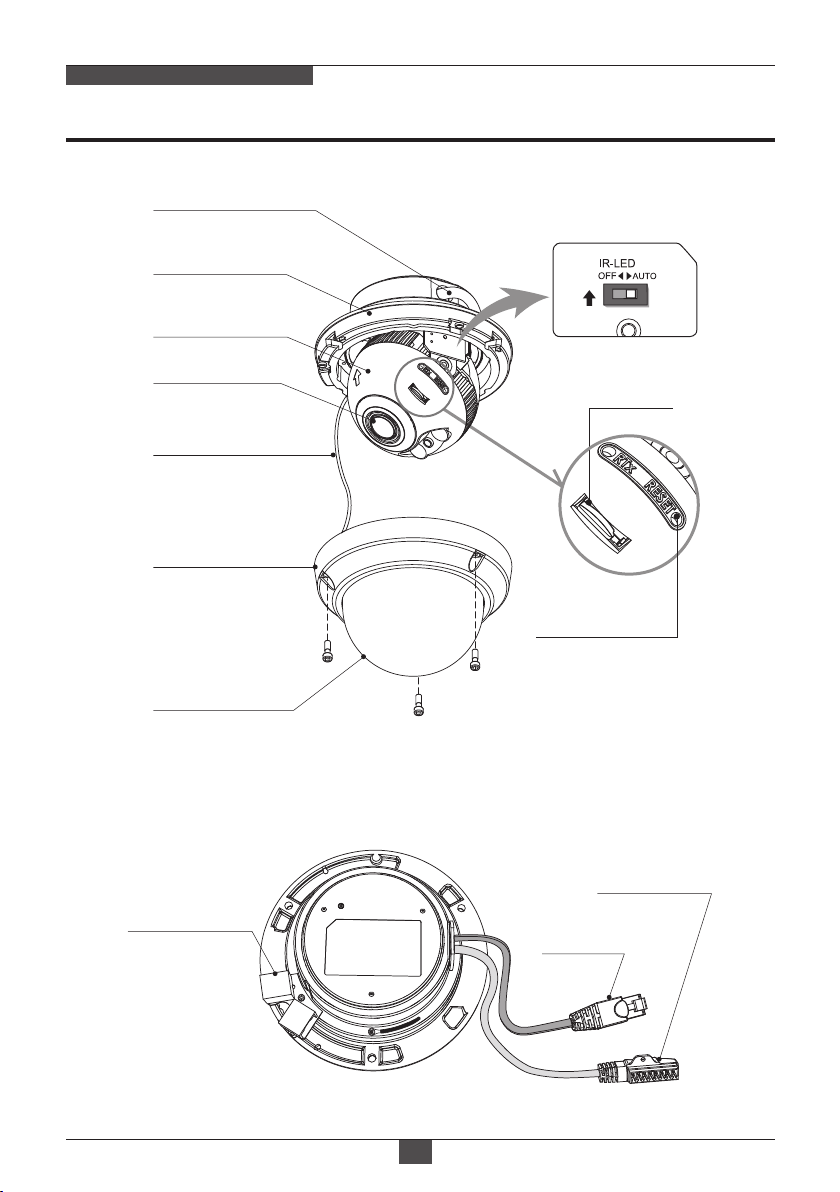

Part Names
08
MEGA-PIXEL NETWORK CAMERA
LED Control Switch
Power Supply
Connector
Ethernet
Connector
[ BOTTOM VIEW ]
ETHERNET &POWER CABLE
Coupler Board
Micro SD
Card Slot
BUBBLE DOME
3-AXIS GIMBAL
DOME COVER
SAFTY WIRE
FLUSH MOUNT
LENS
POWER CABLE
: pressing for 5~8 secondsresets
all parameters to original
factory settings.
IP Reset (Default)
Installation Instructions
09
MEGA-PIXEL NETWORK CAMERA
1. Locate the mounting template at the installation position and drill the ceiling
or wall if needed.
2. Open the dome cover by loosening screws(4x12mm). Use the torque wrench
supplied.
3. Set the camera’s viewing angle.
4. Put the dome cover to the dome base unit and tighten the assembly screws.
- Place the dome base unit on pre-drilled position and fix it through using
mounting screws (4x30mm).
- Route the power cable to the connecting place.
• Surface mount
• Pole mount adaptor
• Tilted mount
• Wall mount
(Requires additional
Surface mount)
• Tilted junction mount
■ Optional Mounting Accessories
Mounting Screw
(4x30mm)
Plastic Anchor
(6x30mm)
Torque
Wrench
Installation Instructions
10
MEGA-PIXEL NETWORK CAMERA
• In the case of installation with Flush/ Surface/ Tilted mount, IP protection
rating is not guaranteed.
• If power, Video, Network connectors are exposed to water or rain, separate
protection shield is essential.
CAUTION
* Refer to the instruction guide for Tilted Junction mount .
* Refer to the signal assignment for wiring connection.
①Cables are unfixed on the Dome base.
② Disassemble coupler board for LAN cabling.
③Connect the ethernet and power cables to their repective connections.
① Cables are unfixed on the Dome base.
②Organize the cables to fix the dome base as illustrated.
Fix the power supply connector with fixing screw.
③Connect the ethernet cable to the coupler board.
④Tie up the cables with the cable holders.
⑤Check the final view for cable exit.
⑥Connect the wiring connector to their repective connections.
Cable holder-1
Coupler Board
■Option 2.
Installation with Surface mount / Tilted mount
■Option 1.
Installation with Flush mount / Tilted Junction mount
Cable holder-2
3
4
5
1
Connector
fixing screw
2
