HOME 2 SERIES

Section 1: Screen Design

1.1 What is it for?

The Home 2 premium grade electric projector screen has been acclaimed by our customers

as an excellent example of a high end product that uses Elite’s GREENGUARD

certified MaxWhite®FG fiberglass-backed multi layer screen material.

1.2 How does it work?

In addition to its fast-acting tubular motor, this product comes with IR/RF remote controls,

wall control unit with IR receiver and low-profile extended IR “Eye” receiver, 12V-Trigger port

with attachment, simplified direct power connection, as well as floating wall brackets for a

perfectly centered image.

Section 2: Product Features

2.1 Characteristics

Screen Material

•MaxWhite® FG backed material provides uniform flatness on a flat projected image

•180° wide viewing angle

•4K Ultra HD, Active 3D, and HDR Ready

•Not compatible with Ultra/Short-throw Projectors

•Standard 4-side black masking borders

•Available in the following diagonal sizes:

•135" in 1:1 format

•90", 100", 120" and 135" in 4:3 format

•90", 100", 120" and 150" in 16:9 format

Design and Installation

•Floating installation brackets provide easy alignment with wood studs to accommodate a wall or

ceiling installation

•Aluminum housing with enamel coating is moisture resistant

•Shipped ready to plug & play with installation kit containing brackets, screws, and bubble leveler

included

•Optional in-ceiling trim kit - sold separately

•Optional extended 11x4 or 12x8 L brackets - sold separately

PRODUCT WHITE PAPER

http://www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India

Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia

Control System

•Standard Infrared (IR) and Optional ZR800D IR Universal Learning Remote system

•Standard Radio Frequency (RF) remote control operates screen from 100 feet away

•Low-voltage detachable 3-way wall switch for in-line control

•Extended IR "eye" sensor for in-ceiling Infrared operation

•Built-in 5-12 volt trigger port (RJ-45) enables Drop/Rise operation to synchronize with the

projector's power cycle

•Optional ZR800D IR Universal Remote Control, wireless 5-12 volt trigger, Universal 5-12 volt

trigger (for projectors that don't have a trigger output port) and In-wall switch - sold separately

Quality and Reliability

•Tubular motor allows swift operation with a superior weight tolerance and operational lifespan

•Certified by AMX and CRESTRON

•Conforms to ANSI/UL STD. 60950-1

•Certified to CAN/CSA STD. C22.2

•Flame Retardant: Complies with NFPA 701 Standards

•2-year Parts & Labor manufacturer's warranty

•3-year warranty through ENR-G program (Education, Non-Profit, Religious and Government)

•GREENGUARD® and GREENGUARD® Gold Certified | UL 2818

2.2 Certifications

2.3 Model Numbers

Model Number

Diag.

Size

Aspect

Ratio

Viewing

Height

(in)

Viewing

Width

(in)

Screen Material Gain

Case

Color

N.W.

(lbs)

G.W.

(lbs)

Packaging

Dimensions

(LxWxH)

Home135IWS2 135" 1:1 95.5 95.5 MaxWhite® FG 1.1 White 35.2 49.8 124.0"x7.0"x8.0"

Home90IWV2 90" 4:3 54.0 72.0 MaxWhite® FG 1.1 White 23.8 35.3 88.0"x7.0"x8.0"

Home135IWV2 135" 4:3 81.0 108.0 MaxWhite® FG 1.1 White 35.2 49.8 124.0"x7.0"x8.0"

Home90IWH2 90" 16:9 44.1 78.4 MaxWhite® FG 1.1 White 25.4 37.5 94.0"x7.0"x8.0"

Home90IWH2-E30 90" 16:9 44.1 78.4 MaxWhite® FG 1.1 White 28.7 38.6 94.0"x7.0"x8.0"

PRODUCT WHITE PAPER

http://www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India

Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia

Home100IWH2-E24 100" 16:9 49.0 87.2 MaxWhite® FG 1.1 White 28.7 41.0 104.0"x7.0"x8.0"

Home150IWH2 150" 16:9 73.5 130.7 MaxWhite® FG 1.1 White 45.2 62.8 148.0"x7.0"x8.0"

Home135IWH2-E24 135" 16:9 66.2 117.7 MaxWhite® FG 1.1 White 41.9 57.3 135.0"x7.0"x8.0"

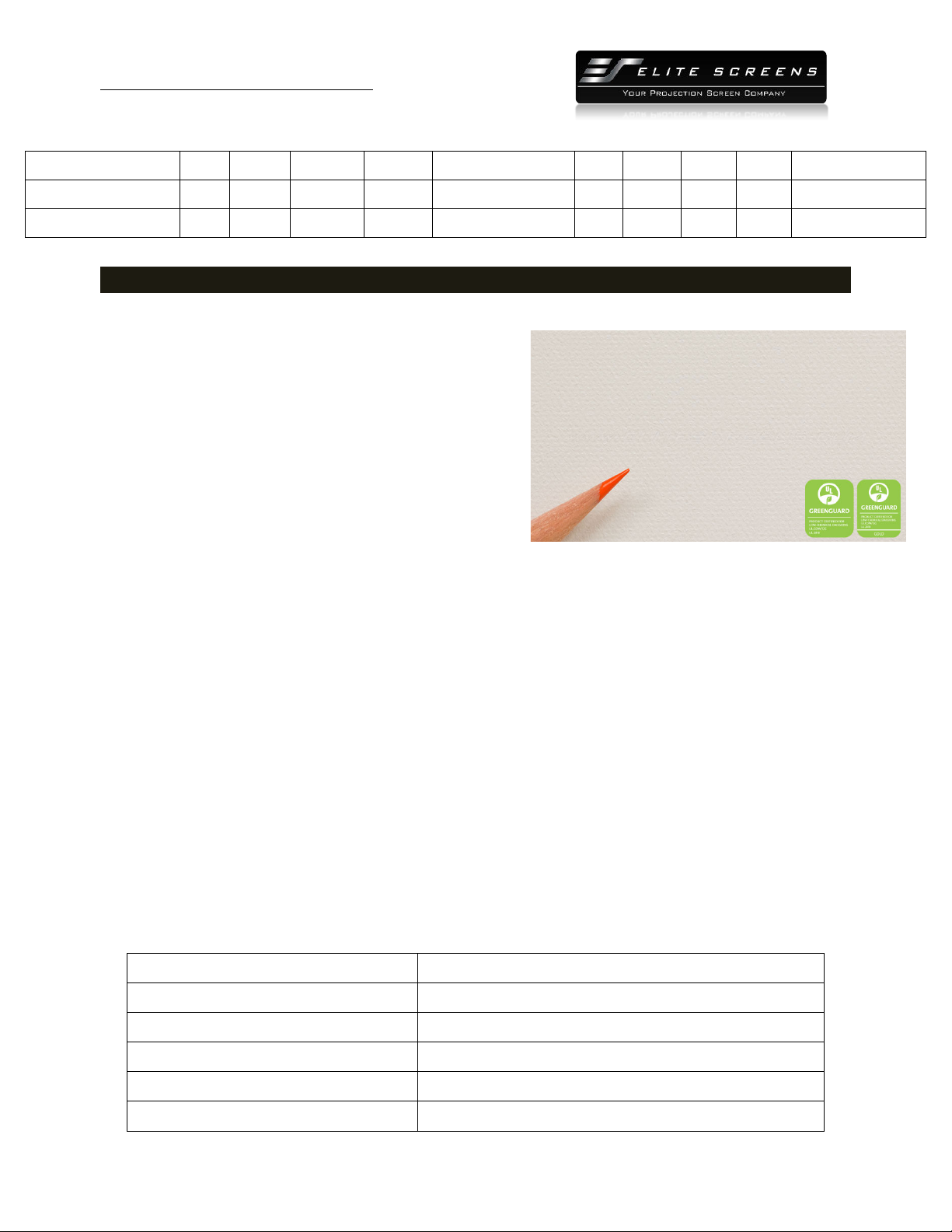

Section 3: Screen Material Specifications

3.1 Characteristics

MaxWhite® Fiberglass (FG) is fiberglass backed for

added stiffness which provides the flattest possible

non-tensioned screen surface with universal

applications. This material provides wide viewing uniform

diffusion while giving precise definition, color reproduction

and black & white contrast. The screen surface has a

black-backing to eliminate light penetration, is mildew

resistant and washable with mild soap and water.

*Manufacturer tip: This is an enhanced matte white product for higher end DLP/LCD projectors suitable

for commercial and residential presentations.

Features & Benefits

•Multi-layer weave with textured surface

•Fiberglass backing with black backing

•Gain: 1.1

•View Angle: 180° (90° ± LR)

•Not compatible with Ultra/Short-throw Projectors

•Mildew Resistant

•Active 3D, 4K Ultra HD, and HDR ready

•Surface can be cleaned with mild soap and water

•Flame Retardant: Complies with NFPA 701 Standards

•GREENGUARD® and GREENGUARD® Gold Certified | UL 2818

Specifications

Thickness 0.36 mm

Weight 350 g/m2

Maximum Height 3.2 M (10 ft)

On-axis Gain 1.0

Half-Gain Angle Does not reach half gain

PRODUCT WHITE PAPER

http://www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India

Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia

3.2 Gain and Viewing Angle Chart

Section 4: Execution

4.1 Important Safety & Warning Precautions

Caution: The Screen’s Black Top Drop is already set to its maximum drop distance. There is NO extra Black

Top Drop in the roller. Please be aware of this as it will void your warranty with Elite Screens. Unapproved

changes or modifications (except for cutting the power cord for hardwire installations) to this unit are prohibited

and will void your warranty. For more information, please contact ourTechnical Support Department at (877)

511-1211 Ext. 604.

•Please retain this user’s guide for future reference.

•To avoid damaging the unit, do not use with any unauthorized accessories not recommended

by the manufacturer.

•Handle the unit carefully during transportation to avoid any damages.

•To ensure safe and reliable operation, direct connection to a properly grounded power source

is advised.

•The power outlet supplying power to the unit should be close to the unit and easily

accessible.

•Do not install the unit on uneven or inclined surfaces.

•Do not place any heavy objects over the power cord.

•Position the power cord properly to avoid creating a trip obstacle.

PRODUCT WHITE PAPER

http://www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India

Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia

•To avoid an electrical shock or fire, due to a loose contact or short circuit, do not overload

the power cord.

•The internal & external parts of this unit are not end user serviceable. Do not attempt to

disassemble this unit by yourself. No one except authorized technicians can open and make

repairs to this unit.

•Make sure the power source that this unit is connected to has a continuous power flow.

•If there is need to use an extension cord, make sure the cord has an equal rating as the

appliance to avoid over heat.

•Do not handle the power plug when your hands are wet or your feet are in contact with

water.

Do not use this unit under the following circumstances.

•Disconnect the power cord under the conditions of heavy rain, wind thunder or lightning.

•Avoid direct sun light, rain shower and moisture.

•Keep away from fire sources and high temperature to prevent this device from overheating.

•Cut off the power supply first before transportation or maintenance.

•To avoid possible injury and/or an electric shock, do not attempt to use this screen if there is

obvious damage or if there are any evident broken parts.

4.2 Installation Warning

Due to various installation environments, the instructions provided in this user’s guide are for

reference only. Please consult a professional installation company for further installation and safety

advice. The installer must insure that proper mounting hardware is used to provide adequate

strength suitable for the installation. Elite Screens is not liable for any faulty installations. For limit

adjustment instructions, please contact our Technical Support Department at (877) 511-1211 Ext.

604.

The Screen’s Top Black Drop is already set to its maximum drop distance. There is NO extra top

black drop in the roller. Please be aware of this as it will void the limitation of your warranty.

Individual modifications to this product are prohibited and will void the warranty with the

manufacturer. Please contact Elite Screens Customer Service for any questions.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules.

PRODUCT WHITE PAPER

http://www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India

Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia

These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that the interference will not occur on a particular installation. If this

equipment causes harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures.

Reorient or relocate the receiving antenna of the device which may be casing the

interference.

Increase the separation between the screen and the device’s receiver.

Connect the equipment into a different power outlet other than the device.

4.3 Pre-Installation

1. Carefully unpack the screen.

2. Always handle the screen in a leveled position on a clean surface.

3. In order to protect the screen from exposure to stains, keep the screen out of contact with

foreign particles such as dust, sawdust, and/or liquids.

NOTE

Regardless of the mounting method, the screen should be securely supported so that the vibration

or pulling on the viewing surface will not cause the casing to become loose or fall. The installer

must insure that the fasteners used are of adequate strength and suitable for the installation

location.

4.4 Controls and Accessories

A. IR Remote B. RF Remote C. Wall switch control box D. 5-12 volt trigger cable

PRODUCT WHITE PAPER

http://www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India

Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia

Sensor

3-way Wall box switch

Sensor

E. IR extended “eye” receiver F. Wireless 5-12v (3.5 mm)

mono trigger cable

G. AAA batteries H. Bubble leveler

4.5 Screen Operation

Electric Current: Depending upon region, your Elite Screen will operate on 100v, 110v, or 220v voltage.

1. After ensuring the power outlet & screen are compatible (voltage), plug the power cord into the power outlet.

2. Once the screen has power, you’ll be able to control it using any of the 6 methods described below.

6 ways to control your Home 2

1. IR remote control (ItemA, Fig 1): The Infrared functions by

direct line of sight contact with a beam range of 30 feet. Aim the IR

remote at the circular window located on the left side of the screen.

2. IR “Eye” Receiver (Item E, Fig 2): The IR “Eye” Receiver plugs

directly into the control box’s RJ45 port to present a low profile

line-of-sight control option for your IR remote control even in a

recessed ceiling installation.

3. RF Remote Control (Item B): The radio waves eliminate the need

for a direct line of sight with a range of 100 feet.

4. 3-Way Wall Switch (Item C, Fig 3): The 3-way wall switch is a

wall mount switch with an up/stop/down button and plugs directly

into the control box’s RJ45 port.

Fig.1

Fig.2

Fig.3

IR/RF remote

STOP

DOWN

PRODUCT WHITE PAPER

http://www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India

Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia

6. Wireless 5-12 volt trigger (Item F, Fig 5): The RF remote control serves as a dual purpose,

independently as a handheld remote control, or in conjunction with the Wireless 5-12 volt trigger cable.

The radio frequency technology can be programmed to send a wireless signal to synchronize its

drop/rise with the projector’s power cycle.

Here’s how to set up your Wireless 5-12 volt trigger | Synchronization Instructions

Step1: Connect one end of the 3.5 mm wireless 5-12 volt trigger cable to the RF remote.

Step 2: Connect the other 3.5 mm end of the wireless 5-12 volt trigger cable to your projector

Step 3: Make sure to unplug your screen from the power outlet

Step 4: Hold the UP button on your RF remote

Step 5: While holding the UP button, plug the screen back to the power outlet

Step 6: Wait 5 seconds and then release the UP button

Step 7: Your 5-12V wireless trigger should now be activated with your screen and ready to be used

and able to control your screen with your projector’s power cycle

Repeat the steps again if not successful.

(Please be aware, the projector on/off cycle may take longer to fully activate. It usually takes

around 20-30seconds for full off and on cycle each time)

5. 5-12 volt trigger (Item D, Fig 4):The built-in

5-12V trigger input allows your screen to synchronize

its drop & rise with the projector’s power cycle. The

screen deploys when the projector powers up and will

retract when the projector powers down. The 5-12 volt

RJ45 cable connects to your projector’s trigger output

via a separate cable that may or may not be provided

by the manufacturer of the projector. The trigger

feature will not work without an output cable from the

projector, but it can be tested by connecting the Red

(+) and Green (-) cable to a 9-volt battery.

3-prong power cable

Red: DC 12 +

Green: 0 V

RJ-45 input connection for

5/12 volt trigger inside of case

Stop

own

The back of the

projector

Wireless 5-12V trigger cable

Fig. 5

DC 5-12V

PRODUCT WHITE PAPER

http://www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India

Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia

4.6 Hardware Parts List

Please make sure all items listed below are included before proceeding with the installation.

4.7 Installation Instructions

Please consult a professional installer. Elite Screens is not liable for any faulty installations.

1. Insert each Bolt (B) through the right & left slide channel located on the top of the screen’s

case.

2. Slide the Extruded Hanging Bracket (D) through the rail located below the slide channel

until it meets with the top of the Bolt (B) and slightly secure the lug-nuts located on the top

& bottom of the bolt to attach the bracket.

3. Mark the installation location to drill your hole. Insert the proper screw and secure the

bolts to the bracket.

Hardware Parts List QTY

A. Screw & Dry Wall Anchor 2 EA.

B. Bolt 2 EA.

C. Masonry Screw & Anchor 2 EA.

D. Extruded Hanging Bracket

2 or 3

EA.

Top hole for ceiling installation

Back hole for wall installation

A B D

120” & above x 3 brackets

PRODUCT WHITE PAPER

http://www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India

Elite Screens China Ltd.| Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia

4. Example of the Home 2 installed to a wall, ceiling and enclosed.

Section 5: Product Specifications

5.1.1 Screen Dimensions

Model

Diag.

Size

Aspect

Ratio

A A1 A2 A3 B B1 B2 B3 B4 B5 B6 B7 C C1 C2

Unit: Inches

Home135IWS2 135" 1:1 106.2

95.5 99.4 102.2

106.9 95.5

100.2 105.0

2.8

4.7

6.7 2.0 4.8

0.9

5.2

Home90IWV2 90" 4:3 81.5 72.0 75.0 77.5 64.2 54.0

58.6 62.4 2.6

3.8

5.7 2.0 3.7

0.8

4.1

Home135IWV2 135" 4:3 118.4

108.0

111.9

114.4

93.2 81.0

87.5 91.3 2.6

3.8

5.7 4.0 3.7

0.8

4.1

Home90IWH2 90" 16:9 87.9 78.4 81.4 83.9 56.4 44.1

50.7 54.5 2.6

3.8

5.7 4.0 3.7

0.8

4.1

Home90IWH2-E30 90" 16:9 87.9 78.4 81.4 83.9 82.4 44.1

76.7 80.5 2.6

3.8

5.7 30.0 3.7

0.8

4.1

Home100IWH2-E24 100" 16:9 97.6 87.2 91.1 93.6 81.2 49.0

75.6 79.4 2.6

3.8

5.7 24.0 3.7

0.8

4.1

Home150IWH2 150" 16:9 141.1

130.7

134.7

137.2

85.8 73.5

80.1 83.9 2.6

3.8

5.7 4.0 3.7

0.8

4.1

Home135IWH2-E24 135" 16:9 128.1 117.7 121.6 124.1 98.4 66.2 92.7 96.5 2.6 3.8 5.7 24.0 3.7 0.8 4.1

Unit: mm

Home135IWS2 135" 1:1 2697 2425 2525 2597 2716 2425 2546 2666 70 120 170 51 122 24 132

Home90IWV2 90" 4:3 2069 1829 1905 1969 1631.8 1372 1487.8 1583.8 65 96 144 50.8 94 20 104

Home135IWV2 135" 4:3 3007 2743 2843 2907 2367.6 2057 2223.6 2319.6 65 96 144 101.6 94 20 104

Home90IWH2 90" 16:9 2232 1992 2068 2132 1431.6 1121 1287.6 1383.6 65 96 144 101.6 94 20 104

Home90IWH2-E30 90" 16:9 2232 1992 2068 2132 2092 1121 1948 2044 65 96 144 762 94 20 104

Home100IWH2-E24 100" 16:9 2478 2214 2314 2378 2063.6 1245 1919.6 2015.6 65 96 144 609.6 94 20 104

Home150IWH2 150" 16:9 3585 3321 3421 3485 2178.6 1868 2034.6 2130.6 65 96 144 101.6 94 20 104

Home135IWH2-E24 135" 16:9 3253 2989 3089 3153 2499.6 1681 2355.6 2451.6 65 96 144 609.6 94 20 104

Flush mount to

wall

Flush mount to

ceiling

Enclosed

installation

*Allow 2” of spacing

between the front and

back of the screen casing.

Otros manuales para Elite Home 2 Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Pantalla de proyección de Elite Screens

Elite Screens

Elite Screens Spectrum Tab-Tension Series Manual de usuario

Elite Screens

Elite Screens Sable Frame 2 Series Manual de usuario

Elite Screens

Elite Screens EVANESCE TAB-TENSION Series Guía de referencia rápida

Elite Screens

Elite Screens ITE139XW3-E8 Manual de usuario

Elite Screens

Elite Screens Raptor Series Manual de usuario

Elite Screens

Elite Screens M92UWH Manual de usuario

Elite Screens

Elite Screens StarBright7 Manual de usuario

Elite Screens

Elite Screens Insta-DEM Screen Series Manual de usuario

Elite Screens

Elite Screens Home100IWH2-A Manual de usuario

Elite Screens

Elite Screens M85XWS1-SRM Manual de usuario

Elite Screens

Elite Screens M85XWS1-SRM Manual de usuario

Elite Screens

Elite Screens CineTension 2 Series Manual de usuario

Elite Screens

Elite Screens F100NWH Manual de usuario

Elite Screens

Elite Screens Reflexion Series Manual de usuario

Elite Screens

Elite Screens isf CineWhite UHD-B Sable Frame B2 Series Manual de usuario

Elite Screens

Elite Screens M100S Manual de usuario

Elite Screens

Elite Screens ezCinema Series Manual de usuario

Elite Screens

Elite Screens Manual SRM Pro Series Manual de instrucciones

Elite Screens

Elite Screens FE72V Manual de usuario

Elite Screens

Elite Screens GolfSim Bay Series Manual de usuario

Elite Screens

Elite Screens Aeon CineGrey 3D AT Series Manual de usuario

Elite Screens

Elite Screens Insta-DE2 Series Manual de usuario

Elite Screens

Elite Screens Kestrel Tab-Tension 2 CLR Series Manual de usuario

Elite Screens

Elite Screens F100NWH Manual del propietario

Manuales populares de Pantalla de proyección de otras marcas

FART PRODUKT

FART PRODUKT Standard SCREEN Manual de usuario

Draper

Draper E Series Manual

Laarhoven

Laarhoven Companion II Manual de usuario

Renogy

Renogy RMS-LFPS-US Manual de usuario

Da-Lite

Da-Lite ExecutiveElectrol Manual de usuario

Samsung

Samsung S*H65* Manual de usuario

FONESTAR

FONESTAR PPTR-43100-FA Manual de usuario

Slide Clear

Slide Clear Varro XL Manual de usuario

OS РХ-090Н Manual de usuario

Niko

Niko 10-845 Manual de usuario

Speaka Professional

Speaka Professional 2357532 Manual de funcionamiento

Sima

Sima XL-72 Manual de usuario

Jasic

Jasic EVO 2.0 ET-200P Manual de usuario

InFocus

InFocus SC-WALL GRY-92H Manual

Barco

Barco OverView MVL-615 Manual de usuario

Draper

Draper Envoy Manual

SI Dynamic 2 XL Manual de usuario

Draper

Draper Nocturne+ E Instrucciones de instalación
