Elite Screens Raptor Series Manual de usuario

Rev. 031210-JA

www.elitescreens.com inf[email protected]om

Raptor/Raptor Tension Series

Electric Floor Rising Front Projection Screen

User’s Guide

Components List

A (Base)

BCD (Partitions)

E (Support)

F (Veneer)

GH (Sides)

IJ (Doors)

KLMN (Back)

O (Cover)

P (Cover)

QR (Layer)

Hardware Pack

Connecting Bolt X 37 Connector Housing X 37 Shelf Support (nog) X 8 Screw X 8

Controllers

IR (Infrared)

Remote Control

RF (Radio Frequency)

Remote Control

3-way Wall Switch

(RJ45 Connection)

AA Batteries

Required Tool

Phillips Head Screwdriver

Use of connecting bolts when assembling the components

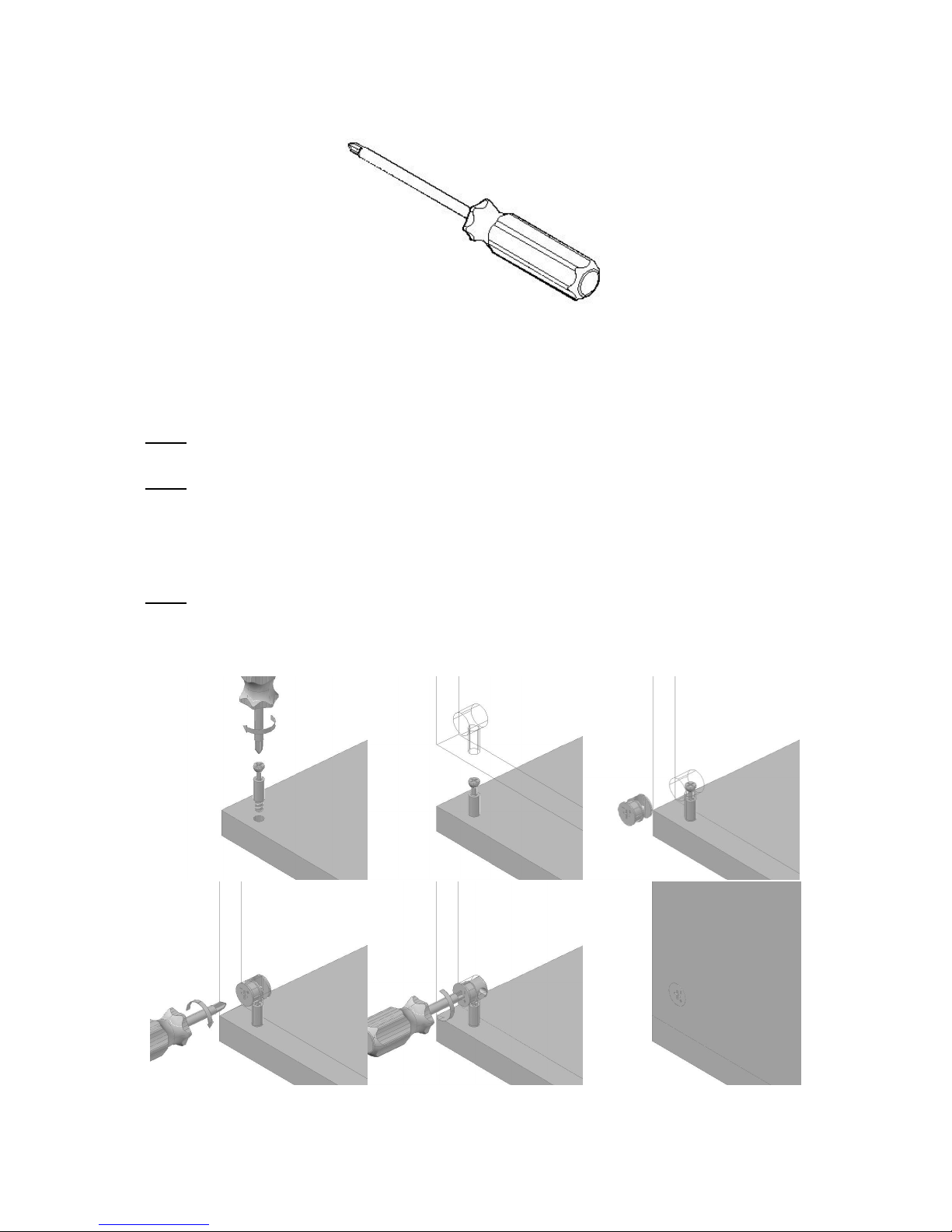

Step1: Use a Phillips Head Screwdriver to attach the Connecting Bolt to the furniture components

(unit-A).

Step2: Insert the exposed section of the connecting bolt on (unit-A) into the hole on the side-edge of

(unit-B). Insert the Connector Housing (Phillips cross head out) into the hole of (unit-B). *Note: The

connector housing has an opening in the threads that must align with the hole in the side-edge of (unit-B)

so that the connecting bolt will go in completely. If the connecting bolt does not go completely in, use the

screwdriver to rotate the connector housing until units A & B fit snugly together.

Step3: Once (unit-A) and (unit-B) fit tightly together, use the Phillips Head screwdriver to rotate the

Connector Housing clockwise until the joint is locked together.

unit-A

unit-B

unit-A

unit-B

unit-A

unit-B

unit-A

unit-B

Operation

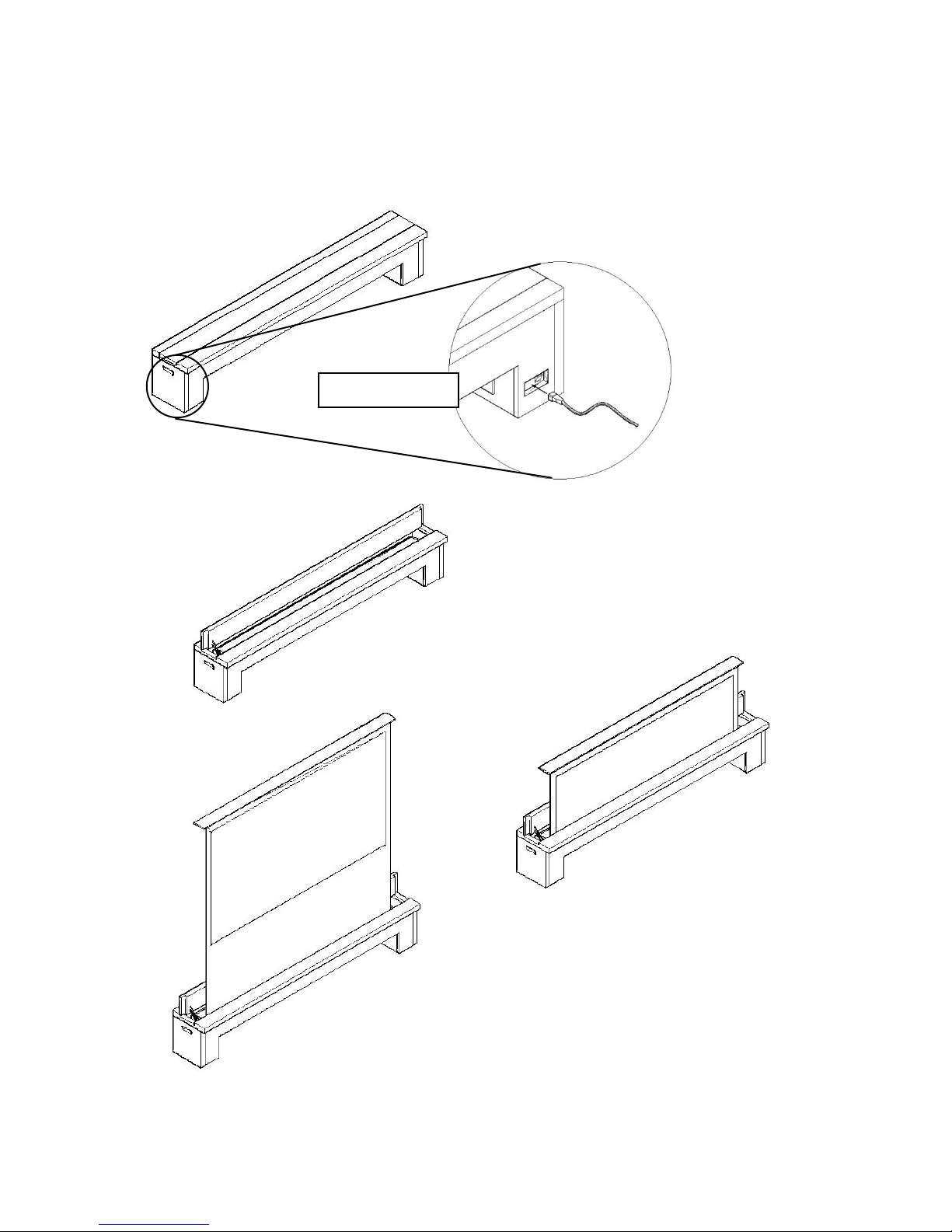

The screen module (component-P) can be used by itself on a flat, level surface or it can be combined with

Elite’s Raptor media stand housing as a fully assembled product. The power connection is located on the

screen module’s rear right-hand leg support and feeds conveniently through the cabinet housing to its

designated power source. The screen may be operated using the IR, RF, or 3-way wall switch.

3-way switch port

Assembly Step

1. Attach the Connecting Bolts to fixed to the base (component-A). Then attach the partitions

(components-B, C and D) via the connecting bolts as described on page 2.

X6PCS

2. Install the Support (component-E) using the connecting bolts and housings.

X 6pcs

3. Veneer (component-F) Installation.

X 6pcs

X 2pcs

4. Attach the Side boards (components-G & H) to the Base and Veneer (components-A & F).

X2pcs

X12pcs

5. Lock the Connector Housings to secure the media stand’s body.

X 4pcs

6. Turn over the media stand and lock the connector housings on the bottom.

X 8pcs

7. Attach the doors with the concealed hinges and install the back panels (components-K,L,M and N)

using the grooves in (components-G, B, C, D, & H).

X8pcs

8. Install the Cover (component-O) and lock with the connector housings.

X10pcs

X 10pcs

9. Put the screen module (component-P) into the assembled media stand. It must align with the shelf

supports (see enlarged image below) for a sccure fit and proper installation.

Designed for screen module assembly

10. Shelf installation: (adjustable) The shelf supports (nogs) have variable height placements.

X8pcs

11. Complete

Infrared-Sensitive Safety Device (ISSD)

This is a safety feature to prevent injuries

caused by fingers, hair, etc. getting caught up

in the screen’s closing mechanism. If the

small infrared light beams are obstructed,

the screen closing operation will halt

immediately.

Caution

1. The stand should only be cleared up by dry wipes appropriate for furniture care.

2. The screen material may be cleaned with a damp cotton cloth but caution should be taken to avoid

getting moisture down into the rolled material or mechanical functions of the screen.

3. For optimal product longevity, put the screen in the down (closed) position when not in use.

4. Avoid touching the screen material either with fingers or any other foreign objects (Exception, see #2.

Cleaning methods).

5. To avoid heat damage or fire, keep away from open flames or excessively hot (beyond human

endurance) heat sources.

6. When in use, please don’t reach into the screen case.

7. Do not disassemble your screen and attempt your own troubleshooting. Contact Elite Screens

immediately regarding any technical difficulties (Ph. (USA): 877.511.1211 / Web (RMA?Warranty):

http://www.elitescreens.com/service_form.htm

8. Please treat your Raptor with the same care as any other piece of fine furniture.

9. Prolonged direct sunlight destroys synthetic materials. Please do not keep any projection screen

(Elite or other Manufacturer) in direct sunlight for a prolonged period of time.

Troubleshooting

In case of a malfunction.

1. Cease operation

2. Disconnect (unplug) power source

3. Contact Elite Screens immediately. (http://www.elitescreens.com/service_form.htm or

Ph: 877.511.1211

If the screen does not go up/down

1. Check the power cord and make sure that it is connected to a good power source.

2. Check the infrared-sensitive safety device (ISSD) for foreign items/obstructions?

3. Check the batteries in both the IR and RF remote control

4. Try to operate the screen up/down with the 3-way switch located on the left side of the cabinet

If all attempts to rectify the problem are unsuccessful, see Warranty Policy for further instructions.
