Elite Screens M85XWS1-SRM Manual de usuario

www.elitescreens.com

[email protected]

Note: Regardless of the mounting method, the screen should be securely supported so that

when retracted, deployed, or even abusive pulling on the screen, the case will not become loose

or fall. The installer must insure that the fasteners used are of adequate strength and suitable for

the installation location.

1. Carefully unpack the screen.

2. Always handle the screen in a leveled position on a clean surface.

Manual SRM Series

Manual Pull-down screen with built-in slow retract mechanism

User Guide

v.12

Pre-Installation

Back of end cap

Front view

Installation

- 2 -www.elitescreens.com [email protected]

1. Mark the location of where the screen is to be installed for the pre-drilled hole.

2. After marking the area and drilling the hole, insert the proper screw into the drilled hole and leave

about 1/8" of an inch from the wall to mount the screen.

3. Mount your screen from the keyhole located on back of screen’s left and right end cap.

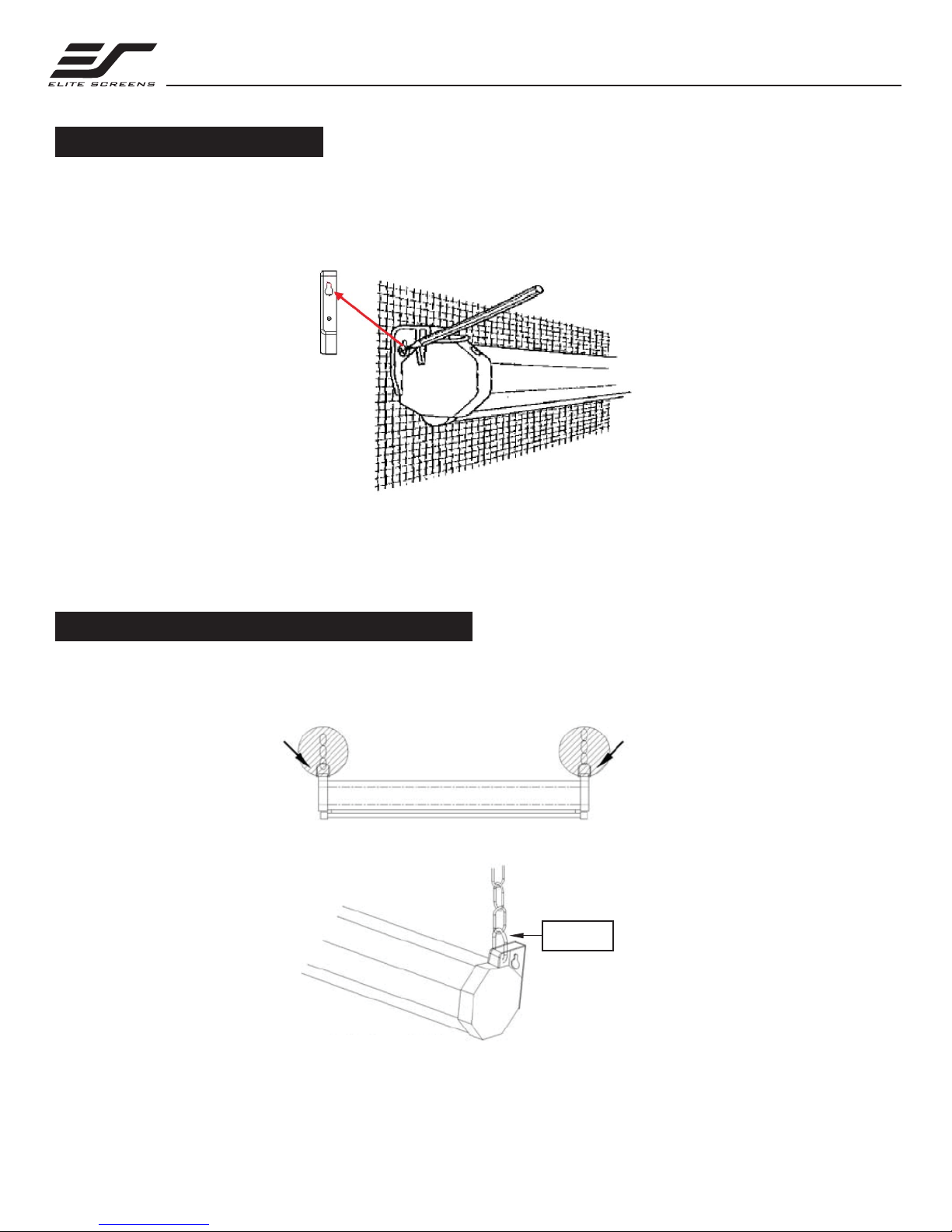

Flush Mount to the Wall

1. You can also hang the screen on a ceiling by using a chain (not included) and hang it by the two loops

located on each end of the case.

Ceiling Mounting (additional hardware required)

Loops

1. Pull the screen down from the lanyard or from the handle only in a 90-degree angle. Do not attempt to

pull the screen down by the surface or touch the screen, as it will damage the screen and void the

warranty.

2. If you want to the screen to retract back, simply pull the screen down more than 2 inches and retract

the screen back by quickly and smoothly releasing it up gently. The screen is equipped with a SLOW

RETRACT MECHANISM (SRM) which allows the screen to slowly retract without the need to hold on

to the handle or lanyard. Simply release the handle and the screen will retract by itself.

Screen Operation & Maintenance

Note: Always pull the screen down or let it up in a 90-degree vertical angle. Do not allow the screen

to touch the screen case when the screen goes up or comes down to avoid damaging the screen mate-

rial.

Note: An internal auto-lock mechanism system will cause the screen to stop and lock on the position

at intervals.

Note: Always release at a 90-degree angle and do not let go until the screen is entirely inside the

case If ever the screen feels stuck, keep in mind that the screen’s mechanism is new and needs to be

run up/down a few times to loosen up. If this happens, carefully with a little force yank the screen

straight down to unlock the screen.

Clean matte white screen material with a soft cloth and mild soap with water.

When not in use, retract screen in its housing to keep the screen material surface clean.

Maintenance

- 3 -www.elitescreens.com [email protected]

Note: Improperly bringing the screen up/down will damage the screen material or rolling system.

Dimension Table

- 4 -www.elitescreens.com [email protected]

Nominal Case Screen View Weight Bottom Screen Material View Overall End Cap End Cap Distance from

Model Diagonal & Length Width Width Bar Edge to Weight Bar Height Height Height Width Screen material

Aspect Ratio (A) (A1) (A2) Length (A3) Distance (B4) Height (B3) (B1) (B) (B5) (C) to wall (C1)

M85XWS1-SRM 85" (1:1) 1677 1603 1527 1673 62 1703 1527 1795 92 79.5 20

M99NWS1-SRM 99" (1:1) 1938 1854 1778 1934 62 1954 1778 2046 92 79.5 20

M113NWS1-SRM 113" (1:1) 2192 2106 2030 2188 62 2206 2030 2298 92 79.5 20

M84NWV-SRM 84" (4:3) 1867 1783 1707 1863 62 1456 1280 1548 92 79.5 20

M100NWV1-SRM 100" (4:3) 2192 2108 2032 2188 62 1700 1524 1792 92 79.5 20

M120XWV2-SRM 120" (4:3) 2598 2514 2438 2594 62 2005 1829 2097 92 79.5 20

Unit: mm Can't find size and ratio you’re looking for? Visit elitescreens.com/csr to create your own

Nominal Case Screen View Weight Bottom Screen Material View Overall End Cap End Cap Distance from

Model Diagonal & Length Width Width Bar Edge to Weight Bar Height Height Height Width Screen material

Aspect Ratio (A) (A1) (A2) Length (A3) Distance (B4) Height (B3) (B1) (B) (B5) (C) to wall (C1)

M85XWS1-SRM 85" (1:1) 66.0 63.1 60.1 65.9 2.4 67.0 60.1 70.7 3.6 3.1 0.8

M99NWS1-SRM 99" (1:1) 76.3 73.0 70.0 76.1 2.4 76.9 70.0 80.6 3.6 3.1 0.8

M113NWS1-SRM 113" (1:1) 86.3 82.9 79.9 86.1 2.4 86.9 79.9 90.5 3.6 3.1 0.8

M84NWV-SRM 84" (4:3) 73.5 70.2 67.2 73.3 2.4 57.3 50.4 60.9 3.6 3.1 0.8

M100NWV1-SRM 100" (4:3) 86.3 83.0 80.0 86.1 2.4 66.9 60.0 70.6 3.6 3.1 0.8

M120XWV2-SRM 120" (4:3) 102.3 99.0 96.0 102.1 2.4 78.9 72.0 82.6 3.6 3.1 0.8

Unit: inch Can't find size and ratio you’re looking for? Visit elitescreens.com/csr to create your own

The listed measurements are for general reference only. Please contact Elite Screens to verify product design and dimensions before attempting to integrate its products with any structural or furniture modification.

Although a manufacturer may offer product advice, it may be taken or disregarded at the integrator’s discretion. Elite Screens will not be held responsible or be otherwise liable for faulty installations.

79.5 20.5

Ø10.5

Ø5

Unit:mm

Warranty Policy

- 5 -www.elitescreens.com [email protected]

• Two (2) Year parts and labor warranty from defects in workmanship from purchase date as follows

(except for refurbished units as specified below).

• Three (3) Year parts and labor warranty from defects in workmanship for GEMR (Government,

Educational, Military, & Religious) purchases of new product only.

• Refurbished Units carry a 90‐DAY parts and labor warranty.

• Each party will be responsible for one way shipping during the warranty period.

• A RMA (Return Merchandise Authorization) number must be issued in order to process a replacement

or to authorize a return for warranty repair. Elite Screens will, at its sole option replace or repair the

defective unit with a replacement *(see exceptions below) after the defective unit or parts have been

received. Once the product is received, Elite Screens will send out a replacement *unit to the customer

by ground service (subject to inventory availability).

• Do Not Return Any Unauthorized Items to Elite Screens, as they will be refused and returned at your

expense. The RMA Number must be included on the outside label of your shipping box. Our warehouse

is not authorized to accept returns without an RMA number on the shipping label.

• RMA Numbers are valid for 45 days from the date issued.

• Missing Parts must be reported within 7 days of receipt. If reported after 7 days, the customer will be

responsible for shipping and handling fees. If reported after 30 days of receipt, the customer will be

responsible for cost of parts and shipping & handling fees.

* A New or refurbished replacement will be send out to the customer depending on the type of purchase

(new or refurbished) and based on stock availability.

North America only U.S. and Canada

For Warranty and Service requests, please submit an RMA/Service Form at:

www.elitescreens.com/warrantysupportform

Please visit this link for full Warranty information:

www.elitescreens.com/warranty

For Customer Service and Technical questions, please contact Elite Screens at:

Telephone: (877) 511‐1211 [email protected]

Fax: (562) 926‐8433 [email protected]

www.elitescreens.com

Contact Information

- 6 -www.elitescreens.com [email protected]

US & Canada Tech Support & Warranty Claim

Please contact us at [email protected] or call +1 877.511.1211 #3 or fax +1.562.926.8433

Europe Tech Support & Warranty Claim

Please contact us at [email protected] or call +49 (0) 40.30392958

Asia Tech Support & Warranty Claim

Please contact us at [email protected] or call +86 (0) 755.8461.7989

Taiwan Tech Support & Warranty Claim

Please contact us at [email protected] or call +866.2.8990.1999

Elite Screens America

16410 Manning Way |Cerritos |California 90703

www.elitescreens.com |[email protected]

Tel: 877.511.1211 | Fax: 1.562.926.8433

Elite Screens China Corp.

Longxi Duimianling Industry Zone

Longcheng Longgang District,

ShenZhen GuangDong, China

www.elitescreens.com.cn

[email protected]

Tel: +86 (0) 755.8461.7989

Fax: +86 (0) 755.8461.7669

Elite Screens Taiwan Ltd.

1F. No. 38 Alley 22 Lane 66 Sec. 5

Nanjing E. Rd. Songshan District

Taipei City 105, Taiwan (R.O.C.)

www.elitescreens.com.tw

[email protected]

Tel: 886 (0) 2.2747.8979

Elite Screens Japan Corp.

467-2-606 Tsuruma, Machida-shi,

Tokyo, 194-0004 Japan

www.elitescreens.jp

[email protected]

Tel: 0120-07-0008

Fax: +81 (0) 42.706.9130

Elite Screens Europe GmbH

Lübecker Straße 1

22087 Hamburg, Germany

www.elitescreens.eu

[email protected]

Tel: +49.40.30392494

Fax: +49.40.49219200

Elite Screens France S.A.S

11, Allée William Penn

92150 Suresnes, France

www.elitescreens.com/fr

[email protected]

Tel: +33.1.45064735

Fax: +33.1.45064735

ASIA:

EUROPE:

Elite Screens

www.elitescreens.com/sp

[email protected]

LATIN AMERICA:

Notes

- 7 -www.elitescreens.com [email protected]
