Sable Frame B2 Series

CineWhite® UHD-B (Matte White) Fixed Frame Projection Screen

USER’S GUIDE

Thank you for choosing an Elite Screens fixed frame projection screen! Congratulations on your new Sable Frame B2 purchase! Please read

through this user guide before utilizing the screen. Correct usage and maintenance will ensure a long product life. The front projection material

CineWhite® UHD-B is ISF Certified for accurate color reproduction in a controlled room environment.

Care & Use Instructions

Dust, dirt and scratches on the projection surface will affect the picture quality, please take note of the points below to prevent that from

occurring:

1. Do not touch the projection surface with your hands

2. Do not write or draw on the projection surface

3. Do not use fingers or sharp objects to point on the projection surface; this will damage the screen material.

4. Use a soft-damp cloth to clean the projection surface; do not use chemical cleaning agents or alcohol.

5. Use clean water when dampening the cleaning cloth and do not rub against the material to clean it.

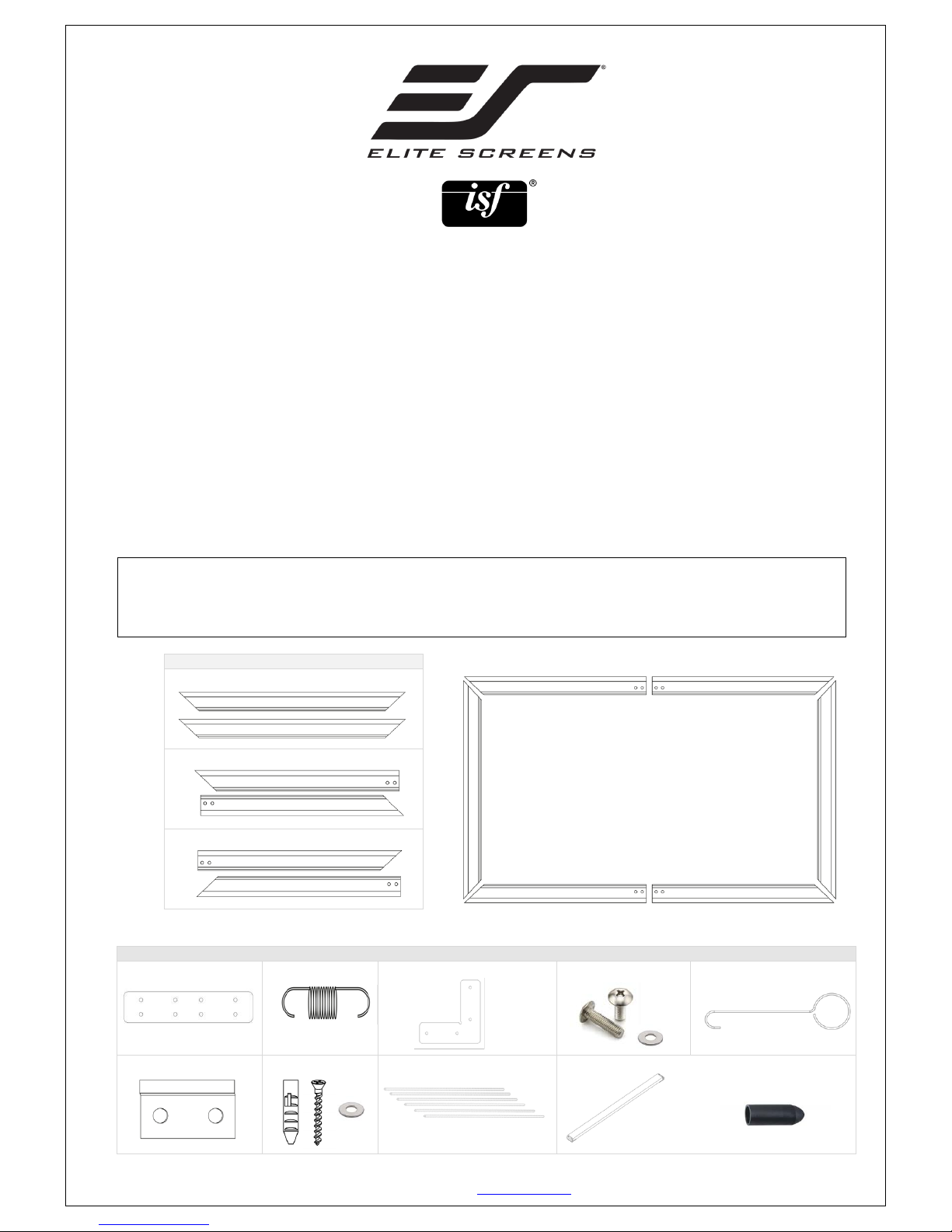

Frame Parts List

A. Vertical Frame x 2 pcs

B. ½ Horizontal Frame x 2 pcs

C. ½ Horizontal Frame x 2 pcs

Hardware Parts List

I. J.

CAUTION: The screen should be assembled in a temperature range from 68°-78° F (20°-

26° C).

Overstretching the screen material in a temperature below the recommended range can cause permanent

damage including ripping and/or tearing which is not covered under warranty.

C + B

B + C

REV040819BR-Z www.elitescreens.com 2

Note: Additional spare parts may be included.

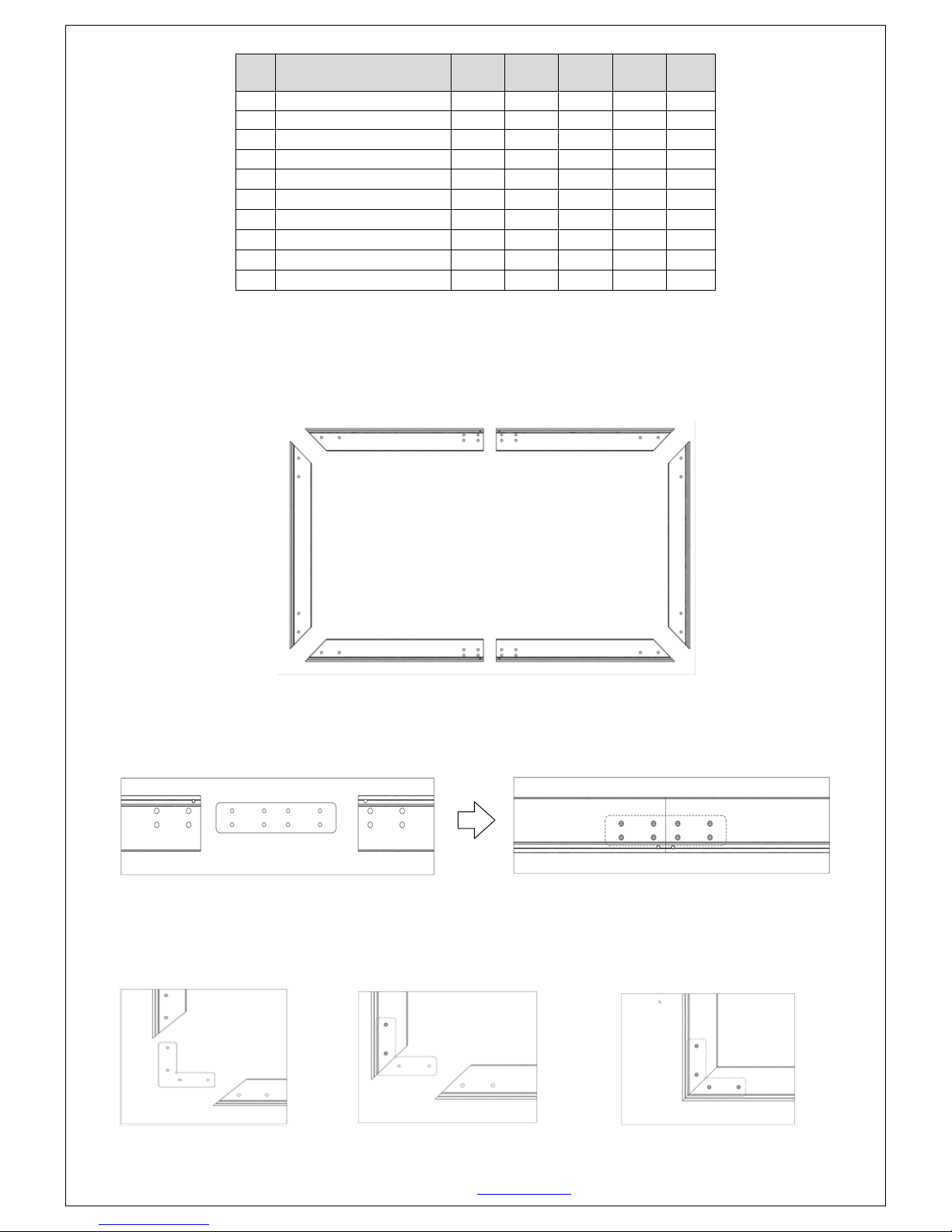

Assembly

Step 1.Place a soft-clean cloth on the ground or other flat surface of the area where the screen will be assembled.

Step 2. Position the pieces of the frame face-down on the soft-clean cloth in the arrangement shown below.

Step 3. Insert the Center Joint (A) connector into one-half of the Horizontal Frame (B) and fasten with two Large Screws and Washers (D).

Once secure, connect with the one-half of the Horizontal Frame (C)and fasten with two Large Screws and Washers (D). Repeat steps for the

other one-half of Horizontal Frames (B) and (C).

Step 4. Insert the Elbow Joints (C)to top and bottom sections of the Vertical Frame (A). Once inserted, secure the Elbow Joints (C) by fastening

them with the Large Screws and Washers (D) and connect the Vertical Frame sections to the Horizontal Frame sections. Make sure all corner

frames pieces are flush (no gaps). They should form perfect right angles.

Do not tighten the Screws firmly until all frame pieces are assembled correctly.

Item Parts List 100”

Screen 110”

Screen 120”

Screen 135”

Screen 150”

Screen

A. Center Joints 22222

Springs

C. Elbow Joints 44444

D. Large Screw/Washer/Small Screw 32/32/4 32/32/4 32/32/4 32/32/4 32/32/4

Pull Hook

F. Wall Bracket 22222

Drywall anchor/Screw/Washer

4/4/4

H. Short/Long Tension Rods 2/4 2/4 2/4 2/4 2/4

Center Support Bar

J. Tension Rod Cap 8 8 8 8 8

Note: You may have to loosen and adjust the brackets and frame pieces. It will help to leave the screws loose until perfect right angles

are formed, then tighten the screws securely.

REV040819BR-Z www.elitescreens.com 3

To prevent permanent damage to the screen material, be sure your hands are clean for the next step.

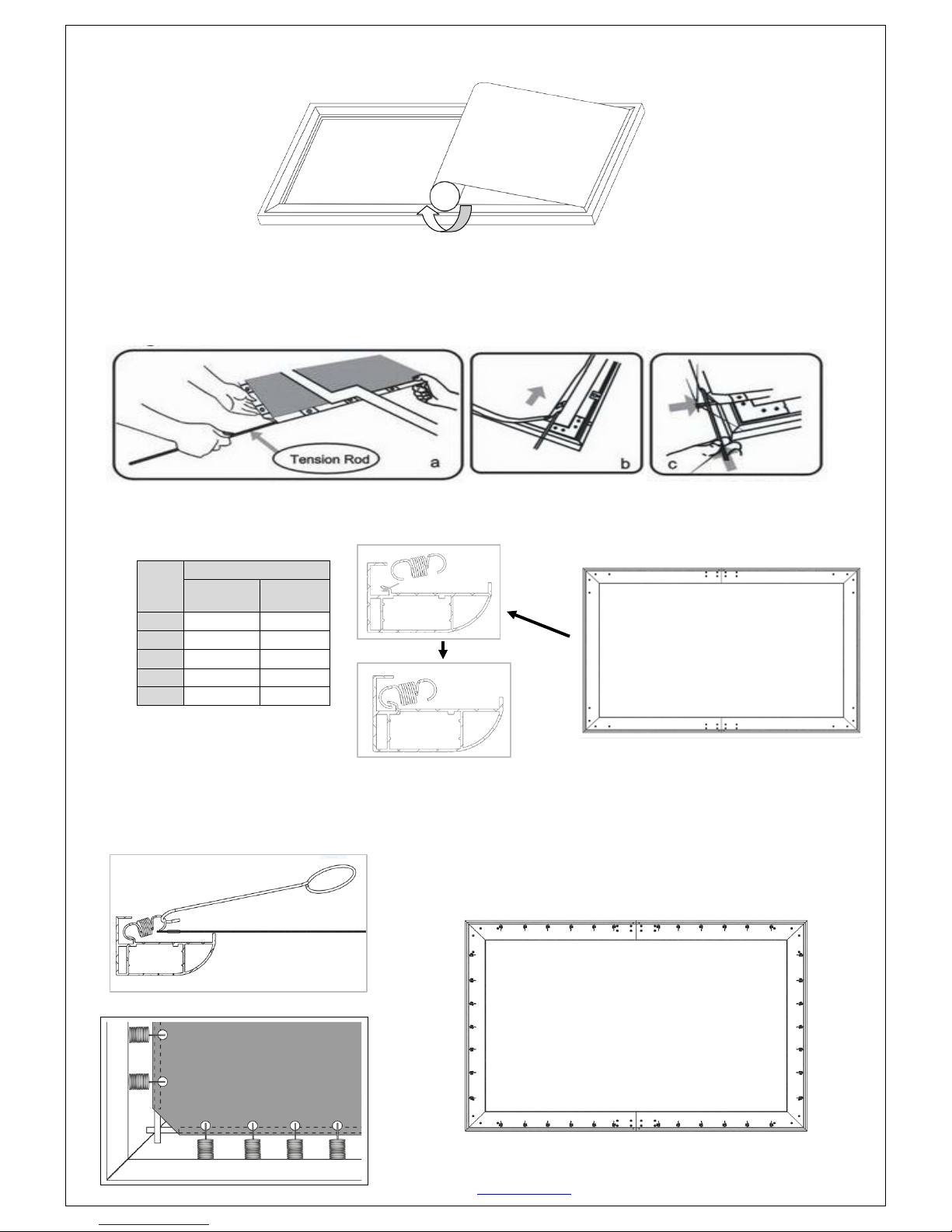

Step 5. Carefully unroll the screen material face-down on, top of the assembled frame, from one side of the frame to the other side as shown below.

Step 6. Connect 2 Long Tension Rods (H, covered with connector head) with 2 Short Tension Rods (H) to make 2 Long Horizontal Tension Rods.

The remaining 2 Long Tension Rods (H) are 2 Vertical Tension Rods.

Insert the 2 Long Horizontal Tension Rods and the 2Vertical Tension Rods into the corresponding sides of the screen material, while keeping the

material lying flat. Be careful not to snag on the holes at the edge of the material during this process; forcing the Rods may damage the screen

material. Then cover all ends of 2 Horizontal and 2 Vertical Tension Rods with the Tension Rod Caps (J).

Step 7. Hook the Springs (B)on the back of the frame. Line them up with the corresponding holes on the materials edge. Be sure the hook is secure

and hook the other end to the corresponding hole on the material. For the correct amount of springs to place on the frame/material, please refer to

the table listed below.

Step 8. With one end of the Spring (B) hooked to the back of the frame, hook the other end of the Spring through the hole located on the screen

material’s outer edge. Be sure to hook the Springs (B)onto the Tension Rod (I) to avoid damage to the screen material. Use the Pull Hook (E)

when necessary. Attach the four corners and center horizontal sections of the material (1).

Screen

Size

Q’TY

Horizontal

Spring Vertical

Spring

100”

110”

120”

38 20

135”

150”

Back Side

REV040819BR-Z www.elitescreens.com 4

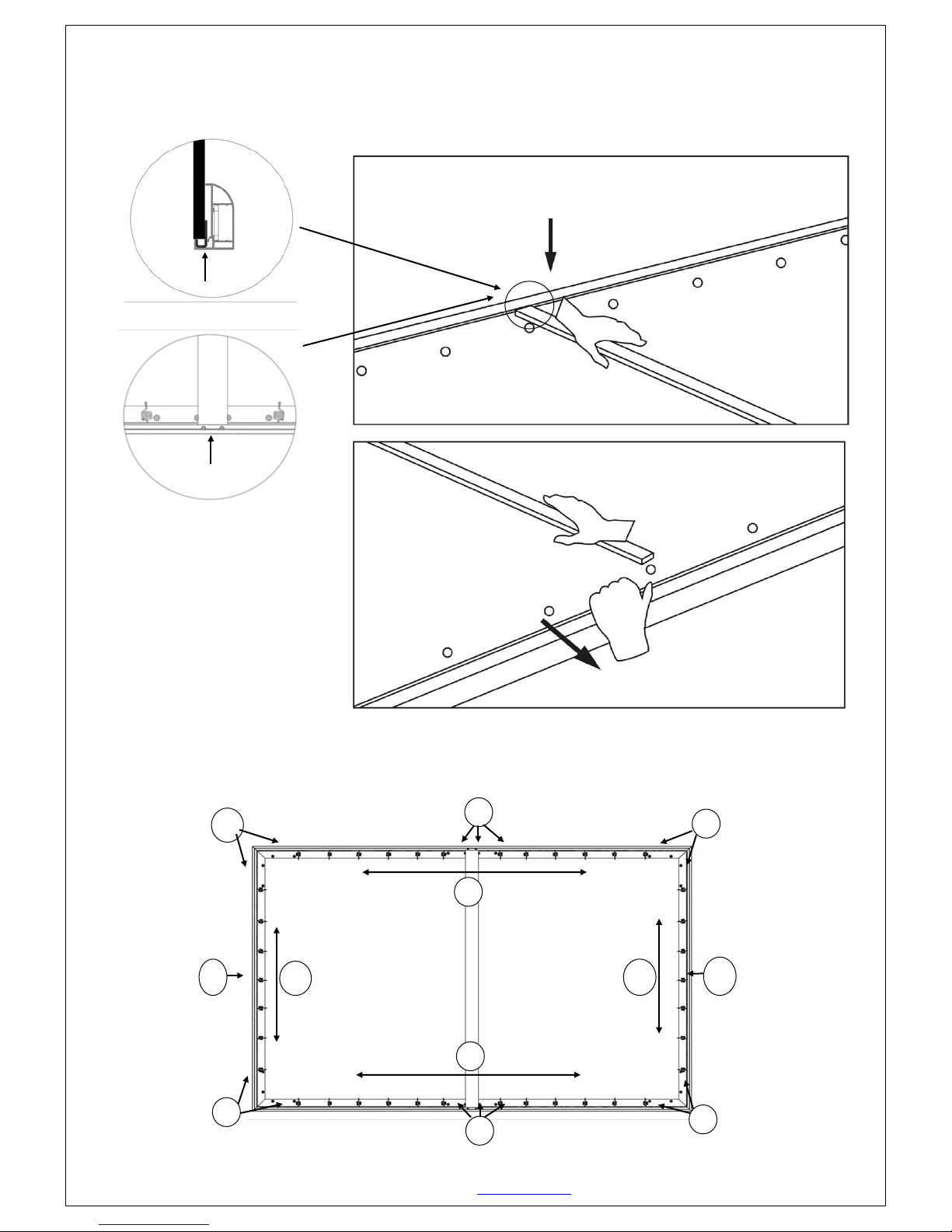

Step 9. Two people are suggested for this step. Place the Center Support Bar (I) into the top groove on the back of the frame (not the one where the

spring inserts) and align with the screw holes on the frame at the approximate center point of the frame. Carefully pull the bottom horizontal frame

outward and also align the Center Support Bar (I) with the screw holes on the frame. Carefully release the frame once the bar is centered. Secure

the bar using the Small Screws (D). See illustrations below for details:

Step 10. After the Center Support Bar (I) has been secured, hook the center of the vertical portions of the material (2). Be sure to hook the

Springs (B) onto the Tension Rod (H) to avoid damage to the screen material. Next, return to the vertical sides, securing the remainder of the

springs (3). Lastly, secure the remaining springs of the horizontal sides (4).

(Top of backside of frame)

(Bottom of backside of frame)

3 3

Top groove

Small screws

REV040819BR-Z www.elitescreens.com 5

Installation

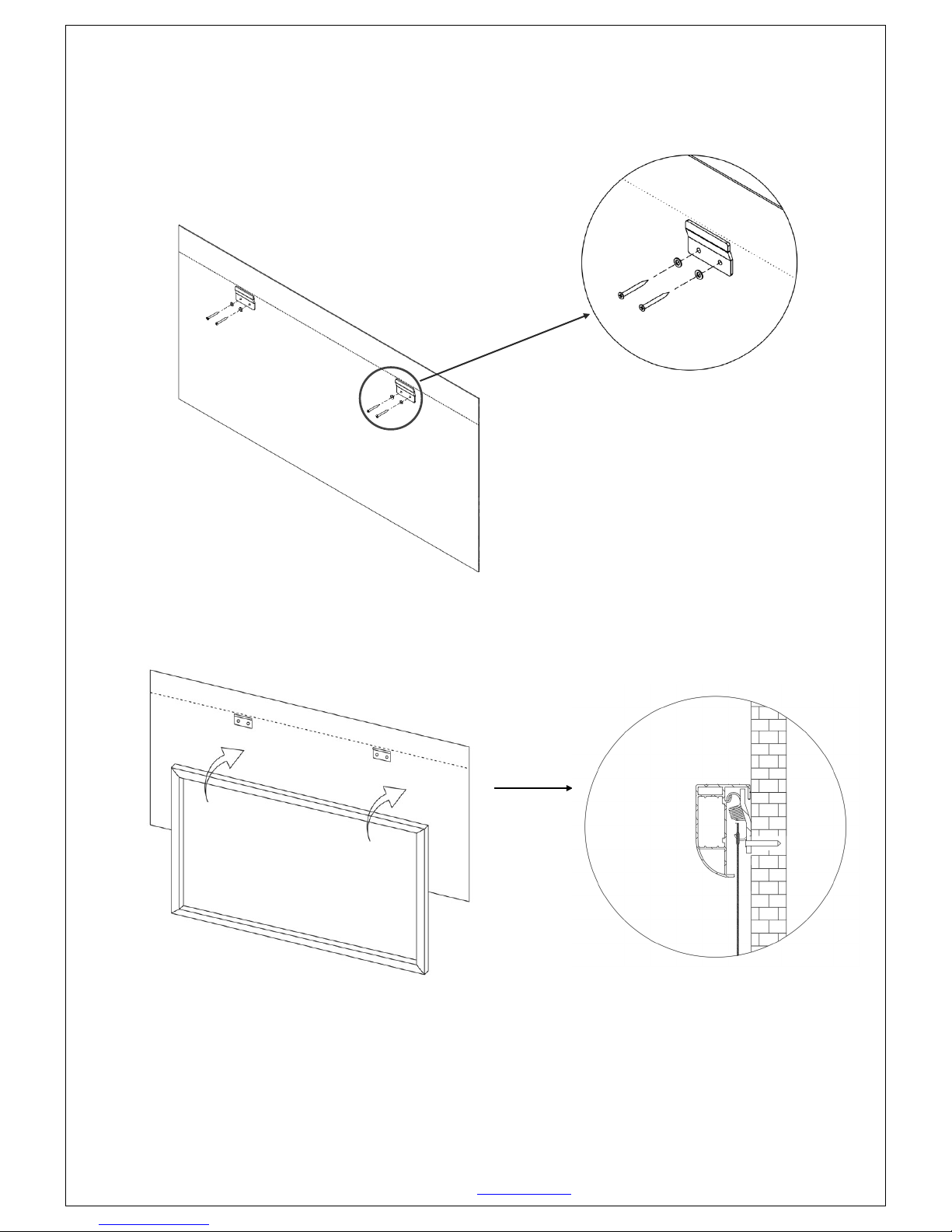

Step 11. Measure the overall length and height of the frame and drill holes for the Brackets (F). Line up the wall brackets with the drilled holes on

the installation location and screw them in using a Phillips screwdriver. If not installing into a structural wood stud, use a hollow wall Anchor, the

Screws, and Washer (G) with a screwdriver. Make sure the brackets are leveled.

Step 12. Position the Fixed Frame Screen onto the wall Brackets (F) as shown below and push down at the center of the top of the Frame to secure.

REV040819BR-Z www.elitescreens.com 6

CAUTION

Please follow these instructions carefully to ensure proper maintenance and safety of your Fixed Frame Screen

1. When hanging the screen up, please make sure that no other objects such as power switches, outlets, furniture, ladders, windows, etc.

occupy the space designated for your Fixed-Frame screen.

2. Regardless if the screen is hung on or installed into the wall, make sure that the proper mounting anchors are used and that the weight is

supported appropriately by a strong and structurally sound surface just as any large and heavy picture frame should.

3. (Please consult a home improvement specialist for the best advice on installation)

4. Frame parts are made of high-quality velour-surfaced aluminum and should be handled with care.

5. When not in use, cover over the screen with a furniture sheet to protect it from dirt, grime, paint or any other impurities.

6. Spare Parts should be placed out of reach of small children in accordance with household safety guidelines.

For Technical Support or an Elite Screens contact in your area,

please visit www.elitescreens.com
