Drive Nitro Manual de usuario

nitro rollator

ambulateur nitro

item # 10266HD-BR

www.drivemedical.com

parts list

1. Handgrip

2. Adjustable tubing handgrip

3. Rear reflector on handgrip

4. Brake lever

5. Interlock button for handgrips

6. Back Rest

7. Seat

8. Bag

9. Front wheel

10. Brake adjust screw

11. Rear wheel

12. Safety bow

Item #10266HD-BR

WEIGHTCAPACITYLBSKG

The Walking aid is suitable for a single user with limited mobility. The nitro is ideal for

indoor and outdoor use.

1. Bag

2. Back Rest

3. Operating Instructions

introduction

7. Seat

8. Bag

9. Front wheel

10. Brake adjust screw

11. Rear wheel

12. Safety bow

nitro includes:

unfolding the nitro

Position the Nitro on its

wheels. Open the red

safety bow and lift up

(figure 1). Press both pipes

from the seat downwards

until they interlock (figure

2).

height adjustment

Press the red release buttons for handgrips below,

as shown in figure 3, and pull the handgrip upwards

at the same time. As the handle moves, release the

button. This automatically locks in the next possible

height. Repeat this process until the desired height

is reached.

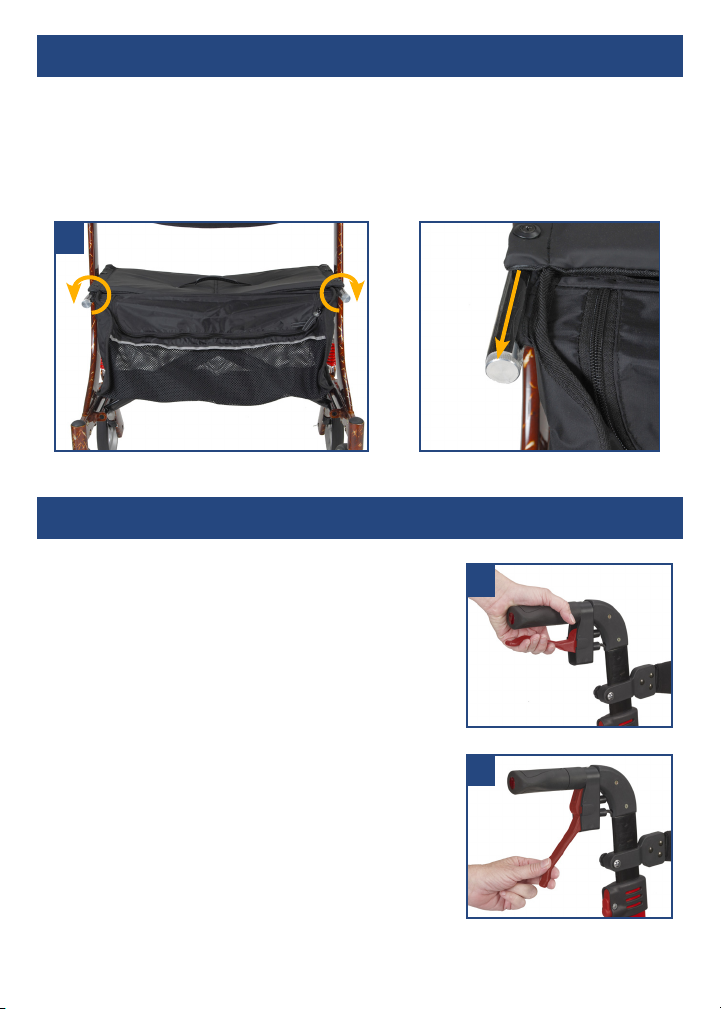

removing / attaching the carry bag

To remove bag, twist knobs located on the front end of the seat frame outward

(Figure 4 & 5). Pull out knobs and slide bag out of receptacle.

To replace bag, fold the Nitro slightly and reverse above steps.

braking / locking

Pull both brake levers upwards to apply the brakes

while the Nitro is moving (see figure 6). Always

brake slowly and steady.

Press both brake levers down to apply the locks

while the Nitro is stationary (see figure 7). Pull up

the brake levers and release to release the locks.

The effect of the brakes can be affected by

abrasion of the wheels.

Regularly test the brakes.

adjustment of brakes

To adjust the braking

strength, adjust the

brake by pressing

the screw housing

downwards (figure 8)

and then turn left or

right (figure 9).

sitting

Position the Nitro on an even and solid surface. Lock the brakes (parking position).

The Nitro must stand and must not slip. Sit straight up and do not lean backwards.

(See figure 10).

DO NOT MOVE ROLLATOR WHILE SEATED.

folding / transport / storage

To fold, pull seat

upwards by the handle

on the seat plate as

shown in figure 10. The

Nitro can now be folded

complete and secured

by using the red safety

clasp as shown in figures

11 and 12.

8 9

10 11

safety instructions

• Use only as a walking aid!

• Use only on even and solid surfaces.

• Maximum user weight: 450 lbs.

• Regularly check the screws and fasteners on the Nitro and retighten if necessary.

• Use bag only for transport of objects and do not overload. Maximum load: 11 lbs.

• Do not expose the product to temperatures above 104°F for an extended period

of time, as this can cause the Nitro parts to overheat and burn the user.

• Please make sure the Rollator is fully opened, seat is down and the folding bar

under seat is locked in the down position.

• Be sure that both knobs are fully tightened and are at equal heights. Test

Rollator for stability before applying full weight to hand grips.

• Test the brake lever before operating the Rollator. When wheels are locked, lock

bar on rear wheels should prevent wheels from turning. When locks are released,

the wheels should turn freely.

• Always lock the brake lever before sitting and do not use seat when unit is on an

incline or uneven ground.

• Replace tires when significantly worn or damaged.

• DO NOT MOVE ROLLATOR WHILE SEATED. This is a walking aid only

and is not to be used as a transportation device.

cleaning / maintenance

Clean regularly by hand with a damp cloth. Do not use aggressive detergents.

The frame of your Drive Medical product is warranted to be free of defects

in material and workmanship for the lifetime of the original consumer

purchaser. The brake handle and housing are covered for a period of 5 years

of the original consumer purchaser.

This device was built to exacting standards and carefully inspected prior to

shipment. This Lifetime Limited Warranty is an expression of our confidence

in the materials and workmanship of our products and our assurance to the

consumer of years of dependable service.

This warranty does not cover device failure due to owner misuse or

negligence, or normal wear and tear. The warranty does not extend to

non-durable components, such as rubber accessories, casters, and grips,

which are subject to normal wear and need periodic replacement.

If you have a question about your Drive device or this warranty, please

contact an authorized Drive dealer.

Drive is a trademark of Medical Depot, Inc.

Port Washington N.Y. 11050 USA Made in China

lifetime limited

warranty

lista de partes

1. Mango

2. Tubo ajustable del mango

3. Reflector trasero sobre el mango

4. Palanca del freno

5. Botón de enclavamiento para los mangos

6. Respaldo

7. Asiento

8. Bolsa

9. Rueda frontal

10. Tornillo de ajuste del freno

11. Rueda posterior

12. Arco de seguridad

Item # 10266HD-BR

CAPACIDADLBSKGDEPESO

Este dispositivo auxiliar para caminar es adecuado solamente para un usuario con

capacidad limitada de movilidad. El Nitro es ideal para usarse en interiores o exteriores.

1. Bolsa

2. Respaldo

3. Instrucciones de operación

introducción

el nitro incluye:

para desdoblar el nitro

Coloque el Nitro sobre sus

ruedas. Abra el arco de

seguridad y empuje hacia

abajo ambos tubos del

asiento hacia arriba (figura

1) hasta que se traben

(figura 2).

ajustes de altura

Presione los botones rojos de liberación de abajo

de los mangos, como se muestra en la figura 3 y jale

los mangos hacia arriba al mismo tiempo. Suelte

el botón a medida que se mueve el mango. Esto

lo bloquea automáticamente en la siguiente altura

disponible. Repita este proceso hasta lograr la

altura deseada.

cómo colocar la bolsa

Para quitar la bolsa, gire las perillas que se encuentran en el extremo frontal del

marco externo del asiento (ver figuras 4 a 5). Jale hacia afuera las perillas y deslice

la bolsa hacia afuera del receptáculo.

Para reemplazar la bolsa, doble levemente el Nitro e invierta los pasos anteriores.

cómo frenar / bloquearlo

Jale ambas palancas del freno hacia arriba para

aplicar los frenos mientras el Nitro está en

movimiento (ver figura 6). Siempre frente de forma

lenta y continuamente.

Presione ambas palancas del freno hacia abajo para

aplicar los frenos mientras el Nitro está estacionario

(ver figura 7). Jale las palancas de los frenos hacia

arriba y suéltelas para desbloquearlas.

El efecto de los frenos puede afectarse por la

abrasión de las ruedas.

Compruebe el funcionamiento de los frenos con

regularidad.
