Drive D577-R Manual de usuario

CLINICAL CARE RECLINER

Item #s: D577-R, D577-J, D577-BR

IMPORTANT SAFETY GUIDELINES

PERIODICALLY INSPECT ALL PARTS AND REPCE AS NEEDED ●OCCUPANT WEIGHT SHOULD NOT EXCEED 250 LBS.

●CASTER WHEELS SHOULD BE LOCKED DURING OCCUPANT TRANSFER

CLINICAL CARE RECLINER

Clevis Pin Clevis Pin

Bolt & Nut

Back Brace

with “U” Brackets

Bridge Clip

EXCESSIVE FORCE OR EFFORT IS NEVER NECESSARY TO CHANGE THE SEATING POSITION OF THE CHAIR.

DO NOT OPERATE RECLINER BY APPLYING FORCE OR PRESSURE TO LEGREST.

AFTER REMOVING ALL COMPONENTS FROM THE CARTON, ENGAGE THE TWO CASTER LOCKS

BEFORE BEGINNING ASSEMBLY.

Figure 2 shows location of two (2) clevis pins, two (2) ring coer clips, one (1) bolt, and one (1) nut.

Remove all above hardware from the back brace.

FIGURE 1

Frame

Upholstered

Arm Support

Padded

Push Handle

Gas Spring

Actuating

Lever

Articulating Headrest Upholster Back

Upholster Seat

Upholstered

Legrest Skirt

Upholstered

Footrests

FIGURE 2

REV2.01.09.14

FIGURE 

FIGURE 

FIGURE 

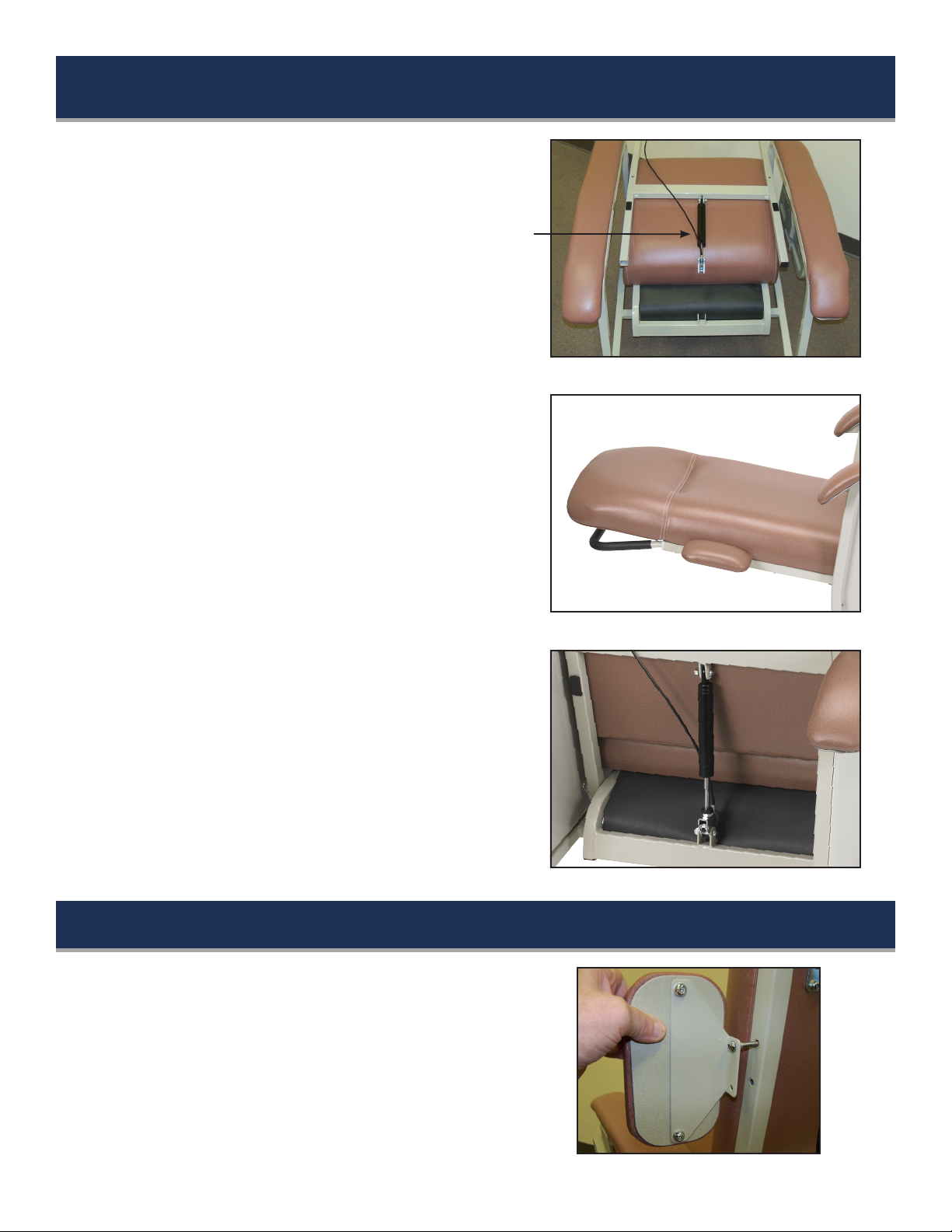

UPHOLSTERED BACK ASSEMBLY

Remove cardboard shipping retainers from

around Gas Spring Cylinder. Rotate the hinge on

the gas spring so that it is perpendicular to the

upholstered back. See Figure 3.

Li the upholstered back from the sides and

place it horizontally with the upright back tubes

resting on the recliner frame. See Figure 4.

Undo hook and rings on side panels, both sides so

mounting holes are exposed. Align the holes on

the

upright back tubes of the upholstered back with

the holes on the seat frame. Replace the clevis

pins through the mounting holes.

Secure the two clevis pins by replacing the bridge

clips.

Raise the upholstered back to vertical position.

Tuck the plastic skirt at rear of upholstered back

behind cross brace of seat frame. Align the hinge

at the boom of the gas spring with the holes

in the “U” bracket in the seat fame cross brace.

While holding the back with one hand, secure the

gas spring hinge to the “U” bracket by replacing

the bolt with the other hand. Secure the bolt by

replacing the nut. See Figure 5.

1. Align holes in arm suppot mount to mounting holes

in seat frame. See Figure 6.

2. Insert screws through arm support mount and seat

frame holes.

3. Secure screw with nut.

4. Repeat for other side.

INSTALTION OF ARM SUPPORT

FIGURE 

REV2.01.09.14

Gas Spring

Armrest

Table Mount

Bracket

Clevis Pin

Aachment

Table (Disengaged Position)

Table (Engaged Position)

Table (Stored Position)

Tabs engage into

slots on table

mount bracket

FIGURE 

STANDARD SEATING POSITION

RECLINE POSITION 

FIGURE 

SHOCK POSITION

RECLINE POSITION 

Slide Tables

To place either table in raised position:

Raise table all the way up and slide in until

tabs engage slots in mount bracket. Press

down lightly on table to ensure lock tabs are

engaged.

To return table to self-storing position:

Li table up until tabs disengage slots. Slide

out and allow table to lower. See Figure 7.

Articulating Headrest

Articulating headrest may be adjusted to a

comfortable position by pulling forward or

pushing back.

Seat Positioning

Reclining by patient: To place recliner in stan-

dard seated position, recline position No. 1, or

recline position No. 2. Place hands on armrest

and push body against chair back. Legrest

will automatically adjust to each recline posi-

tion.

Reclining by aendant: Stand at either side

of recliner. Grasp armrest with one hand and

padded push handle with the other hand. To

lower, push back on padded push handle. To

raise, pull forward on padded push handle.

To return to seated position: To bring reclin-

er back to the seated No. 1 or No. 2 position:

Actuate lever, slowly guide the back up fully

and release the lever. Return patient to de-

sired position by pushing upward on padded

push handle.

Shock Position

To aain shock position from any position:

Grasp the push handle with one hand while

actuating the lever with the other, slowly

guide the back down fully and release the

lever. Push articulating headrest back on the

recliner.

EXCESSIVE FORCE OR EFFORT IS NEVER NECESSARY TO CHANGE

THE SEATING OF THE CHAIR. DO NOT OPERATE RECLINES BY

APPLYING FORCE OR PRESSURE TO LEGREST.

REV2.01.09.14

MAINTENANCE & CLEANING

EVERYTHREEMONTHS

Check and clean casters ●Tighten nuts ●Check brakes on casters ●Check and clean lock recline mechanism

For upholstery maintenance and stain removal, the following hints will be helpful:

Ordinary dirt: Wash with warm awater and a mild soap or detergent.

Stubbon dirt: Using a so bristle brush, follow directions above.

Ground-in dirt: Scrub with powdered cleanser or similar detergent.

Chewing gum: Scrape carefully.

Nail polish and remover: Blot immediately to prevent damage.

Ball point pen: Blot immediately with a white cloth dampened in watch or mineral oil.

Waxing and reﬁnishing: Improver wearability. Use any quality paste wax.

A diluted solution of 10% (or less) of bleach or clorox may be used when cleaning this chair.

NOTE: This chair is equipped with four swivel casters for improved maneuverability. The rear casters are

also equiped with locking features.

LOCK: To prevent the rear casters from turning, step on the rear pedal of the caster until the pedal engages.

(Front of pedal will protrude from wheel cover).

UNLOCK: Step on the protruding front part of the pedal to disengage lock to unlatch.

WARNING!

CASTERS MUST BE LOCKED EXCEPT DURING TRANSPORT

To Lock

Pedal protrudes

Push down

To Unlock

Push down

REV2.01.09.14

CASTER OPERATION

99 Seaview Boulevard

Port Washington, NY 11050

Toll Free: 877.224.0946

Phone: 516.998.4600

www.drivemedical.com
