Digital Watchdog X12 WDR PTZ Manual de usuario

In/Outdoor Camera

Analog WDR PTZ

Ver. 1.0 / 2012.06

User’s Manual

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

Safety Information

This symbol indicates that dangerous voltage

consisting a risk of electric shock is present within

this unit.

Warning Precaution

This exclamation point symbol is intended to alert the

user to the presence of important operating and

maintenance (servicing) instructions in the literature

accompanying the appliance.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION:

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

To prevent damage which may result in ﬁre or electric shock

hazard, do not expose this appliance to rain or moisture.

WARNING

Be sure to use only the standard adapter that is speciﬁed in

the speciﬁcation sheet. Using any other adapter could cause

ﬁre, electrical shock, or damage to the product.

Incorrectly connecting the power supply or replacing battery

may cause explosion, ﬁre, electric shock, or damage to the

product.

Do not connect multiple cameras to a single adapter.

Exceeding the capacity may cause excessive heat generation

or ﬁre.

Securely plug the power cord into the power receptacle.

Insecure connection may cause ﬁre.

When installing the camera, fasten it securely and ﬁrmly.

A falling camera may cause personal injury.

Do not place conductive objects (e.g. screw drivers, coins,

metal items, etc.) or containers ﬁlled with water on top of

the camera. Doing so may cause personal injury due to ﬁre,

electric shock, or falling objects.

Do not install the unit in humid, dusty, or sooty locations.

Doing so may cause ﬁre or electric shock.

If any unusual smells or smoke come from the unit, stop

using the product. Immediately disconnect the power sorce

and contact the service center. Continued use in such a

condition may cause ﬁre or electric shock.

If this product fails to operate normally, contact the nearest

service center. Never disassemble or modify this product in

any way.

When cleaning, do not spray water directly onto parts of the

product. Doing so may cause ﬁre or electric shock.

WARNING

10.

Precaution

Operating

• Before using, make sure power supply and all other parts are

properly connected.

•While operating, if any abnormal condition or malfunction

is observed, stop using the camera immediately and contact

your dealer.

Handling

• Do not disassemble or tamper with parts inside the camera.

• Do not drop the camera or subject it to shock or vibration as

this can damage the camera.

• Clean the clear dome cover with extra care. Scratches and

dust can ruin the quality of the camera image.

Installation and Storage

• Do not install the camera in areas of extreme temperature,

exceeding the allowed range.

• Avoid installing in humid or dusty environments.

• Avoid installing in places where radiation is present.

• Avoid installing in places where there are strong magnetic

elds and electric signals.

• Avoid installing in places where the camera would be subject

to strong vibrations.

• Never expose the camera to rain or water.

Important Safety Instructions

1. Read these instructions. - All these safety and operating instructions should be read before the product is

installed or operated.

2. Keep these instructions. - The safety, operating and use instructions should be retained for future reference.

3. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to.

4. Follow all instructions. - All operating and use instructions should be followed.

5. Do not use this device near water. - For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet

basement; near a swimming pool; etc.

6. Clean only with dry cloth. - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Slots and

openings in the cabinet are provided for ventilation, to ensure reliable operation of the product, and to protect it

from over-heating. The openings should never be blocked by placing the product on bed, sofa, rug or other similar

surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper

ventilation is provided and the manufacturer’s unstructions have been adhere to.

8. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including ampliers)

that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with

one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade

or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult an

electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and

the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12. Use only with cart, stand, tripod, bracket, or table specied by the

manufacturer, or sold with the apparatus. When a cart is used, use

caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged

in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been

dropped.

Disposal of Old Appliances

1. When this crossed-out wheel bin symbol is attached to a product it means the product is covered by

the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately form the municipal waste

stream stream in accordance to laws designated by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for

the environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city oce,

waste disposal service or the shop where you purchased the product.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user

will be required to correct the interferenece at his own expense.

Features

Product & Accessories

Parts& Description

Safety Information

Important Safety Instructions

Table of Contents

INTRODUCTION

Camera ID Setup

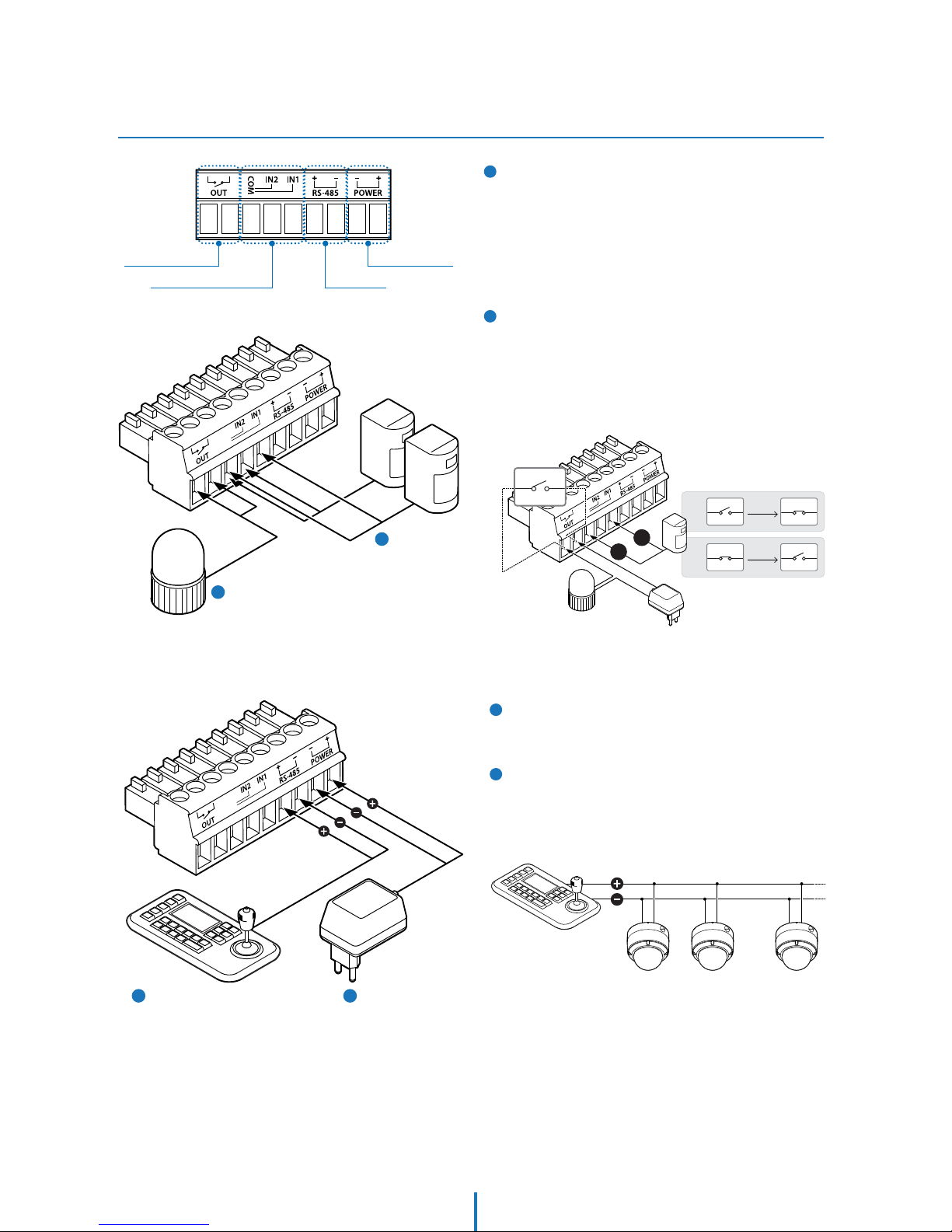

Teminal Block Connections

Surface Mount Installation

Accessories Installation

First Time Booting Up

Check Points Before Operation

INSTALLATION

Special Functions

OSD Information

General Rules of Menu Operation

OSD - ROOT MENU & SYSTEM INFORMATION

OSD - DISPLAY SETUP

OSD - MOTION SETUP & PARKING ACTION

OSD - MOTION SETUP & ALARM INPUT

OSD - FUNCTION SETUP > PRESET SETUP

OSD - FUNCTION SETUP > SCAN SETUP

OSD - FUNCTION SETUP > PATTERN SETUP

OSD - FUNCTION SETUP > GROUP SETUP

OSD - FUNCTION SETUP > SCHEDULE SETUP

OSD - CAMERA SETUP > WHITE BALANCE SETUP

OSD - CAMERA SETUP > AUTO EXPOSURE SETUP

OSD - CAMERA SETUP > SPECIAL

OSD - SYSTEM SETUP

OSD - SYSTEM INITIALIZE

OSD MENU

Camera IDs

Reserved PResets

Using a USB mouse to control the Camera’s OSD Menu

Using Joystick Contrller to control the camera’s OSD menu

APPENDIX

Dimension

Specification

Troubleshooting

Warranty Information & Limits and Exclusions

SPECIFICATIONS

Table of Content

CAMERA SPECIFICATIONS

• 1/4” Sony Super HAD II (Double Scan) CCD

•

Zoom Magniﬁcation: ×12 Optical, ×32 Digital Zoom

• Wide Dynamic Range

• Day & Night Function: ICR (IR Cut ﬁlter Removal)

• Various Focus Mode: Auto Focus/Manual Focus/

Semi-Auto Focus

• Independent or Global Camera Settings for Each

Preset Location

POWERFUL PAN/TILT FUNCTIONS

• Maximum 360°/SEC High Speed Pan/Tilt Motion

• Vector Drive Technology: Pan/Tilt Motions are

accomplished in the shortest path. As a result,

time to target view is reduced dramatically and

the video on the monitor is very natural to watch.

• Ultra low speed (0.05°/SEC) enables operator to

locate camera to desired target view with accuracy

and ease.

• Zoom-Proportional Pan/Tilt speed helps operator

to move the camera easily.

PRESET, PATTERN, SCAN, GROUP, PRIVACY

ZONE, SCHEDULE, AND MORE...

• Maximum 127 presets are assignable. Each of

them have independent characteristics, such as

white balance, auto exposure, label, alarm

input/output, etc.

• Maximum 8 set of scans can be stored. This

enables user to move camera repetitively between

two preset positions with designated speed.

• Maximum 4 patterns can be recorded and played

back. This enables the camera to follow any

trajectory operated by the joystick as closely as

possible.

• Maximum 8 set of group actions can be stored.

This enables the camera to move repetitively

between dierent combination of preset, pattern,

or scan. A group is composed of maximum 20

entities of preset, pattern, or scan.

•

Maximum 8 privacy zones can be set up to protect

privacy of other people.

• 7 rules of schedule can be assigned by day and

time. Appropriate actions (such as home, preset,

scan, pattern, and group) can be deﬁned for each

rule. Also, it is possible to use weekday and all days

to simplify the rule.

PTZ (PAN/TILT/ZOOM) CONTROL

• With RS485 communication, a maximum of 255

cameras can be controlled at the same time.

• Auto, Pelco-D, Pelco-P, Samsung, Panasonic, Kalatel,

AD(American Dynamics) protocol can be selected

as a control protocol in the current version of

ﬁrmware.

OSD(ON-SCREEN DISPLAY) MENU

• OSD Menu is provided to display the status of

camera and to conﬁgure the functions interactively.

•

Camera ID, Pan/Tilt/Zoom/Direction

, Alarm Input/

Output, Date/Time, Current Temperature, and

Preset are displayed on screen.

• Each display item can be turned on or oﬀ

independently.

ALARM I/O FUNCTIONS

• 2 Alarm sensor inputs and 1 relay output are

available.

• To reject external electric noise and shock perfectly,

alarm sensor input is decoupled with photo coupler.

• The signal range of sensor input is from DC 5.0 to

12.0 Volts to adopt various applications.

• If an external sensor is activated, camera can be set

to move to the corresponding preset position.

•

Relay outputs can be assigned to work with a certain

Preset.

RESERVED PRESETS FOR SPECIAL PURPOSE

• Most of camera settings are directly changed by

calling reserved presets, not entering into OSD

Menu. For more information, refer to “Reserved

Presets”(page 18) of this manual.

Features

Product & Accessories

Introduction -

Template Sheet

Verify the following items are included in the package.

Screw & Plastic Anchor-4pcs

Rubber Gasket

Torx Wrench

Quick Manual

Main Body + Surface Mount Bracket

9P Terminal Block

Manual CD

Accessories (Required)

DWC-P39CNM

Corner Mount

DWC-P39POLM

Pole Mount

DWC-P12WM

Indoor Wall Mount

DWC-P12CM

Indoor Ceiling Mount

DWC-P12WMS

Sunshield Wall Mount

DWC-P12CMS

Sunshield Ceiling Mount

Parts & Description

Introduction -

Dome Cover

Protects the camera module from outside environment.

- Do not detach protection film from the dome cover

before finishing all installation to protect

dome cover from scratches or dust.

Lockup Screw

Fixes main body to the surface mount bracket.

Fan

Fan for temperature control.

BNC Video Cable

Main video output cable.

9P Terminal Block Slot

9P terminal block that is connected with cables is

inserted in this slot.

LED & Reset Button

LED for active(yellow light), power(red light) status

and Reset button for reset camera.

ID Setup Switch

Specify the camera ID.

¾” Pipe Mounting Hole

- This is used to pass the cables to the cameras.

- When water protection is needed, connect the ¾” pipe

through this hole, then pass the cables through the

pipe.

Mounting Hole

This is used to attach the surface mount bracket to the

ceiling.

Main Body

The camera’s main body protects the camera’s wires.

This part is required when installing the camera with an Indoor

Accessory.

Main Body

Bottom of Main Body

Camera ID Setup

Installation -

The ID number of the camera is set using binary numbers.

See the example below.

Bottom of Main Body

Pin 1 2 3 4 5 6 7 8

1 2 4 8 16 32 64 128ID Value

ex) ID=5

ex) ID=10

o

- If you want to control a certain camera, you must match the

camera ID with ‘CAM ID’ setting of DVR or keyboard controller.

- The range of Camera ID is 0~255.

- All cameras have a factory default Camera ID of 1.

- Camera ID will be eective without having to reboot the

camera.

8765431 2

DIP Switch for

Camera ID

Before installing the camera, set up the DIP

switch to congure the Camera ID.

Terminal Blocks Connections

Installation -

Alarm Output

- It connects to the alarm lights, siren or lamps, and it is

activated according to the OSD menu setting.

- There are 1 Alarm Output and it is relay contact type.

Therefore, you do not have to care about polarity, AC/DC,

and isolations between channels. Care must be taken for

the power capacity of relay contact type.

- The sensor types are normal open and normal close.

Alarm Input/Sensor

- It connects to IR sensor, IrDA sensor or door switch. If the

sensor is activated, it can activate to move camera to the

specific angle and to connect the alarm device.

- A cable of the sensor should connect to input 1 or 2, and

the other should be connected to ‘COM’ slot.

- The sensor types are normal open and normal close.

Alarm Output Slot

RS-485 Slot

Alarm Input/Sensor Slot

Power Input Slot

COM

Alarm Input/

Sensor

Alarm Output

Out Out

N.C

Activation

N.O In 1

COM

In 1

COM

In 1

COM

In 1

COM

In1

COM

Keyboard Controller/DVR

Camera 1 Camera 2 Camera n

3Power

- Please check the correct rated power.

- The rated power is marked on the bottom of the camera.

RS-485 Communication (Keyboard Controller/DVR)

For PTZ control, connect this line to keyboard and DVR.

To control multiple cameras at the same time, RS-485

communication lines of them are connected in parallel as

shown below.

COM

Power

3RS-485

(Keyboard Controller/DVR)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de Digital Watchdog

Digital Watchdog

Digital Watchdog MEGApix DWC-MB44WiA Manual de usuario

Digital Watchdog

Digital Watchdog DWC-D4583WTIR Manual de usuario

Digital Watchdog

Digital Watchdog MEGApix IVA DWC-MB84Wi4T Manual de usuario

Digital Watchdog

Digital Watchdog MEGApix DWC-MTT4WiA Manual de usuario

Digital Watchdog

Digital Watchdog MegaPix Pano DWC-PVF5M1TIRC6 Manual de usuario

Digital Watchdog

Digital Watchdog Star-Light Plus DWC-V7553W Manual de usuario

Digital Watchdog

Digital Watchdog DWC-MV82WiATW Manual de usuario

Digital Watchdog

Digital Watchdog Snapit DWC-D4363D Manual de usuario

Digital Watchdog

Digital Watchdog Star-Light Plus Universal HD over Coax... Manual de usuario

Digital Watchdog

Digital Watchdog PTZ37XFM Manual de usuario

Digital Watchdog

Digital Watchdog STAR-LIGHT Flex DWC-VS753WT2222 Manual de usuario

Digital Watchdog

Digital Watchdog DWC-BL2651TIR Manual de usuario

Digital Watchdog

Digital Watchdog MegaPix DWC-MVT4WiA Manual de usuario

Digital Watchdog

Digital Watchdog Star-Light Plus Universal HD over Coax... Manual de usuario

Digital Watchdog

Digital Watchdog DWC-B362DIR Manual de usuario

Digital Watchdog

Digital Watchdog STAR-LIGHT Universal HD over Coax... Manual de usuario

Digital Watchdog

Digital Watchdog DWC-V6763WTIR Manual de usuario

Digital Watchdog

Digital Watchdog MEGApix Ai DWC-XSBA08Mi Manual de usuario

Digital Watchdog

Digital Watchdog STAR-LIGHT DWC-B7753TIR Manual de usuario

Digital Watchdog

Digital Watchdog DWC-PB6M4T Manual de usuario

Digital Watchdog

Digital Watchdog DWC-MB44iALPR Manual de usuario

Digital Watchdog

Digital Watchdog PIXIM DWC-V365 Manual de usuario

Digital Watchdog

Digital Watchdog DWC-D4365T Manual de usuario

Digital Watchdog

Digital Watchdog Star-Light Plus DWC-B6853WTIR Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario

Digital Watchdog x12 WDR PTZ Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas
