Digital Watchdog DWC-MC753WTIR Manual de usuario

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

04172015

Analog High Definition

Micro Dome Camera

DWC-MC753WTIR

PRECAUTIONS

Do not open or modify.

Do not open the case except during maintenence and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning:

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface:

The material of the mounting surface must be strong enough to support the camera.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference, when the equipment is operated in a residential environment. This

equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in

accordance with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

TABLE OF CONTENTS

Introduction

Installation

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Inside the Box

Mount Installation Instructions

Connecting to Monitors

Adjusting the Camera’s Position

8-9

13-14

FEATURES*

Analog High Definition (AHD) HD over Coax Technology

STAR-LIGHT™ Super Low Light Technology

Panasonic 1/3" CMOS Sensor

1080P Resolution at 30fps

Wide Dynamic Range (WDR)

Fixed Lens 3.6mm

Smart IR™ with Intelligent Camera Sync. 50ft Range

Smart DNR™ 3D Digital Noise Reduction

Highlight Masking Exposure (HME)

True Day/Night Mechanical IR Cut Filter

Secondary Video-BNC Output

Programmable Privacy Zones

Auto Gain Control (AGC)

Back Light Compensation (BLC)

Auto White Balance (AWB)

IP66 Certified (Weather Resistant)

PARTS & DESCRIPTION*

1Lens

Power Input Connector

12VDC Voltage

Primary Video BNC Output Connector

Mounting Screws

Camera Module

Bubble Dome

Upper Case

Security Screw

DIMENSIONS IN MILLIMETERS (IN)*

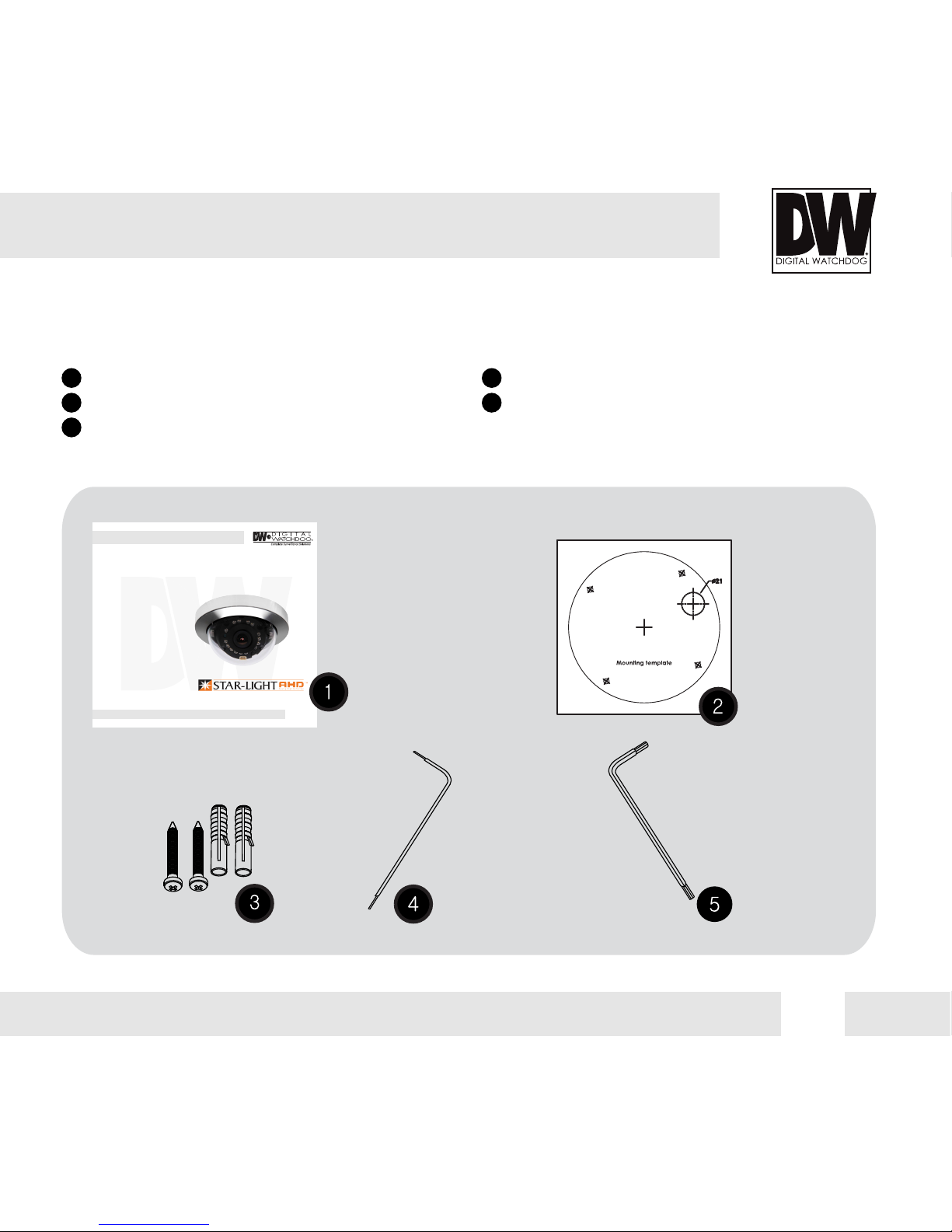

INSIDE THE BOX*

Included with Micor Indoor Dome Camera

User Manual

Mounting Template

4 Machine Screw and 4 Dry Wall Anchors

Miniature L-Key for Security Screw

L-Key

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

04172015

Analog High Definition

Micro Dome Camera

DWC-MC753WTIR

INSTALLATION*

1. Remove the Security Screw from the Upper

Case using the small L-Key.

2. Unscrew the upper case from the camera

module by rotating it counter clock-wise.

3. Use the camera’s mounting template or your

camera to mark the holes as required. Drill into

the drywall and insert the drywall mounts into

the holes.

4. Pull wires through and make connections.

(See page 10 for more information).

Mount the camera to the wall using the

included machine screws.

123

INSTALLATION*

5. Adjust the camera’s view (See page 11-

CAMERA SETTINGS).

6. place the bubble dome on the camera.

Screw the cover dome back by rotating it

clock-wise.

7. Tighten the Security screw back in place to

firmly secure the cover dome to the camera

module.

CONNECTIONS*

12VDC VIDEO OUT

CAUTION :

Check for polarity when using a DC 12V.

Use the diagram below to connect the camera to a Monitor or

CRT Monitor properly.
