INSTALLATION and SERVICE INSTRUCTIONS
USE and CARE INSTRUCTIONS
distributed by
DèLonghi
Pty Ltd
A 1346 G
DUAL FUEL
COOKER
2
Dear Customer,
Thank you for having purchased and given your
preference to our product.
The safety precautions and recommendations reported
below are for your own safety and that of others. They
will also provide a means by which to make full use of
the features offered by your appliance.
Please keep this booklet in a safe place. It may be
useful in future, either to yourself or to others in the
event that doubts should arise relating to its operation.
This appliance must be used only for the task it has
explicitly been designed for, that is for cooking
foodstuffs. Any other form of usage is to be considered
as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the
event of damage caused by improper, incorrect or
illogical use of the appliance or be faulty installation.
PRODUCT LABEL
Important:
■This appliance is designed and manufactured solely for the cooking of
domestic (household) food and is not suitable for any non domestic
application and therefore should not be used in a commercial environment.
■The appliance guarantee will be void if the appliance is used within a non
domestic environment i.e. a semi commercial, commercial or communal
environment.
■WARNING: Accessible parts will become hot when in use. To avoid burns
and scalds children should be kept away.
3
FIRST TIME USE THE OVEN
It is advised to follow these instructions:
■Fit the wire racks as described at chapter “Use and care”.
■Insert shelves and tray.
■Switch on the empty oven on max to eliminate grease tracks from the heating
elements.
■Clean the interior of the oven with cloth soaked in water and detergent
(neutral) then dry carefully.
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS FOR
USE OF ELECTRICAL APPLIANCES
Use of any electrical appliance implies the necessity to follow a series of fundamental
rules. In particular:
■Never touch the appliance with wet hands or feet;
■do not operate the appliance barefooted;
■The appliance is not intended for use by young children or infirm persons
with supervision
■Young children should be supervised to ensure they do not play with the
appliance
The manufacturer cannot be held responsible for any damages caused by improper,
incorrect or illogical use of the appliance.
WARNING: Ensure the appliance is switched off before replacing the lamp
to avoid the possibility of electric shock.
4
IMPORTANT PRECAUTIONS AND RECOMMENDATIONS
After having unpacked the appliance, check to ensure that it is not damaged.
In case of doubt, do not use it and consult your supplier or a professionally qualified techni-
cian.
Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not
be left around within easy reach of children, as these may cause serious injuries.
■Do not attempt to modify the technical characteristics of the appliance as this
may become dangerous to use.
■Do not carry out cleaning or maintenance operations on the appliance without
having previously disconnected it from the electric power supply.
■After use, ensure that the knobs are in off position.
■The appliance is not intended for use by young children or infirm persons without
supervision.
■During and after use of the cooker, certain parts will become very hot. Do not
touch hot parts.
■Keep children away from the cooker when it is in use.
■Some appliances are supplied with a protective film on steel and aluminium parts.
This film must be removed before using the appliance.
■Fire risk! Do not store flammable material in the ovens and in the drawer.
■Make sure that electrical cables connecting other appliances in the proximity of
the cooker cannot come into contact with the hob or become entrapped in the
oven doors.
■Do not line the oven walls with aluminium foil. Do not place baking trays or the
drip tray on the base of the oven chamber.
■The manufacturer declines all liability for injury to persons or damage to property
caused by incorrect or improper use of the appliance.
■IMPORTANT NOTE: This appliance shall not be used as a space heater,
especially if installed in marine craft or caravans.
This cooker has been designed and constructed in accordance with the following
codes and specifications:
AGA101 (AS 4551) Approval Requirements for Domestic Gas cooking appliances
AS/NZS 3350-1 General Requirements for Domestic electrical appliances
AS/NSZ 3350-2-6 Particular Requirements for Domestic electrical cooking appliances
AS/NSZ 1044 Electromagnetic Compatibility Requirements.
■ Young children should be supervised to ensure that they do not play with the
appliance.
■WARNING: In order to prevent accidental tièpping of the appliance, for
example by a child climbing onto the open oven door, the stabilizing
means must be installed. Please refer to instructions for installation.
5
INSTALLATION
CAUTION:
■This appliance must be installed in accordance with these installation
instructions.
■This appliance shall only be serviced by authorized personnel.
■This appliance is to be installed only by an authorised person.
■Incorrect installation, for which the manufacturer accepts no responsibility,
may cause personal injury of damage.
■Always disconnect the cooker from mains power supply before carrying out
any maintenance operations or repairs.
■In the room where the cooker is installed, there must be enough air to
allow the gas to burn correctly, according to the current local regulations.
ELECTRICAL REQUIREMENTS
■The appliance must be connected to the mains checking that the voltage
corresponds to the value given in the rating plate and that the electrical
cable sections can withstand the load specified on the plate.
■The appliance must be connected directly to the mains placing a two pole
switch with minimum opening between the contacts of 3 mm between the
appliance and the mains.
■The power supply cable must not touch the hot parts and must be
positioned so that it does not exceed 50°C above ambient.
■Once the appliance has been installed, the switch or socket must always be
accessible.
■
If the supply cord is damaged it must be replaced by the manufacturer or
it’s Service Agent or a similarly qualified person in order to avoid a haz-
ard.
WARNING: This cooker must be connected to electrical supply using
V105 insulated cable.
N.B. The connection of the appliance to earth is mandatory.
If the installation requires alterations to the domestic electrical system call a qualified
electrician.
He should also check that the socket cable section is suitable for the power drawn by
the appliance.
11
6
Figure 1.1
Figure 1.2
CONNECTING THE FEEDER
CABLE
To connect the feeder cable to the cooker it is
necessary to:
■Remove the 6 screws that hold shield A
behind the cooker.
■Open completely the cable clamp D.
■Position the U bolts onto terminal block
B (fig. 1.1 - 1.2).
■Insert the feeder cable into the cable
save P. The supply cable must be of a
suitable size for the current requirements
of the appliance.
■Connect the phase and earth cables to
terminal B.
■Pull the feeder cable and block it with
the cable clamp D
■Re-mount shield A.
N.B. The earth conductor must be left
about 3 cm longer than the others.
P
D
A
B
PE
12345
N (L2)L1
230 V - 240 V
230 V3 - 240 V3
PE
12345
PE
12345
PE
12345
400 V 2N - 415 V 2N
400 V 3N - 415 V 3N
L1L2L3
N
L1L2L3
N
L1L2
FEEDER CABLE SECTION
type “H05RR-F”
230-240 V 3 x 6 mm2(**)
230-240 V3 4 x 4 mm2(**)
400-415 V3N 5 x 2,5 mm2(**)
400-415 V2N 4 x 4 mm2(**)
(**) – Connection with wall box con-
nection
– Diversity factor applied
7
CLEARANCES
■Installation clearances and protection of combustible surfaces shall comply with
the current local regulations eg. AG 601 (AS 5601) Gas Installations code.
■Installation shall comply with the dimension in Fig 1.3 bearing in mind that
Overhead Clearances
■In no case shall the clearances between the highest part of the cooker be less
than 600mm or for an overhead exhaust fan 750mm. All other downward
facing combustible surfaces less than 600mm above the cooker surface shall
be protected for the full width of the cooking surface in accordance with the
standards noted above. In no case shall the clearance be less than 450mm.
200 mm
650 mm
500 mm
450 mm
Figure 1.3
Cooker overall dimensions [mm]
• height: min 913 - max 918
• width: 1300
• depth: 600
8
Figure 1.4
Before installing the cooker level the appliance by screwing or unscrewing the six
adjustable feet fitted below.
WARNING!
For safety reasons unscrew the feet (from screwed position) to the maximum extent of 5 mm
(fig. 1.4).
Rear and Side Clearances
■Where the dimensions from the periphery of the nearest burner to any
vertical combustible surface is less than 200mm the surface shall be protected
in accordance with the standards to a height of not less than 150mm above
the cooking surface for the full width or depth of the cooking surface
■Where the dimensions from the periphery of the nearest burner to any
horizontal combustible surface is less than 200mm, the horizontal surface shall
be greater than 10mm below the surface of the hob, or the horizontal
surface requirement above.
Protection of combustible surfaces.
■The standards above specify that where required protection shall ensure that
the surface temperature of the combustible surface does not exceed 65°C
above room temperature.
If the cooker is located on a pedestal it is necessary to provide safety measures to
prevent falling out.
9

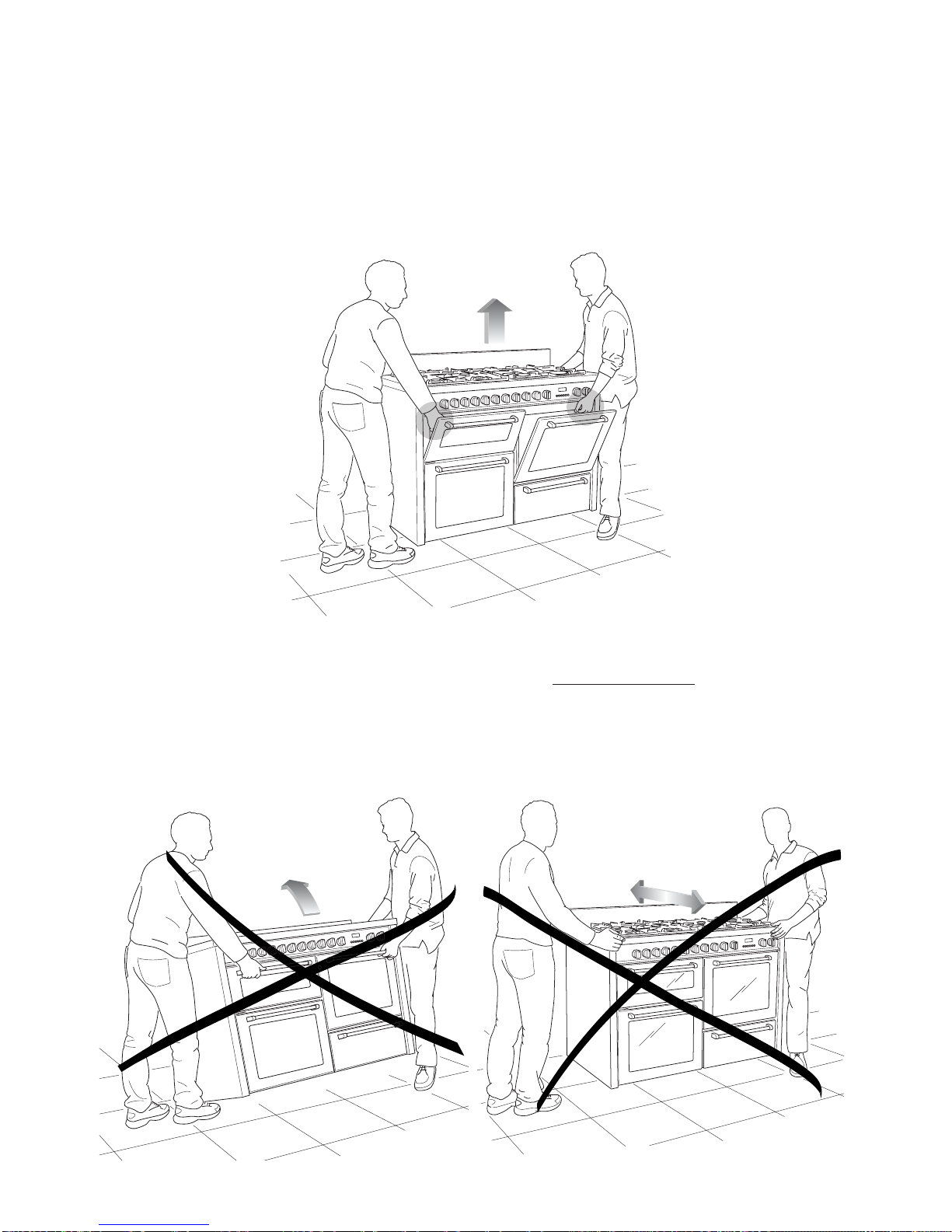

WARNING
When moving cooker to its final posi-
tion DO NOT DRAG (fig. 1.7).
Lift feet clear of floor (fig. 1.5).
Figure 1.6 Figure 1.7
Figure 1.5
WARNING
To move the cooker always ensure two people carry out this manoeuvre to
prevent damage to the appliance (fig. 1.5).
MOVING THE COOKER
WARNING
Be carefull: do not lift the cooker
by the door handle (fig. 1.6).
10
Figure 1.8
A
BACKGUARD
Before installing the cooker, assemble the backguard “C” (fig. 1.8).
■The backguard “C” can be found packed at the rear of the cooker.
■Before assembling remove any protective film/adhesive tape.
■Assemble the backguard as shown in figure 1.8 and fix it by screwing the 5
screws “A”.
C
