Dell™ 2200MP Projector User's Guide

The information below is provided by the supplier of the referenced device without independent verification by Dell

and is subject to the restrictions and disclaimers.

Safety Instructions (Read before connecting the projector)

About Your Projector

Installation

Using Your Projector

Troubleshooting

Specifications

Regulatory Notices

Contacting Dell

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your projector.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to

avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; DLP and Texas Instruments are

trademarks of Texas Instruments Corporation; Microsoft and Windows are registered trademarks of Microsoft

Corporation; Macintosh is a registered trademark of Apple Computer, Inc.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the

marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names

other than its own.

Restrictions and Disclaimers

The information contained in this document, including all instructions, cautions, and regulatory approvals and

certifications, is based upon statements provided to Dell by the manufacturer and has not been independently

verified or tested by Dell. Dell disclaims all liability in connection with any deficiencies in such information.

All statements or claims regarding the properties, capabilities, speeds, or qualifications of the part referenced in

this document are made by the manufacturer and not by Dell. Dell specifically disclaims any knowledge of the

accuracy, completeness, or substantiation for any such statements.

October 2003 Rev. A00

Back to Contents Page

Safety Instructions: Dell™ 2200MP Projector

CAUTION

Use the following safety guidelines to help protect your projector from potential damage and to ensure your

own personal safety:

The surface beneath the projector might be hot with use. Be careful in handling the unit.

The lamp becomes very hot with use. Do not attempt to replace the lamp after use until the projector

has been allowed to cool down for at least 30 minutes, and follow all instructions in "Changing the

Lamp."

Do not touch the bulb or the lamp glass at any time. The bulb may explode due to improper handling,

including the touching of the bulb or the lamp glass.

Remove lens cap before turning on projector. Failure to do so may cause the lens cap to reach high

temperatures.

To avoid damaging the projector and lamp, allow the cooling fan to run for 2 minutes before turning

off the projector.

Do not block the ventilation slots and openings on the projector.

Disconnect the power cord from the electrical outlet if the projector is not used for a long period of

time.

Do not use the projector in an extremely hot, cold, or humid environment.

Do not use the projector in areas susceptible to excessive dust and dirt.

Do not use the projector near any appliance that generates a strong magnetic field.

Do not place the projector in direct sunlight.

Do not look into the lens while the projector is on; the bright light may hurt your eyes.

To reduce the risk of fire or electric shock, do not expose the projector to rain or moisture.

To prevent electric shock, do not open or disassemble the projector further than what is needed for

lamp replacement.

To avoid damaging the projector, ensure that the zoom lens and elevator foot are fully retracted

before moving the projector or placing the projector in its carrying case.

Turn off the projector and disconnect it from the electrical outlet before cleaning it. Use a soft cloth

moistened with mild detergent to clean the display housing. Do not use abrasive cleaners, waxes, or

solvents.

Back to Contents Page

About Your Projector: Dell™ 2200MP Projector

Features

Equipment

Main Unit

Control Panel

Connection Ports

Remote Control

Features

Single chip 0.55" Texas Instruments DLP™ technology

High contrast, double data rate (DDR) digital micromirror device

True SVGA, 800 x 600 addressable pixels

4.7 lbs (2.14 kgs) lightweight compact design

1200 ANSI lumens brightness (Max)*

1700:1 full on / full off contrast ratio

1.2x manual zoom lens

Built in 2W speaker

Auto image re-sizing (Auto-Sync) to 800 x 600 full screen with scaling compression compatibility for

SXGA+,SXGA, XGA, SVGA, VGA, MAC

Preset and user defined video modes for optimum video and graphic settings

Self-diagnostic for video troubleshooting

State-of-the-art motion adaptive hardware deinterlacing with 3:2 and 2:2 pull down

200-watt, user-replaceable lamp

Compatibility with Macintosh® computers

Compatibility with NTSC, NTSC4.43, PAL, PAL-M, PAL-N, SECAM, and HDTV (1080i, 720P, 576i/P,

480i/P)

Multi-function remote control

D-Sub 15-pin cable for analog video connectivity

High-definition TV compatibility

User-friendly, multi-language on-screen display (OSD)

Advanced electronic keystone correction

User-friendly control panel with backlight

Carrying case included

*Based on ANSI/NAPM IT7.228-1997 tests of 100 units, October 2003, with average ANSI Lumens 1152. Bulb

brightness degrades with usage. Dell recommends replacing your bulb after 2000 hours usage.

Equipment

Your projector comes with all the items shown below. Ensure that you have all the items, and contact Dell if

anything is missing.

Main unit 3.0m Power cord 1.8m VGA cable

(D-sub to D-sub)

2.0m S-video cable 1.8m USB cable

1.8m Composite Video cable

1.8m D-sub to YPbPr cable 1.8m RCA to Audio cable 1.8m mini pin to mini pin cable

Remote control

Dell 2200MP Projector

User's Guide Dell 2200MP Projector Quick Start

Card

Warranty Guide Owner's Manual Carrying case

Batteries (2)

Main Unit

1Control panel

2Zoom tab

3Focus ring

4 Lens

5Elevator button

6Remote control receiver

Control Panel

1Power button

2Four directional keys

3Keystone adjustment

4Temperature warning light

5Lamp warning light

6 Resync

7 Menu

8Keystone adjustment

9 Source

Connection Ports

1VGA in (D-sub) connector

2VGA out (monitor loop-through)

3IR receiver

4USB connector

5S-video connector

6Composite video connector

7Audio input connector

Remote Control

1Light

2Power button

3Previous Page button (page up)

4Four Direction buttons

5Source button

6Resync button

7Keystone Correction button

8Volume button

9Hide button

10 4:3/16:9 (aspect ratio) button

11 Menu button

12 Next Page button (page down)

13 Video Mode button

Battery Disposal: Your projector remote control uses zinc-manganese batteries. If you

need to replace the batteries, see your Dell 2200MP Projector Quick Start Card.

Do not dispose of used batteries along with household waste. Contact your local waste

disposal agency for the address of the nearest battery deposit site.

Back to Contents Page

Installation: Dell™ 2200MP Projector

Connecting the Projector

Powering On/Off the Projector

Adjusting the Projected Image

Changing the Lamp

Connecting the Projector

A. To Computer

1Power cord

2D-sub to D-sub cable

3USB to USB cable

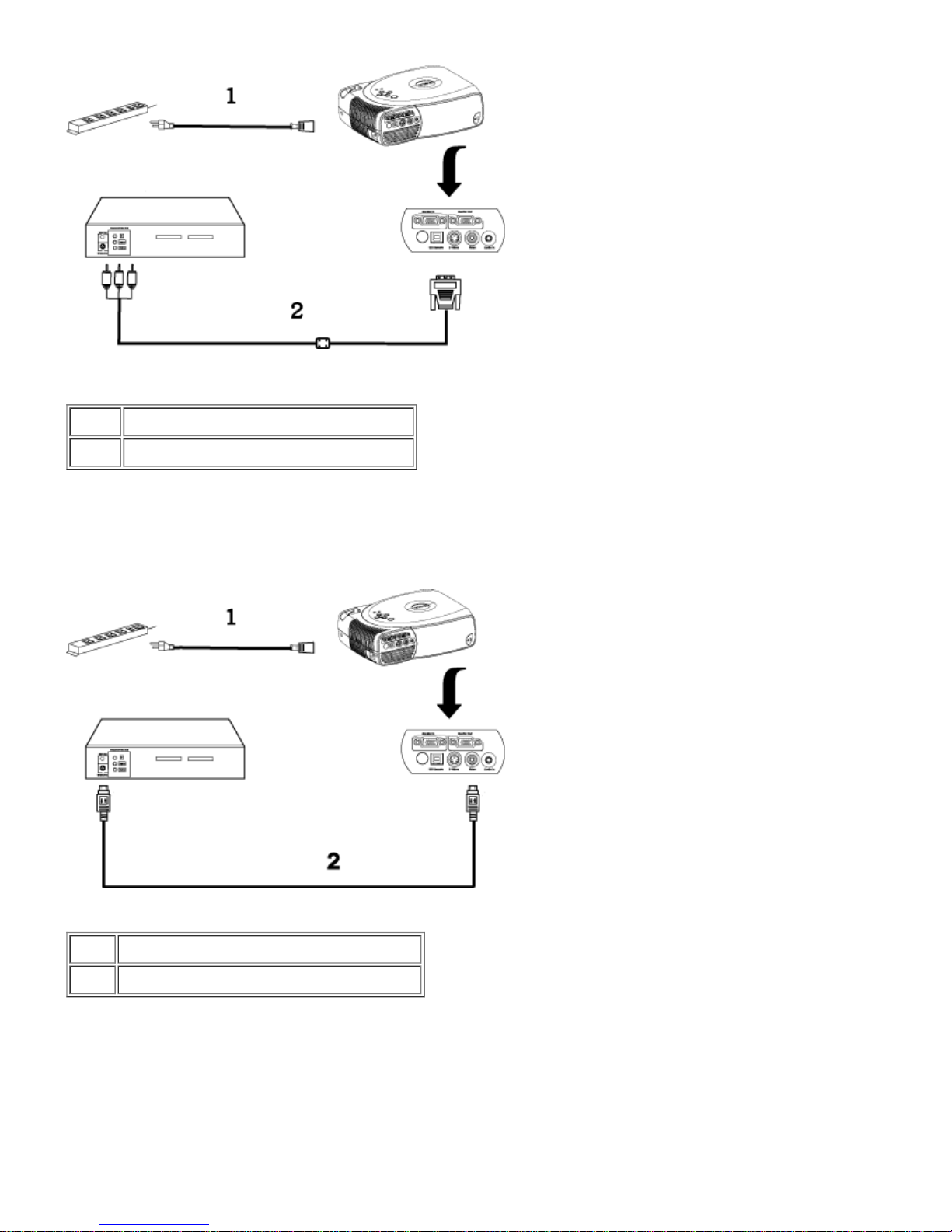

B. To DVD Player: There are three possible methods of connecting to a DVD player.

1. Connecting with component cable:

1Power cord

2D-sub to HDTV/Component cable

2. Connecting with S-video cable:

1Power cord

2S-video cable

3. Connecting with composite cable:
