Dell PowerEdge 1850 Manual de usuario

Dell Projector 1850

User’s Guide

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make

better use of your projector

CAUTION: A CAUTION indicates potential damage to hardware or

loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

____________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written

permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; DLP

and DLP logo are trademarks of TEXAS INSTRUMENTS INCORPORATED; Microsoft and

Windows are either trademarks or registered trademarks of Microsoft Corporation in

the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either

the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Model: Dell Projector 1850

January 2016 Rev. A00

Contents | 3

Contents

1 About Your Dell Projector . . . . . . . . . . . . . . . . . 4

Projector Box Contents . . . . . . . . . . . . . . . . . . . . 4

Projector Top and Bottom View . . . . . . . . . . . . . . . 5

Projector Connections . . . . . . . . . . . . . . . . . . . . . 6

Using Remote Control . . . . . . . . . . . . . . . . . . . . . 8

2 Adjusting Projector Image. . . . . . . . . . . . . . . . 12

Adjusting Projected Zoom. . . . . . . . . . . . . . . . . . 12

Adjusting Projector Focus . . . . . . . . . . . . . . . . . . 13

Adjusting Image Size . . . . . . . . . . . . . . . . . . . . . 14

3 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . 17

Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . 17

Guiding Signals . . . . . . . . . . . . . . . . . . . . . . . . . 21

4 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Changing the Lamp . . . . . . . . . . . . . . . . . . . . . . 22

Replacing Remote Control Batteries . . . . . . . . . . . 24

5 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 25

6 Additional Information . . . . . . . . . . . . . . . . . . 28

7 Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . . 29

4About Your Dell Projector

Your projector comes with all the items shown below. Ensure that you have

all the items, and contact Dell if anything is missing.

Projector Box Contents

1About Your Dell Projector

Package Contents

Power cable VGA cable (VGA to VGA)

Remote control AAA Batteries (2)

CD, User’s Guide, and Documentation

ZOOMZOOM INFO

VIDEOVGA HDMI

FREEZE

AUTO ADJ.

KEYSTONE

SOURCE VIDEO MODE

ASPECT

POWER

PAGE

BLANK

VOL

MUTE

AAA

Informacion Importante

Contents:

•User's Guide

Documentation

P/N T8MMN

Rev. A00

P/N 36.73L01G001

January 2016

MadeinChina

Dell

Projector 1850

0T8MMNA00

About Your Dell Projector 5

Projector Top and Bottom View

NOTE: Ceiling mount screw hole M3 x 6.5 mm depth.

Recommended torque < 15 kgf-cm.

1 Status indicators

2IRreceivers

310WSpeaker

4 Lens

5Focusring

6 Zoom tab

7 Power button

8 Lamp cover

9 Mounting holes for ceiling mount

10 Tilt adjustment wheel

910

82.30

110.00

55.00

Top View Bottom View

6About Your Dell Projector

Projector Connections

CAUTION: Before you begin any of the procedures in this section,

follow the Safety Instructions as described on page 7.

1 + 5V/1A DC out connector 6 HDMI connector

2 VGA output (monitor loop

through) connector

7 Audio input connector

3 VGA input (D-sub) connector 8 Composite Video connector

4 Power cord connector 9 Audio output connector

5 Mini USB (mini type B)

connector for remote mouse

and firmware upgrade

5679

12 3 4

About Your Dell Projector 7

CAUTION: Safety Instructions

Do not use the projector near appliances that generate a lot of heat.

Do not use the projector in areas where there is an excessive amount of

dust. The dust may cause the system to fail and the projector will

automatically shutdown.

Ensure that the projector is mounted in a well-ventilated area.

Do not block the ventilation slots and openings on the projector.

Ensure the projector operates between ambient temperatures (5 °C to 40

°C).

Do not try to touch the ventilation outlet as it can become very hot after

the projector has been turned on or immediately after it is turned off.

Do not look into the lens while the projector is on as it may cause injury to

your eyes.

Do not place any objects near or in front of the projector or cover its lens

while the projector is on as the heat may cause the object to melt or burn.

Do not use alcohol to wipe the lens.

NOTE:

•

Do not attempt to ceiling mount the projector by yourself. It should be

installed by a qualified technician.

•

Recommended Projector Ceiling Mount Kit (P/N: C3505). For more

information, see the Dell Support website at

dell.com/support

•

For more information, see the Safety Information that shipped with

your projector.

•

The 1850 projector can only be used indoors.

8About Your Dell Projector

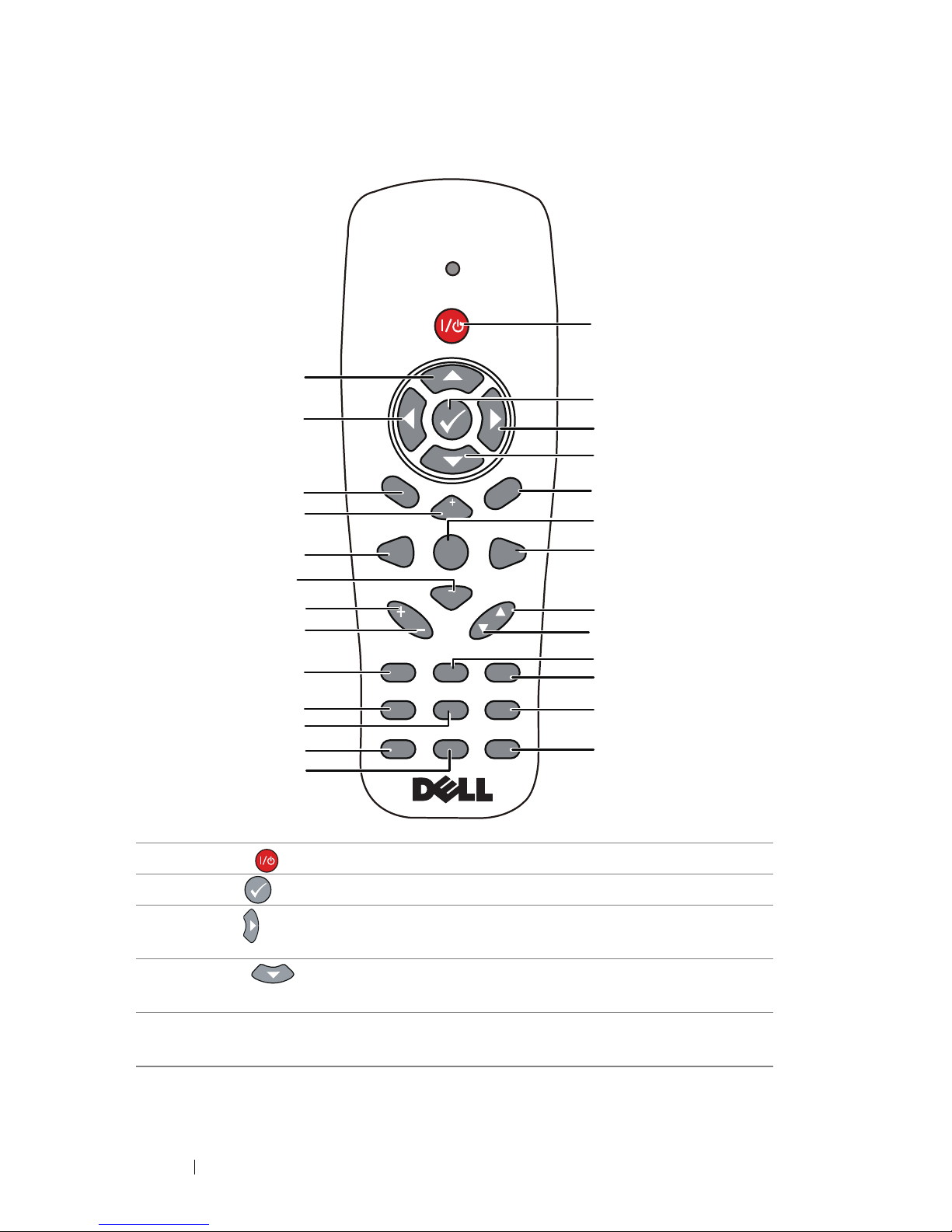

Using Remote Control

1 Power Turns the projector on or off.

2 Enter Press to confirm the selection.

3 Right Press to navigate through the On-Screen

Display (OSD) Menu items.

4 Down Press to navigate through the On-Screen

Display (OSD) Menu items.

5 Aspect Ratio Press to change the aspect ratio of a

displayed image.

ZOOMZOOM INFO

VIDEOVGA HDMI

FREEZE

AUTO ADJ.

KEYSTONE

SOURCE VIDEO MODE

ASPECT

POWER

PAGE

BLANK

VOL

MUTE

About Your Dell Projector 9

6 Mute Press to mute or un-mute the projector

speaker.

7 Video mode The projector has preset configurations that

are optimized for displaying data

(presentation slides) or video (movies, games,

etc.).

Press the Video Mode button to toggle

between Presentation mode, Bright mode,

Movie mode, sRGB, or Custom mode.

Pressing the Video Mode button once will

show the current display mode. Pressing the

Video Mode button again will switch

between modes.

8 Page up Press to move to the previous page.

NOTE: The Mini USB cable must be

connected if you want to use the Page

Up feature.

9 Page down Press to move to the next page.

NOTE: The Mini USB cable must be

connected if you want to use the Page

Down feature.

10 Freeze Press to pause the screen image, then press

"Freeze" again to unfreeze the image.

11 Blank screen Press to hide/unhide the image.

12 Information Press to provide projector native resolution

information.

13 HDMI Press to choose HDMI source.

14 Up Press to navigate through the On-Screen

Display (OSD) Menu items.

15 Left Press to navigate through the On-Screen

Display (OSD) Menu items.

16 Menu Press to activate the OSD.

17 Volume up Press to increase the volume.

18 Source Press to switch between Analog RGB,

Composite, Component (YPbPr, via VGA),

and HDMI source.

MUTE

VOL

10 About Your Dell Projector

19 Volume down Press to decrease the volume.

20 Keystone adjustment

Press to adjust image distortion caused by

tilting the projector (+/-40 degrees).

21 Keystone adjustment

Press to adjust image distortion caused by

tilting the projector (+/-40 degrees).

22 Auto Adjust Press to synchronize the projector with the

input source. Auto adjust does not operate if

the OSD is displayed.

23 Zoom + Press to increase the image.

24 Zoom - Press to decrease the image.

25 VGA Press to choose VGA source.

26 Video Press to choose Composite Video source.

VOL
