4Your Dell Projector

Your projector comes with all the items shown below. Ensure that you have

all the items, and contact Dell™ if anything is missing.

1Your Dell Projector

Package Contents

Power cable 1.2 m USB cable (USB-A to USB-A)

Remote control Carrying case

CD User’s Guide and Documentation Sleeve cover

Informacion Importante

Dell™ Mobile Projector (M900HD)

Contents:

• User's Guide

Documentation

P/N RV7HW Rev. A00

P/N 36.8UJ01G001

July 2013

Madein China

Dell

™

Mobile Projector (M900HD)

0RV7HWA00

Downloaded From projector-manual.com DELL Manuals

About Your Projector

Top View Bottom View

7 9

62.3 20

55.00 55.00

1 Control panel

2 Focusring

3 Lens

4 Elevator button for height adjustments

5 3Wspeaker

6 IRreceivers

7 Mounting holes for ceiling mount: Screw hole M3 x 6.5 mm depth.

Recommended torque <15 kgf-cm

8 Mounting hole for tripod: Insert nut 1/4"*20 UNC

9 Elevatorfoot

CAUTION: Safety Instructions

Do not use the projector near appliances that generate a lot of heat.

Do not use the projector in areas where there is an excessive amount of

dust. The dust may cause the system to fail and the projector will

automatically shut down.

Ensure that the projector is mounted in a well-ventilated area.

Do not block the ventilation slots and openings on the projector.

Ensure the projector operates between ambient temperatures (5 °C to

35 °C).

Your Dell Projector 5

Downloaded From projector-manual.com DELL Manuals

Do not try to touch the ventilation outlet as it can become very hot after

the projector has been turned on or immediately after it is turned off.

Do not look into the lens while the projector is on as it may cause injury to

your eyes.

Do not place any objects near or in front of the projector or cover its lens

while the projector is on as the heat may cause the object to melt or burn.

Do not use alcohol to wipe the lens.

Do not use the wireless projector near cardiac pacemakers.

Do not use the wireless projector near medical equipment.

Do not use the wireless projector near microwave ovens.

NOTE:

•Do not attempt to ceiling mount the projector by yourself. It

should be installed by a qualified technician.

•Recommended Projector ceiling mount Kit (P/N: C3505). For more

information, see the Dell Support website at dell.com/support.

•For more information, see the Safety Information that shipped with

your projector.

•The M900HD projector can only be used indoors.

Your Dell Projector6

Downloaded From projector-manual.com DELL Manuals

2 Connecting Your Projector

1 3

2 4 5 6

1 Security cable slot 4 HDMI connector

2 Power cord connector 5 USB type A connector for USB

display, multimedia playback

(Video/Music/Photo/Office

Viewer), USB memory storage

access (USB flash

drive/internal memory) and

projector firmware upgrade

3 SD card slot for multimedia

playback (Video/ Music/

Photo/ Office Viewer)

6 Audio-out connector

CAUTION: Before you begin any of the procedures in this section,

follow the Safety Instructions as described on page 5.

Connecting Your Projector 7

Downloaded From projector-manual.com DELL Manuals

Connecting to a Computer

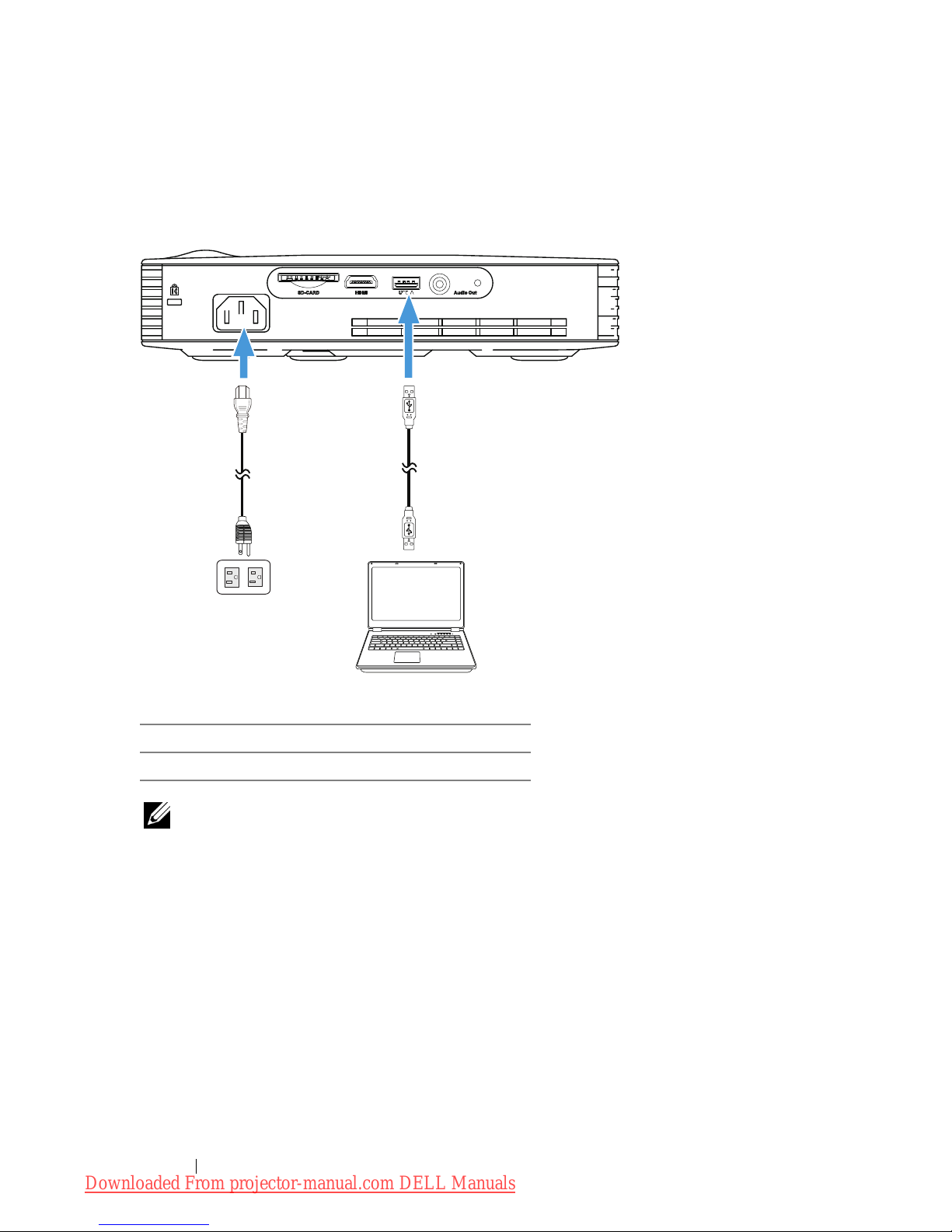

Connecting a Computer Using a USB Cable

MOLEX

Power cord

USB-A to USB-A cable

NOTE: Plug and Play. Only one USB (type A to A) cable is shipped

with your projector. An additional USB (type A to A) cable can be

purchased on the Dell website at www.dell.com.

Connecting Your Projector8

Downloaded From projector-manual.com DELL Manuals

Connecting a Computer Using Intel®WiDi or Wi-Fi

NOTE: Your computer should be equipped with a wireless connector

and properly configured to detect another wireless connection. Refer

to your computer’s documentation on how to configure a wireless

connection.

NOTE: To connect a computer via Intel® WiDi, your computer must

be Intel®WiDi compatible.

Connecting Your Projector 9

Downloaded From projector-manual.com DELL Manuals

Connecting to Smartphone or Tablet Using Wi-Fi

NOTE: Dell M900HD supports MobiShow and WiFi-Doc functions.

They are applications which transmit supported content from your

Android or iOS devices wirelessly. After installing and launching the

application on your mobile device, enable Wi-Fi on your mobile

device and connect to the projector network, Dell M900HD. For

more Information, please visit go to Dell Support site at

dell.com/support.

Files supported are:

MobiShow Photo Format PtG Format

JPEG/JPG PtG2

WiFi-Doc Document Format Picture Format

MS Word/Excel/PowerPoint/PDF/Text JPEG/JPG

Connecting Your Projector10

Downloaded From projector-manual.com DELL Manuals
