Dell Precision Workstation T7600 Manual de usuario

DELL PRECISION™

T7600

Technical

Guidebook

TABLE OF CONTENTS

O V E R V IE W

External Chassis Views 3

Motherboard Layout 4-5

M A R K E T I N G S Y S T E M C O N F I G U R A T I O N S

Operating System, Chipset 6

Processor 7

Memory 8

Graphics/Video Controllers 9

Drives and Removable Storage, Integrated Hard Drive Controller 10-11

System Expansion Slots, External Ports/Connectors 11

Communications—Network Adapter, Audio and Speakers, Keyboard and Mouse 12

Security, Service and Support, Software 12

DETAILED ENGINEE RING S PECIF IC ATIONS

System Dimensions (Physical), System Expansion Slots 14

System Level Environmental and Operating Conditions, Power 15-16

Audio—Integrated, Communications– Integrated LAN 17-18

Communications—Add in Network Interface Card (NIC) 18

Communications—Add in 1394 card, 19

Graphics/Video Controllers 20-30

Hard Drives 31-41

Optical Drive 42-43

Media Card Reader 44

BIOS Defaults 45-46

Chassis Enclosure and Ventilation Requirements 47

AD DI TIONAL INFORMATION

Statement of Volatility (SOV) 48-50

March 2012

DELL™ PRECISION™ T7600 TECHNICAL GUIDEBOOK

MINI TOWER COMPUTER

FRONT VIEW

1Power button, power light 7Microphone connector

2USB 3.0 connector (1) 8Headphone connector

3Optical drive 9Diagnostic lights (4)

4Optical drive eject button 10 Optical drive

5USB 2.0 connectors (3) 11 Optical drive eject button

6Drive activity light 12 Hard drive access cover-

release latch

BACK VIEW

13 Power supply unit (PSU)

release latch

17 Security cable slot

14 Power connector 18 Back Panel

15 * Expansion card slots (2) 19 Active expansion slots (5)

16 Padlock ring 20 Inactive expansion card

slot (1)

BACK PANEL CONNECTORS

1Line-out connector 7Line-in/microphone

connector

2Network link Integrity

light

8Serial connector

3Network adapter

connectors (2)

9USB 2.0 connectors (4)

4Network activity light 10 Ps/2 keyboard connect-

5PS2/mouse connector 11 USB 3.0 connector (1)

6USB 2.0 connector (1)

* Note: These PCIe slots are only active when a second CPU is installed

DELL™ PRECISION™ T7600 TECHNICAL GUIDEBOOK

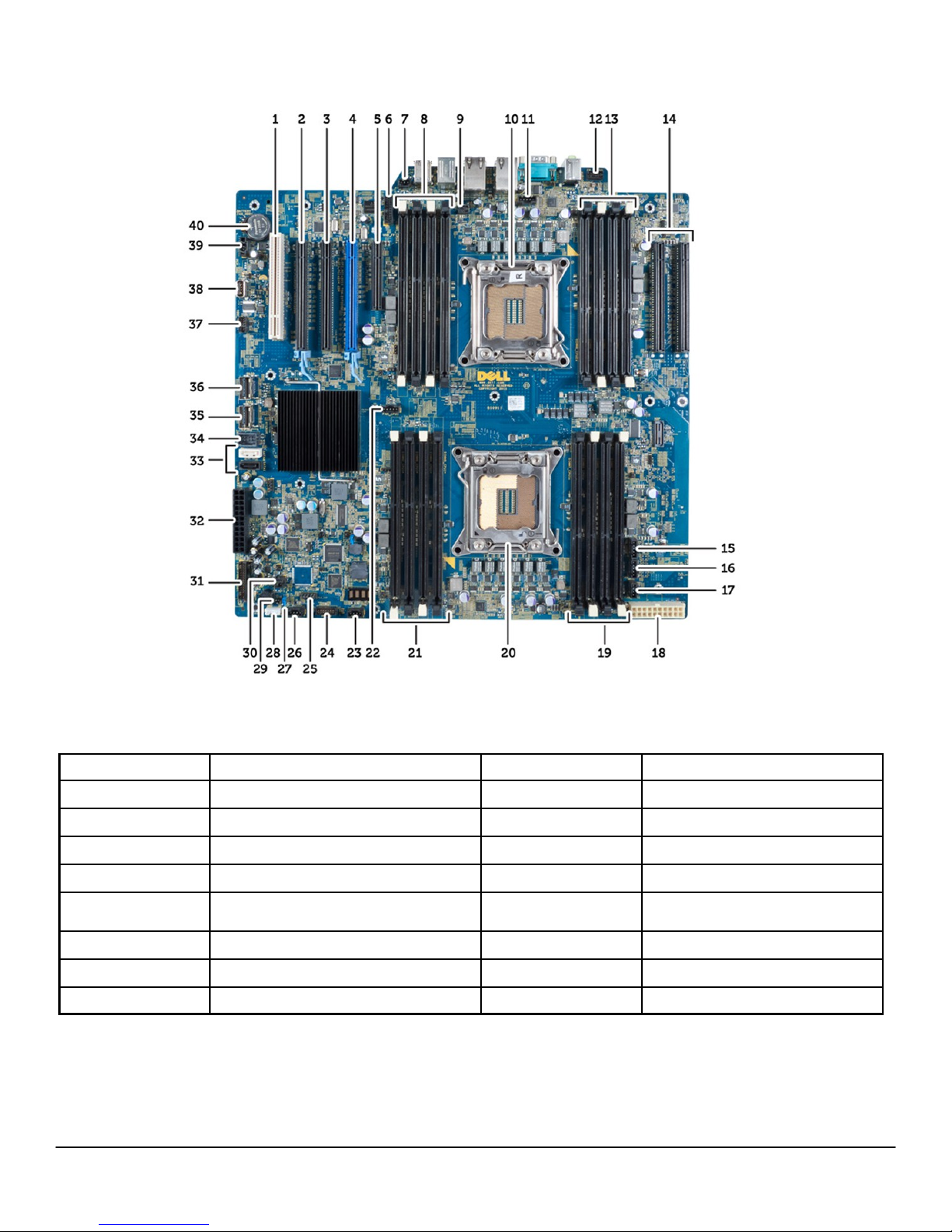

System Board Components

Number Name Number Name

1PCI slot 13 DIMM slots (available only when

optional second CPU is installed)

2PCIe x16 slot 14 PCIe X16 slots (available only when

optional second CPU is installed)

3PCIe x16 slot (wired as x4) 15 HDD3 fan connector

4Accelerated graphics port (PCIe

x16) 16 HDD2 fan connector

5PCIe open-ended slot (wired as

x4) 17 System fan 1 connector

6USB 3.0 front panel connector 18 24-pin power2 connector

7Intruder 19 DIMM slots

8DIMM slots (available only when

optional second CPU is installed) 20 CPU1

9(not populated) 21 DIMM slots

10 CPU2 22 CPU1 fan socket

11 CPU2 fan socket 23 System 2 fan connector

12 Front panel audio connector 24 (not populated)

DELL™ PRECISION™ T7600 TECHNICAL GUIDEBOOK

System Board Components (continued)

Number Name Number Name

25 (not populated) 33 SATA connectors

26 System 3 fan connector 34 Internal USB 2.0 connector

27 Speaker enable 35 SAS0 connector -disabled

28 Internal speaker connector 36 SAS1 connector -disabled

29 (not populated) 37 HDD temperature sensor con-

nector

30 Remote power enable 38 Internal USB 2.0 connector

31 Front panel & USB 2.0 connector 39 HDD1 fan connector

32 24-pin power1 connector 40 Battery

DELL™ PRECISION™ T7600 TECHNICAL GUIDEBOOK

MARKETING SYSTEM CONFIGURATIONS

NO TE : O e ring s ma y v ar y by count ry. For mor e inf orma ti on re ga rd ing the congu rati on of yo ur co mputer , c li ck

St ar t> Help and Su ppor t an d se le ct the o p tion t o vi ew in forma t io n ab ou t yo u r comput er .

OPER ATING SYSTEMS

Windows 7® operating system—

Factory Installed

Microsoft® Windows 7® Professional (32 and 64 bit),

Microsoft® Windows 7® Ultimate (32 and 64 bit),

Windows Vista® operating system—

Driver availability only via Dell.com

Windows Vista® Business SP2 (32 and 64 bit),

Windows Vista® Ultimate SP2 (32 bit and 64 bit)

Windows XP® operating system

Driver availability only via Dell.com

Microsoft® Windows XP® Professional (32 and 64 bit),

Note: Loading and booting an XP image requires a discrete PCIe

hard disk controller (like the PERC H310 or PERC H710P) with XP

driver

Red Hat Enterprise Linux RHEL workstation 6.1 Factory installed

RHEL 5.7 supported

Other FreeDOS drop in the box for (N-series),

Ubuntu® Linux version 11.10 (factory installed in China only)

CHIPSET

Chipset Intel C600 Chipset

Non-volatile memory on chipset

BIOS Conguration SPI (Serial Peripheral Interface) 64Mbit (8MB) & 32Mbit (4MB)

TPM 1.2 Security Device (Trusted Platform Module)118KB

Non-TPM Available in select countries

NIC EEPROM LOM conguration contained within SPI_FLASH – no dedicated

LOM EEPROM

DELL™ PRECISION™ T7600 TECHNICAL GUIDEBOOK

PROCESSOR

NOTE: Global Standard Products (GSP) are a subset of Dell’s relationship products that are managed for availability and synchro-

nized transitions on a worldwide basis. They ensure the same platform is available for purchase globally. This allows customers to

reduce the number of congurations managed on a worldwide basis, thereby reducing their costs. They also enable companies

to implement global IT standards by locking in specic product congurations worldwide. The following GSP processors identi-

ed below will be made available to Dell customers.

NOTE: Processor numbers are not a measure of performance. Processor availability subject to change and may vary by region/

country.

Intel® Eight Core Processors

Intel® Xeon E5-2687W

3.16GHz, 20M, 8.0GT/s, 150W VT-x, VT-d, TXT (vPro™)

Intel® Xeon E5-2680

2.7GHz, 20M, 8.0GT/s, 130W VT-x, VT-d, TXT (vPro™) X—GSP

Intel® Xeon E5-2665

2.4GHz, 20M, 8.0GT/s, 115W VT-x, VT-d, TXT (vPro™)

Intel® Xeon E5-2650

2.0GHz, 20M, 8.0GT/s, 95W VT-x, VT-d, TXT (vPro™)

Intel® Six Core Processors

Intel® Xeon E5-2667

2.9GHz, 15M, 8.0GT/s, 130W VT-x, VT-d, TXT (vPro™) X—GSP

Intel® Xeon E5-2630

2.3GHz, 15M, 7.2GT/s, 95W VT-x, VT-d, TXT (vPro™) X—GSP

Intel® Xeon E5-2620

2.0GHz, 15M, 7.2GT/s, 95W VT-x, VT-d, TXT (vPro™) X—GSP

Intel® Four Core Processors

Intel® Xeon E5-2643

3.30GHz, 10M, 8.0GT/s, 130W VT-x, VT-d, TXT (vPro™) X—GSP

Intel® Xeon E5-2609

2.4GHz, 10M, 6.4GT/s, 80W VT-x, VT-d, TXT (vPro™) X—GSP

Intel® Xeon E5-2603

1.8GHz, 10M, 6.4GT/s, 80W VT-x, VT-d, TXT (vPro™)

DELL™ PRECISION™ T7600 TECHNICAL GUIDEBOOK

1 The total amount of available memory will be less than 4GB. The amount less depends on the actual system configuration. To fully utilize 4GB or

more of memory requires a 64-bit enabled processor and 64-bit operating system.

Type: DDR3 RDIMM (ECC)/ LRDIMM (ECC)

Max Frequency 1600 MHz RDIMM/1333MHz LRDIMM

(DIMM Slots 8 or 16 (with 2nd CPU installed)

DIMM Capacities Up to 32GB (LRDIMM)

Minimum Memory 4GB (8GB with 2nd CPU installed

Maximum System Memory 512GB1

Memory congurations

LRDIMM ECC Memory

512GB (16x 32GB) DDR3, 1333 MHz X

256GB (8x 32GB) DDR3, 1333 MHz X

RDIMM ECC Memory

256GB (16x 16GB) DDR3, 1600 MHz X

128GB (16x 8GB) DDR3, 1600 MHz X

128GB (8 x 16GB) DDR3, 1600 MHz X

64GB (8 x 8GB) DDR3, 1600 MHz X

64GB (4 x 16GB) DDR3, 1600 MHz X

32GB (4 x 8GB) DDR3, 1600 MHz X

16GB (4 x 4GB) DDR3, 1333/1600 MHz X

8GB (4 x 2GB) DDR3, 1333/1600 MHz X

4GB (2 x 2GB) DDR3, 1333/1600 MHz, Single CPU only X

MEMORY

NOTES: The Dell Precision T7600 has a four channel memory bus architecture. Dell recommends that all four

memory channels be populated with DIMMs for maximum memory performance.

Maximum memory speed is tied to processor.

1600MHz memory will run at reduced speeds - 1333MHz with 7.2GT/s processors and at 1066MHz with 6.4GT/s processors

1333MHz memory will run at reduced speed - 1066MHz with 6.4GT/s processors

DELL™ PRECISION™ T7600 TECHNICAL GUIDEBOOK

GRAPHICS/VIDEO CONTR OLLER

NOTE: System supports full height (FH) cards unless specied

NOTE: Dual Graphic options (incl. dual C2075 Tesla cards) available on select cards. Dual Graphics with NVIDIA SLI (Scalable

Link Interface) options available

Optional Graphic/Video Options Included Dongle

High End 3D

6.0GB NVIDIA Quadro 6000 with (2) DP and (1) DVI (1) DP-DVI

2.5GB NVIDIA Quadro 5000 with (2) DP and (1) DVI (1), DP-DVI, (1) DVI-VGA

Mid-range 3D

2.0GB NVIDIA Quadro 4000 with (2) DP and (1) DVI (1) DP-DVI, (1) DVI-VGA

2.0GB AMD FirePro V7900 with (4) DP (1) DP-DVI

1.0GB NVIDIA Quadro 2000 with (2) DP and (1) DVI (1) DP–DVI, (1) DVI-VGA

2.0GB AMD FirePro V5900 with (2) DP and (1) DVI 1) DP–DVI

Entry 3D

1.0GB NVIDIA Quadro 600 with (1) DP and (1) DVI (1) DP–DVI, (1) DVI-VGA

1.0GB AMD FirePro V4900 with (2) DP and (1) DVI 1) DP–DVI, (1) DVI-VGA

Professional 2D

512MB NVIDIA NVS 300 with (1) DMS-59 (1) DMS-59–Dual DVI

512MB AMD FirePro 2270 with (1) DMS-59 (1) DMS-59–Dual DVI

Multi Core Compute (GPGPU)

6GB NVIDIA Tesla C2075 Computing GPGPU - no I/O

DELL™ PRECISION™ T7600 TECHNICAL GUIDEBOOK

DRIVES AND REMOVABLE STORAGE

Bays:

5.25-inch Optical Bay Supported (External) 1

Slimline Optical Bay Supported (External) 1

Optical Drives Supported (maximum) 2

3.5” Hard Drive Bays Supported (Internal) 4

Hard Drives Supported 3.5”/2.5” (maximum) 4/8

Interface:

SATA 3.0 (AHCI) 2

3.5” Hard Drives:

3TB1 SATA 7200 RPM HDD X

2TB1 SATA 7200 RPM HDD X

1TB1 SATA 7200 RPM HDD X

500GB1 SATA 7200 RPM HDD X

250GB1 SATA 7200 RPM HDD X

2.5” Hard Drives:

256GB1 SATA Solid State Drive X

900GB1 SAS 10k RPM HDD X

600GB1 SAS 10k RPM HDD X

146GB1 SAS 15k RPM HDD X

500GB1 SATA 7200 RPM HDD X

320GB1 SATA 7200 RPM HDD X

1 For hard drives, GB means 1 billion bytes; actual capacity varies with preloaded material and operating environment and will be less.

HARD DRIVE CONTROLLER

Dell PERC H310 for Dell Precision

SATA/SAS 6Gb/s, host based RAID 0/1/5/10 ( 8 ports max) Base

Dell PERC H710P for Dell Precision

SATA/SAS 6Gb/s, hardware based RAID 0/1/5/10 (8 ports max) Optional
