Quick Setup & Users Guide

Compaq iPAQ Desktop Personal Computer

221340-001

NOTICE

accompanying Compaq product, no part of this guide may be photocopied or reproduced

in any form without prior written consent from Compaq Computer Corporation.

COMPAQ, the Compaq logo, and Armada Registered in U.S. Patent and Trademark

Office. iPAQ is a trademark of Compaq Information Technologies Group, L.P.

Microsoft, Windows, Windows NT, Windows 2000 Professional, Windows Millennium,

and other names of Microsoft products referenced herein are trademarks or registered

trademarks of Microsoft Corporation.

Intel and Pentium are registered trademarks of Intel Corporation. Celeron and MMX are

trademarks of Intel Corporation.

All other product names mentioned herein may be trademarks or registered trademarks of

their respective companies.

Compaq shall not be liable for technical or editorial errors or omissions contained herein.

The information in this document is subject to change without notice.

THE INFORMATION IN THIS PUBLICATION IS PROVIDED “AS IS” WITHOUT

WARRANTY OF ANY KIND. THE ENTIRE RISK ARISING OUT OF THE USE OF

THIS INFORMATION REMAINS WITH RECIPIENT. IN NO EVENT SHALL

COMPAQ BE LIABLE FOR ANY DIRECT, CONSEQUENTIAL, INCIDENTAL,

SPECIAL, PUNITIVE OR OTHER DAMAGES WHATSOEVER (INCLUDING

WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS,

BUSINESS INTERRUPTION OR LOSS OF BUSINESS INFORMATION), EVEN IF

COMPAQ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES AND

WHETHER IN AN ACTION OF CONTRACT OR TORT, INCLUDING NEGLIGENCE.

The limited warranties for Compaq products are exclusively set forth in the documentation

accompanying such products. Nothing herein should be construed as constituting a further

or additional warranty.

The following words and symbols mark special messages throughout this guide:

ÅWARNING: Text set off in this manner indicates that failure to follow directions could result in

bodily harm or loss of life.

ÄCAUTION: Text set off in this manner indicates that failure to follow directions could result in

damage to equipment or loss of information.

Quick Setup & User’s Guide

Compaq iPAQ Desktop Personal Computers

Second Edition (May 2001)

First Edition (December 2000)

Part Number 221340-002

Compaq Computer Corporation

QuickSetup_UsersGuide.book Page 1 Wednesday, May 30, 2001 9:36 AM

Quick Setup & User’s Guide

QuickSetup_UsersGuide.book Page 2 Wednesday, May 30, 2001 9:36 AM

Quick Setup & User’s Guide Contents

Contents

Quick Setup

Step 1: Unpack the Compaq iPAQ Desktop Personal Computer. . . . . . . . . . . . . .1

Step 2: Identify Rear Panel Components and Confirm Voltage Setting. . . . . . . . .2

USB Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Legacy Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Step 3: Connect External Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Step 4: Connect the Power Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Step 5: Identify the Front Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Step 6: Turn On the Personal Computer and Install the Operating System. . . . . .7

Customizing the Monitor Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Protecting Your Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Compaq Restore CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Turning Off the Personal Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Chapter 1

Working with the Compaq Easy Access Keyboard

Programming the Easy Access Buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Chapter 2

Working with the MultiBay

“Hot-Plugging” or “Hot-Swapping” MultiBay Drives . . . . . . . . . . . . . . . . . . . . 2-2

Partitioning and Formatting a MultiBay Hard Drive . . . . . . . . . . . . . . . . . . . . . 2-3

Windows 98 and Windows Millennium (FDISK). . . . . . . . . . . . . . . . . . . . . . 2-3

Windows 2000 and Windows NT 4.0 (Disk Administrator) . . . . . . . . . . . . . 2-4

Inserting a Drive into the MultiBay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Removing a Drive from the MultiBay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Chapter 3

Adding System Memory and Upgrading the Internal Hard Drive

General Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

QuickSetup_UsersGuide.book Page 1 Wednesday, May 30, 2001 9:36 AM

Contents

Contents Quick Setup & User’s Guide

Uninstalling the iPAQ Desktop Security Bar. . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Removing and Replacing the Side Access Panels . . . . . . . . . . . . . . . . . . . . . . 3-2

Adding System Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Adding or Removing a Memory Module . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Upgrading the Primary Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Chapter 4

Accessing the Internet & Using Network Communications

Accessing the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Using the Optional USB Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Choosing an Internet Service Provider . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Using Network Communications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

NIC-Based Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Remote Wakeup Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Interpreting the Network Status Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Disabling the Autosensing Capabilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Installing Network Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Chapter 5

Using the Legacy Module

Chapter 6

Desktop Management

Initial Configuration and Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Remote System Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Altiris eXpress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

PC Transplant. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-3

Asset Tracking and Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

Password Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6

Establishing a Setup Password Using Computer Setup. . . . . . . . . . . . . . . . 6-7

Establishing a Power-On Password Using Computer Setup . . . . . . . . . . . . 6-7

Entering a Power-On Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

Entering a Setup Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

Changing a Power-On or Setup Password . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

Deleting a Power-On or Setup Password . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9

Enabling or Disabling DriveLock on a MultiBay Hard Drive . . . . . . . . . . . . 6-10

QuickSetup_UsersGuide.book Page 2 Wednesday, May 30, 2001 9:36 AM

Contents

Quick Setup & User’s Guide Contents

Entering a DriveLock Password on a MultiBay Hard Drive . . . . . . . . . . . . 6-11

Changing a DriveLock Password on a MultiBay Hard Drive. . . . . . . . . . . . 6-11

National Keyboard Delimiter Characters. . . . . . . . . . . . . . . . . . . . . . . . . . 6-12

Clearing Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12

Installing the iPAQ Desktop Security Bar . . . . . . . . . . . . . . . . . . . . . . . . . 6-12

Securing the iPAQ to a Fixed Work Surface . . . . . . . . . . . . . . . . . . . . . . . 6-13

Installing a Compaq Security Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14

Fingerprint Identification Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15

Fault Notification and Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16

Celeron and Pentium III Fault Prediction and Prefailure Warranty . . . . . . . 6-16

SMART Hard Drive Fault Prediction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16

Introducing the Drive Protection System . . . . . . . . . . . . . . . . . . . . . . . . . 6-17

Ultra ATA Integrity Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-17

Surge-Tolerant Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-17

Software Updating and Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-18

Remote ROM Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-19

Using Remote ROM Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-19

Remote Security Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-20

Remote Wakeup and Remote Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . 6-20

NIC-Based Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-21

Replicating Your Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-21

Dual-State Power Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-22

Power Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-23

World Wide Web Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-23

Building Blocks and Partners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-24

Desktop Management Interface (DMI) . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-24

Wired for Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-24

Compaq Management Solutions Partners Program . . . . . . . . . . . . . . . . . 6-25

Chapter 7

For More Information

Using the Compaq iPAQ Reference Library CD . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Appendix A

Specifications

QuickSetup_UsersGuide.book Page 3 Wednesday, May 30, 2001 9:36 AM

Quick Setup & User’s Guide 1

Quick Setup

Step 1: Unpack the Compaq iPAQ Desktop Personal Computer

ÅWARNING: Misuse of your Personal Computer or failure to establish a safe and comfortable

workstation may result in discomfort or serious injury. Refer to your Safety & Comfort Guide for

more information on choosing a workspace and creating a safe and comfortable work

environment.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. For more information, refer to the Compaq iPAQ Reference

Library CD. To reduce the risk of electrical shock, connect your Personal Computer only to a

grounded (earthed) electrical outlet that is easily accessible at all times.

QuickSetup_UsersGuide.book Page 1 Wednesday, May 30, 2001 9:36 AM

Quick Setup

Quick Setup & User’s Guide 2

Step 2: Identify Rear Panel Components and Confirm Voltage Setting

iPAQ Desktop Personal Computer with Legacy Module Installed iPAQ Legacy-Free Desktop Personal Computer

1Monitor Connector 8Dedicated, Full-Speed USB Connector

2Universal Serial Bus (USB) Connectors 9Legacy Module

3Ethernet RJ-45 Connector -PS/2 Mouse Connector

4Line-Out Audio Connector qPS/2 Keyboard Connector

5Line-In Audio Connector wSerial Connector

6Legacy Module Connector eParallel Port Connector

7Voltage Select Switch rSerial Number

Set the voltage select switch to match the voltage of the

power outlet to which the computer will be connected (115

VAC or 230 VAC).

tPower Cord Connector

QuickSetup_UsersGuide.book Page 2 Wednesday, May 30, 2001 9:36 AM

Quick Setup

3Quick Setup & User’s Guide

USB Connectors

The iPAQ Desktop Personal Computer features two internal USB controllers,

each providing data transfer rates up to 12 megabits per second (Mbps). One

of these controllers is dedicated exclusively to a new, full-speed Universal

Serial Bus (USB) connector (shown on the previous page). The other five

USB connectors share the second controller.

Any USB device (including keyboard and mouse) can be connected to any

USB connector. However, Compaq recommends the use of the full-speed

USB connector, with its dedicated 12Mbps controller, for devices such as

scanners, digital cameras, external I/O devices, and printers that can utilize

the additional speed for maximum performance.

Legacy Module

✎Microsoft Windows 98 and Windows NT 4.0 will not run properly if the Legacy Module is not

installed or has been removed from the iPAQ Desktop Personal Computer. The Legacy Module is

optional on systems running Microsoft Windows 2000 Professional or Microsoft Windows

Millennium.

The Legacy Module (standard on select models) provides serial, parallel, PS/2

mouse, and PS/2 keyboard connectors. For more information, refer to

chapter 5, “Using the Legacy Module.”

QuickSetup_UsersGuide.book Page 3 Wednesday, May 30, 2001 9:36 AM

Quick Setup

Quick Setup & User’s Guide 4

Step 3: Connect External Devices

Connect the monitor, mouse, and keyboard cables. If you use a network,

connect the network cable to the Ethernet RJ-45 Connector. For easy setup,

Compaq has color-coded the cables and rear panel connectors.

ÅWARNING: To reduce the risk of electrical shock, fire, or damage to the equipment, do not plug

telecommunications/telephone connections into the network interface controller (NIC)

connectors.

PS/2 mouse and keyboard connectors are available only on iPAQ Desktop

Personal Computers equipped with the Legacy Module. A USB mouse or

keyboard may be connected to any of the available USB connectors; however,

you may want to reserve the dedicated, full-speed USB connector for USB

devices, such as digital cameras, scanners, or networking devices that demand

the extra speed for enhanced performance.

ÄCAUTION: Do not add additional, optional hardware devices to your Personal Computer until the

operating system is successfully installed. Doing so may cause errors and may prevent the

operating system from installing properly.

QuickSetup_UsersGuide.book Page 4 Wednesday, May 30, 2001 9:36 AM

Otros manuales para iPAQ Internet Device

Tabla de contenidos

Otros manuales de De oficina de Compaq

Compaq

Compaq d330 - Desktop PC Manual de usuario

Compaq

Compaq 6005 - Pro Microtower PC Guía de configuración

Compaq

Compaq Deskpro 4000N - Desktop PC Manual de usuario

Compaq

Compaq Presario SR5109UK Manual de usuario

Compaq

Compaq Deskpro 4000 Manual de uso y cuidado

Compaq

Compaq D315 - Desktop PC Manual de usuario

Compaq

Compaq BL10e - HP ProLiant - 512 MB RAM Manual de referencia

Compaq

Compaq 127507-008 - Deskpro EP - 64 MB RAM Guía de referencia rápida

Compaq

Compaq ProLiant DL580 Manual de usuario

Compaq

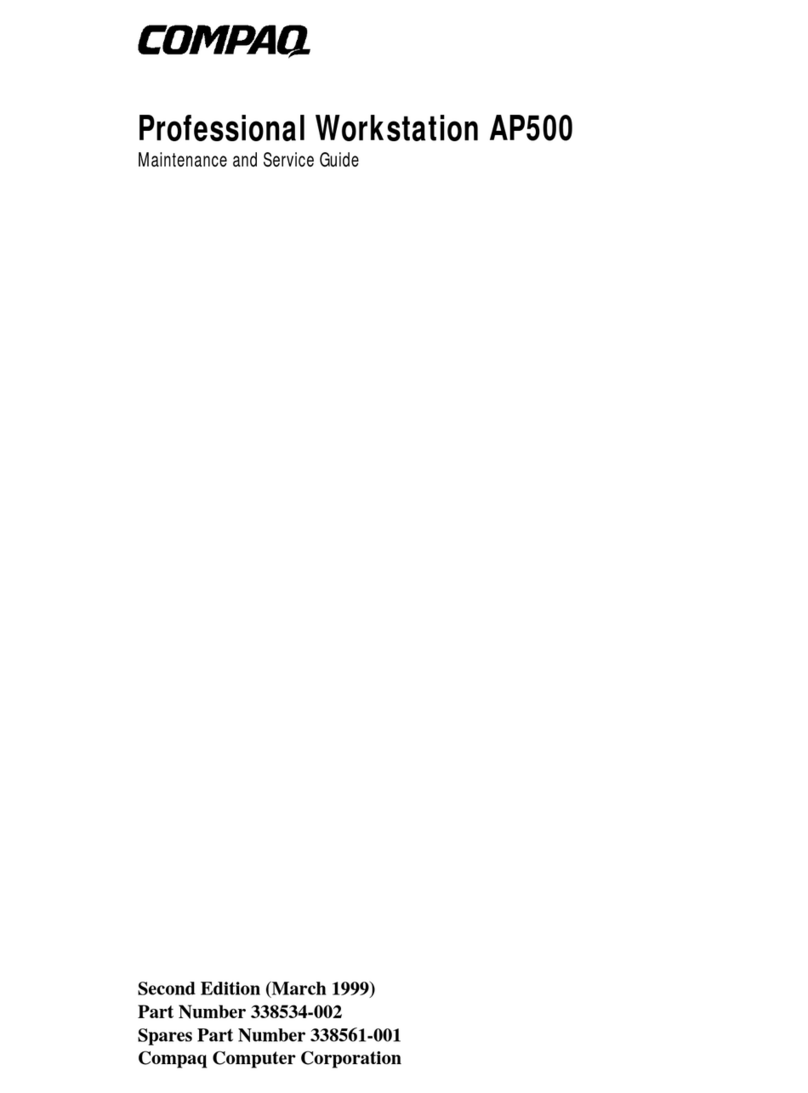

Compaq Professional AP500 Manual

Compaq

Compaq Presario S7000 - Desktop PC Instrucciones de instalación

Compaq

Compaq Presario 7800 Series Manual de usuario

Compaq

Compaq Presario SR1700 - Desktop PC Manual de usuario

Compaq

Compaq SR5410F - Presario - 1 GB RAM Cómo utilizar

Compaq

Compaq Presario SR1300 - Desktop PC Instrucciones de instalación

Compaq

Compaq 219700-001 - ProLiant - 1500 Manual de usuario

Compaq

Compaq Compaq Presario Hoja de especificaciones

Compaq

Compaq SR1000 Manual de usuario

Compaq

Compaq Presario SR1100 - Desktop PC Instrucciones de instalación

Compaq

Compaq CQ2200 - Desktop PC Manual de usuario

Compaq

Compaq dc7700 - Convertible Minitower PC Instrucciones de uso

Compaq

Compaq T1010 - Windows-based Terminals - 48 MB RAM Manual de usuario

Compaq

Compaq Presario SR1617CL-B Manual de usuario

Compaq

Compaq Compaq Presario Manual de usuario

Manuales populares de De oficina de otras marcas

HP m9060n - Pavilion - Elite Hoja de especificaciones

Asus

Asus E210 Series Manual de usuario

Dell

Dell Inspiron 600m Manual de usuario

Dell

Dell Inspiron 3662 Manual de usuario

TotalFlow

TotalFlow uFLO Manual de usuario

HP Presario SV7000 - Desktop PC Manual de usuario

HP ProDesk 400 G5 Manual

Logitech

Logitech MK320 Manual de usuario

Dell

Dell XPS 730 H2C Manual de usuario

Sony

Sony Vaio Series Manual de usuario

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manual de usuario

Alto

Alto MD 250 Manual de usuario

Lenovo

Lenovo ThinkCentre Edge 72 Manual

Lenovo

Lenovo ThinkStation D20 Manual

Arbor Technology

Arbor Technology FPC-7800 Series Manual de usuario

Sony

Sony VAIO VGX-TP1 Series Manual de usuario

Asus

Asus Eee Box B204 Manual de usuario

Dell

Dell Optiplex 9010 All In One Manual de usuario

Compaq iPAQ Internet Device Manual de usuario

Manuales populares de De oficina de otras marcas
