Dell Vostro 330

Setup And Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

Front And Back View

Figure 1. Front View

1. camera

2. camera activity light

3. microphone

4. display

5. volume increase button

6. volume decrease button

7. 7-in-1 media card reader

8. USB 2.0 connectors (2)

9. headphone connector

10. microphone connector

11. drive activity light

12. power button

13. stand

Regulatory Model: W02C

Regulatory Type: W02C001

January 2011

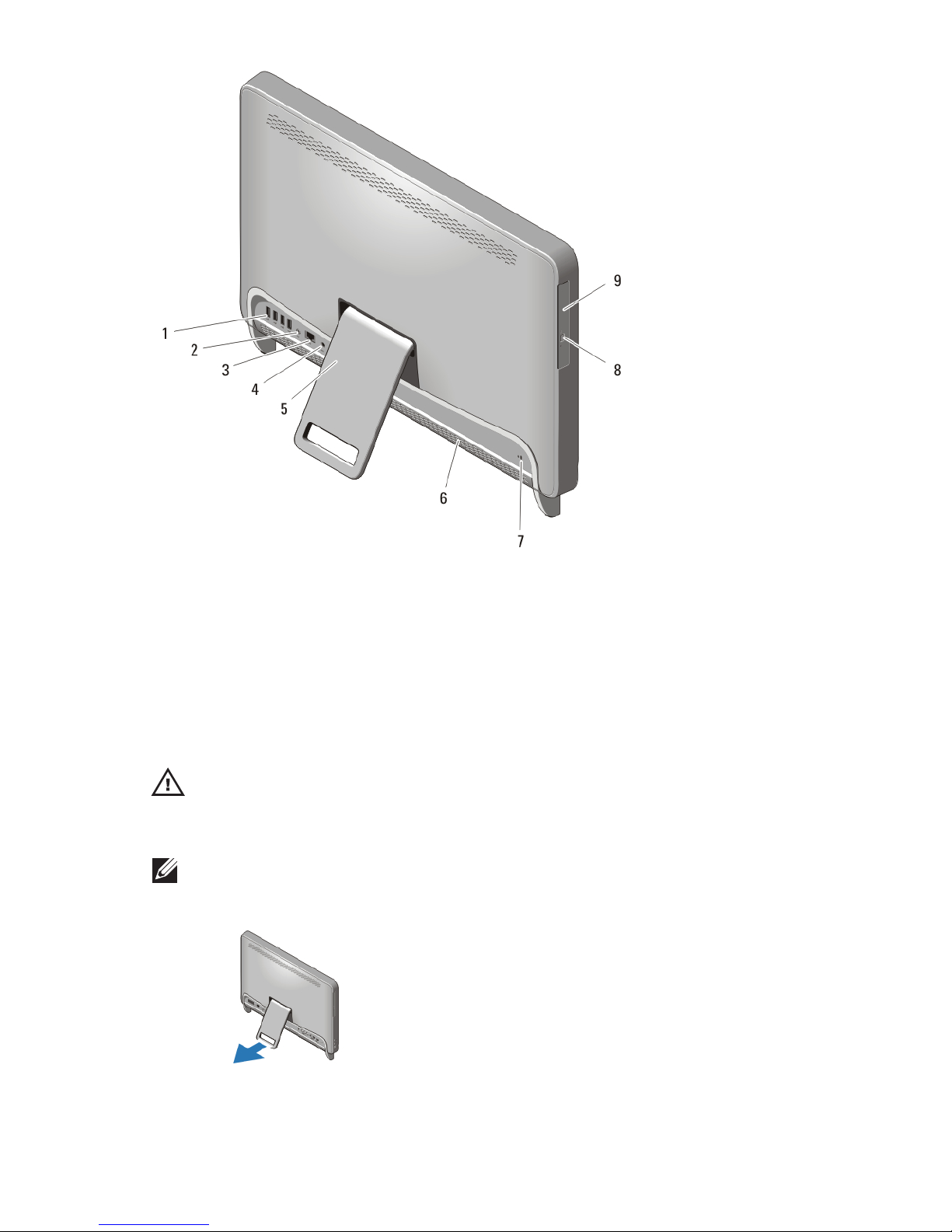

Figure 2. Back View

1. USB 2.0 connectors (4)

2. line-out connector

3. network connector

4. power connector

5. rear stand

6. cooling vents

7. security cable slot

8. optical-drive eject button

9. optical drive

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional best practices

information, see www.dell.com/regulatory_compliance.

NOTE: Some devices may not be included if you did not order them.

1. Set up the rear stand.

Figure 3. Rear Stand setup

2. Connect the USB keyboard or mouse. To connect a wireless keyboard

and mouse, see Setting Up Your Dell Cordless Mouse, Keyboard, and

USB Receiver tech sheet that shipped with your wireless keyboard and

mouse.

Figure 4. USB Connection

3. Connect the network cable (optional).

Figure 5. Network Connection

4. Connect the power cable.

WARNING: Connect the power adapter to the nearest power outlet.

WARNING: Extension cords or power strips should never be used as a substitute

for permanent electrical wiring.

Figure 6. Connecting Power

5. Press the power button on the computer.

Figure 7. Turning On Power

Specifications

NOTE: The following specifications are only those required by law to ship with your

computer. For a complete and current listing of the specifications for your

computer, go to support.dell.com.

System Information

Chipset Intel HM57

Processor

Processor • Intel Core i3

• Intel Core i5

• Intel Core i7

• Intel Pentium Dual Core

Video

Video Type:

Integrated Intel HD Graphics

Discrete ATI Mobility Radeon HD 5470

Video Memory:

Integrated Up to 384 MB of shared video memory

Discrete 1 GB DDR3

Memory

Memory module connector two DIMM slots

Memory module capacity 1 GB, 2 GB, and 4 GB

Type 1333 MHz DDR3 (Non-ECC only)

Minimum memory 2 GB

Maximum memory 8 GB

Drives

Externally accessible:

5.1–inch drive bays one

Drives

Internally accessible:

3.5–inch SATA drive bays one

Control Lights And Diagnostic Lights

Power light White light — Solid white light indicates

power-on state.

Amber light — The computer is in sleep/

standby mode or there might be an issue

with the system board or the power

supply. Blinking amber light indicates that

the computer has detected an error during

the Power-on self-test (POST).

Drive activity light White light — Blinking white light

indicates that the computer is reading

data from or writing data to the hard drive.

Network connectivity light Green light — A good connection exists

between the network and the computer.

Off (no light) — The computer is not

detecting a physical connection to the

network.

Physical

Height 420 mm (16.5 inches)

Width 570 mm (22.4 inches)

Depth 90 mm (3.5 inches)

Weight

Touchscreen 8.95 kg (19.73 lb)

Non-touchscreen 8.15 kg (17.97 lb)

Environmental

Temperature:

Operating 10 °C to 35 °C (50 °F to 95 °F)

Environmental

Storage –40 °C to 65 °C (–40 °F to 149 °F)

Relative humidity 20 % to 80 % (noncondensing)

Altitude:

Operating –15.2 m to 3048 m (–50 ft to 10,000 ft)

Storage –15.2 m to 10,668 m (–50 ft to 35,000 ft)

Airborne contaminant level G1 as defined by ISA–71.04–1985

AC Adapter

Input voltage 100 VAC to 240 VAC

Input current 1.5A/1.6A/2.3A/2.5A

Input frequency 50 Hz to 60 Hz

Output power 90 W/130 W

Output current:

90 W 4.62 A

130 W 6.70 A

Rated output voltage 19.5 +/- 1 VDC

Dimensions: 90 W 130 W

Height 32 mm (1.26 inches) 25.40 mm (1 inch)

Width 128 mm (5.04 inches) 154 mm (6.06 inches)

Depth 52 mm (2.05 inches) 76.20 mm (3.00 inches)

Temperature range:

Operating 0 °C to 40 °C (32 °F to 104 °F)

Storage –40 °C to 70 °C (–40 °F to 158 °F)

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer

and the regulatory compliance website at www.dell.com/

regulatory_compliance for more information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of

Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Precision ON™,

ExpressCharge™, Latitude™, Latitude ON™, OptiPlex™, Vostro™, and Wi-Fi Catcher™ are

trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core™, Atom™, Centrino®, and Celeron® are

registered trademarks or trademarks of Intel Corporation in the U.S. and other countries. AMD®

is a registered trademark and AMD Opteron™, AMD Phenom™, AMD Sempron™,

AMD Athlon™, ATI Radeon™, and ATI FirePro™ are trademarks of Advanced Micro Devices,

Inc. Microsoft®, Windows®, MS-DOS®, Windows Vista®, the Windows Vista start button, and

Office Outlook® are either trademarks or registered trademarks of Microsoft Corporation in the

United States and/or other countries. Blu-ray Disc™ is a trademark owned by the Blu-ray Disc

Association (BDA) and licensed for use on discs and players. The Bluetooth® word mark is a

registered trademark and owned by the Bluetooth® SIG, Inc. and any use of such mark by Dell

Inc. is under license. Wi-Fi® is a registered trademark of Wireless Ethernet Compatibility

Alliance, Inc.

Other trademarks and trade names may be used in this publication to refer to either the entities

claiming the marks and names or their products, Dell Inc. disclaims any proprietary interest in

trademarks and trade names other than its own.
