TP5000 Si Range

Installation and User Instructions

Electronic 5/2 day programmable room thermostat

Mains, Battery and RF versions

Certification Mark

Index

Installation Instructions 3-14

Product Specication 3

Installation 4

Cable Access and Wiring 5-8

Installer Advanced Programming Options 8-14

User Instructions 15-31

What is a Programmable Room Thermostat 15

Preset programmes 16-17

Setting Date and Time 18-19

Changing Preset Programmes 19-22

User overrides 22-25

Advanced User Programming Options 25-28

Overview of Installer Selectable Features 29-30

Setting References 31

Index

Installation Instructions

Product Specication

Please Note:

This product should only be installed by a qualied electrician

or competent heating installer and should be in accordance

with the current edition of the IEEE wiring regulations.

Thermostat features TP5000 Si TP5000-RF Si TP5000M Si TP5000M 24 Si

Power supply 2 x AA/MN1500/LR

alkaline cells

230V, ±15%,

50Hz

24V, ±15%,

50Hz

Memory back-up Retained for life of product

Temperature Range

Sensing

5-30°C

Factory set calendar

clock

Automatic summer/winter time change

Switching action of

output relay

3(1)A,

10-230V

N/A 3(1)A, 10-230V, Type 1B

Transmission frequency

(RF models)

N/A 433.92MHz N/A N/A

Transmission range

(RF models)

N/A 30m max. N/A N/A

Remote sensor inputs

(A models only)

Can be set by installer for remote temperature sensor,

limit sensor, window contact or telephone activated

switch contacts

Dimensions (mm) 110 wide, 88 high, 28 deep

Design standard EN60730-2-9 (EN300220 for RF)

Rated impulse voltage 2.5kV

Ball hardness test 75°C

Control pollution

situation

Degree 2

Temperature accuracy ±1°C

Time accuracy ±1 minute per month

Installation Instructions

Important note RF products: Ensure that there are no large metal objects, such as boiler cases

or other large appliances, in line of sight between the transmitter and receiver as these will

prevent communication between thermostat and receiver.

Installation Instructions

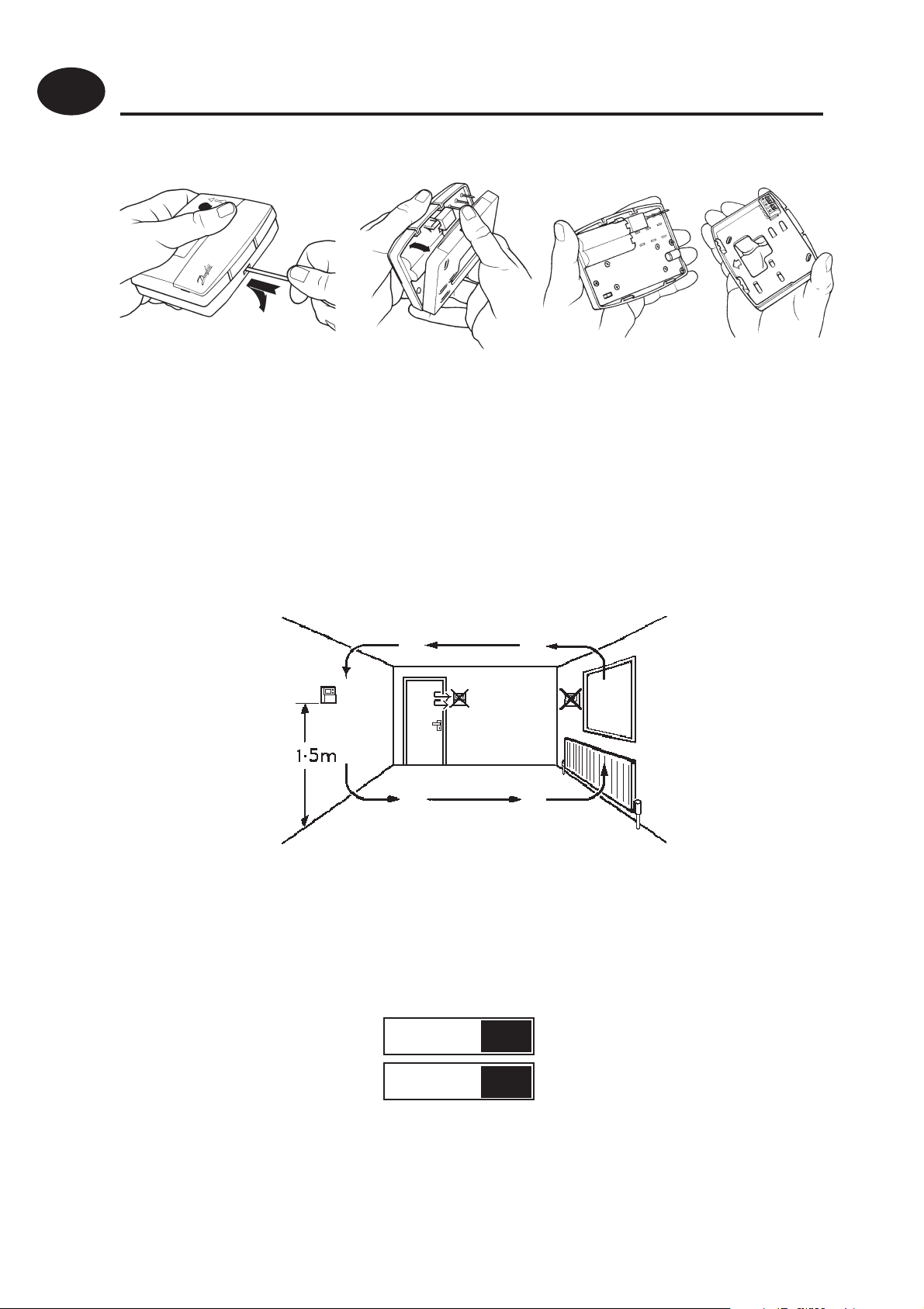

GB Installation

 First, remove the wallplate from the back of the unit.

 From the top left hand corner of the wallplate, there must be

clearances of at least 15mm to the right, 15mm to the left, 30mm

above and 100mm below in order to mount the plug-in module.

 Thermostat and Remote Room Sensor:

Fix at a height of approximately 1.5m from the oor, away from

draughts or heat sources such as radiators, open res or direct

sunlight.

 Prior to mounting the unit the 2 DIL switches on the rear of the

unit have to be moved to the required position. The factory

presets are shown below.

Keyboard disabled

Reset disabled Reset enabled

Keyboard enabled

OFF ON

Sw. No.

Installation Instructions

123

Cable Access

Wiring

NDE

ADE

24V

Output Connections,

all hard wired models

Power Supply Connections

M 230V Models

M 24V Models

Remote Sensor

(A version only)

Remote Sensor

(A version only)

Battery Installation

When installing the batteries in the TP5000 Si and TP5000 Si RF please

ensure that the correct polarity is observed as per the markings on the

inside of the battery compartment.

IMPORTANT: After installing the batteries press and release the

RESET button to start the unit. The display may appear blank until

this is done. Once the button is released the display will appear. All

date, time, programming and override settings are maintained for

the life of the product.

Models with remote sensor inputs

Terminal block for remote control/

sensing is located on the circuit board

above the battery compartment.

Installation Instructions

S1/D

S2/E

S1/D

S2/E

Window or

teleswitch

contact

(NO or NC)

S1/D

S2/E

Teleswitch

contact (NC)

Window

contact (NC)

Congured for

remote room

sensor or limit

sensor

Congured for

window contact or

other contact such

as teleswitch

Congured for

window contact

and other contact

such as teleswitch

Remote

control

connections

Battery powered

verions

!Some existing thermostats will have a Neutral and/or Earth wire connected. These

are not required by the battery powered versions of the TP5000 Si and must NOT be

connected to any battery powered TP5000 Si terminals. Instead they should be made

electrically safe and coiled in the recess at the back of the TP5000 Si.

Models with remote sensor inputs

The TP5000A Si, TP5000A-RF Si and TP5000MA Si incorporate an input

which can be used to connect one of the following:

1) remote room temperature sensor (sold as accessory).

2) limit sensor, for example, oor temperature sensor (sold as

accessory).

3) window contacts, card reader contacts or teleswitch contacts.

See Installer Advanced Programming Options for set-up instructions.

Note:

Battery powered versions use S1 and S2.

Mains powered versions use D and E.

RX1 RX2 & RX3

1234

ELECTRONICS

COM ZONE

1 ON

ZONE

1 OFF

ELECTRONICS

BC123456

NLZONE

1 ON

ZONE

1 OFF

ZONE

2 ON

ZONE

3 ON

COM

TERMINAL 6

RX3 ONLY

RX Receiver Wiring (RF models only)

1) For mains voltage operated systems link terminal 2 to mains live supply.

2) Power supply to unit must not be switched by timeswitch.

Commissioning (RF models only)

If the thermostat and the receiver have been supplied together in

a combined pack, the units have been paired in the factory and no

commissioning is required (RX1 only).

To make the RX receiver learn the thermostat’s signal, follow steps 1-5

below.

Step 1

TP5000-RF Si - Reset the unit by pressing the recessed reset button.

Step 2

Press and hold V and + buttons for 3 seconds

(TP5000 RF Si now transmits unique signal

continuously for 3 minutes).

IMPORTANT

To ensure that the factory programmes are set and the micro-

computer is operating correctly it is essential that you press and

hold the RESET button before you begin any commissioning or

programming.

Installation Instructions

Installer advanced programming options

TP5000 Si incorporates an additional number of advanced features

which can be set by the installer to improve the operating eciency of

the system and where required, to change the user functionality of the

product. These are accessed via an Installer Advanced Programming

Mode. These settings are optional and need only be made if there is a

demand for the enhanced functions.

Installer advanced

programming options

TP5000 Si incorporates a number of advanced features which can be

set by the user. These are accessed via a User Advanced Programming

Mode, please refer to User Advanced Programming in the user

instructions for details (see page 25).

Step 3

RX1 - Press and hold buttons PROG and CH1 for 3

seconds until green light ashes once.

Step 4

RX2 (if applicable)

Stat 1 - perform steps 1-3 and 5.

Stat 2 -perform steps 1-2 and then press PROG and CH2 on RX2.

RX3 (if applicable)

Stat 1 - perform steps 1-3 and 5.

Stat 2 - perform steps 1-2 and then press PROG and CH2 on RX3 then

step 5.

Stat 3 - perform steps 1-2 and then press PROG and CH3 on RX3.

Step 5

TP5000Si-RF - Press V or Λto select temperature - the unit will revert

back to operating mode.

Installation Instructions

Service Interval Timer

Instructions on how to access this feature are available from our

customer support desk. Please note these are only issued to boni-de

heating installers.

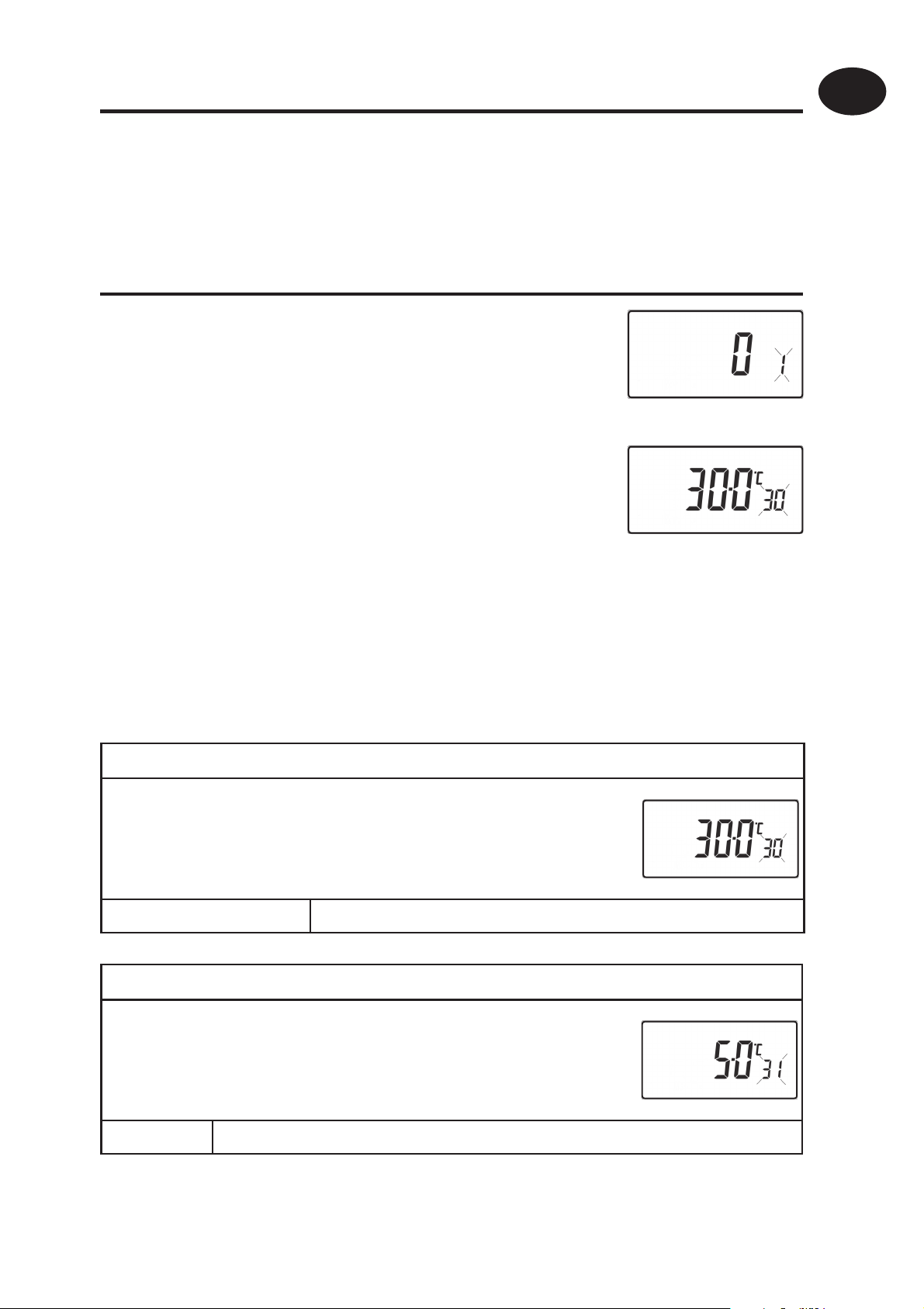

Entering Installer Advanced Programming Mode

To access the Installer Advanced Programming

Mode follow the steps below:

a) Press and hold Vand PROG for 3 seconds to

enter User Advanced Programming, the display

will change to gure opposite.

b) Press and hold V, Λand PROG for 5 seconds

to enter Installer Advanced Programming, the

display will change to gure opposite.

c) Use +and -keys to scroll backwards and forwards between options

then Vand Λkeys to change the option settings. The ashing digit

on the right hand of the display indicates the number of the selected

option. The large characters display the option value selected.

d) To return to RUN, press and hold PROG until the display returns to

previous RUN mde.

Installation Instructions

Option 30 - Set upper limit of temperature range

This allows the upper limit of the thermostat setting

range to be electronically limited. Press +until

Option 30 is displayed, use Vand Λto select required

setting.

Setting 40 - 5°C (Factory setting is 30°C)

Option 31 - Set lower limit of temperature range

This allows the lower limit of the thermostat setting

range to be electronically limited. Press +until

Option 31 is displayed, use Vand Λto select required

setting.

Setting 5 - 40°C (Factory setting is 5°C)

Installation Instructions

GB Option 32 - Enable O at lower limit

This enables an OFF function to be selected if a set

point below the lower limit is selected. Press +until

Option 32 is displayed, use Vand Λto select required

setting.

Setting 0 Disabled

Setting 1 Enabled (factory setting)

Option 33 - Enable On at upper limit

This enables an ON function to be selected if a set

point above the upper limit is selected. Press +until

Option 33 is displayed, use Vand Λto select required

setting.

Setting 0 Disabled (factory setting)

Setting 1 Enabled

Option 34 - Select On/O or Chrono-proportional

This allows the thermostat to be set to run in On/O

mode or for a chrono-proportional cycle rate to be

selected. Press +until Option 34 is displayed, use V

and Λto select required setting.

0On/O

33 cycles per hour

66 cycles per hour (factory setting)

99 cycles per hour

12 12 cycles per hour

Option 35 - Set integration time (Option 34 set to 3, 6, 9 or 12)

(seek advice prior to adjusting)

This adjusts the integration time of the PI algorithm

to increase control accuracy. It is only active if

option 34 has been set to Chrono 3, 6, 9 or 12.

It should only be adjusted after seeking advice

from the manufacturer. Press +until Option 35 is

displayed, use Vand Λto select required setting.

2.5 Integration time set to 2.5% (factory setting)

5Integration time set to 5%

10 Integration time set to 10%

Otros manuales para TP5000 si range

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Termostato de Danfoss

Danfoss

Danfoss TP5001M Manual de usuario

Danfoss

Danfoss TP9000 Guía

Danfoss

Danfoss ECtemp 531 Manual de usuario

Danfoss

Danfoss TP75 Manual de funcionamiento

Danfoss

Danfoss TP4 Instrucciones de funcionamiento

Danfoss

Danfoss RAS-C2 Combi Manual de usuario

Danfoss

Danfoss SET3M Instrucciones de montaje

Danfoss

Danfoss Icon Master Controller 24 V Manual de usuario

Danfoss

Danfoss FH-WT Manual de usuario

Danfoss

Danfoss RET1000 B Manual de usuario

Danfoss

Danfoss TP9000 Si Manual de usuario

Danfoss

Danfoss ECtemp 330 Manual de usuario

Danfoss

Danfoss TS715 Si Manual de usuario

Danfoss

Danfoss ECtemp 550 Manual de usuario

Danfoss

Danfoss TP7001 series Manual de usuario

Danfoss

Danfoss ECL Comfort 310, A367 Manual de usuario

Danfoss

Danfoss MTD Instrucciones de montaje

Danfoss

Danfoss FP975 Manual de usuario

Danfoss

Danfoss RT2-RF Manual de usuario

Danfoss

Danfoss KP61 Manual de usuario

Danfoss

Danfoss GreenCon RC-T2 Manual de usuario

Danfoss

Danfoss ECL Comfort 310 Manual de usuario

Danfoss

Danfoss TP4000 Range Manual de usuario

Danfoss

Danfoss DEVIreg Touch Manual de usuario

Manuales populares de Termostato de otras marcas

EWELLY

EWELLY EW-181 Manual de usuario

Prolon

Prolon T1100 Instrucciones de instalación

Computherm

Computherm Q20 Manual de usuario

Heatmiser

Heatmiser neoStat Manual de usuario

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manual de usuario

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manual de usuario

Saswell

Saswell SAS920XWHB-7-S-RF Guía

Aircalo

Aircalo TFP1-ET85P2 Manual de usuario

Honeywell

Honeywell CM721 Manual de usuario

Carrier

Carrier DEBONAIR 33CS Manual de usuario

Lennox

Lennox iHarmony Zone Thermostat Instrucciones de montaje

Gemtech

Gemtech GT7000 Manual de instrucciones

Rollei

Rollei Smartes 45000 Manual de usuario

Sinope

Sinope TH1300RF Manual de usuario

Honeywell

Honeywell RLV4305 Manual de usuario

Honeywell

Honeywell Prestige 2.0 THX9421 Manual de usuario

NuTone

NuTone NTBZ48 Instrucciones de funcionamiento originales

Stelpro

Stelpro MAESTRO ASMT402AD Manual de usuario
