Installation Guide

DEVIreg™ Touch

Electronic Intelligent Timer Thermostat

DEVIreg™ Touch

Installation Guide2

DEVIreg™ Touch

3Installation Guide

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . 3

1.1 Technical Specications . . . . . . . . . . . . . . 4

1.2 Safety Instructions . . . . . . . . . . . . . . . . . . 7

2 Mounting Instructions . . . . . . . . . . . . . . . . . 8

3 Settings . . . . . . . . . . . . . . . . . . . . . . . . . 12

3.1 Initial Settings. . . . . . . . . . . . . . . . . . . . 12

3.2 Forecast. . . . . . . . . . . . . . . . . . . . . . . . 16

3.3 Window Open. . . . . . . . . . . . . . . . . . . . 18

3.4 Maximum Floor Temperature . . . . . . . . . . 19

4 Symbols . . . . . . . . . . . . . . . . . . . . . . . . . 23

5 Warranty. . . . . . . . . . . . . . . . . . . . . . . . . 24

6 Disposal Instruction . . . . . . . . . . . . . . . . . 26

Table of Contents

1 Introduction

DEVIreg™ Touch is an electronic programmable timer ther-

mostat used for controlling electrical oor heating elements.

The thermostat is designed for xed installation only and can

be used for both direct heating of the entire room and for

comfort heating of the oor. Among others, the thermostat

has the following features:

• A touchscreen display with backlight.

• An easy-to-follow menu-driven programming and

operation.

DEVIreg™ Touch

Installation Guide4

• An installation wizard with room/oor type-specic

setup.

• Support for multiple frame systems.

• Compatible with several 3rd party NTC sensors.

• Thermostat settings can be specied before installa-

tion and imported to the thermostat using a web-gen-

erated code, or copied from a thermostat in a similar

installation.

• Smart access to thermostat settings after installation

by using a web code interface for easy setup

orremote troubleshooting.

More information on this product can also be found at:

touch.devi.com

1.1 Technical Specications

Operation voltage 220-240 V~, 50/60 Hz

Standby power

consumption

Max. 0.40 W

Relay:

Resistive load

Inductive load

Max. 16 A / 3680 W @ 230 V

cos φ= 0.3 Max. 1 A

DEVIreg™ Touch

5Installation Guide

Sensing units NTC 6.8 kOhm at 25°C

NTC 10 kOhm at 25°C

NTC 12 kOhm at 25°C

NTC 15 kOhm at 25°C (Default)

NTC 33 kOhm at 25°C

NTC 47 kOhm at 25°C

Sensing values:

(Default NTC 15 K)

0°C

20°C

50°C

42 kOhm

18 kOhm

6 kOhm

Control PWM (Pulse Wide Modulation)

Ambient temperature 0° to +30°C

Frost protection

temperature

5°C to +9°C (default 5°C)

Temperature range Room temperature: 5-35°C.

Floor temperature: 5-45°C.

Max. oor: 20-35°C

(if unrecoverable seal is broken

then up to 45°C).

Min. oor: 10-35°C, only with

combination of room and oor

sensor.

Sensor failure

monitoring

The thermostat has a built-in

monitoring circuit, which will

switch o the heating if the sen-

sor is disconnected or short-

circuited

DEVIreg™ Touch

Installation Guide6

Cable specication

max.

1x4 mm2or 2x2,5 mm2

Ball pressure test

temperature

75°C

Pollution degree 2 (domestic use)

Controller type 1C

Software class A

Storage temperature -20°C to +65°C

IP class 21

Protection class Class II -

Dimensions 85 x 85 x 20-24 mm (in-wall

depth: 22 mm)

Weight 103 g

Electrical safety and Electro-Magnetic Compatibility for

this product is covered by the compliance with the EN/IEC

Standard“Automatic electrical controls for household and

similar use”:

• EN/IEC 60730-1 (general)

• EN/IEC 60730-2-9 (thermostat)

DEVIreg™ Touch

7Installation Guide

1.2 Safety Instructions

Make sure the mains supply to the thermostat is turned o

before installation.

IMPORTANT: When the thermostat is used to control a

oor heating element in connection with a wooden oor or

similar material, always use a oor sensor and never set the

maximum oor temperature to more than 35°C.

Please also note the following:

• The installation of the thermostat must be done by an

authorized and qualied installer according to local

regulations.

• The thermostat must be connected to a power supply

via an all-pole disconnection switch.

• Always connect the thermostat to continuous power

supply.

• Do not expose the thermostat to moisture, water, dust,

and excessive heat.

DEVIreg™ Touch

Installation Guide8

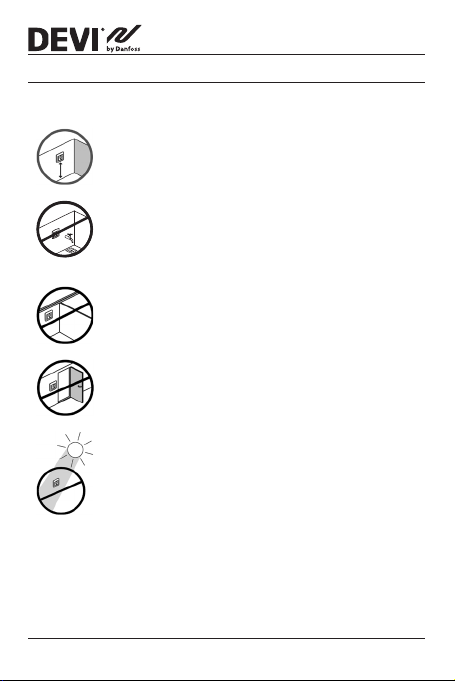

2 Mounting Instructions

Please observe the following placement guidelines:

Place the thermostat at a suitable height on

the wall (typically 80-170cm.).

The thermostat should not be placed in wet

rooms. Place it in an adjacent room. Always

place the thermostat according to local

regulation on IP classes.

Do not place the thermostat on the inner side

of an exterior wall.

Always install the thermostat at least 50 cm.

from windows and doors.

Do not place the thermostat in a way that it

will be exposed to direct sunlight.

DEVIreg™ Touch

9Installation Guide

Note: A oor sensor enables a more accurate

temperature control and is recommended in

all oor heating applications and mandatory

under wooden oors to reduce the risk of

over-heating the oor.

• Place the oor sensor in a conduit in an appropriate

place where it is not exposed to sunlight or draft from

door openings.

• Equally distant and >2cm from two heating cables.

• The conduit should be ush with the oor surface -

countersink the conduit if necessary.

• Route the conduit to the connection box.

• The bending radius of the conduit must be min 50mm.

DEVIreg™ Touch

Installation Guide10

Follow the steps below to mount the thermostat:

1. Open the thermostat:

Important: Do NOT press on the display screen when

removing the front part.

Press your ngers under the side of the front part and

pull toward you:

2. Connect the thermostat according to the connection

diagram.

The screen of the heating cable must be connected to

the earth conductor of the power supply cable

byusing a separate connector.

Note: Always install the oor sensor in a conduit in the

oor.

IP21

T30

Dtouch

Mains

220-240V

50-60 Hz

Maximum

Load 16 (1) A

Sensor

Standby maximum 0.4W

NTC N
