Dancover Titanium Manual de usuario

Assembly Manual

Titanium:

4x10x3,5x4,5

4x12x3,5x4,5

4x14x3,5x4,5

Table of content.

1. FrontPage.

2. Table of content.

3. List of parts.

4. Construction.

7. Mounting the covers.

9. Contact Information.

Parts list Titanium 4x10x3,5x4,5m/4x12x3,5x4,5m/4x14x3,5x4,5m

Part

Description

Quantity (pcs.)

Curved roof tubes (top) at two ends

2/2/2

Curved roof tubes (top) in the middle

4/5/6

Curved roof tubes (side) at two ends

4/4/4

Curved Roof Tubes (side) in the middle

8/10/12

Lower sidewall with base plate (in the middle)

8/10/12

Lower sidewall with base plate (at two ends)

4/4/4

Upper sidewall (at two ends)

4/4/4

Upper sidewall (in the middle)

8/10/12

Roof purlin and horizontal wall at both sides

65/78/91

Horizontal tube for front and back panel

8/8/8

Slant supporting tube

8/8/8

Roof cover

1/1/1

Front cover

1/1/1

Back cover

1/1/1

Stake peg

24/28/32

Rope for fixing cover

Bolts with nuts M14x30

154/168/182

M14x70

36/42/48

M12x50

16/16/16

M14x50

8/8/8

Inner joint for cross tubes and slant supporting tubes

8/8/8

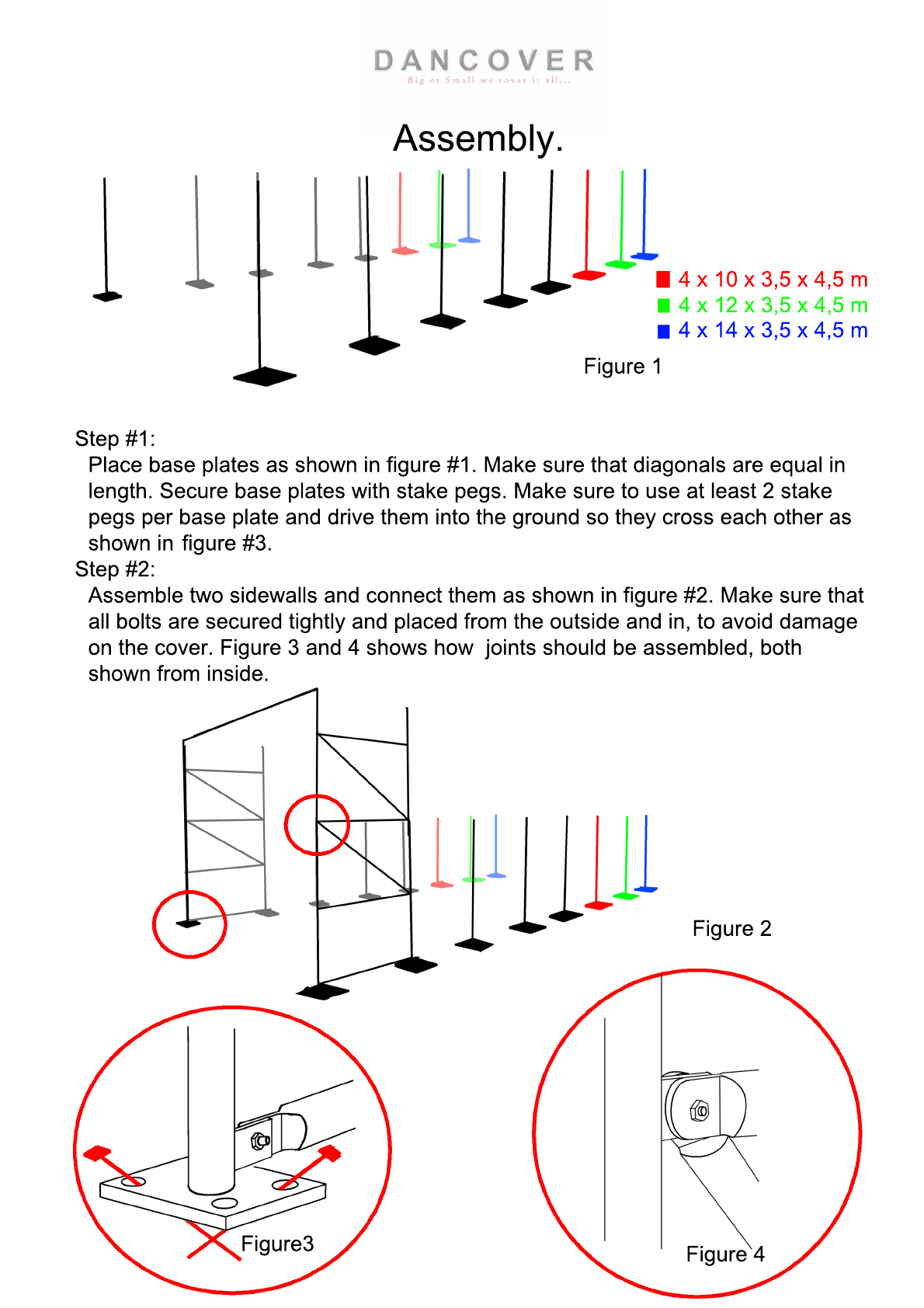

Assembly.

4 x 10 x 3,5 x 4,5 m

4 x 12 x 3,5 x 4,5 m

4 x 14 x 3,5 x 4,5 m

Step #1:

Place base plates as shown in figure #1. Make sure that diagonals are equal in

length. Secure base plates with stake pegs. Make sure to use at least 2 stake

pegs per base plate and drive them into the ground so they cross each other as

shown in figure #3.

Step #2:

Assemble two sidewalls and connect them as shown in figure #2. Make sure that

all bolts are secured tightly and placed from the outside and in, to avoid damage

on the cover. Figure 3 and 4 shows how joints should be assembled, both

shown from inside.

Figure 1

Figure 2

Figure3 Figure 4

Step #3:

Connect the two sidewalls with the curved roof tubes. Then connect these with the

horizontal bars as shown in figure # 5. Figure #6 and #7 show how joints are sup

posed to be assembled.

Step #4:

Assemble the next two sidewalls in extension of the already erected sides as

shown

Figure 5

Figure 6

Figure 7

Step # 5

Repeat steps #3 and #4 until the entire frames has been erected. Note that you

have to install windcrosses in the sidewall sections closest to the corners. (see

Figure #4). It should look like figure #8.

Step #6:

Make sure that all bolts are inserted from the outside in before proceeding with

the cover. Make sure all foot plates are secured to the ground.

Figure 8

Figure 9

Mounting the Cover

Step #7

Tie in a crossbeam in one side of the cover. as shown in figure # 10.

Step #8

Pull the cover over the top of the structure using 3 ropes tied to the crossbeam.

See figure # 11

Step #9:

Make sure that the cover sits on evenly on both sides of the frame.

Step #10:

Tie the cover to the bottom tensioning bar. Make sure that it is tightened.

Figure 10

Figure 11

Step # 11:

Mount the front and the back cover by weaving the rope around the bars as

shown in figure # 12 and # 13. Do the same with the roof cover. Make sure to use

one rope for each covers.

Step # 12:

Make sure that the edge of the roof cover overlaps the front/back cover (over the

end bars) as shown in figure #14. Slide a rope through the end sleeves and

tighten the rope through the hoops of the corner footplates.

Step # 13:

Make sure all ropes are secured and tight.

Figure 12

Figure 13

figure 14

Contact Information.

Dancover UK

Tel. 020 722 102 20

Fax. (+45) 70 26 76 30

E-mail: mail@dancover.co.uk

VAT NO. 894 5631 80

For warranty/claims please fill out our form at:

http://www.dancovershop.com/info.asp?text=5

And we will get back to you as soon as possible.
