D-Link DXS-1210-28S Manual de usuario

DXS-1210-28S

24-port 10GBase-X SFP+ and 4-port 10GBase-T Managed Switch /

Н стр ив емый коммут тор с 24 порт ми 10GBase-X SFP+ и

4 порт ми 10GBase-T

Quick Installation Guide

Краткое р ководство по становке

Introduction

This Quick Installation Guide gives instructions for setting up the D-Link DXS-1210-28S switch. The

model you have purchased may appear slightly different from those shown in the illustrations. For more

detailed information about the switch, configuring the device, and technical specifications, please visit

website http://www.dlink.com/

Package Contents

Open the shipping carton of the Switch and carefully unpack its contents. Please consult the packing list

located to make sure all items are present and undamaged.

• One DXS-1210-28S Switch

• AC power cord(s)

• AC power cord retainer

• One RJ-45 console cable

• Four rubber feet with adhesive backing

• 2 Mounting Brackets

• Mounting kit

• One Quick Installation Guide

If any of the above items are damaged or missing, please contact your local reseller for replacement.

Hardware Overview

Front Panel Components

Port Description

Reset Button • Press and hold for less than 5 seconds

This reboots the Switch. All unsaved configurations will be lost.

• Press and hold for between 5 and 10 seconds

This resets the software configuration on the Switch to the factory default settings. All the

port LEDs will light up amber for 2 seconds to indicate the start of the factory reset stage.

Console Port The console port is used to connect to the CLI of the switch. The connection is out-of-band

and the console cable (included in the package) must be used for the connection.

SFP+ Ports (1 to 24) This switch is equipped with 24 10GBase-X SFP+ ports, which support a wide collection of

SFP/WDM SFP/SFP+/WDM SFP+ transceivers.

RJ45 Ports (25 to 28) This switch is equipped with 4 10GBase-T Ethernet ports.

LED Indicators

LED Colour Status Description

Power Green Solid Power on.

Blinking Performing system self-test.

Light Off Power off.

Console Green Solid Console session is active (user logged in).

Light Off Console session is inactive (user logged out).

Fan Error Red Solid Fan off (due to fan runtime failure).

Light Off Normal operation (diagnostics test passed).

Link/Act (10GE

RJ45 ports)

Green / Amber Solid Green Active connection at 10 Gbps through the port.

Blinking Green Data transmitted and received through the port.

Solid Amber Active connection at 100/1000 Mbps through the port.

Blinking Amber Data transmitted and received through the port.

Light Off Inactive connection or no link present.

Link/Act (10GE

SFP+ ports)

Green / Amber Solid Green Active connection at 10 Gbps through the port.

Blinking Green Data transmitted and received through the port.

Solid Amber Active connection at 1 Gbps through the port.

Blinking Amber Data transmitted and received through the port.

Light Off Link down or no link.

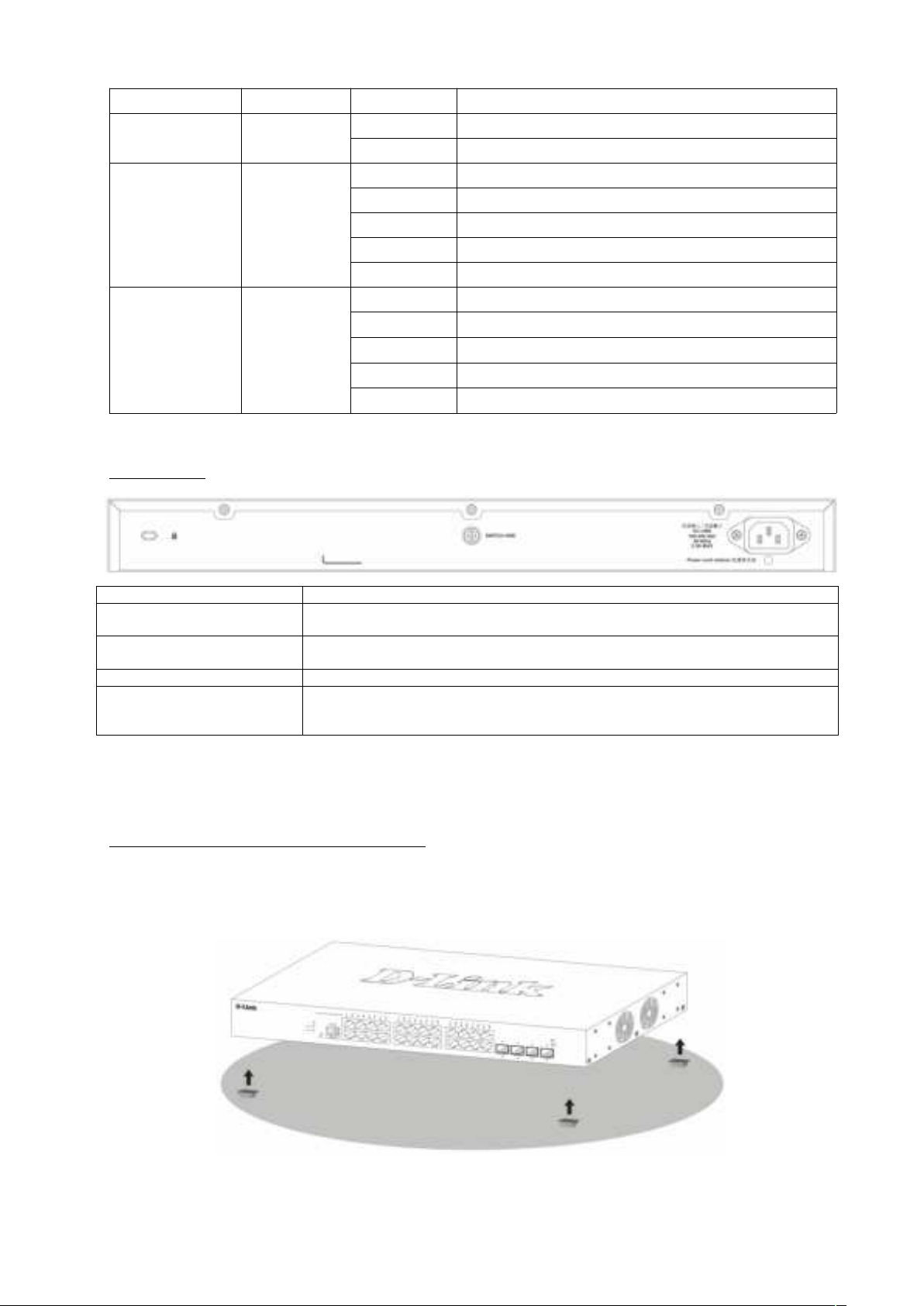

Rear Panel

Port Description

AC Power Connector The AC power cord (included in the package) can be plugged into this receptacle to

supply the switch with 100-240 VAC power at 50-60 Hz.

Power Cord Retainer Hole The power cord retainer hole is used to insert the power cord retainer to secure the

AC power cord.

Switch GND Switch GND is used for connecting the grounding wire.

Security Lock The Kensington-compatible security lock can be used to connect the Switch to a

secure immovable device. Insert the lock into the notch and turn the key to secure

the lock. The lock-and-cable apparatus should be purchased separately.

Installation Guidelines

Installing the Switch without a Rack

When installing the switch on a desktop or shelf, the rubber feet included with the device must be

attached on the bottom at each corner of the device’s base. Allow enough ventilation space between the

device and the objects around it.

Installing the Switch in a Standard 19'' Rack

The Switch can be mounted in a standard 19"(1U) rack using the provided mounting brackets. Fasten the

mounting brackets to the sides of the Switch using the screws provided.

Fasten the mounting brackets in any available open space in the rack using the screws provided.

Installing Transceivers into the Transceiver Ports

The Switch is equipped with SFP+ ports, which supply connecting SFP/WDM SFP/SFP+/WDM SFP+

transceivers.

Connecting to Power

Grounding the Switch

The following steps explain the procedure for connecting the switch to a protective ground:

1. Verify if the system power is off.

2. Using a screwdriver, tighten the ground screw to secure the ground cable to the switch.

3. Attach the terminal lug ring at the other end of the grounding cable to an appropriate grounding source.

4. Verify if the connections at the ground connector on the switch and the rack are securely attached.

Power On (AC Power)

Plug one end of the AC power cord into the power socket of the Switch and the other end into the local

power source outlet.

Power Failure (AC Power)

For AC power supply units, as a precaution, in the event of a power failure, unplug the Switch. When

power has resumed, plug the Switch back in. After the system is powered on, the Power LED will blink

green to indicate that the system is booting up.

Installing the Power Cord Clip

А) With the rough side facing down, insert the Tie Wrap into the hole below the power socket.

B) Plug the AC power cord into the power socket of the Switch.

C) Slide the Retainer through the Tie Wrap until the end of the cord.

D) Circle the tie of the Retainer around the power cord and into the locker of the Retainer.

E) Fasten the tie of the Retainer until the power cord is secured.

Switch Connections

Switch to End Node

An end node is a generic name for edge networking devices that will be connected to this switch. Typical

examples of end nodes are Personal Computers (PCs), Notebooks, Access Points, Print Servers, VoIP

Phones and more. Each end node should be fitted with an RJ45 networking port. Normally, end nodes will

connect to this switch by using a standard twisted-pair UTP/STP network cable. When a successful con-

nection is established, the corresponding port light will illuminate and blink to indicate that network activity

is taking place on that port.

Switch to Another Switch

The Switch can be used to connect to any other switch or hub in the network. This network topology is

used when the Switch does not have enough ports to cater for all the end nodes in the network.

There is a great deal of flexibility on how connections are made using the appropriate cabling.

• Connect a 100Base-TX switch port to the Switch via a Category 5 UTP/STP cable.

• Connect a 1000Base-T switch port to the Switch via a Category 5e UTP/STP cable.

• Connect a 10GBase-T switch port to the Switch via a Category 6/6a/7 UTP/STP cable.

• Connect a fiber, uplink, switch port to the Switch's SFP+ port via a fiber optical cable.

Connecting to Server

The Switch is ideal for connecting to a network backbone, server, or server farm. The RJ45 ports operate

at the speeds of 100 Mbps and 1/10 Gbps, and the SFP+ ports operate at the speeds of 1/10 Gbps.

Management Options

Web-based Management Interface

After successfully installing the Switch, the user can configure the Switch, monitor the LED panel, and

display statistics graphically using one of the Web browsers given below:

• Microsoft Internet Explorer

• Mozilla Firefox

• Safari

• Google Chrome.

To access the Web UI, open a standard web browser, enter the IP address of the Switch into the address

bar of the browser, and press the Enter key.

NOTE: The default IP address of the switch is 10.90.90.90 (subnet mask 255.0.0.0).

In the authentication window, enter the User Name and Password and click the Login button to access

the Web UI.

NOTE: The default username and password for the Web UI is admin.

SNMP-based Management

The Switch can be managed with an SNMP-compatible console program. The Switch supports SNMP

version 1.0, version 2.0 and version 3.0.

Command Line Interface

The user can also connect a computer or terminal to the serial console port to access the Switch. The

command line interface provides complete access to all Switch management features.

Connecting the Console Port

To use the console port, the following equipment is needed:

• A terminal or a computer with both an RS-232 serial port and the ability to emulate a terminal (it is

possible to use PuTTY or Tera Term etc);

• A console cable with a male DB-9 connector on one end and an RJ-45 connection on the other. This

cable should be included with the Switch.

To connect a terminal to the console port:

1. Connect the male DB-9 connector on the console cable to the RS-232 serial port on the computer.

2. Insert the RJ-45 connector into the RJ-45 console port on the front of the Switch. Set the terminal

emulation software as follows:

• Serial port: COM port 1

• Baud rate: 115200

• Data bits: 8

• Parity: none

• Stop bits: 1

• Flow control: none

After the boot sequence completed, the CLI login screen is displayed.

NOTE: The default username and password for the CLI is admin.

First Time Connecting to the Switch

At the login screen, enter the Username and Password and press Enter after each entry to access the

CLI.

NOTE: For security reasons, it is highly recommended to configure a personal username and password

for this Switch.

Additional Information

For more detailed information on how to set up and configure the access point, please visit the website

http://www.dlink.com/
