Building Networks for People

08/26/03

D-Link DKVM-16

16-Port Keyboard, Video,

and Mouse Switch

Version 1.2

Contents

PackageContents ................................................................................3

Introduction............................................................................................4

Features andBenefits ...........................................................................5

HardwareInstallation .............................................................................6

Usingthe DKVM-16 ............................................................................12

Daisy-Chainingthe DKVM-16 .............................................................16

HotPlug ..............................................................................................17

Troubleshooting...................................................................................21

Specifications .....................................................................................25

WarrantyandRegistration ...................................................................26

ContactingTechnicalSupport ..............................................................29

Package Contents

System Requirements:

Console

Computer One VGA, SVGA, or Multisync monitor

One PS/2 mouse or serial (DB-9) mouse port

One PS/2 keyboard orAT (5-pin DIN) keyboard port

One VGA, SVGA, or Multisync video card or port

One PS/2 (6-pin mini-DIN)

Contents of Package:

D-Link DKVM-16 16-Port Keyboard, Video, and Mouse

Switch

1 DC12V, 1APowerAdapter

3 sets of 3 in1 KVM Cable Kits

(1 set: 3 ft. 3-in-1 Cable Kit to daisy chain, 2 sets: 6 ft. 3 in 1

Cable to PC)

2 DB-9 to 6-pin Mini-DIN Mouse Converters

2 DIN 5-pin to 6-pin Mini-DIN Keyboard Converters

Manual

2 Rack Mount Brackets

8 Screws

If any of the above items are missing, please contact your reseller.

Introduction

The D-Link DKVM-16 is a Keyboard, Video and Mouse KVM switch that

allows you to control up to 16 server computers using one keyboard, mouse,

and monitor. It is easy to use, powerful, and scalable. Each DKVM-16 port

has a dedicated microprocessor to intelligently manage port traffic and

allows simultaneous boot-ups for all attached PCs. The advanced

microprocessor technology also saves CAPSLOCK, NUMLOCK, and

SCROLL LOCK status for each PC. Two control buttons located on the front

panel give you one touch access to your attached PCs and the user-friendly

on-screen display menu allows you to configure your DKVM-16 switch’s

settings. The daisy chain port allows up to 8 DKVM-16 KVM switches to be

stacked together for controlling as many as 128 computers. Featuring hot-

plug, auto-scan, keyboard hot keys and audible feedback, the DKVM-16

makes it simple to manage all of your server computers.

The DKVM-16 supports VGA, SVGA, and MultiSync monitors at up to 1920 X

1440 resolution. Integrated mouse conversion technology allows olderAT

type computers with serial mouse ports to be connected to the DKVM-16

using the included serial-to-PS/2 mouse converter. BothAT and PS/2 type

keyboards are also supported, as well as the most popular mice, including

Microsoft®IntelliMouse® and Microsoft® IntelliMouse Explorer®.

Features and Benefits

Allows users to control sixteen computers from one keyboard, mouse,

and monitor

No software is required; each channel has a dedicated microprocessor

to intelligently manage the boot-up process for all your attached PCs

Daisy-chain ports allow control over as many as 128 computers through

8 banks of DKVM-16 units

Hot Plug provides the ability to add PCs or remove connected PCs for

maintenance without powering down the KVM Switch or PCs

Auto detection of daisy-chain bank eliminates the need for DIP-switches

On-Screen Display menu gives the user a visual interface to name and

select computers

Supports eight character password protection

Convenient On-Screen Display, push button, and keyboard Hot Key

commands for switching between PCs

AutoScan mode

Audible feedback when switching

Automatically recalls CAPS LOCK, NUM LOCK and SCROLL LOCK key

status for each computer

Supports VGA, SVGA and MultiSync monitors

Supports up to 1920 x 1440 resolution at 200MHz Bandwidth

Integrated mouse conversion technology allows connection of AT type

computers that have serial mouse ports

Microsoft®IntelliMouse®, Microsoft Intellimouse Explorer support and

emulation

Keyboard and mouse emulation for error-free boot ups

Supports both AT and PS/2 type keyboards (AT requires AT - PS/2

adapter included)

Uses standard KVM cables

Hardware Installation

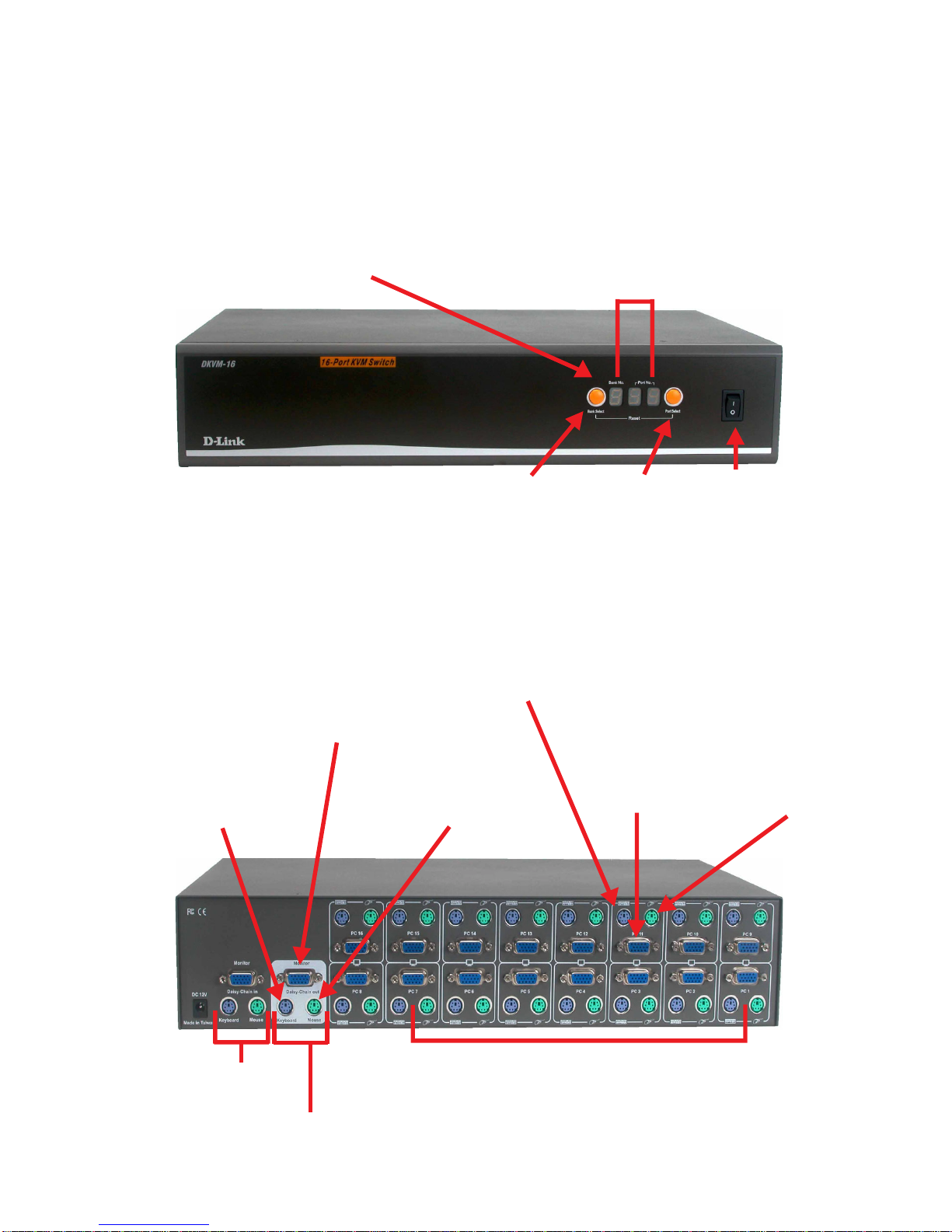

Front Panel Layout

Rear Panel Layout

CurrentActive Bank Display CurrentActive Port Display

Bank Select Port Select Power Switch

VGASignal PS/2 Mouse

Daisy-Chain In Port PC Port Connectors

PS/2 Keyboard PS/2 Mouse

Console Port

VGAMonitorConnector

Output Output Input Input

PS/2 Keyboard

Input

(Daisy-Chain Out)

Hardware Installation(Continued)

Find a convenient place to place your DKVM-16. Its 19" rack mount form fac-

tor makes it mountable on a 19" rack. When mounting to a rack, attach the

included brackets to the side panels of the DKVM-16. Take note of the length

ofyour cablesso thatyour computers, DKVM-16,keyboard, mouse, and moni-

tor are distanced properly.

Connect the monitor console to the DKVM-16. Connect the attached cable, or

the one included with your monitor, to the HD DB-15 female port, labeled with

the monitor symbol at the CONSOLE connector on the back of the DKVM-16.

Step 1

Step 2

WARNING

Make sure that all of your computers are powered off before attempting to

connect the cabling to avoid damage to your DKVM-16

Hardware Installation(Continued)

Connect the keyboard console to the DKVM-16. If you have an AT type key-

board, you will need anAT to PS/2 adapter.

Connect the mouse console to the DKVM-16. If you have an older mouse with

9 pins, you will need to use the 9 to 5 pin mouse converter that is included with

the DKVM-16.

Step 3

Step 4

Hardware Installation(Continued)

Step 5

Step 6

Connect one end of the included VGA cable (15-pin HDDB Male / Male) to the

female connectors on the back of the PC. Connect the other end of the cable to

the rear panel of the DKVM-16. This step can be repeated for all PCs.

Back of PC

Using the included 3-in-1 cable, locate the mouse connector (green) and con-

nect one end to the PS/2 mouse port on the back panel of the computer, and

the other end to the PC1 PS/2 mouse port on the back panel of the DKVM-16.

If there are not enough PS/2 ports on the computer, you can choose a serial

port for the mouse connection. Be sure to add a serial to PS/2 converter in-

cluded with the DKVM-16 before connecting the 3-in-1 cable to the computer.

Back of PC

Hardware Installation(Continued)

Step 7

Using the included 3-in-1 cable, locate the keyboard connector (purple) and

connect one end to the PS/2 keyboard port on the back panel of the computer,

and the other end to the PC1 PS/2 keyboard port on the back panel of the

DKVM-16. If your computer has anATtype keyboard port, you will need to use

the PS/2 toAT keyboard adapter included with the DKVM-16.

Back of PC

Step 8

Double-check all of your connections. Make sure that the keyboard and mouse

cables are connected to the correct ports.

Step 9

Repeat steps 5 through 8 for the remainder of the computers.

Step 10

Attach the power supply to the DKVM-16 unit and plug the other end into an

electrical receptacle. When you see the LED for Port 1 light up and hear a

beep, switch on your PCs and monitor.

Note: To maintain stable operation of the DKVM-16, please keep the unit powered

using the power adapter when in use, especially when the DKVM-16 is in a daisy-

chain stack.
