D-Link DES-1226G Manual de usuario

Before Your Begin

This Quick Installation Guide gives step-by-step instructions for setting up the D-Link

DES-1226G Web-Smart Gigabit Ethernet Switch. The model you have purchased may

appear slightly different from those shown in the illustrations. For more detailed

information about the switch, its components, making network connections and

technical specifications, please refer to the User’s Manual on master CD included with

your switch.

Check Your Package Contents

These are the items included with your DES-1226G purchase:

If any of the above items are missing, please contact your reseller.

holders. Software and specifications subject to change without notice.

•

1226G

D-Link 24-Port 10/100Mpbs+2-Port Combo

10/100/1000Mbps Copper/Mini GBIC Gigabit

Smart Switch

• CD-ROM (containing Manual and Utility

Installation)

• 100–240VAC 50/60Hz

Power Adapter

Using a power

supply with a

different voltage rating

will damage and void

the warranty for this

product.

1226G

D-Link 24-Port 10/100Mpbs+2-

Port

Comb

o 10/100/1000Mbps

Copper/Mini GBIC Gigabit Smart

Switch

Broadband Router

Setup The DES-1226G Gigabit Smart

Switch

The setup of the Switch can be performed using the following steps:

A. Install the DES-1226G in a fairly cool and dry place. See Technical

Specification for the acceptable operation temperature and humidity

ranges.

B. Install the DES-1226G in a site free from strong electromagnetic

field generators (such as motors), vibration, dust, and direct

exposure to sunlight.

C. Leave at least 10cm (about 4 inches) of space at the front and rear

of the hub for ventilation.

D. Visually inspect the DC power jack and make sure that it is fully

secured to the power adapter.

E. Install the DES-1226G on a sturdy, level surface that can support

its weight, or in an EIA standard-size equipment rack.

F. When installing the Switch on a level surface, attach the rubber feet

to the bottom of each device. The rubber feet cushion the hub and

protect the hub case from scratching.

Attach the adhesive rubber pads to the bottom

Rack Mounting

The DES-1226G can be mounted in an EIA standard-size, 19-inch rack,

which can be placed in a wiring closet with other equipments. Attach the

mounting brackets to both sides of the Switch (one at each side), and

secure them with the provided screws.

Use the screws provided. Then, use screws provided with the

equipment rack to mount the Switch in the rack.

Mount the Switch in the rack

Connecting Network Cable

The DES-1226G supports 10/100/1000Mbps Gigabit Ethernet. It runs

full/half duplex transfer mode for 10/100Mbps and full duplex transfer

mode for 1000Mbps. Each port on the DES-1226G supports Auto-

MDI/MDI-X. Auto-MDI/MDI-X is a feature that eliminates the need for

worrying about using either a standard or crossover cable—you can

use either one—and allows any port to be an uplink port.

AC Power

The DES-1226G can be used with AC power supply 100~240V AC,

50~60Hz. The power switch is located at the rear of the unit adjacent to

the ACpower connector and the system fan. The switch’s power supply

will adjust to the local power source automatically and may be turned on

without having any or all LAN segment cables connected.

Connect The DES-1226G Gigabit Smart

Switch To Your Network

Front Panel

10/100 Base-TX Twisted-Pair Ports Mini GBIC Ports

┌─────────────┐ ┌──┐

└─────┘ └──┘

LED Indicators 1000 Base-TTwisted-

Pair Ports

10/100BASE-TX Twisted-Pair Ports (Port1~24)

These ports support network speeds of either 10Mbps or 100Mbps,

and can operate in half-and full-duplex transfer modes. These ports

also support automatic MDI/MDI-X crossover detection, giving true

“plug and play” capability. Just plug the network cable directly into the

hub; you can use either straight-through or crossover cable.

1000BASE-T Twisted Pair Ports (Port 25~26)

The DES-1226G is equipped with two Gigabit twisted pair ports that

are auto negotiable 10/100/1000Mbps and also support auto

MDI/MDIX crossover detection. These two ports can operate in half-

and full-duplex modes.

Mini GBIC Ports (Option Port 25~26)

The Switch is equipped with two mini-GBIC ports, supported optional

1000BASE-SX/LX mini-GBIC module.

Note: When the port was set to “Forced Mode”, the Auto

MDI/MDIX will be disabled.

LED Indicators

LED stands for Light-Emitting Diode.

The front panel LEDs providesinstant status feedback and simplifies

monitoring and troubleshooting tasks.

LED indicators of the Switch

nPower LEDs

When the Power LEDlight is on, the Switch is

receiving power.

Off

When the Power LED light is off, the power cord is

improperly connected.

nCPU LEDs ( Management Indicator)

Blinking

When the CPU is working, the System LED is

blinking.

On/Off

The CPU is not working.

nPorts 1-24 Status LEDs

Link/Act

When the LED light is on, the respective port is

connected to the 10/100Mbps Ethernet network.

Blinking

When the LED light is blinking, the port is

transmitting or receiving data on the 10/100Mbps

Ethernet network.

Off

No link.

100Mbps

When the LED light is on, the respective port is

connected to a 100Mbps Ethernet network.

Off

When the LED light is off, the respective port is

connected to a 10Mbps Ethernet network, or no

link.

nPorts 25 & 26 Status LEDs

Link/Act

When the LED lights on, the respective port is

connected to a 10/100/1000Mbps Ethernet network.

Blinking

When the LED is blinking, the respective port is

transferring or receiving data on a

10/100/1000Mbps Ethernet network.

Off

No link.

1000Mbps

When the LED lights on, the respective port is

connected to a Gigabit Ethernet network.

Off

The respective port is connected to a 10/100Mbps

Ethernet network, or no link.

100Mbps

When the LED lights on, the respective port is

connected to a 100Mbps Fast Ethernet network.

Off

When the LED light is off, the respective port is

connected to a 10Mbps or Gigabit Ethernet network

or there is no link.

nOption Ports 25~26 mini-GBIC Status LEDs

Link/Act

On :

When the mini-GBIC module is installed and

connected to a network, the Link/ACT LED lights on.

Blinking

When the LED is blinking, the mini-GBIC module is

receiving data on a network.

Off :

No link.

1000Mbps

On :

When the 1000Mbps LED lights on, the respective

port is connected to a 1000Mbps Gigabit Ethernet

network.

Off :

When the respective port is disconnected to the

network

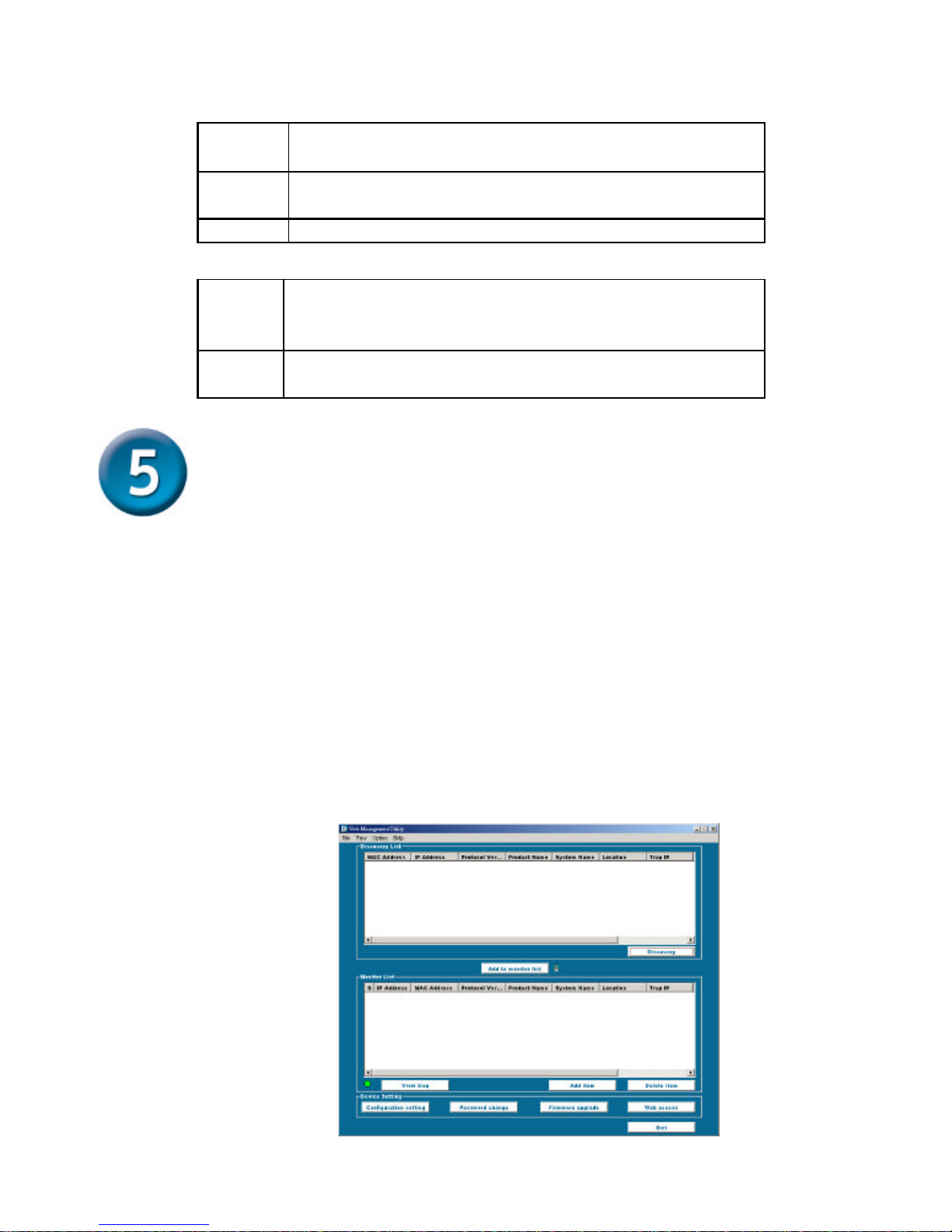

Installing the Web Management

Utility

Through the Web Browser you can configure the Switch such as VLAN,

Trunking, QoS… etc.

The following instruction guides you to install the Web Management

utility.

1. Insert the Utility CD in the CD-Rom Drive.

2. From the Start menu on the Windows desktop, choose Run.

3. In the Run dialog box, type D:\Web Management Utility\setup.exe

(D:\depends where your CD-Rom drive is located) and click OK.

4. Follow the on-screen instructions to install the utility.

5. Upon completion, go to Program Files ->

web_management_utility and execute the Web Management

utility. (Figure 1.)

Figure 1. Web Management Utility

Configuring the Switch

The DES-1226G has a Web GUIinterface for smart switch configuration.

The Switch can be configured through the Web Browser.A network

administrator can manage, control and monitor the switch from the local

LAN. This section indicates how to configure the Switch to enable its

smart functions.

Use Internet Explorer 5.0 or above Web browser.

Before you configure this device, note that when the Web Smart Switch

is configured through an Ethernet connection, make sure the manager

PC must be set on the same IP network. For example, when the default

network address of the default IP address of the Web Smart Switch is

192.168.0.1, then the manager PC should be set at 192.168.0.x (where x

is a number between 2 and 254), and the default subnet mask is

255.255.255.0.

Enter IP address http://192.168.0.1 (the factory-default IP address

setting) to the address location. (Figure 2.)

Figure 2.

Or through the Web Management Utility, you do not need to remember

the IP Address, select the device shown in the Monitor List of the Web

Management Utility to settle the device on the Web Browser.

When the following dialog page appears, remain enter the default

password "admin" and press Login to enter the main configuration

window. (Figure 3.)

Figure 3.

After entering the password, the main page comes up,the screen will

display the device status. (Figure 4.)

Figure 4.

Setup Menu

When the main page appears, find the Setup menu in the left side of the

screen (Figure 5).Click on the setup item that you want to configure.

There are eleven options: Port Settings, VLAN Settings, Trunk Setting,

Mirror Setting, Device Status, System Settings, Trap Setting, Password

Setting, Backup Setting and Reset Setting as shown in the Main Menu

screen.

Figure 5.
