D-Link DIR-841/GF Manual de usuario

Quick Installation Guide

DIR-841/GF

AC1200 Wi-Fi Router with Gigabit Fiber WAN Port

DIR-841/GF Quick Installation Guide

BEFORE YOU BEGIN

Delivery Package

•Router DIR-841/GF

•Power adapter DC 12V/1A

•Ethernet cable

•Quick Installation Guide” (brochure).

If any of the items are missing, please contact your reseller.

The User Manual” and Quick Installation Guide” documents are available

on D-Link website (see www.dlink.ru).

!Using a power supply with a different voltage rating than the one

included will cause damage and void the warranty for this product.

DIR-841/GF Quick Installation Guide

Default Settings

Do ain na e of device dlinkrouter.local.

IP address of device 192.168.0.1

Userna e (login) admin

Password admin

Na e of wireless network

(SSID)

2.4GHz DIR-841

5GHz DIR-841-5G

Network key (PSK password)

see WPS PIN on the barcode

label on the bottom panel of

the device

Router DIR-841/GF with default settings cannot connect to the Internet.

To get started, please set your own password for access to the web-

based interface and change the WLAN name (SSID); then, if needed,

configure other settings recommended by your ISP.

DIR-841/GF Quick Installation Guide

System Requirements and Equipment

•A computer with any operating system that supports a web browser.

•A web browser to access the web-based interface of the router:

◦Apple Safari 8 and later

◦Google Chrome 48 and later

◦Microsoft Internet Explorer 10 and later

◦Microsoft Edge 20.10240 and later

◦Mozilla Firefox 44 and later

◦Opera 35 and later.

•A NIC (Ethernet or Wi-Fi adapter) to connect to the router.

•An 802.11a, b, g, n, or ac Wi-Fi adapter to create a wireless network.

•SFP transceiver to connect to a fiber optic line.

DIR-841/GF Quick Installation Guide

CONNECTING TO PC

PC with Ethernet Adapter

1. Connect an Ethernet cable between any of LAN ports located on the back

panel of the router and the Ethernet port of your PC.

2. To connect the device to a fiber optic line: connect your SFP transceiver

to the SFP port, then connect the fiber optic cable to the SFP transceiver.

3. Connect the power cord to the power connector port on the back panel of

the router, then plug the power adapter into an electrical outlet or power

strip.

4. Turn on the router by pressing the POWER button on its back panel.

Then make sure that your PC is configured to obtain an IP address

automatically (as DHCP client).

DIR-841/GF Quick Installation Guide

Obtaining P Address Automatically

(OS Windows 7)

1. Click the Start button and proceed to the Control Panel window.

2. Select the Network and Sharing Center section. (If the Control Panel

has the category view (the Category value is selected from the View by

drop-down list in the top right corner of the window), choose the View

network status and tasks line under the Network and Internet

section.)

3. In the menu located on the left part of the window, select the Change

adapter settings line.

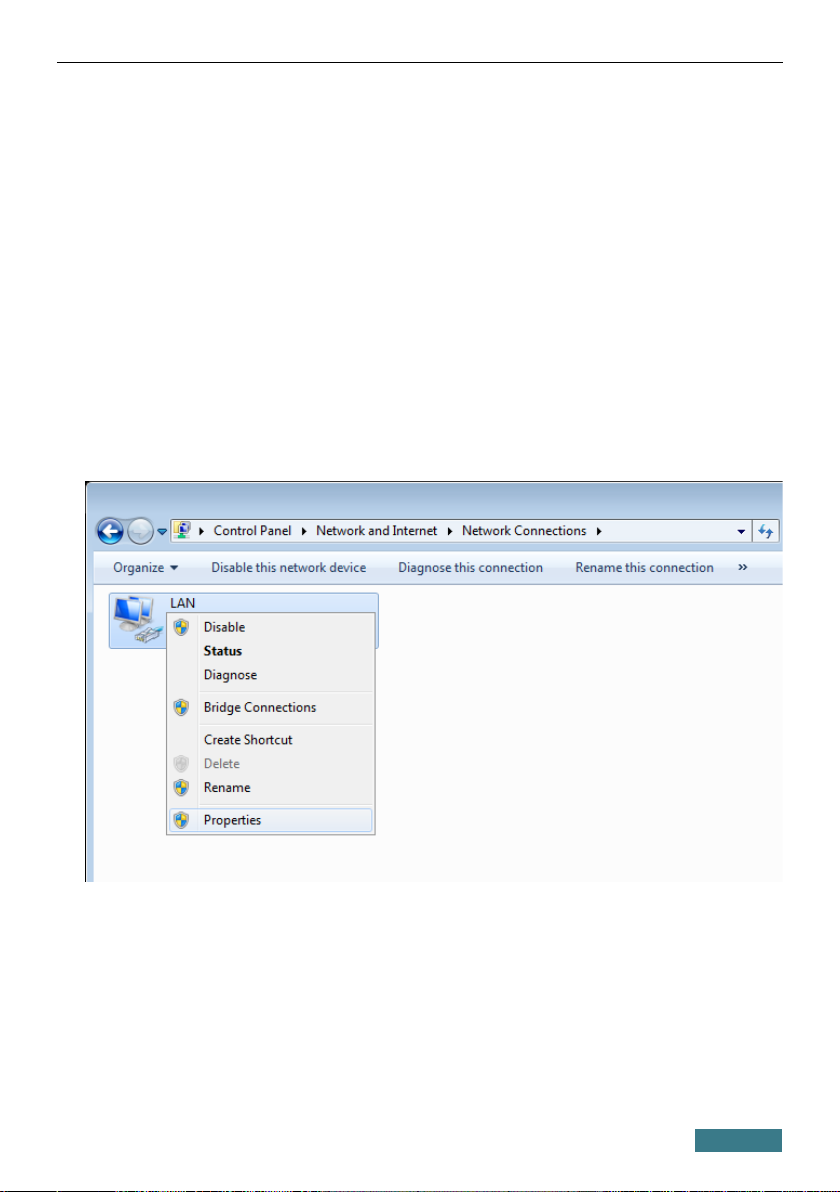

4. In the opened window, right-click the relevant Local Area Connection

icon and select the Properties line in the menu displayed.

5. In the Local Area Connection Properties window, on the

Networking tab, select the Internet Protocol Version 4 (TCP/IPv4)

line. Click the Properties button.

DIR-841/GF Quick Installation Guide

6. Make sure that the Obtain an IP address auto atically and Obtain

DNS server address auto atically choices of the radio buttons are

selected. Click the OK button.

7. Click the OK button in the connection properties window.

DIR-841/GF Quick Installation Guide

PC with Wi-Fi Adapter

1. To connect the device to a fiber optic line: connect your SFP transceiver

to the SFP port, then connect the fiber optic cable to the SFP transceiver.

2. Connect the power cord to the power connector port on the back panel of

the router, then plug the power adapter into an electrical outlet or power

strip.

3. Turn on the router by pressing the POWER button on its back panel.

4. Make sure that the Wi-Fi adapter of your PC is on. As a rule, modern

notebooks with built-in wireless NICs are equipped with a button or

switch that turns on/off the wireless adapter (refer to your PC

documents). If your PC is equipped with a pluggable wireless NIC, install

the software provided with your Wi-Fi adapter.

Then make sure that your Wi-Fi adapter is configured to obtain an IP address

automatically (as DHCP client).

DIR-841/GF Quick Installation Guide

Obtaining P Address Automatically and

Connecting to Wireless Network (OS Windows 7)

1. Click the Start button and proceed to the Control Panel window.

2. Select the Network and Sharing Center section. (If the Control Panel

has the category view (the Category value is selected from the View by

drop-down list in the top right corner of the window), choose the View

network status and tasks line under the Network and Internet

section.)

3. In the menu located on the left part of the window, select the Change

adapter settings line.

4. In the opened window, right-click the relevant Wireless Network

Connection icon. Make sure that your Wi-Fi adapter is on, then select

the Properties line in the menu displayed.

5. In the Wireless Network Connection Properties window, on the

Networking tab, select the Internet Protocol Version 4 (TCP/IPv4)

line. Click the Properties button.

DIR-841/GF Quick Installation Guide

6. Make sure that the Obtain an IP address auto atically and Obtain

DNS server address auto atically choices of the radio buttons are

selected. Click the OK button.

7. Click the OK button in the connection properties window.

8. To open the list of available wireless networks, select the icon of the

wireless network connection and click the Connect To button or left-

click the network icon in the notification area located on the right side of

the taskbar.
