D-Link DSL-G225 Manual de usuario

WIRELESS N300

ADSL2+/VDSL2 MODEM ROUTER

DSL- G225

QUICK

INSTALLATION

GUIDE

DSL- G225

ENGLISH

CONTENTS OF

PACKAGING

CONTENTS

POWER ADAPTER

ADAPTER

ETHERNET CABLE (CAT5 UTP)

CONNECT THE ROUTER TO YOUR PC DURING SET-UP

If any of these items are missing from your packaging contact

your reseller

WIRELESS N300 ADSL2+/VDSL2 MODEM ROUTER

DSL-G225

RJ-11 PHONE CABLE

ADSL/VDSL SPLITTER

DSL- G225 3

ENGLISH

PRODUCT

SETUP

BEFORE YOU START

Internet Provider Account Details - If you are using an Australian or New Zeleand ADSL or VDSL

connection, you will need your user name and password. If you do not have this information, contact

your Internet Service Provider. If you are using an Australian or New Zeleand NBN or UFB connection,

you may also need a user name and password. Please check before proceeding.

Do not proceed until you have this information.

SETUP WIZARD - ADSL/VDSL

1. Open a web browser (e.g., Internet Explorer, Chrome, Firefox, or Safari) and enter ‘192.168.1.1’

into the address bar (http://192.168.1.1).

2. When prompted, enter 'admin' into both the username and password elds and click 'Login'.

CONNECT YOUR MODEM ROUTER - ADSL/VDSL

1. Connect the supplied Splitter/Filter to your telephone outlet.

2. Take the supplied RJ-11 phone cable and plug it into the DSL port of the Splitter/Filter. Plug the

other end into the DSL port of the Router.

3. Plug the supplied Ethernet cable into one of the Ethernet ports on the back of your Router and

connect the other end into the Ethernet port on your computer.

4. Connect the supplied power adapter to the back of your Router and power the device on.

DSL- G225

ENGLISH

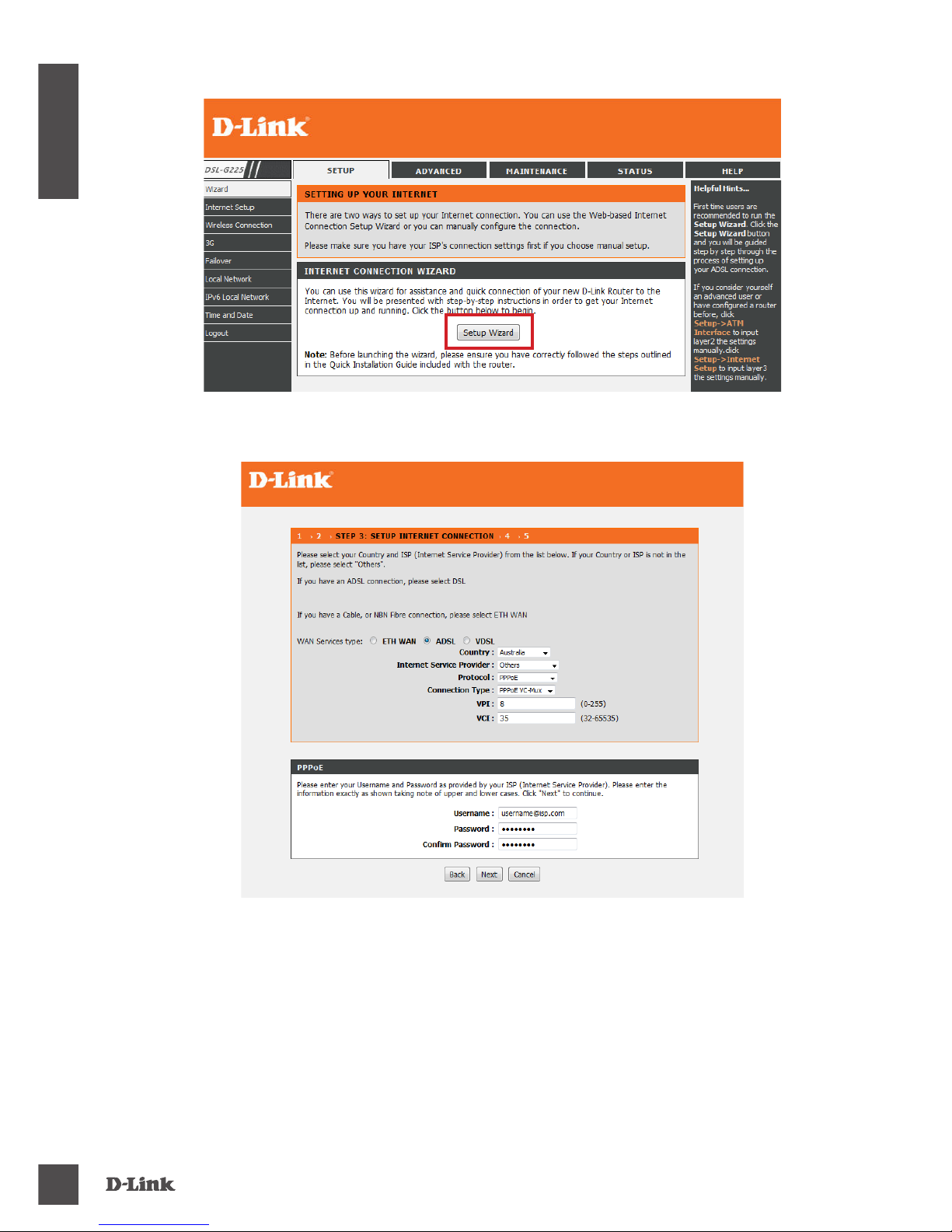

3. Click on 'Setup Wizard' to start conguring your Router.

4. Click through until you reach 'Setup Internet Connection' (Step 3). Select your Country and ISP from

the drop down box. Then enter the Username and Password as supplied by your ISP.

5. Continue through the steps. You have the option to change Wi-Fi settings and to change account

passwords. When you reach Step 5, click 'Apply' to save your settings.

6. After the Router saves your settings, you should be online and able to share this Internet connection

with multiple wired and wireless devices.

TROUBLESHOOTING

SET-UP AND CONFIGURATION PROBLEMS

1. HOW DO I CONFIGURE MY DSL-G225 ROUTER, OR CHECK MY WIRELESS NETWORK

NAME (SSID) AND WIRELESS ENCRYPTION KEY?

- Connect your PC to the router using an Ethernet cable.

- Open a web browser and enter the address http://192.168.1.1

- The default username is ‘admin’. The default password is 'admin'.

- If you have changed the password and can not remember it, you will need to reset the router to

set the password back to 'admin'.

2. HOW DO I RESET MY DSL-G225 ROUTER TO FACTORY DEFAULT SETTINGS?

- Ensure the router is powered on.

- Press and hold the reset button on the back of the device for 10 seconds.

Note: Resetting the router to factory default will erase the current conguration settings. To re-

congure your settings, log into the router as outlined in question 1, then run the Setup Wizard.

3. HOW DO I ADD A NEW WIRELESS CLIENT OR PC IF I HAVE FORGOTTEN MY

WIRELESS NETWORK NAME (SSID) OR WIRELESS ENCRYPTION KEY?

- Every PC that needs to connect to the router wirelessly, you will need to ensure you use the

correct Wireless Network Name (SSID) and encryption key.

- Use the web based user interface (as described in question 1 above) to check or choose your

wireless settings.

- Make sure you write down these settings so that you can enter them into each wirelessly

connected PC. You will nd a dedicated area on the back of this document to record this

important information for future use.

4. WHY CAN I NOT GET AN INTERNET CONNECTION?

- Please contact your ISP to make sure the service has been enabled/connected by your ISP and

that your ISP username and password is correct.

NOTES

Ver. 1.00(AU) 21/09/2016

WIRELESS NETWORK REMINDER

Wireless Network Name (SSID)

Wireless Network Password
