Modem Conguration Guide
Dlink DSL 504T
Conguring in Layer2 PPPoE for Windows XP and 2000
CONTENTS
1. Network Configuration
2. Restore Router To Factory Defaults
3. Re-configure In Layer2 PPPoE
4. Optional
Please note: Some screen shots may differ due to different versions of
firmware used. Please have your router powered on and connected directly
to your PC via Ethernet cable before you begin
1. NETWORK CONFIGURATION
PPPoE connection does not require you to have an IP address or DNS
settings manually encoded on your network card. PPPoE connection uses
authentication to establish the Internet connection and its after doing this
that your router is assigned an IP and DNS settings from TPG.
To begin, your PC needs to receive a private IP address from the router.
Most ADSL routers have DHCP enabled by default that will take care of this.
To ensure your Network Card is ready for this please follow the following
steps:
A. Click on Start -> Settings -> Control Panel -> Network Connections
B. Find your Network Card then right click on this and select Properties
C. Double click on Internet Protocol TCP/IP
Dlink DSL 504T
2
D. Ensure “Obtain an IP address automatically” is selected
E. Ensure “Obtain DNS server address automatically” is selected
F. Click on OK
2. RESTORE ROUTER TO FACTORY DEFAULTS
PLEASE NOTE: By doing this step you will be deleting any
additional customised settings (if applicable) in your router, for
example port forwarding. You can change the configuration of
your router to PPPoE without restoring the router to factory
defaults in which case please skip this step and proceed
from step 3 however if you experience Internet problems after
competing the setup, we recommend you do perform step 2
then proceed from step 3
A. Make sure your router is powered on and connected to your
PC (Network card) via Straight through Ethernet cable
B. Use a paper clip to depress the reset button at the back of
your router for 10 seconds and release. At this point the reset
is in progress. Please do not power off the unit
C. When the indicator lights return steady, the reset is complete.
Your router is now at factory defaults
3. RE-CONFIGURE IN LAYER 2 PPPOE
A. Open your browser and in the address bar type http://10.1.1.1
and press Enter.
B. Enter admin for both the username and password and
click on OK. If your router is not at factory defaults and you
have changed the login credential, please enter the current
username and password for your router interface
C. Click on the Run Wizard button
Modem Conguration Guide Dlink DSL 504T
3
D. Click Next to begin the setup
E. Set the Admin Password on the router, for defaults type
admin in both the Password and Verify Password
fields. This password is used whenever you log into the
router so it is important you remember what it is.
Click Next
F. Choose the correct time setting and click Next
Modem Conguration Guide Dlink DSL 504T
4

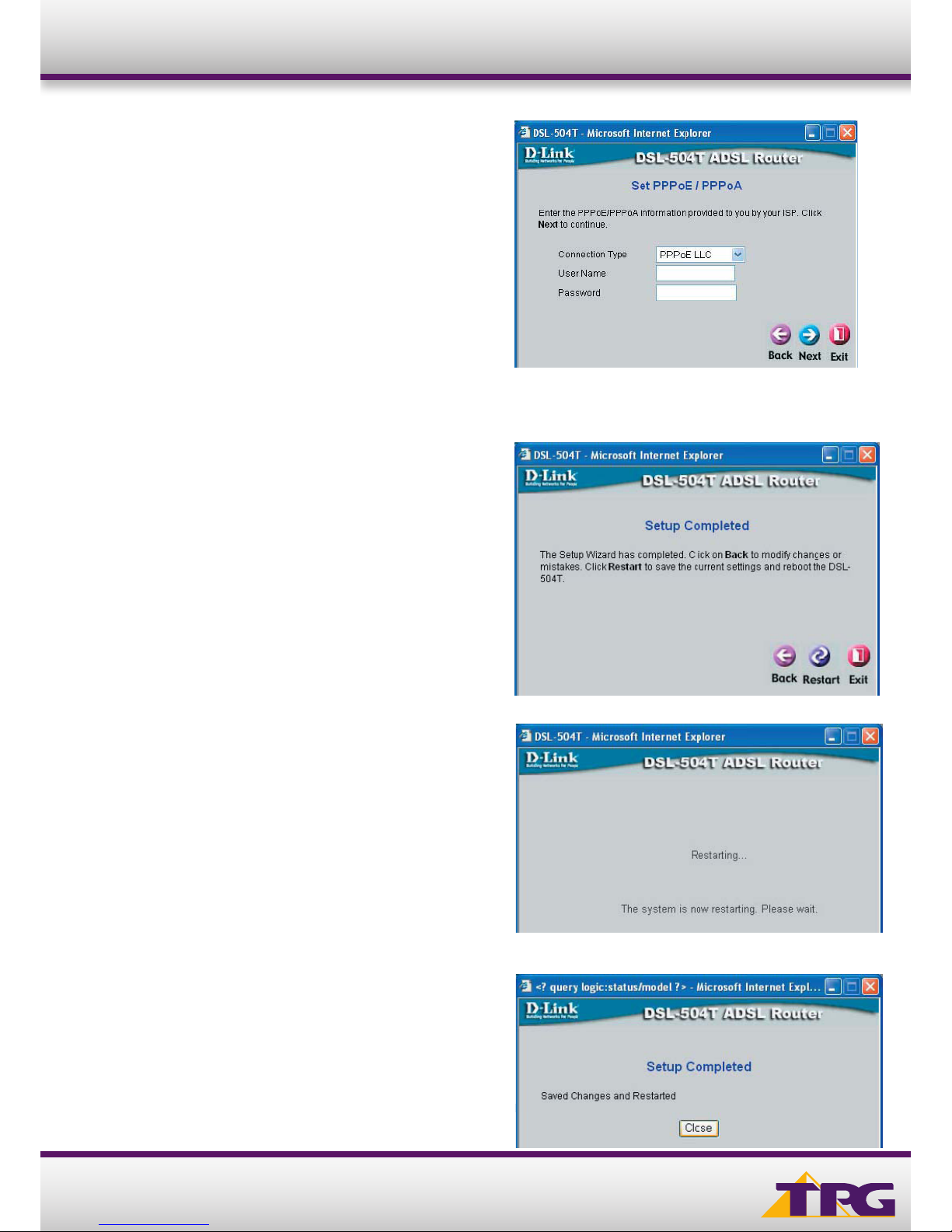

G. Please select / fill in the following fields:
Connection Type: PPPoE LLC
• Username: - <TPGusername>@L2TP.tpg.com.au
for Fixed IP plans OR - <TPGusername>@PPP.tpg.
com.au for Dynamic IP plans (e.g. adsl1234@L2TP.
tpg.com.au)
• Password: Your Password by default is the same
as your <TPGusername> however if you have
changed your password since registration time,
please use your current TPG password Click Next
H. All settings for your connection are now complete.
Please click Restart to save the current settings and
restart your router. This process may take up to 2 mins
to complete
I. Please do not turn off or disturb the router while it is
performing the reboot. Once it is complete you will get a
confirmation message. Wait for the router to reboot
J. Click on Close
K. To browse websites, please now launch your browser
Modem Conguration Guide Dlink DSL 504T
5
13 14 23tpg.com.au/support
4. OPTIONAL
You router:
If you had other services setup on your router like port forwarding and you had restored your router to factory defaults before
configuring in PPPoE, please now reconfigure these functions to your current router settings.
Other Additional Services:
If you are reconfiguring your router from Layer 3 to Layer 2 PPPoE and you also had other services like web server, mail
server, VPN etc that were dependent on your old Layer3 IP address, please ensure that appropriate reconfiguration is
done to allow normal services to resume.
Modem Conguration Guide Dlink DSL 504T
PLEASE NOTE:
ADSL routers will by default be capable of automatic authentication. This means your router will use your credentials you
have provided to make the Internet connection. Each time your router is powered on, it will initialize this automated
authentication process after which your router will receive a public IP address (fixed or dynamic depending on your plan) and
DNS settings from TPG.
