D-Link DSL-380T Instrucciones de montaje

Before You Begin

Make sure you have all the necessary information and equipment on hand before beginning the

installation.

Check Your Package Contents

If any of the above items are missing, please contact your reseller.

This product can be set

up using any current web

browser, e.g., Internet

Explorer 6 or Netscape

Navigator 6.2.3.

DSL-380T

ADSL Modem

Using a power supply

with a different voltage

rating will damage and void

the warranty for this product.

DSL-380T ADSL Modem

CD-ROM (containing Manual)

Ethernet (CAT5 UTP) Cable

Telephone Cable

Power Adapter

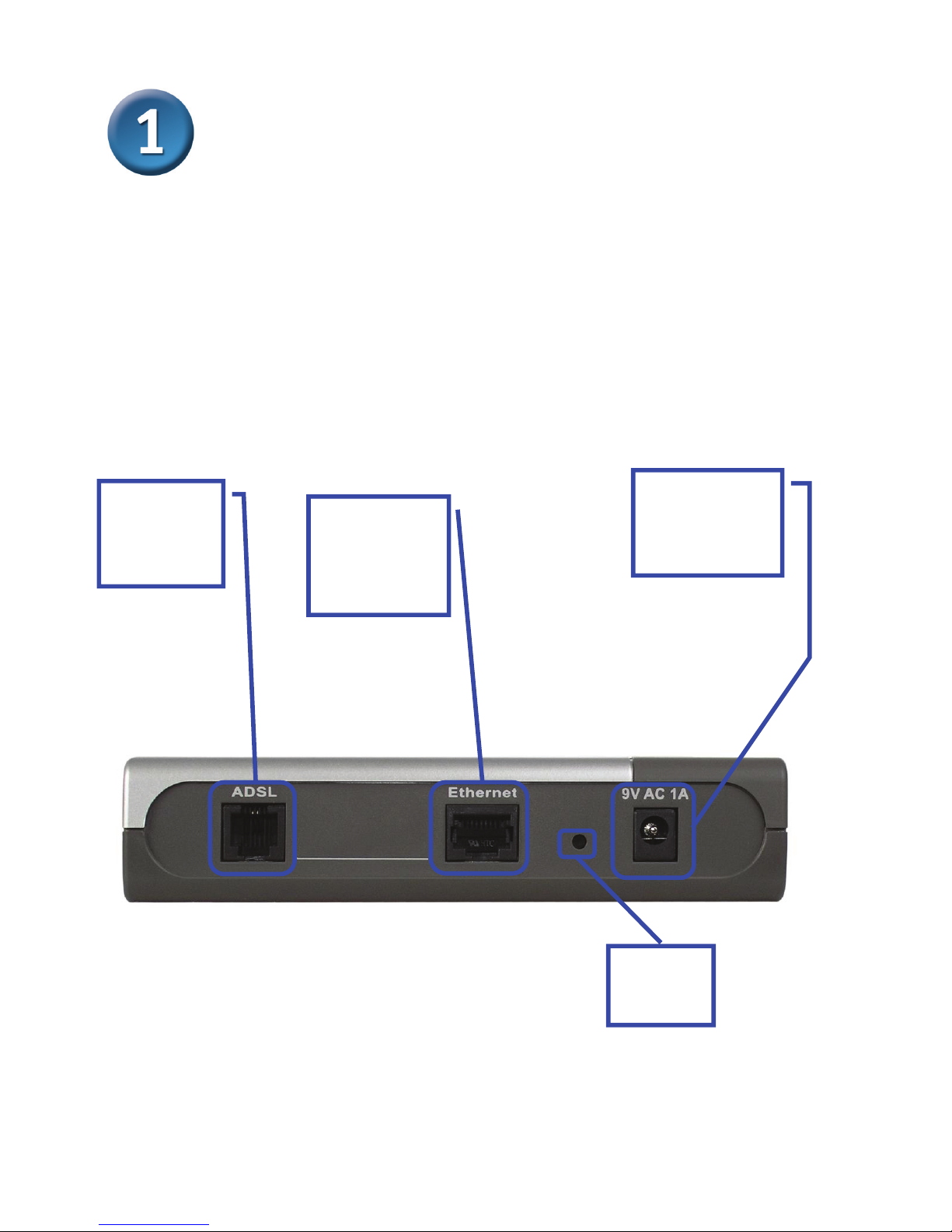

Connecting the Modem to Your Computer

A. First, connect the power adapter to the receptor at the back panel of the

DSL-380T and then plug the other end of the power adapter to a wall outlet or

power strip. The Power LED will turn on to indicate proper operation.

B. Insert one end of the cable into the Ethernet port on the back panel of the

DSL-380T and the other end of the cable to an Ethernet Adapter or available

Ethernet port on your computer.

C. Insert the ADSL (telephone) cable included with the Modem into the ADSL port

and then connect the cable to your telephone line.

ADSL Port -

Connect to

ADSL line

Ethernet Port -

Connect to

Ethernet cable

Reset

Button

Power Input -

Connect to power

adapter

Configuring the Modem

To use your Web browser to access the web pages used to set up the Modem, your computer

must be configured to “Obtain an IP address automatically,”that is, you must change the IP

network settings of your computer so that it is a DHCP Client. If you are using Windows XP

and do not know how to change your network settings, skip ahead to Appendix A and read the

instructions provided. You may also read the User Manual for instructions on changing IP

settings for computers running Windows operating systems.

Type “admin” for the

User Name and

“admin” in the

Password field. Click OK.

Open your Web browser and type

“http://192.168.1.1” into the URL address

box. Then press the Enter or Return key.

The login dialog appears.

Configuring the Modem (continued)

Once you have logged in, the Home directory tab featuring the Setup Wizard window opens.

Most users will be able to use the Setup Wizard to establish the ADSL connection to your ISP.

To begin using the Setup Wizard, click on the Run Wizard button in the middle of the web page.

The first pop-up Setup Wizard window opens.

Click on the Run Wizard button.

Configuring the Modem (continued)

The Setup Wizard procedure consists of two general steps:

1. Set the Internet connection

2. Restart the Modem

When you setup the Internet connection, you will need to enter information provided by your ISP.

If you have not been given information about the connection type, the VPI and VCI numbers, as

well as other information related to the connection type, you will not be able to complete the

setup.

The first Setup Wizard window lists a summary of the steps required to complete the setup.

Click the Next button to begin setup.

Click the Next button.

Configuring the Modem (continued)

The initial step is to Select the Internet Connection Type for the WAN interface. Your ISP has

given this information to you. If you do not know what type of connection to use, exit the Setup

Wizard and contact your ISP for the information. The Setup Wizard window that appears when

you click the Next button depends on what connection type you select. The connection types

available in the Setup Wizard window are PPPoE/PPPoA, Static IP Address, and Bridge Mode.

Follow the instructions below for the type of connection you are using.

Select the Connection Type

used for your ADSL service.

Click the Next button.

Configuring the Modem (continued)

PPPoE/PPPoA Connections

If you selected the PPPoE/PPPoA connection type in the previous window, you will see the

Setup Wizard window pictured here. Type in the Username and Password used to identify and

verify your account to the ISP. If you have been instructed to change the VPI number and VCI

number, type in the new values. Select the Connection Type used for encapsulation specific to

your service. Click Next when you are ready to continue to the Setup Completed window.

Type the User Name and

Password for your ISP account.

Change the VPI and VCI numbers as

instructed by your ISP. Type the new

values in the spaces provided here.

Select the Connection Type

as instructed by your ISP.

Click the Next button. Skip ahead to the Setup Completed window below.

Configuring the Modem (continued)

Static IP Address Connections

If you selected the Static IP Address connection type, change the WAN IP Address, Subnet

Mask, ISP Gateway Address,Primary DNS (Server IP) Address and (if available) Secondary

DNS (Server IP) Address as instructed by your ISP. Select the Connection Type used for

encapsulation. If you have been instructed to change the VPI number and VCI number, type in

the new values. Click Next when you are ready to continue to the Setup Completed window.

Select the Connection Type

as instructed by your ISP.

Change the VPI and VCI numbers as

instructed by your ISP. Type the new

values in the spaces provided here.

Type the IP addresses for the

WAN IP Address, WAN Subnet

Mask, ISP Gateway Address,

ARP Server Address, Primary

DNS Address and Secondary

DNS Address.

Click the Next button. Skip ahead to the Setup Completed window below.

Configuring the Modem (continued)

Bridge Connections

If you selected the Bridge connection type, select the Connection Type used for encapsulation.

If you have been instructed to change the VPI number and VCI number, type in the new values.

Click Next when you are ready to continue to the Setup Completed window.

Select the Connection Type

as instructed by your ISP.

Click the Next button. Skip ahead to the Setup Completed window below.

Change the VPI and VCI numbers as

instructed by your ISP. Type the new

values in the spaces provided here.

Configuring the Modem (continued)

Setup Completed

All the settings for the ADSL connection are now completed. Click the Restart button to save

the new settings and restart the Modem. It will take about two minutes to restart the Modem.

The window pictured on the right appears

during the save and restart process.

Please do not turn off the Modem while it

is still displayed!

Click the Restart button.
