2D-Link DSL-2320B Quick Install Guide
• ADSL2/2+ Ethernet/USB Modem
• 12VDC, 1A DC CEC-compliant switching power adapter
• RJ-11 telephone cable
• RJ-45 Ethernet cable
• USB Cable
• Quick Install Guide
• CD-ROM (User Manual + Drivers)
General Information
The D-Link DSL-2320B is an ADSL2+ modem offering the
convenience of both Ethernet and USB connections.This Quick Install
Guide provides you with a simple and easy-to-understand format to
install and configure your modem.
Package Contents
Note: Using a power supply with a different voltage rating than the
one included with the DSL-2320B will cause damage and void the
warranty for this product.
If any of the above items are missing, please contact your reseller.
3 D-Link DSL-2320B Quick Install Guide
Important Safety Instructions
• Place your modem on a flat surface close to the cables in a location
with sufficient ventilation.
• To prevent overheating, do not obstruct the ventilation openings of
this equipment.
• Plug this equipment into a surge protector to reduce the risk of
damage from power surges and lightning strikes.
• Operate this equipment only from an electrical outlet with the correct
power source as indicated on the adapter.
• Do not open the cover of this equipment. Opening the cover will void
any warranties on the equipment.
• Unplug equipment first before cleaning. A damp cloth can be used
to clean the equipment. Do not use liquid/aerosol cleaners or
magnetic/static cleaning devices.
4D-Link DSL-2320B Quick Install Guide

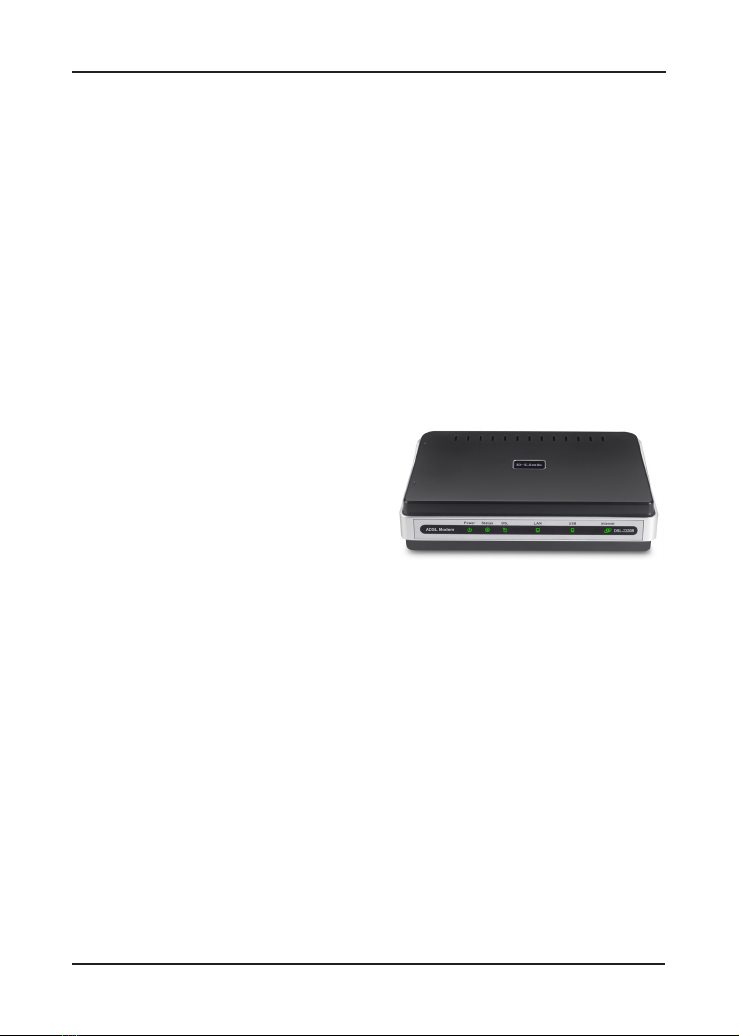

Front Panel View
Status LED
A blinking light indicates
traffic is passing through.
Power LED
A solid green light
indicates the unit
is powered up.
DSL LED
A Solid light indicates the DSL
is synchronized. A flashing LED
indicates the modem is attempting to
synchronize with the DSL provider.
Internet LED
A solid green light indicates
that the modem has an IP
address and is connected to
the internet.
USB LED
A Solid light indicates a connection is
established using USB. A flashing LED
indicates traffic is being sent and received
using USB.
Local Network LED
A solid light indicates a connection
to an Ethernet-enabled computer.
This LED blinks during data
transmission.
5 D-Link DSL-2320B Quick Install Guide

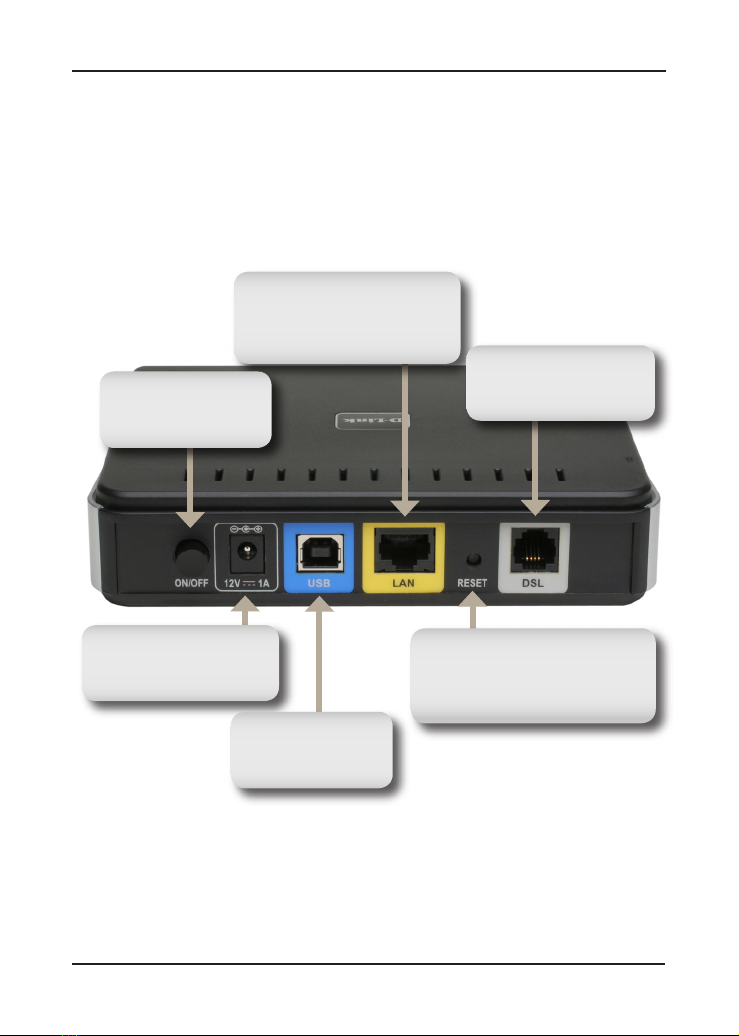

Rear Panel View
LAN Port
Connect Ethernet devices
such as computers, switches,
and hubs.
ON/OFF
Press this button to
turn the unit on or off.
Power Receptor
Receptor for the supplied
power adapter.
DSL Line
Connect to an active
telephone line (RJ-11).
USB Port
Connect a computer
using a USB cable.
Reset
Pressing the Reset button
restores the modem to its original
factory default settings.
6D-Link DSL-2320B Quick Install Guide
Installing the Modem
Connect the ADSL and Telephone Lines

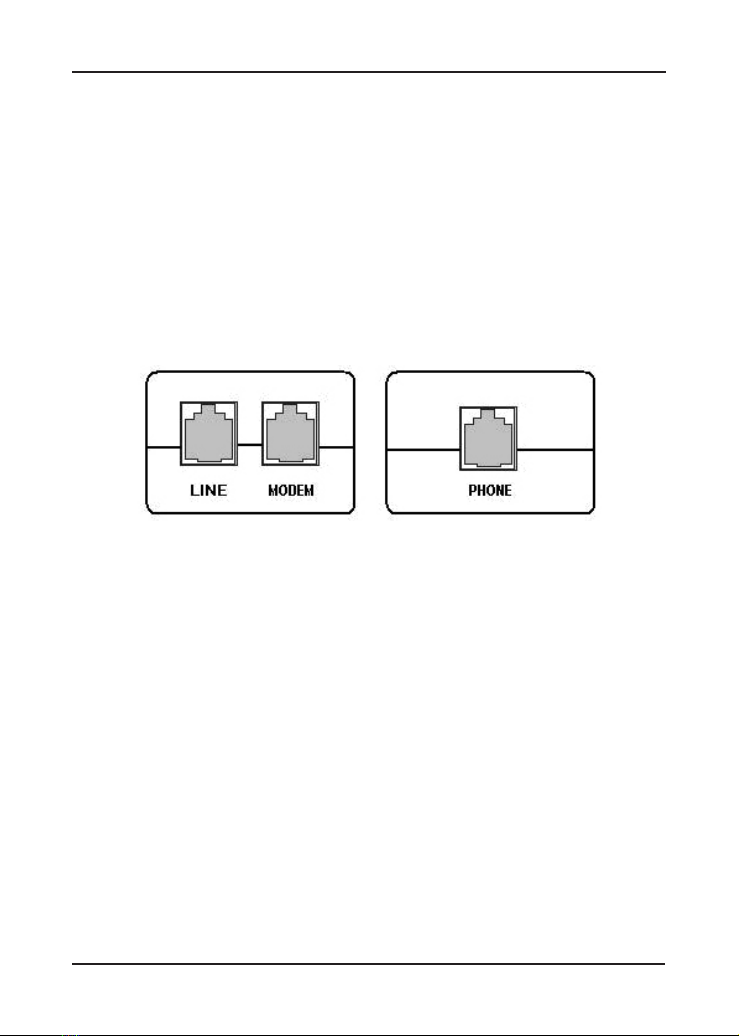

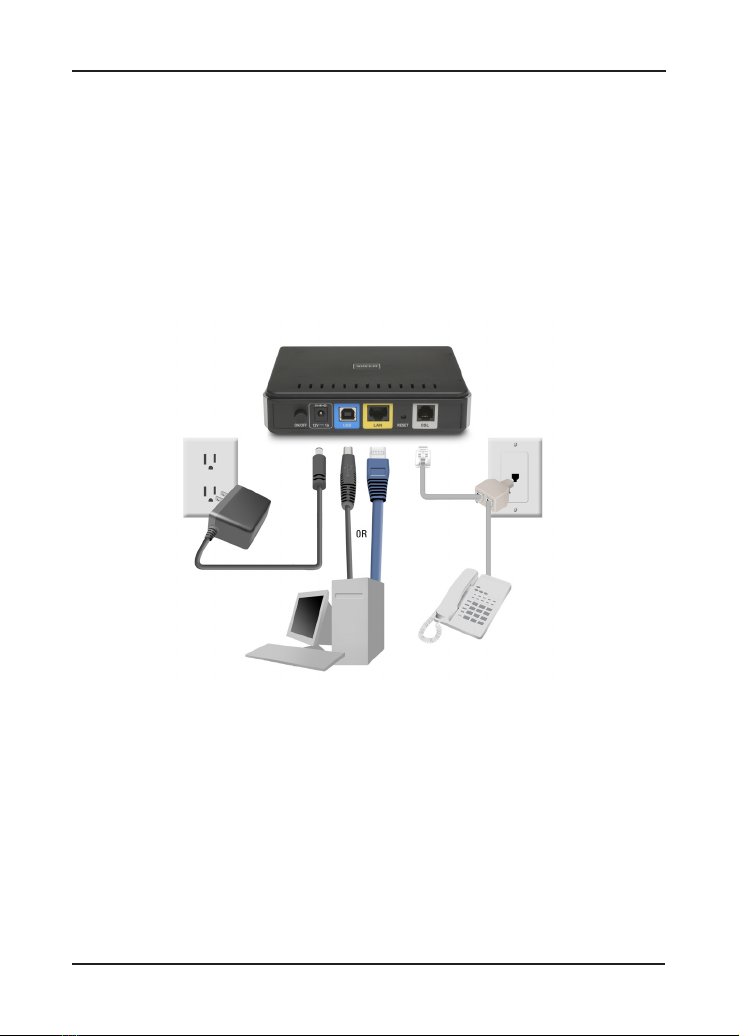

• Connect an RJ-11 cable between the wall phone jack and the line-
end of the splitter (see diagram below).
• Attach another RJ-11 phone cable to the modem-end of the splitter
and the ADSL port on the rear panel of the modem.
• The phone-end of the splitter will be connected to the telephone
using a third RJ-11 phone cable.
Note: See connections on the installation diagram.
Connect the PC to the Modem
• To use the Ethernet connection, connect the Ethernet cable from the
computer directly to the modem. Connect one end of the Ethernet
cable to the port labeled LAN on the back of the modem and attach
the other end to the Ethernet port of your computer.
• Or, you can use the supplied USB cable to connect your computer
directly to the modem. Connect one end of the USB cable to the
USB port on the back of the modem and connect the other end to
a free USB port on your PC. The Found New Hardware Wizard will
open on your PC. See Installation Diagram on page 7.
• If your LAN has more than one computer, you can attach one end of
an Ethernet cable to a hub or a switch and the other to the Ethernet
port (labeled LAN) on the modem. Note that either a crossover
or straight-through Ethernet cable can be used. The modem
automatically recognizes the type of connection that is required.
7 D-Link DSL-2320B Quick Install Guide
Connect the Power Adapter
• Complete the process by connecting the supplied 12VAC, 1A power
adapter to the POWER connector on the back of the device and
plug the adapter into a wall outlet or power strip. Then turn on and
boot up your PC and any LAN devices, such as hubs or switches,
and any computers connected to them.
Installation Diagram
USB Driver Installation
To connect your computer to the modem by the USB cable instead of
the Ethernet cable, you will need to install the modem’s USB driver. If
you are completing the setup using the ethernet port on the modem,
skip this section and proceed to “Configuring your Computer” in the
manual.
8D-Link DSL-2320B Quick Install Guide
The following are general steps (may vary for each computer) to
complete the USB driver installation on a Windows®2000.

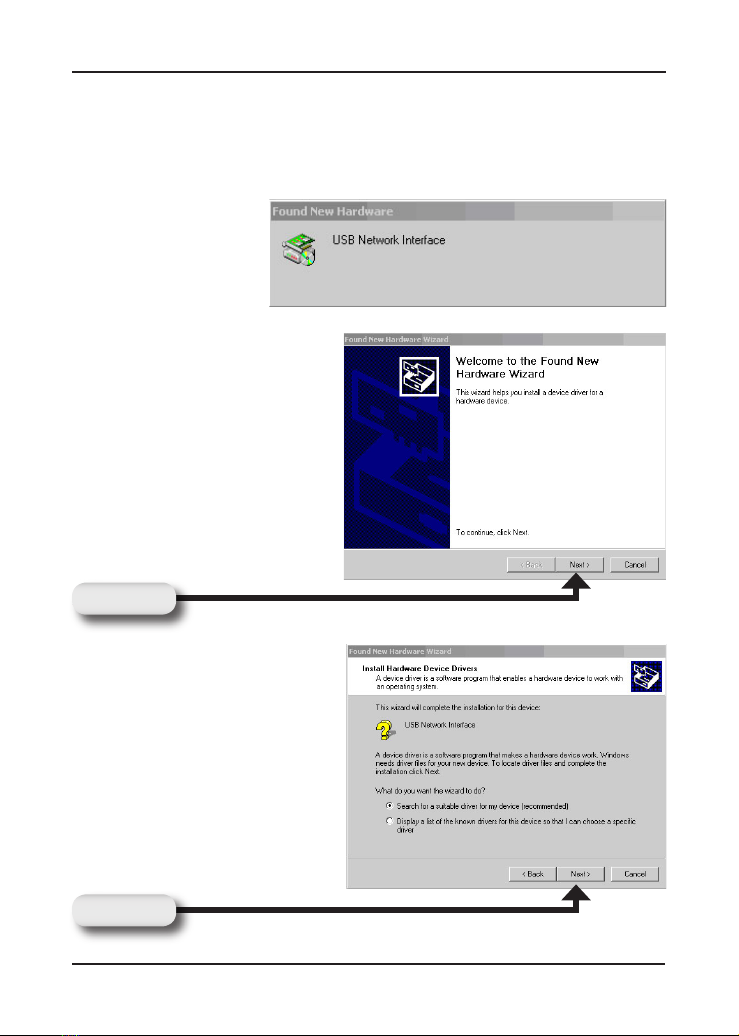

The following pop-up window appears when you connect the USB
cable to your computer (with the other end already attached to the
modem).
The Found New Hardware
Wizard will appear on your
screen.
The next screen allows you
to select how you want the
wizard to search for the driver
on your computer. The default
selection is set to search for a
suitable driver for my device
(recommended).
Click Next
Click Next
9 D-Link DSL-2320B Quick Install Guide

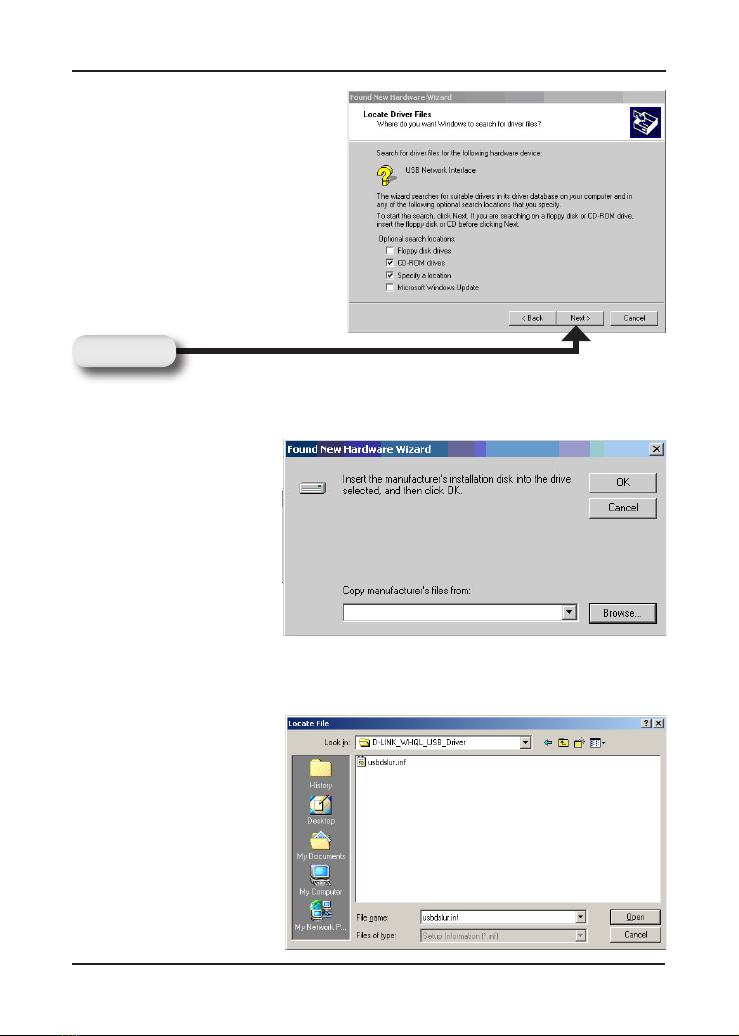

Next, you can specify the
search locations. Make sure
CD-ROM drives and Specify
a Location are selected and
click Next.
Click Next
At this point, you can insert the CD-ROM into your computer’s CD-ROM
drive and click on the Browse button to specify the CD-ROM drive
of your computer.
The driver is located in the folder named D-Link_WHQL_USB_
Driver. The file name is usbdslur.inf. Click Open to proceed with the
installation.
10D-Link DSL-2320B Quick Install Guide

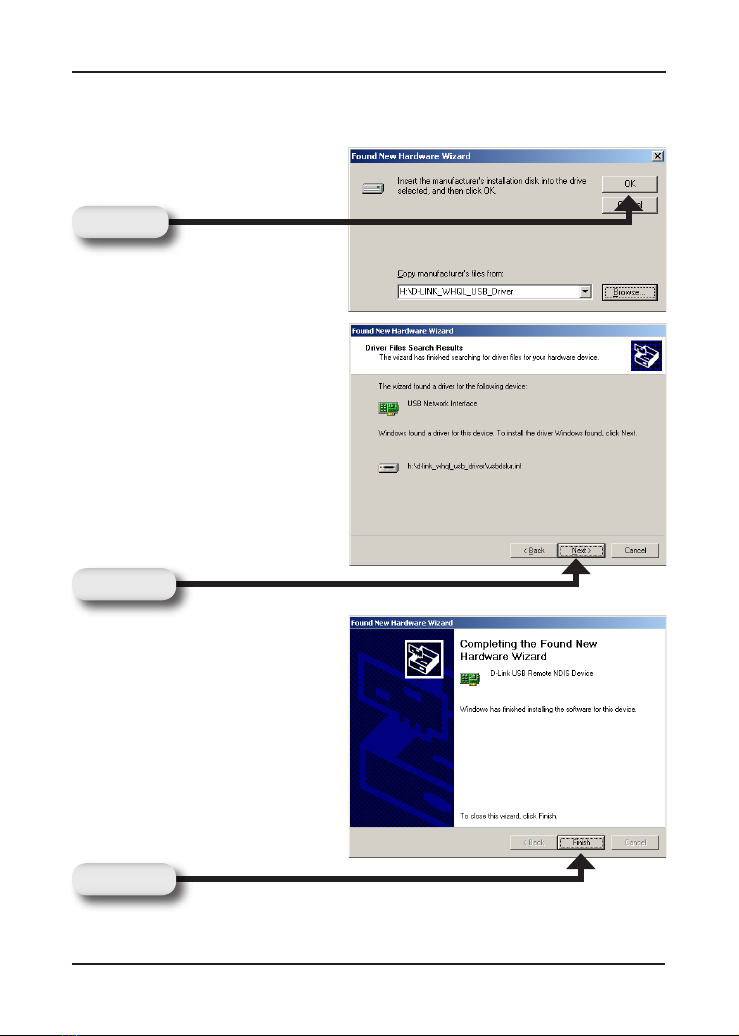

After the file has been selected, the following screen will appear,
verifying the location where the file will be extracted from. Click on
OK to continue.
This next screen shows the
device and the driver to be
installed. Click Next to proceed
with the installation.
The last screen confirms that
the installation is complete.
Click on Finish to close the
wizard.
Click OK
Click Next
Click Next
Note: For procedures on configuring your computer, please see
“Configuring Your Computer” in the manual.
