CYP CH-1527TXPLV Manual de usuario
CH-1527TXPLV & CH-1527RXPLV
4K UHD+HDMI over HDBaseT
Transmitter (PSE) & Receiver (PD)
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2018 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in
use to avoid wasting electricity.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
RDV1 26/12/17 Preliminary release
VS1 09/01/18 Final technical review
VS2 22/01/18 Updated package contents
VS3 20/06/18 Updated section 6.1
CONTENTS
1. Introduction......................................................1
2. Applications.....................................................1
3. Package Contents ..........................................1
4. System Requirements......................................2
5. Features............................................................2
6. Operation Controls and Functions.................3
6.1 Transmitter's Front Panel ........................... 3
6.2 Transmitter's Rear Panel............................ 4
6.3 Receiver's Front Panel............................... 4
6.4 Receiver's Rear Panel ............................... 5
6.5 IR Pin Assignment ...................................... 6
6.6 RS-232 Protocol.......................................... 6
7. Connection Diagram ......................................7
8. Specications ..................................................8
8.1 Transmitter's Technical Specications..... 8
8.2 Receiver's Technical Specications........ 9
8.3 Video Specications............................... 10
8.4 Cable Specications .............................. 12
9. Acronyms .......................................................13
1
1. INTRODUCTION
This transmitter and receiver set is a great solution for extending UHD
video and audio as well as Ethernet and control via a single run of
Cat.5e/6/7 cable over distances up to 70 meters. This extender set
complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as
well as supporting the legacy HDCP 1.x and HDMI 1.x standards.
Despite HDBaseT’s 10.2Gbps bandwidth limitation, 4K UHD HDMI video
sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-
bit sources with HDR, are able to be processed and extended by the
use of AVLC (Adaptive Visually Lossless Compression) when needed.
Multiple data and control interfaces are also provided, including IR
and RS-232 connections. The Receiver (PD) is powered by 48V PoH
(Power over HDBaseT) provided by the Transmitter (PSE), allowing for
greater exibility within different installation scenarios.
2. APPLICATIONS
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
3. PACKAGE CONTENTS
Transmitter
• 1×HDMI over HDBaseT Transmitter (with IR & RS-232)
• 1×48V/0.83A DC Power Adapter
• 1×Power Cord
• 1×3.5mm to IR Blaster Cable
• 1×Operation Manual
Receiver
• 1×HDMI over HDBaseT Receiver (with IR & RS-232)
• 1×3.5mm to IR Extender Cable
• 1×Operation Manual
2
4. SYSTEM REQUIREMENTS
• HDMI source equipment such as a media player, video game
console or set-top box.
• HDMI receiving equipment such as an HDTV, monitor or audio
amplier.
• The use of “Premium High Speed HDMI” cables, and industry
standard Cat.6, Cat.6a or Cat.7, is highly recommended.
5. FEATURES
• HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible
• HDCP 2.2 and HDCP 1.x compliant
• Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input
• Supports output resolutions up to 4K@50/60Hz (4:4:4, 8-bit)
• Supports Deep Color input and output up to 12-bit
• Supports 10-bit and 12-bit HDR bypass
• Supports CEC bypass
• Simultaneous transmission of video, audio and data over a single
Cat.5e/6/7 cable up to 70m (230ft) at 1080p and 35m (115ft) at 4K
• Supported HDBaseT feature set: HD Video & Audio, 48V PoH, and
Control (Bi-directional IR/RS-232 pass-through)
• Integrated AVLC (Adaptive Visually Lossless Compression) activates
when the bandwidth requirements of the source are beyond
10.2Gbps (340MHz) allowing for support of sources up to 18Gbps
(600MHz) with no loss of visual quality
• The AVLC function allows manual selection between High Quality
(Full bandwidth) mode and Standard mode (Lower bandwidth,
useful for longer cable runs with 4K sources)
• Supports standard IEEE 802.3 AT 48V PoH from Transmitter (PSE) to
Receiver (PD) (compatible Receivers only)
Note: The 48V PoH function is designed for powering compatible
Receiver units only. Non-PoH Receivers will need their own power
supply. Receivers from other brands may not be compatible.
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Transmitter's Front Panel

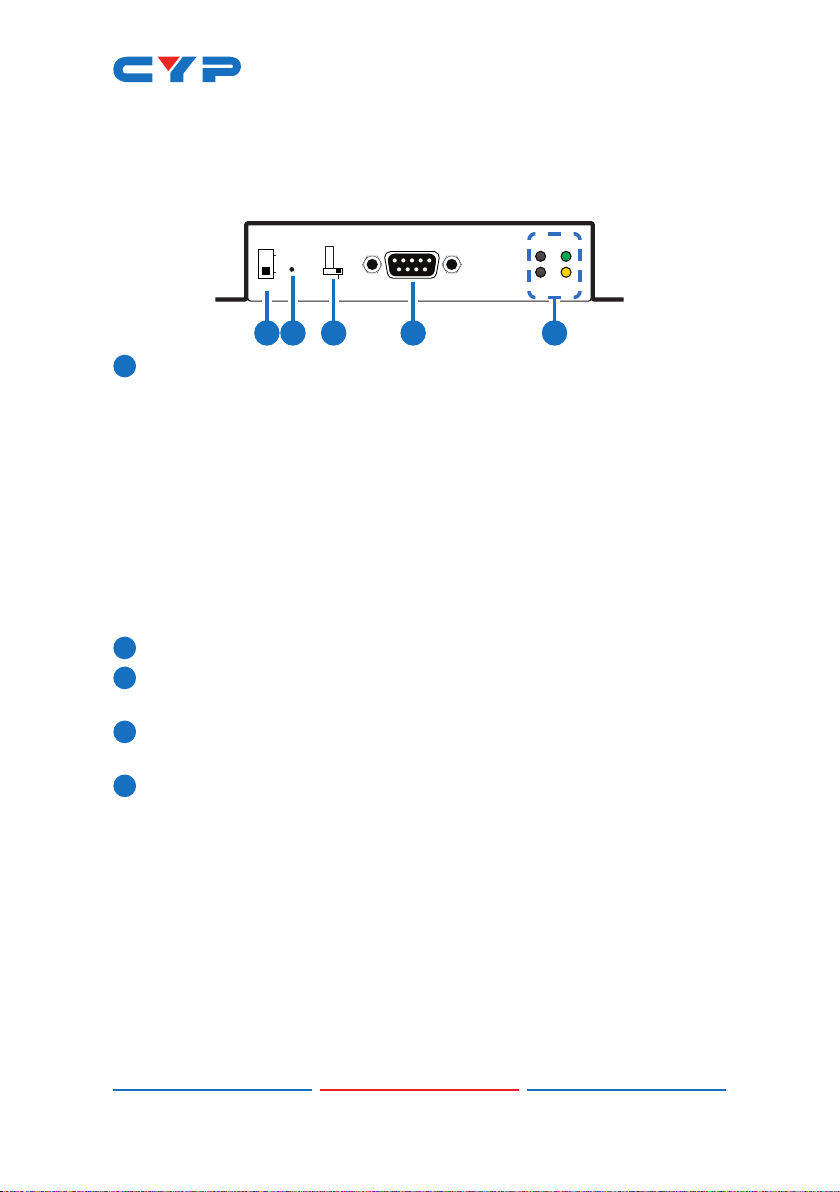

ISP
SYNC PWR
RS-232 IN
STD
UPDATE
LINKHQ/STD
HQ
STD
AVLC
1 2 3 4 5
1STD/HQ: This switch allows the user to select which compression
mode to use when AVLC is active.
HQ (High Quality) mode uses the least amount of compression and
provides the highest possible visual quality (perceptually identical
to the original). In this mode, AVLC compression activates for any
signal requiring more than 9Gbps.
STD (Standard Quality) mode applies additional signal reduction
methods to lower the bandwidth requirements even further,
improving transmission reliability at the cost of some visual delity.
In this mode, AVLC compression activates for any signal requiring
more than 7.5Gbps.
2ISP: This button is reserved for factory use only.
3STD/UPDATE: This switch is reserved for factory use only. The default
setting is “STD”.
4RS-232 IN: Connect to a PC, laptop or other serial control device
for the extension of RS-232 signals.
5SYNC LED: This LED will illuminate when a live input source is
detected.
HQ/STD LED: This LED will illuminate whenever the AVLC function
is active. A green LED indicates that AVLC is in HQ (High Quality)
mode. A red LED indicates that AVLC is in STD (Standard) mode.
POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
LINK LED: This LED will illuminate solidly when a live connection with
a compatible Receiver is active. The LED will blink with a regular
pattern if a Receiver is connected but there is not currently a live
signal. The LED will blink with an irregular pattern if a connection
error has occurred.
4

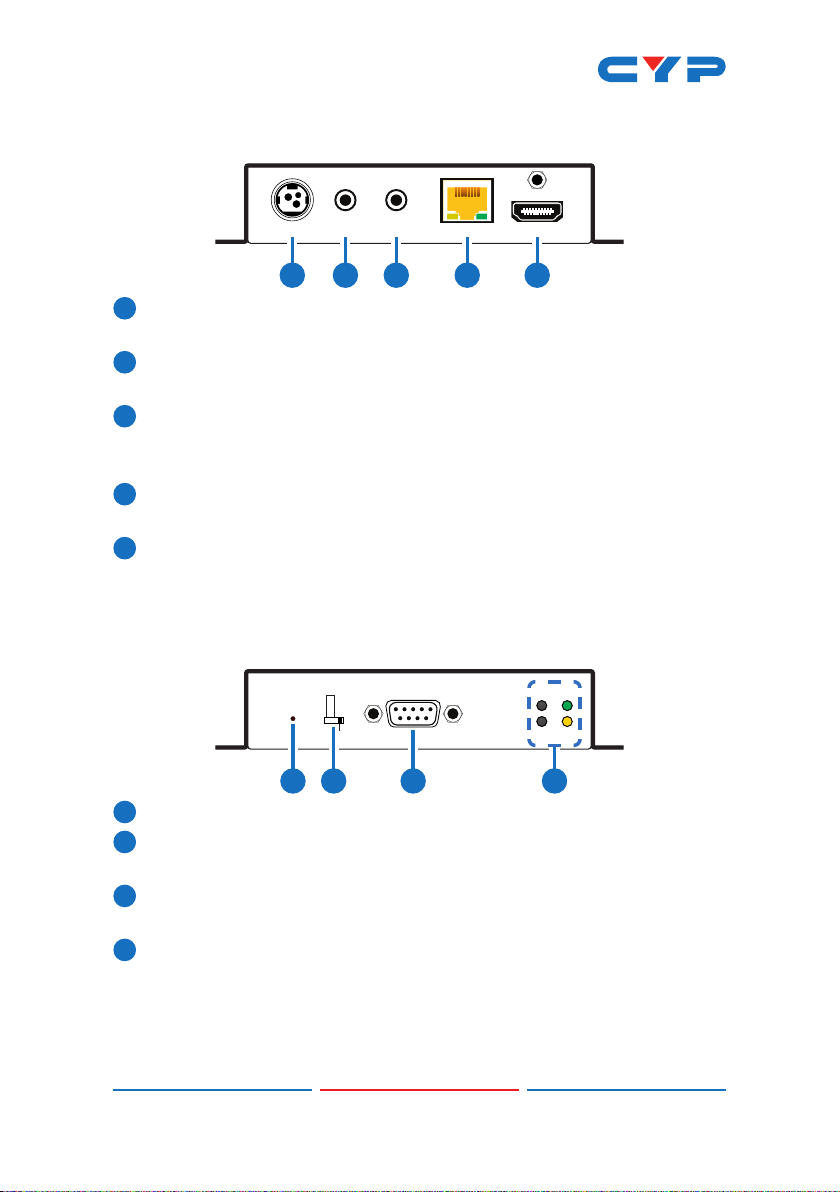

6.2 Transmitter's Rear Panel
HDMI INCAT5e/6/7 OUTDC 48V
IR2
EXTENDER
IR1
BLASTER
1 2 3 45
1DC 48V: Plug the 48V DC power adapter into this port and connect
it to an AC wall outlet for power.
2IR1 BLASTER: Connect to the provided IR Blaster to transmit IR
signals to devices within direct line-of-sight of the IR Blaster.
3IR2 EXTENDER: Connect to the provided IR Extender to extend
the IR control range of remotely located devices. Ensure that the
remote being used is within direct line-of-sight of the IR Extender.
4CAT5e/6/7 OUT: Connect to a compatible HDBaseT Receiver with
a single Cat.5e/6/7 cable for transmission of all data signals.
5HDMI IN: Connect to HDMI source equipment such as a media
player, game console or set-top box.
6.3 Receiver's Front Panel
RS-232 OUT
ISP
LINK
PWR
STD
UPDATE
SYNC
HQ/STD
1 2 3 4
1ISP: This button is reserved for factory use only.
2STD/UPDATE: This switch is reserved for factory use only. The default
setting is “STD”.
3RS-232 OUT: Connect to a serial controllable device for the
extension of RS-232 signals.
4SYNC LED: This LED will illuminate when a live input source is
detected.
HQ/STD LED: This LED will illuminate whenever the AVLC function
is active. A green LED indicates that AVLC is in HQ (High Quality)
mode. A red LED indicates that AVLC is in STD (Standard) mode.
5
POWER LED: This LED will illuminate to indicate the unit is on and
receiving power.
LINK LED: This LED will illuminate solidly when a live connection with
a compatible Receiver is active. The LED will blink with a regular
pattern if a Receiver is connected but there is not currently a live
signal. The LED will blink with an irregular pattern if a connection
error has occurred.
6.4 Receiver's Rear Panel
IR1
EXTENDER CAT5e/6/7 IN HDMI OUT
IR2
BLASTER
1 2 34
1IR2 BLASTER: Connect to the provided IR Blaster to transmit IR
signals to devices within direct line-of-sight of the IR Blaster.
2IR1 EXTENDER: Connect to the provided IR Extender to extend
the IR control range of remotely located devices. Ensure that the
remote being used is within direct line-of-sight of the IR Extender.
3CAT5e/6/7: Connect to a compatible HDBaseT Transmitter with a
single Cat.5e/6/7 cable for transmission of all data signals.
4HDMI OUT: Connect to an HDMI TV, monitor or amplier for digital
video and audio output.
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Transmisor de CYP
CYP
CYP PU-107 Manual de usuario
CYP
CYP PUV-1710LTX-AVLC Manual de usuario
CYP
CYP CH-516TXAS Manual de usuario
CYP
CYP CH-1602RX Manual de usuario
CYP
CYP VEX-T1201T Manual de usuario
CYP
CYP PU-1103 Manual de usuario
CYP
CYP PU-607BD-TX Manual de usuario
CYP
CYP CH-1527TXV Manual de usuario
CYP
CYP PUV-3000TX Manual de usuario
CYP
CYP PUV-1730PLTX-AVLC Manual de usuario
CYP
CYP CH-107TX Manual de usuario
CYP
CYP CH-527TXPLVBD Manual de usuario
CYP
CYP PRO-SDIOF-KIT Manual de usuario
CYP
CYP CA-HDMIAT Manual de usuario
CYP
CYP CH-103TX Manual de usuario
CYP
CYP PU-514LTX-1H Manual de usuario
CYP
CYP PU-103 Manual de usuario
CYP
CYP CH-2605TXV Manual de usuario
CYP
CYP CH-1529TXV Manual de usuario
CYP
CYP PU-305BD-TX Manual de usuario
Manuales populares de Transmisor de otras marcas
Dejero
Dejero EnGo 3x Manual de usuario
Rosemount
Rosemount 4600 Manual de usuario
Speaka Professional
Speaka Professional 2342740 Manual de usuario
trubomat
trubomat GAB 1000 Manual de usuario
Teledyne Analytical Instruments
Teledyne Analytical Instruments LXT-380 Manual de usuario
Rondish
Rondish UT-11 Manual de usuario
