CYP PU-USB2-KIT Manual de usuario
PU-USB2-KIT
USB 2.0 Transmitter/Receiver kit
OPERATION MANUAL
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2020 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply. Please keep the
following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
• Please completely disconnect the power when the unit is not in use
to avoid wasting electricity.
VERSION HISTORY
REV. DATE SUMMARY OF CHANGE
v1.00 08/02/2021 Preliminary release (RDV1)
CONTENTS
1. Introduction..................................................1
2. Applications ..................................................1
3. Package Contents .........................................1
4. System Requirements ..................................1
5. Features.........................................................2
6. Operation Controls and Functions ..............3
6.1 Transmitter’s Front & Rear Panel.....................3
6.2 Receiver’s Front & Rear Panel ..........................4
7. Connection Diagram ....................................5
8. Specifications................................................6
8.1 Technical Specifications ....................................6
8.2 Cable Specifications ...........................................8
9. Acronyms.......................................................9
1
1. INTRODUCTION
This compact and low cost USB 2.0 Extender set is designed to expand
the usability and exibility of the most prevalent interface standard used
nowadays, USB. This extender provides a simple and efficient way to
extend the USB 2.0 connection from a typical host, such as a PC or laptop,
to up to 4 standard USB devices located as far as 50 metres away. It
extends the high quality data stream over single Cat.5e (or better) cable,
with full support for the entire range of USB 2.0 compliant products and
data formats. The receiver can supply up to 2A of total power (500mA per
port) to devices connected to the 4 USB Type-A ports.
2. APPLICATIONS
Remote USB extension
Security and monitoring
Industrial Control
Conference room and boardroom KVM Extension
3. PACKAGE CONTENTS
1× USB 2.0 Extender Transmitter
1× USB 2.0 Extender Receiver
1× 5V/3A DC Power Adapter
1× Operation Manual
4. SYSTEM REQUIREMENTS
The use of industry standard Cat.6, Cat.6A or Cat.7 cable is highly
recommended.
2
5. FEATURES
Convenient point-to-point USB 2.0 extension with 4 port hub
1 host port on the transmitter and 4 device ports on the receiver
Supports standard USB 2.0 devices, such as a mouse and keyboard, as
well as those requiring isochronous transfers such as webcams and
portable storage
Supplies up to 2A of power to the 4 USB ports (500mA per port)
Low RF emission and robust noise immunity
Simple plug-and-play operation, no drivers required
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Transmitter’s Front & Rear Panel
Front Rear
USB
CAT5e/6A/7 OUT
PU-USB2-TX
12
USB
CAT5e/6A/7 OUT
PU-USB2-TX
12
1USB Port: Connect directly to a USB host such as a PC or laptop to
extend their USB functionality to devices connected to the USB ports
on the currently connected receiver.
2CAT 5e/6A/7 OUT Port: Connect to a compatible receiver with a
single cable for transmission and reception of all data signals.
Note: This unit is directly powered by the connected receiver.
4
6.2 Receiver’s Front & Rear Panel
Front Rear
USB 2.0
DC 5V CAT5e/6A/7 IN
123
PU-USB2-RX
USB 2.0
DC 5V CAT5e/6A/7 IN
123
PU-USB2-RX
1USB 2.0 Ports: Connect directly to standard USB devices such as a
mouse, keyboard or ash drive to extend their USB functionality to
the host currently connected to the transmitter’s USB port.
Note: Each port can provide up to 500mA power.
2DC 5V Port: Plug the 5V DC power adapter into this port and connect
it to an AC wall outlet for power.
3CAT 5e/6A/7 IN Port: Connect to a compatible transmitter with a
single cable for transmission and reception of all data signals.
Note: Power is also provided to the connected transmitter.
5

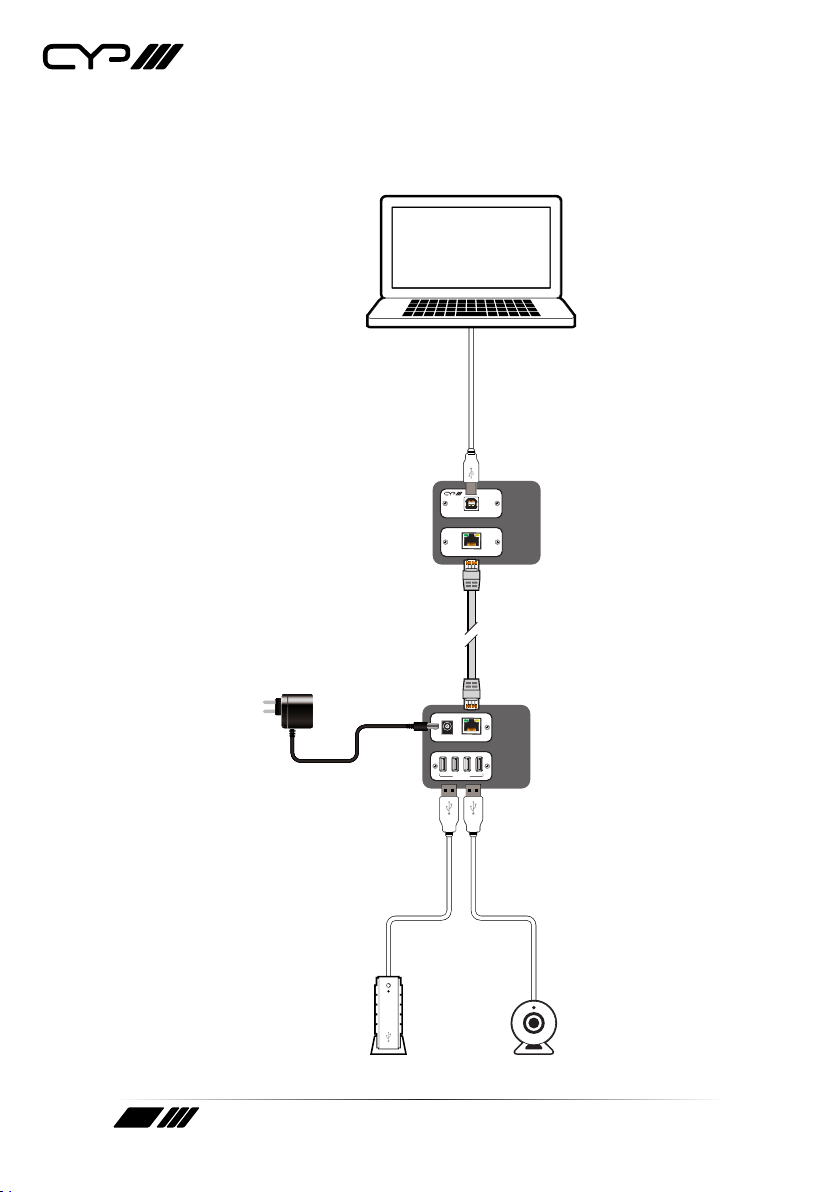

7. CONNECTION DIAGRAM
USB
PU-USB2-TX
CAT5e/6A/7 OUT
DC 5V CAT5e/6A/7 IN
USB 2.0
PU-USB2-RX
TX
RX
PC/Laptop
WebcamUSB Storage
Power
Supply
USB
Input
USB
Output
USB Devices
LAN Cable
