CYP PUV-1650TX Manual de usuario

PUV-1650TX & RX

5Play™ HDBaseT™ Transmitter & Receiver

with Scaling, Control and Audio De-embedding

OPERATION MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and is

believed to be accurate. CYP (UK) Ltd assumes no responsibility for any

infringements of patents or other rights of third parties which may result

from its use.

CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be

contained in this document. CYP (UK) Ltd also makes no commitment to

update or to keep current the information contained in this document.

CYP (UK) Ltd reserves the right to make improvements to this document

and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer file, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express

written permission and consent from CYP (UK) Ltd.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of fire,

electrical shock and injury to persons.

• To prevent fire or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts inside

the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if

it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufficient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE SUMMARY OF CHANGE

v1.00 06/03/2018 First release

CONTENTS

1. Introduction...........................................6

2. Applications ...........................................6

3. Package Contents ..................................7

4. System Requirements ...........................7

5. Features..................................................8

6. Operation Controls and Functions.......9

6.1 Transmitter's Top Panel............................ 9

6.2 Transmitter's Front and Rear Panels..10

6.3 Receiver’s Top Panel................................11

6.4 Receiver’s Front and Rear Panels........12

6.5 OSD Menu ..................................................14

6.6 IR Cable Pin Assignments .....................22

6.7 RS-232 Protocol........................................22

6.8 Telnet Control............................................23

6.9 WebGUI Control .......................................52

7. Connection Diagram .......................... 74

8. Specifications...................................... 75

8.1 Technical Specifications ........................75

8.2 Video Specifications................................78

8.3 Application Notes....................................87

9. Acronyms............................................. 88

1. INTRODUCTION

This new collaboration Transmitter and Receiver system is a convenient

turnkey solution for video selection and extension in conference rooms,

classrooms and showrooms. These units provide not only AV conversion

and extension but also an intelligent and easy way to control devices

throughout the entire venue. The three most common input interfaces

(HDMI, DisplayPort, and VGA) are supported by the Transmitter, providing

the ultimate in source compatibility and flexibility. The HDMI and

DisplayPort inputs both support resolution/timing up to a maximum of

4K@60Hz (4:4:4, 8-bit) which is converted, as appropriate, for transmission

over HDBaseT. The selected source can be transmitted over Cat.6/7 cable

up to 70m (at 4K@60Hz). The Receiver can scale the HDBaseT video

source, or local HDMI input, to match the connected display’s resolution

requirements.

The Transmitter also provides an interface for a remote control keypad, or

trigger interface, which can be easily installed within a podium or within

a table in a conference room or classroom. This interface can allow the

user to control a wide range of devices by activating single commands or

complex macros and sending commands out over the local network. In

order to provide a more robust selection of control options, the Receiver

also supports 2 relay connections, providing instant control over projector

screens, curtains, lights, etc. The unique macro programmability allows

for the implementation of multiple command activations from a single

button press. These units are controllable via top panel controls (with

OSD), WebGUI, Telnet, and RS-232.

2. APPLICATIONS

Conference room display

Classroom display

Showroom display

3. PACKAGE CONTENTS

Transmitter

1×HDMI/DP/VGA over HDBaseT Scaling Transmitter

1×IR Extender Cable

1×IR Blaster Cable

2×Terminal Blocks (5-pin)

1×Operation Manual

Receiver

1×HDMI over HDBaseT Scaling Receiver

1×IR Extender Cable

1×IR Blaster Cable

2×Terminal Blocks (2-pin)

1×Terminal Block (5-pin)

1×24V/2.7A DC Power Adaptor

1×Power Cord

1×Operation Manual

4. SYSTEM REQUIREMENTS

HDMI and DisplayPort source equipment such as media players, video

game consoles or set-top boxes.

VGA source equipment such as PCs, laptops or set-top boxes.

HDMI receiving equipment such as HDTVs, monitors or audio

amplifiers.

Analog audio receiving equipment such as headphones, audio

amplifiers or powered speakers.

The use of “Premium High Speed HDMI”cables is highly recommended.

The use of industry standard Cat.6, Cat.6a or Cat.7 cable is highly

recommended.

5. FEATURES

HDMI, DisplayPort, and VGA input support

Input resolution support up to 4K@60Hz (4:4:4, 8-bit) via HDMI and

DisplayPort

HDBaseT feature support: High-Definition (HD) Video and Audio,

100BaseT Ethernet, 48V PoH, and Bi-directional IR pass-through

Receiver's scaled output supports resolutions up to 4K@60Hz (4:4:4,

8-bit) via HDMI

Support pass-through of LPCM 2.0/5.1/7.1, Bitstream & HD Bitstream

audio formats

External analog stereo audio embedding/de-embedding support

Support for automatic input detection and automatic switching on

source loss

Supports controlling a wide variety of conference room equipment

such as media players, projectors, projection screens, curtains, etc. via

Ethernet, RS-232, IR, or relay (method is device dependent)

Support for IR code learning as well as IR broadcasting

Supports Telnet for both client and server functionality

Control system supports defining up to 16 devices to simplify control

and management of controlled devices within the system

Integrated macro command lists support activating multiple events

from a single button press (up to 16 actions per macro)

Battery backed up RTC (Real Time Clock) to control scheduled macro

execution and program event activation

Supports extended keypad (trigger) control for easy, single button,

macro activation (optional equipment)

Compatible with the wall plate control system, allowing for full control

of devices within the same Ethernet network (optional equipment)

Advanced EDID management options including Internal, External, and

User configurations

Easy firmware updates in the field via USB thumb drive or WebGUI

Controllable via top-panel buttons (with OSD), WebGUI, Telnet, and RS-232

6. OPERATION CONTROLS AND FUNCTIONS

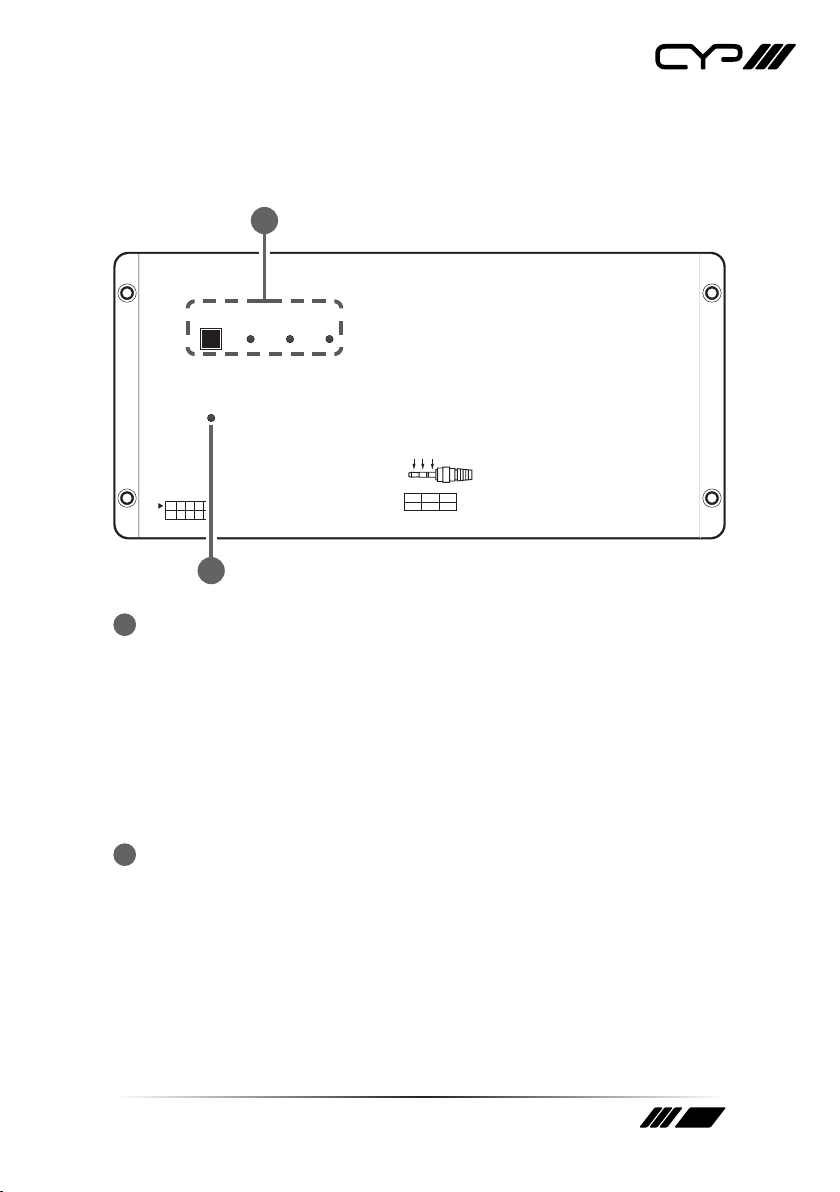

6.1 Transmitter's Top Panel

LANSERVICE RS-232TRIGGER IN IR OUTIR IN

IR IN

IR OUT

OUT

GND GND

321

GND

3.3V

HDMI IN DP IN HDMI OUT CAT 5e/6/7 OUT

VGA IN

AUDIO IN

GND

213

LOCK

SOURCE VGA

HDMI

1SOURCE & LEDs: Press this button to sequentially switch through

the available inputs. The LED will illuminate GREEN to indicate which

source is currently selected. Live, but unselected, sources will be lit

RED.

This unit supports a total of 4 sources (3 on the Tx, 1 on the Rx). The

selection sequence is: Tx VGA→Tx HDMI→Tx DP→Rx HDMI→Tx

VGA→Etc. When the Rx’s HDMI input is selected, the Tx’s local

mirrored HDMI output will continue to display the last local input that

was selected.

2LOCK LED: This LED will be lit when the unit’s controls are in the

locked state.

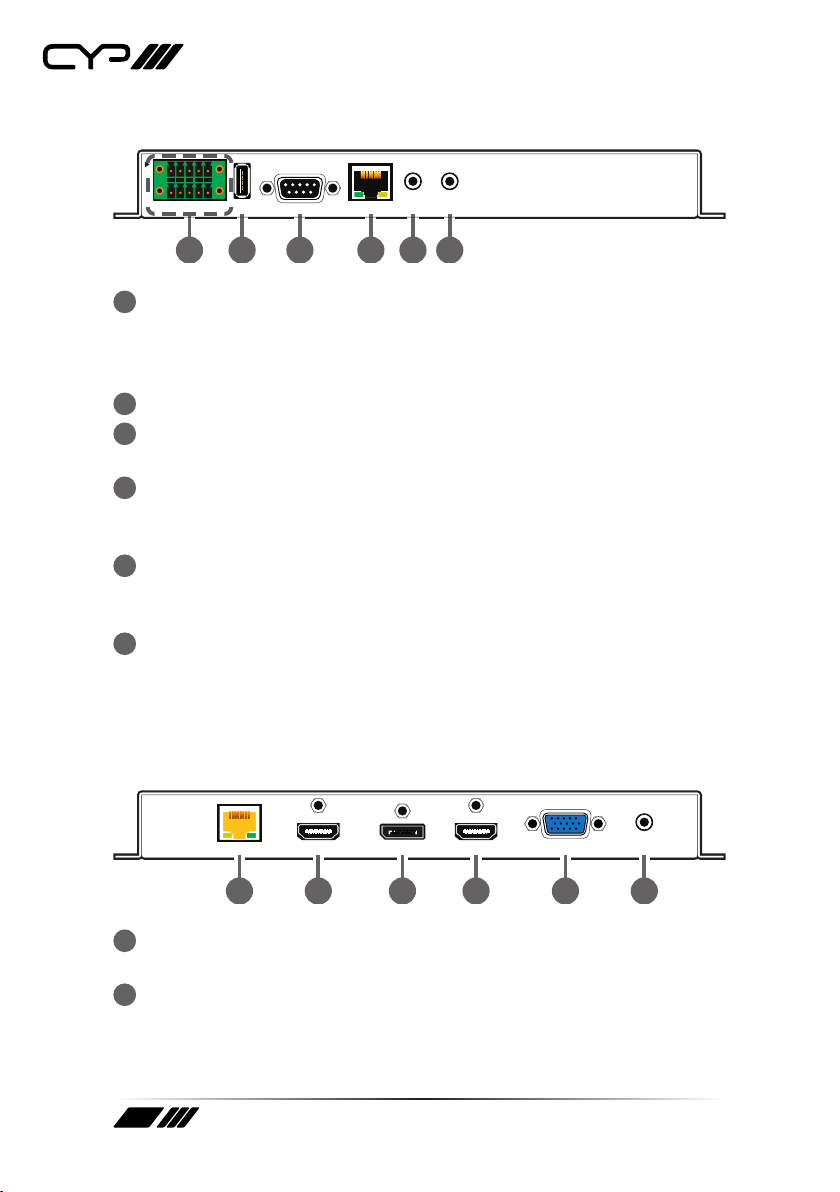

6.2 Transmitter's Front and Rear Panels

LANSERVICE RS-232TRIGGER IN IR OUTIR IN

1 2 3 4 5 6

1TRIGGER IN: This 10 pin terminal block provides 8 trigger pins for

activating functions and macros within the unit. 5V and ground pins

are also provided for compatibility and use with the optional Trigger

Keypad unit.

2SERVICE: This slot is reserved for firmware update use only.

3RS-232: Connect to a PC, laptop or other serial control device to send

RS-232 commands to control the unit.

4LAN: Connect directly, or through a network switch, to your PC/laptop

to control the unit via Telnet/WebGUI and to extend the network

across the HDBaseT connection.

5IR IN: Connect to the provided IR Extender to extend the IR control

range of remotely located devices. Ensure that the remote being used

is within direct line-of-sight of the IR Extender.

6IR OUT: Connect to the provided IR Blaster to transmit IR signals to

devices within direct line-of-sight of the IR Blaster.

Note: The IR In/Out ports are multi-function and may be reconfigured as

IR Control, IR Emitter, and IR Learner in addition to the basic IR Bypass

functionality.

AUDIO IN

HDMI IN

DP IN

HDMI OUT

CAT 5e/6/7 OUT VGA IN

2 3 45 6

1CAT5e/6/7 OUT: Connect to a compatible HDBaseT Receiver with a

single Cat.5e/6/7 cable for transmission of all data signals.

2HDMI OUT: Connect to HDMI TVs, monitors or amplifiers for digital

video and audio output.

Note: This HDMI output is bypass only and is independent from the

timing/colour space transmitted over the HDBaseT output.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Receptor de CYP

CYP

CYP CWHDI-Tx Manual de usuario

CYP

CYP CA-HDMI50R Manual de usuario

CYP

CYP CH-1604TXD Manual de usuario

CYP

CYP PU-305BD-RX Manual de usuario

CYP

CYP PUV-1830RX-AVLC Manual de usuario

CYP

CYP PU-1109KIT Manual de usuario

CYP

CYP CA-HDMI150R Manual de usuario

CYP

CYP PU-606PLBD-TX Manual de usuario

CYP

CYP PUV-1810RX-AVLC Manual de usuario

CYP

CYP CH-517RXHS Manual de usuario

CYP

CYP CDVI-301TX & RX Manual de usuario

CYP

CYP PU-515PL-WPRX Manual de usuario

CYP

CYP CH-507RXWP Manual de usuario

CYP

CYP CH-1529RXPLV Manual de usuario

CYP

CYP CA-HDMI250R Manual de usuario

CYP

CYP CH-2538TXPLWPKD Manual de usuario

CYP

CYP PU-515PLRX-2HCD Manual de usuario

CYP

CYP CH-1106TX & RX Manual de usuario

CYP

CYP PRO-HDMIFO-KIT Manual de usuario

CYP

CYP PU-507RX-2H Manual de usuario

CYP

CYP CH-352RX Manual de usuario

CYP

CYP CH-107 RX Manual de usuario

CYP

CYP CRS-232 Manual de usuario

CYP

CYP AVX-101F-KIT Manual de usuario

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario
