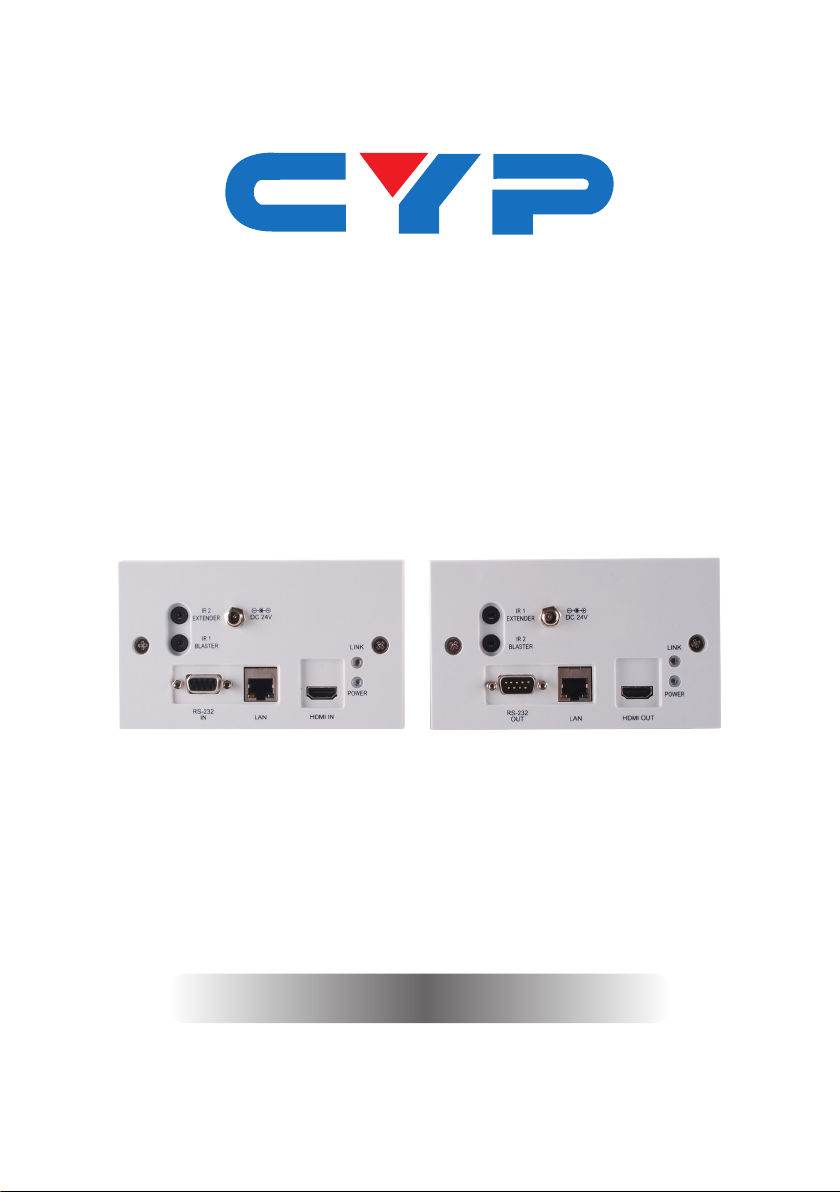

CH-507TXWPBD & RXWPBD
HDMI over Single CAT5e/CAT6
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2012 by Cypress Technology.
All Rights Reserved.
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
RDV1 25/04/13 Preliminary Release
RDV2 25/07/19 Update Format and Cable
Distance
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Transmitter.........................................3
6.2 Receiver ............................................4
7. D-Sub 9 Pin Denitions........................... 5
8. Connection Diagram ............................ 6
Option 1: Point to Point..........................6
Option 2: Matrix System.........................7
9. Specications ........................................ 8
9.1 Cable Specications .......................9
10. Acronyms ........................................... 10
1
1. INTRODUCTION
The HDMI over single CAT5e/6/7 wall-plate transmitter and receiver
setcan transmit and receive uncompressed audio/video over a single
run of CAT5e/6/7 cable up to 100m/328ft at 1080p and 70m/229ft at
4K with bi-directional PoC & IR functions,LAN of a data transmission
rate of 100Mbps & RS-232 features. A true HDBaseT 5Play solution to
make your home or ofce more efcient and easy with control.
2. APPLICATIONS
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
3. PACKAGE CONTENTS
• HDMI over Single CAT5e/CAT6 Transmitter x 1
• HDMI over Single CAT5e/CAT6 Receiver x 1
• IR Blaster x 1
• IR Receiver x 1
• 24V DC Power Adaptor x 1
• Operation Manual
4. SYSTEM REQUIREMENTS
Input HDMI source equipment such as DVD/Blu-ray player and
HDMIequipped output display (TV or monitor)with HDMI input jack.
2
5. FEATURES
• HDMI 1.x and DVI 1.0 compliant
• HDCP compliant
• Supports HDMI 3D and 4K x 2K features
• Supports HDCP repeater and CEC bypass
• Supports distance up to 100m/328ft at 1080p and 70m/229ft at 4K
through CAT5e/6/7 cable
• HDMI input resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz
( YUV 4:4:4, 8-bit)
• Supports pass-through of audio formats including LPCM 2.0/5.1/7.1,
and Bitstream over HDMI
• 5Play™ convergence: HDMI, bi-directional PoC, (bi-directional IR &
RS232) & LAN
• Wall plate design and Installation Friendly
Note: This system was tested with CAT6/23AWG and CAT5e/24AWG
cable, so if using cables of another type, results may vary.
In order to send and receive HDMI contain of 4k x 2k,
equivalencesource, display and HDMI cable specication is required
to ensureproper output.
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Transmitter
HDMI INLAN
POWER
LINK
IR 2
EXTENDER
IR 1
BLASTER
DC 24V
RS-232
IN
1 2
3 4 5 6 7 8
1IR 2 EXTENDER: This slot is to connect with the IR receiver cable
included in the package for IR signal receiving.
2DC 24V: Connect the power adaptor included in the package
and then connect to AC power to activate the device.
3IR 1 BLASTER: This slot is to connect with the IR blaster cable
included in the package for IR signal transmitting.
4RS-232 IN: This slot is to connect with D-Sub 9-pin cable from
PC/loptop device RS-232 commands sending.
5LAN: Connect to an active network for LAN serving and Telnet/
Web GUI control.
When the transmitter or any compatible LAN equipped receivers
are connected to a network, this allows the network access
(including internet access if available) to be shared between the
transmitter and all connected receivers. Connect any Ethernet
equipped device e.g. a Smart TV or games console to the LAN
port of a receiver for that device to share the network/internet
access.
4
6HDMI IN: This slot is to connect with HDMI source equipment such
as DVD/Blu-ray player with HDMI source signal.
7Power LED: This LED will illuminate when the device is connected to
a power supply.
8LINK LED: This LED will illuminate when the both CAT5e/6/7 input
and output signal is connected.
6.2 Receiver
HDMI OUTLAN
POWER
LINK
IR 1
EXTENDER
IR 2
BLASTER
DC 24V
RS-232
OUT
1 2
3 4 5 6 7 8
1IR 1 EXTENDER: This slot is to connect with the IR receiver cable
included in the package for IR signal receiving.
2DC 24V: Connect the power adaptor included in the package
and then connect to AC power to activate the device.
3IR 2 BLASTER: This slot is to connect with the IR blaster cable
included in the package for IR signal transmitting.
4RS-232 OUT: This slot is to connect with D-Sub 9-pin cable from
device equipment for receiving RS-232 commands.
5LAN: Connect to an active network for LAN serving and Telnet/
Web GUI control.
When the transmitter or any compatible LAN equipped receivers
are connected to a network, this allows the network access
5
(including internet access if available) to be shared between the
transmitter and all connected receivers. Connect any Ethernet
equipped device e.g. a Smart TV or games console to the LAN
port of a receiver for that device to share the network/internet
access.
6HDMI OUT: This slot is to connect with HDMI TV/monitor for display
HDMI input source signal.
7Power LED: This LED will illuminate when the device is connected to
a power supply.
8LINK LED: This LED will illuminate when the both CAT5e/6/7
input and output signal is connected.
7. D-SUB 9 PIN DEFINITIONS
Pin Dene TX/RX
1 N/C
2TxD/RxD
3RxD/TxD
4 N/C
5 GND
6 N/C
7 N/C
8 N/C
9 N/C
