CYP nT15FX06 Manual de usuario
CV-400H
SOLUTIONS FOR GROWTH n - TECH SOLUTIONS
nT
Operation Manual
Operation Manual
HDMI TO VIDEO SCAN
nT15FX06
CONVERTER
Disclaimers
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes
no commitment to update or to keep current the information
contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright Notice
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means
- electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise - without express written permission and consent from
Cypress Technology.
© Copyright 2010 by Cypress Technology.
All Rights Reserved.
Version 1.0 December 2010
Trademark Acknowledgments
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of
re, electrical shock and injury to persons.
To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
Do not attach the power supply cabling to building surfaces.
Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide ventilation.
Revision History
Version No Date Summary of Change
V1 20100715 Preliminary Release
VS2 20101201 Add HDCP Description
VR3 20110823 Cancel HDCP Complaint
Table of Contents
1. Introduction ..................................................................................1
2. Applications .................................................................................1
3. Package Contents ......................................................................1
4. System Requirements ..................................................................1
5. Features ........................................................................................ 1
6. Specications ..............................................................................2
7. Operation Controls and Functions ............................................. 3
7.1 Front Panel ........................................................................ 3
7.2 Rear Panel ........................................................................ 4
7.3 Top Panel .......................................................................... 5
8. Connection and Installation ....................................................... 6
1
1. Introduction
The HDMI to CVBS Converter is designed to convert digital signal from HDMI
source to analog signal of NTSC or PAL system, with L/R stereo audio. This
device provides a convenient application that allows the users to store
high denition movie in a standard resolutions of 480i or 576i on DVR or VCR
machine.
The device is HDMI 1.2 & DVI 1.0 compliant and it features many great
functions such like 3D noise reduction, frame rate conversion, adaptive
contrast enhancement…and etc. Further, a simplify OSD function is available
allowing user with easy viewing on the displaying status.
2. Applications
• HDMI signal convert into Composite NTSC or PAL signal
• Digital audio signal convert into analog audio signal
3. Package Contents
• HDMI to Composite Converter Box
• 5V / 1A DC Power Adaptor
• Operation Manual
4. System Requirements
Input source equipment such as DVD or Blue-Ray player with HDMI cable and
output display TV/Monitor with composite & L/R RCA jack cable.
5. Features
• HDMI 1.2 and DVI1.0 compliant
• Converts video signal from HDMI source to NTSC or PAL signal
• Converts digital audio from HDMI source to analog stereo audio
• Accepts a wide range of HDTV input resolutions, from 480p to 720p@60Hz
and PC from VGA@60Hz to WXGA@60Hz
• Output picture size Underscan / Overscan
• 3D noise reduction in both temporal and spatial domain
• Frame rate conversion with arbitrary
• Adaptive contrast enhancement
Note: This product does not process HDCP input. When receiving content
that has HDCP encryption there will be no video output.
2
6. Specications
Input Port 1 x HDMI,
Output Port 1 x CVBS, 1 x L/R RCA Jack
HDMI Input Resolution 480p, 576p & 720p, VGA@60 / 72 / 75 / 85,
SVGA@56 / 60 / 72 / 75 / 85, XGA@60 / 70 / 75,
WXGA(1224x768;1280x768;1280x800)@60RB / 60
HDMI Input Audio LPCM 2Ch, 48kHz
Output Video NTSC/PAL
Output Audio Stereo L/R
ESD Protection Human body model: ±8kV (air-gap discharge)
±6kV (contact discharge)
Dimensions(mm) 114 (W) x 65 (D) x 26(H)
Weight(g) 120
Chassis Material Plastic
Silkscreen Color White
Operating Temperature 0°C~40°C / 32°F~104°F
Storage Temperature -20°C~60°C / -4°F~140°F
Power Consumption 3W
Relative Humidity 20 ~ 90% RH (non-condensing)
3
7. Operation Controls and Functions

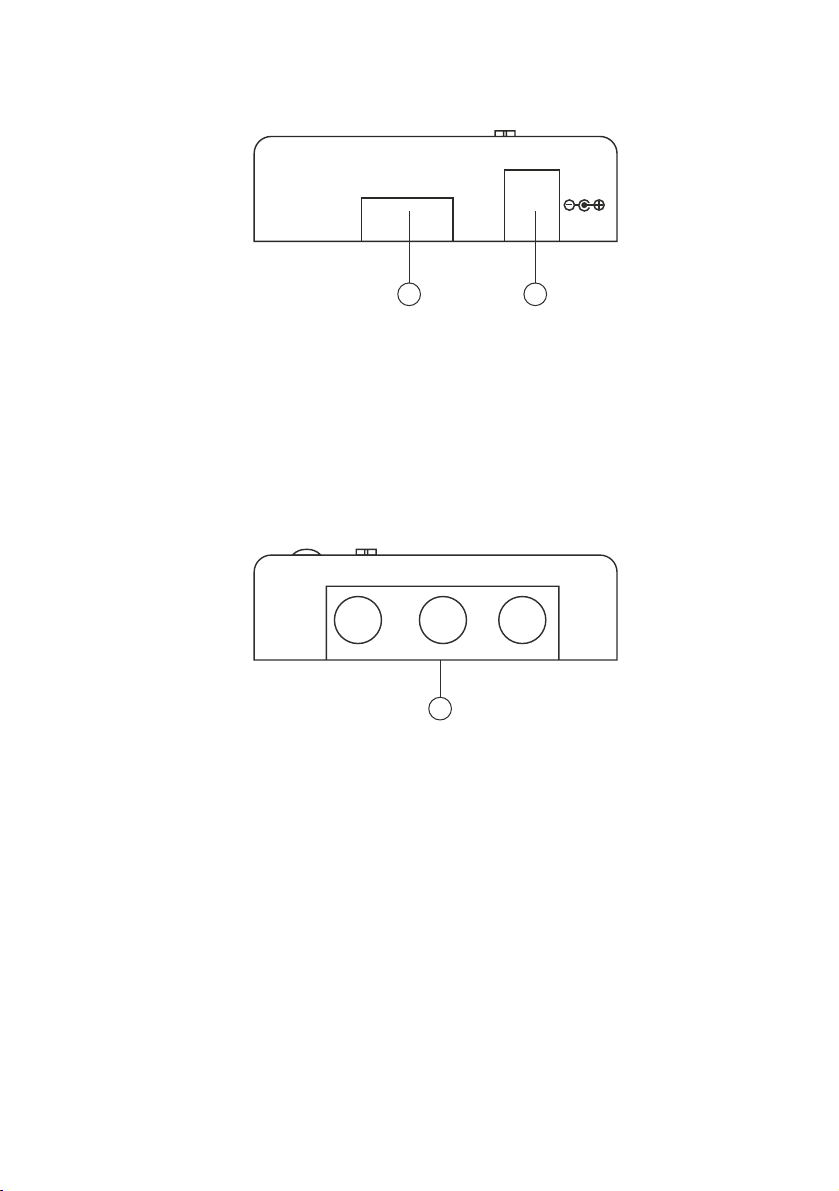

7.1 Front Panel
12
HDMI IN DC 5V
①
HDMI IN: This slot is to connect with input source equipment such as DVD
or Blue-Ray player with HDMI cable.
②
DC 5V: plug the 5V DC power supply into the unit and connect the
adaptor to AC wall outlet. The LED will illuminate when the power is plug on.
7.2 Rear Panel
1
OUTPUT
R L VIDEO
①
OUTPUT R/L/VIDEO: These slots are to connect with output display TV/
monitor with R/L & composite RCA jack cable.
4

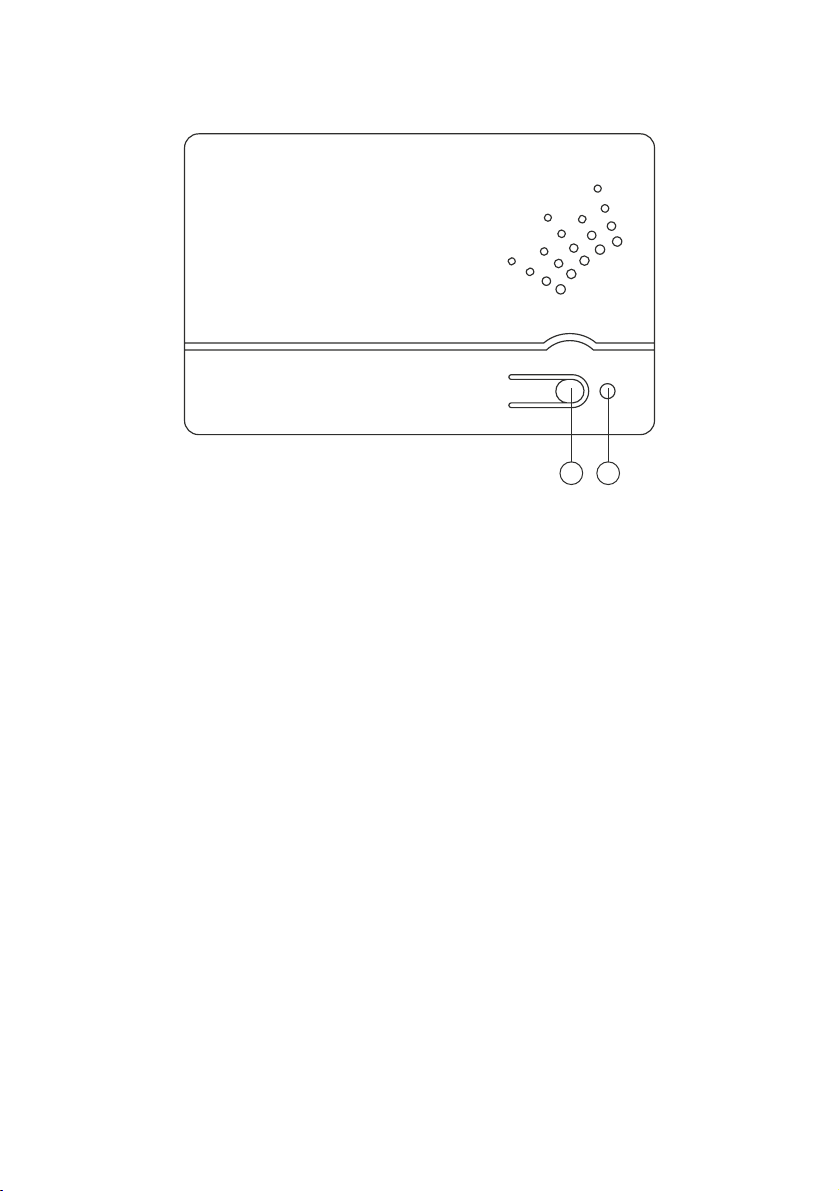

7.3 Top Panel
1 2
NTSC/ P
HDMI to VIDEO
AL
①
NTSC / PAL: Press this button once to allow OSD to be display on screen
and the OSD contents will show input resolution with output system
status. Press it again while the OSD still appear on screen to switch the
output display to NTSC/PAL system. Press it for 3 second to select
underscan/overscan function.
②
Power LED: Green LED will illuminate when the power is plug on to the
AC wall outlet.
5

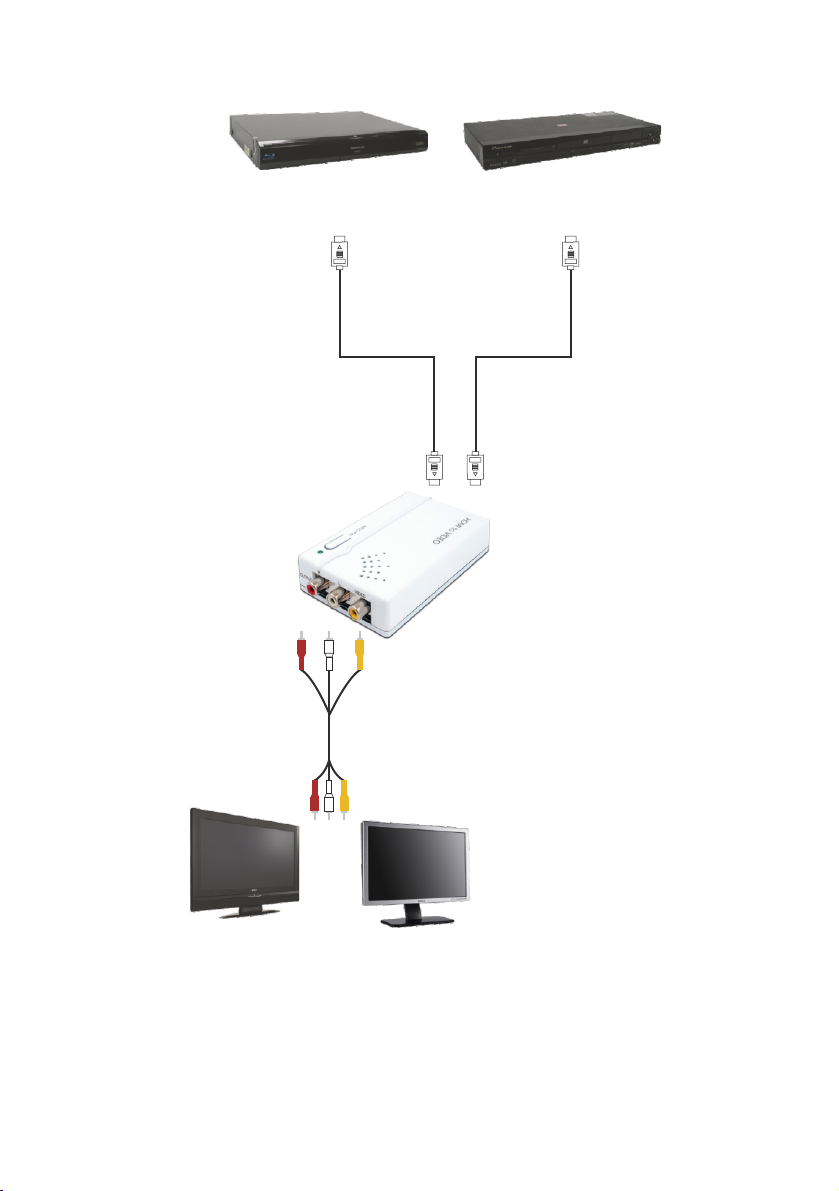

8. Connection and Installation
TV
DVD
Monitor
or
or Blu-Ray
HDMI
HDMI
HDMIHDMI
CV-400H
6
